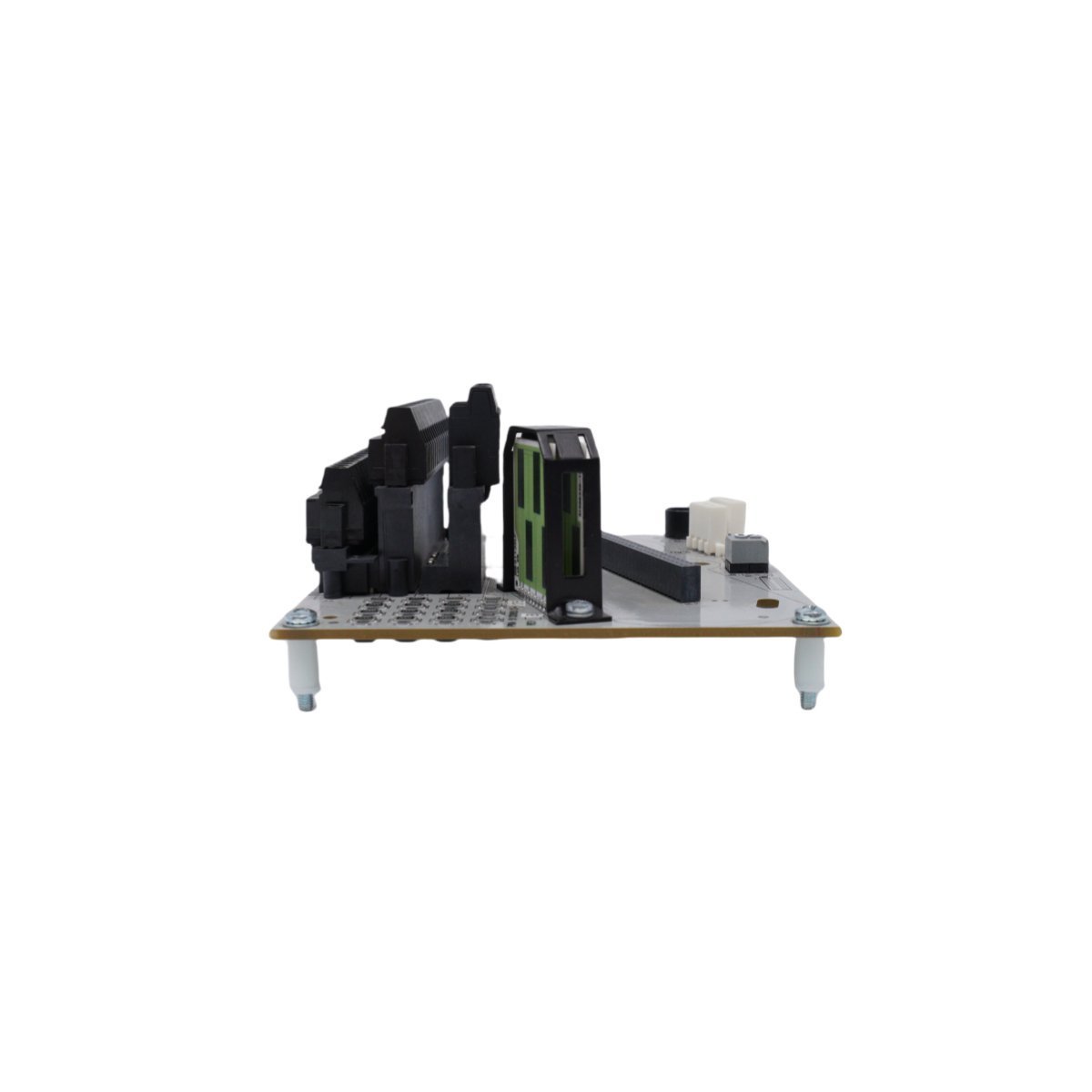

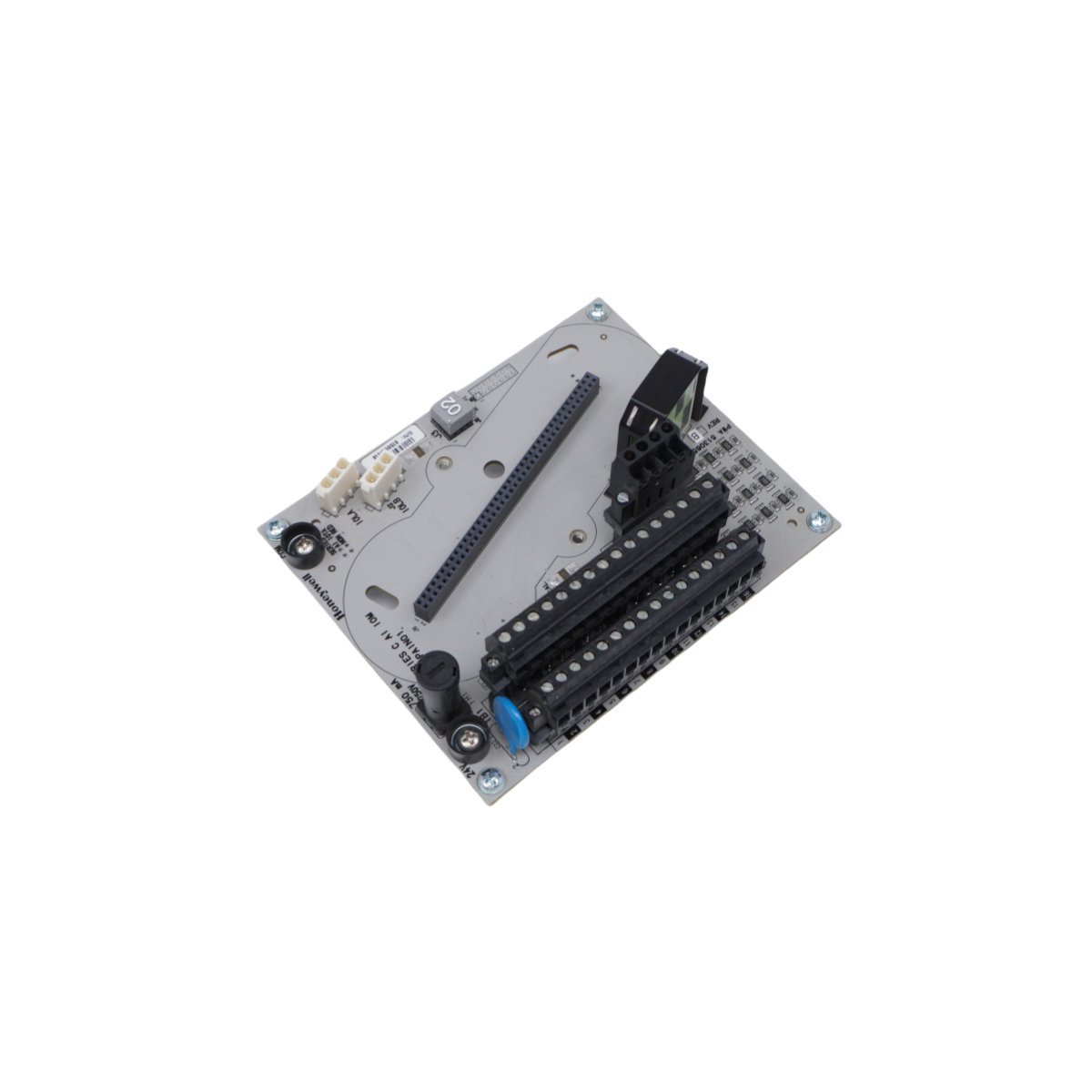

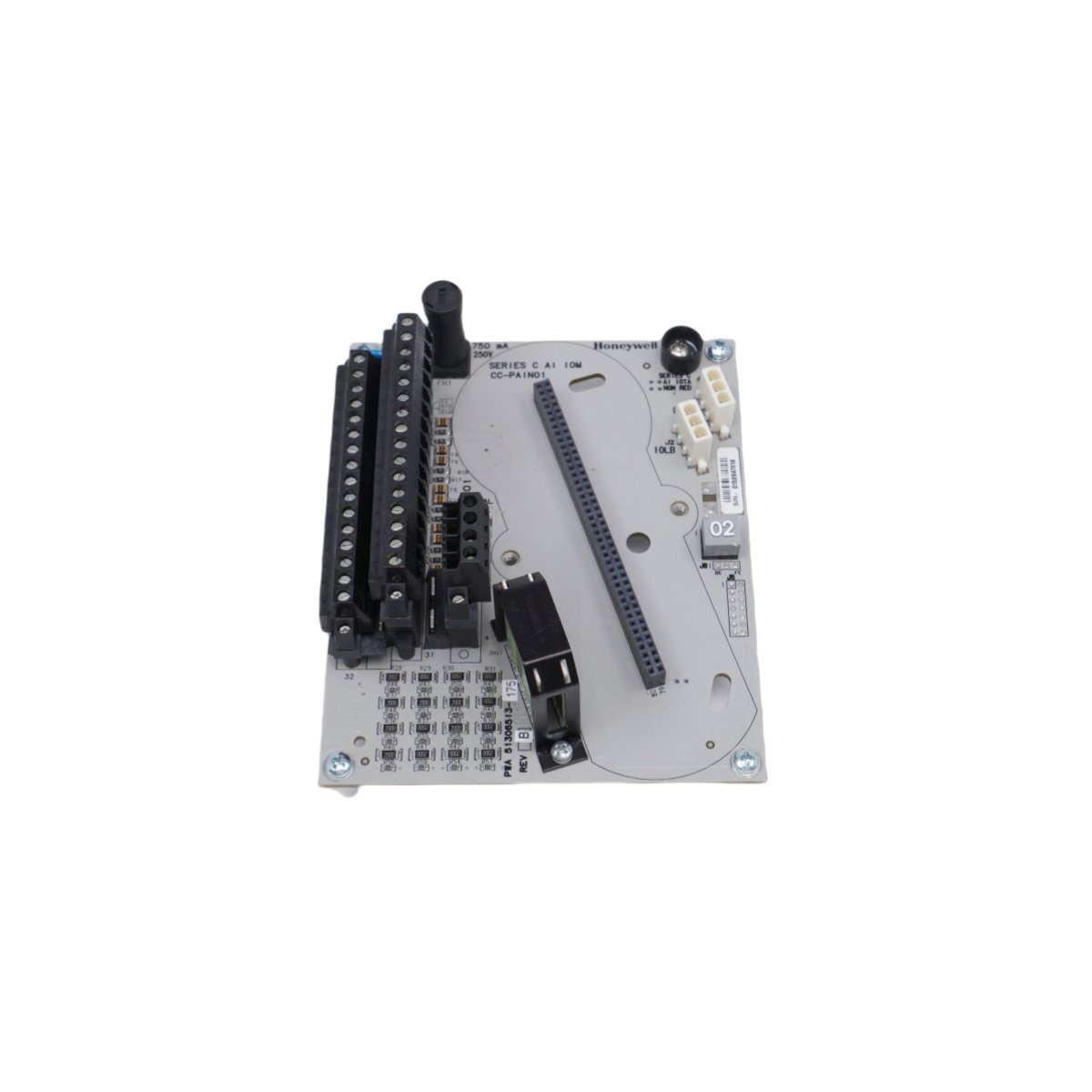

Honeywell CC-TAIN01 51306513-175 Analog Input I/O Module

Technical Specifications

Key Technical Characteristics

This I/O module features advanced HART communication capabilities for smart field device management. It supports secondary variable tracking and remote device diagnostics via the control network. Furthermore, the CC-TAIN01 employs a non-multiplexed architecture to ensure dedicated signal processing per channel. This design significantly improves data throughput and measurement speed. The internal electronics include G3 conformal coating to resist corrosive atmospheric contaminants. Therefore, the module maintains long-term accuracy in aggressive chemical environments.

Industrial Applications

Honeywell developed the CC-TAIN01 for demanding sectors like petrochemicals and power generation. It excels in monitoring temperature, pressure, and flow transmitters across large-scale facilities. Because the module supports hot-swapping, technicians replace units without interrupting the process. This capability ensures maximum system availability during routine maintenance cycles. Additionally, the unit integrates seamlessly with the Series C Input Output Termination Assembly (IOTA). This synergy simplifies complex field wiring and reduces installation labor costs.

Reliability and Performance

The 51306513-175 module prioritizes signal integrity through robust electrical isolation. It effectively filters electromagnetic interference to prevent data corruption. Moreover, onboard diagnostics constantly verify the health of the internal circuitry and field loops. If the system detects a fault, it triggers an immediate alarm to the operator. This proactive monitoring prevents unexpected shutdowns and enhances overall plant safety. Reliable hardware construction ensures the module withstands the rigors of continuous industrial operation.
