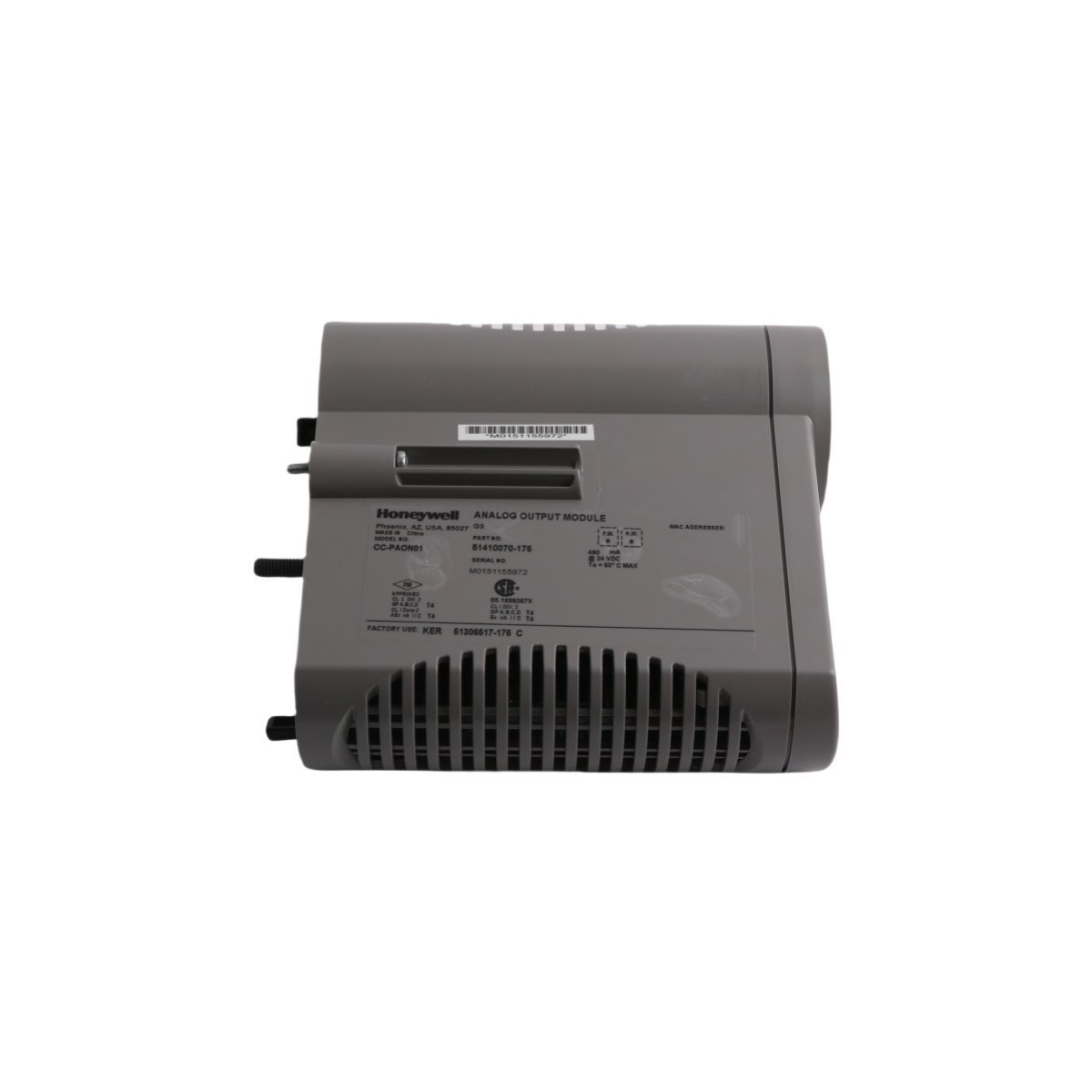

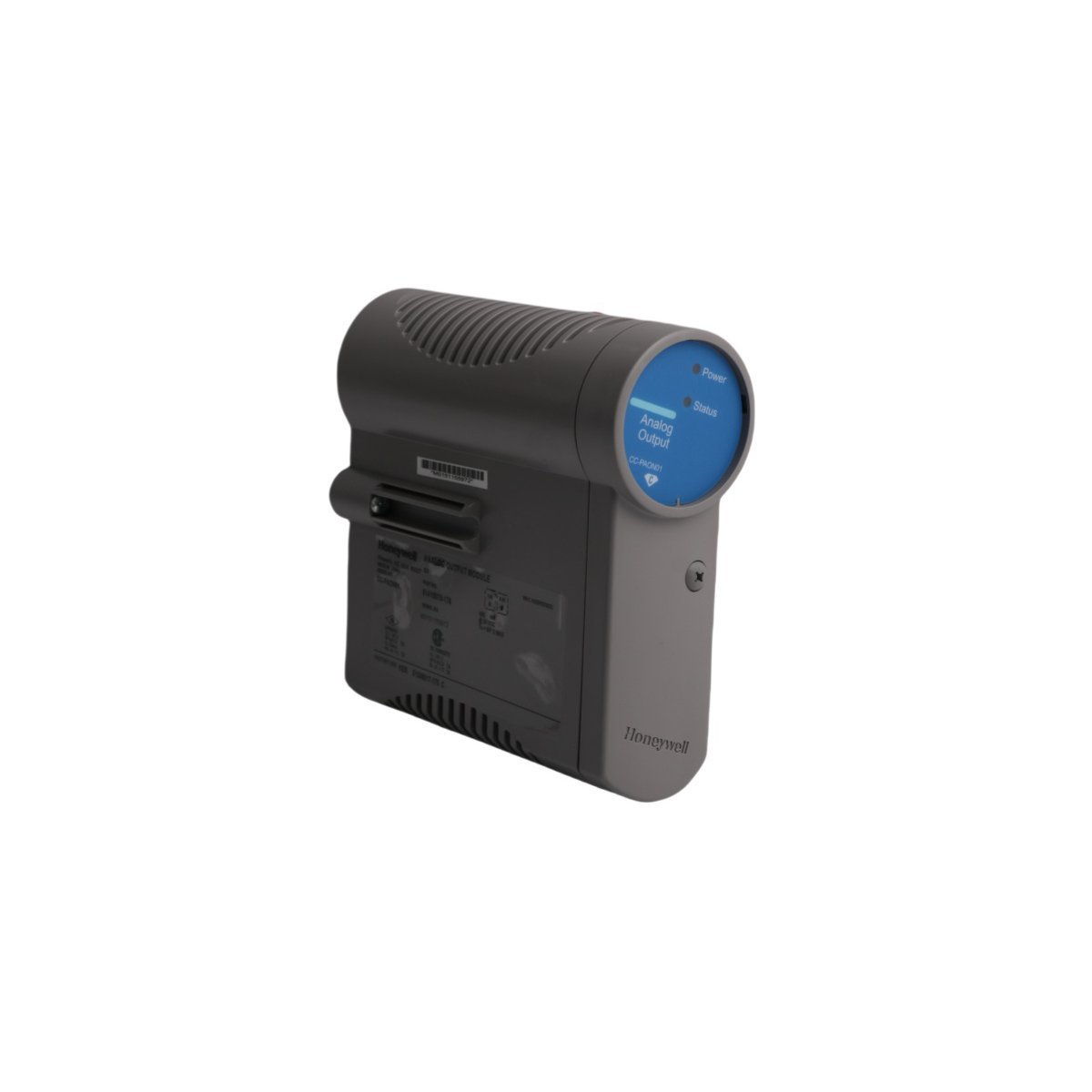

Honeywell CC-PAON01 51410070-175 Analog Output Module

The Honeywell CC-PAON01, identified by part number 51410070-175, is a high-density analog output module designed for the Experion PKS Series C architecture. This module provides critical control signals to field actuators, such as control valves and variable speed drives. It maintains a superior signal accuracy of ±0.1% of the span. Because it uses 1500V AC galvanic isolation between channels, the module effectively eliminates signal distortion caused by ground loops. This ensures stable and repeatable performance in demanding process environments like oil refineries and pharmaceutical plants.

Intelligent HART Connectivity

Modern automation requires deep integration with smart field equipment. The CC-PAON01 fully supports the HART 7 protocol, allowing digital data to overlap onto the 4-20mA analog signal. This feature enables engineers to perform remote diagnostics, adjust device parameters, and monitor instrument health directly from the control room. Furthermore, the module includes active channel monitoring and fault logging. These capabilities help maintenance teams identify issues before they lead to system downtime, supporting comprehensive predictive maintenance strategies.

Rugged Build for Harsh Environments

Honeywell designed this module for maximum availability and safety. It carries ATEX and IECEx certifications, making it suitable for Zone 1 and Division 1 hazardous locations. The hardware remains reliable under extreme thermal stress, operating efficiently from -25°C to +70°C. To simplify hardware updates or repairs, the CC-PAON01 features a hot-swappable design. This allows for module replacement while the system remains powered, preventing costly production halts. Its compact DIN-rail mounting form factor also optimizes space within industrial control cabinets.

Key Industrial Applications

This analog output module serves several high-stakes automation roles:

• Actuator Modulation: Precise positioning of pneumatic and electric control valves.
• Motor Speed Control: Sending setpoint signals to remote Variable Frequency Drives (VFDs).
• Safe Zone Operation: Deploying control logic in explosive or volatile atmospheres.
• Smart Device Management: Integrating with HART-enabled instruments for bi-directional data flow.
