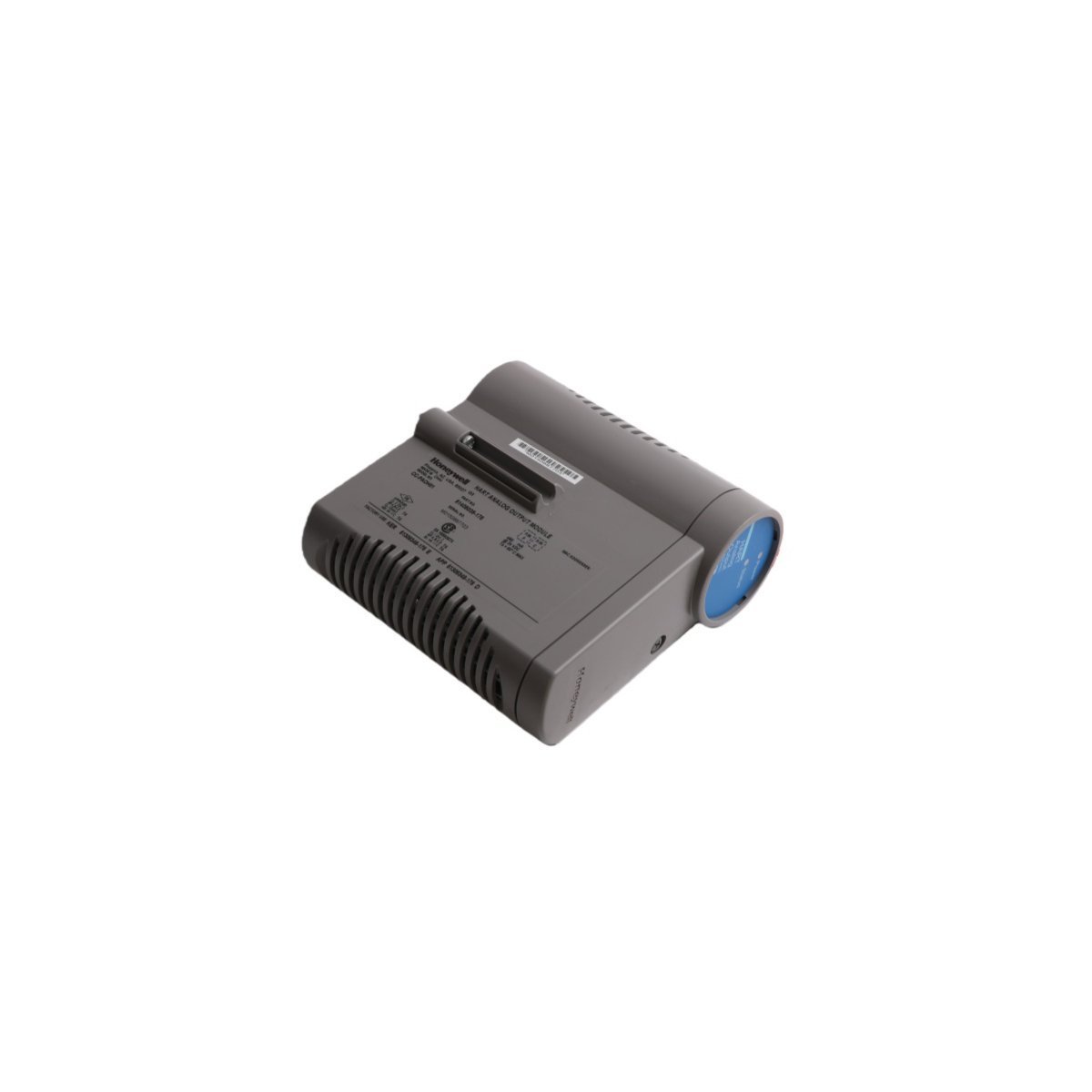

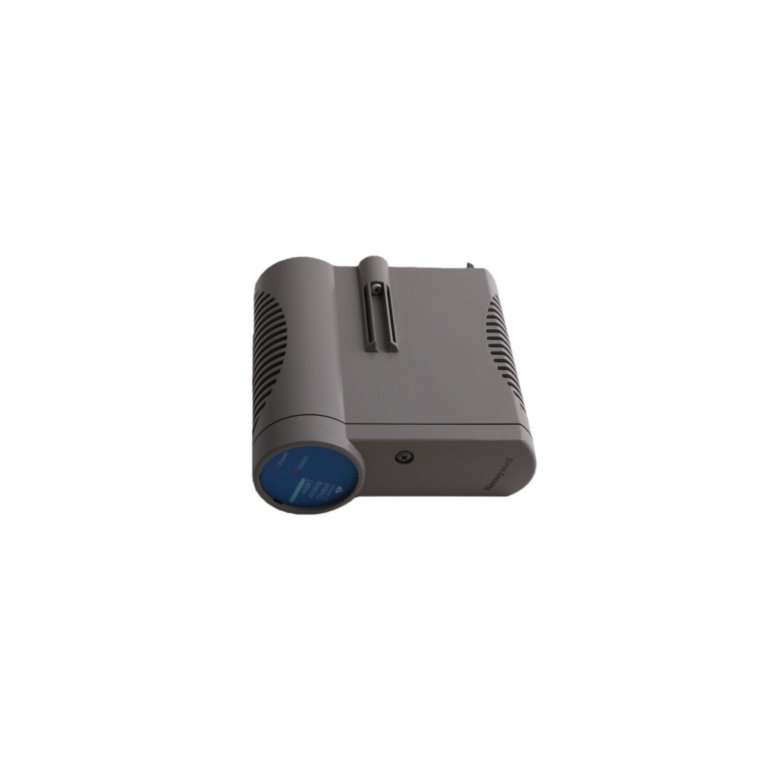

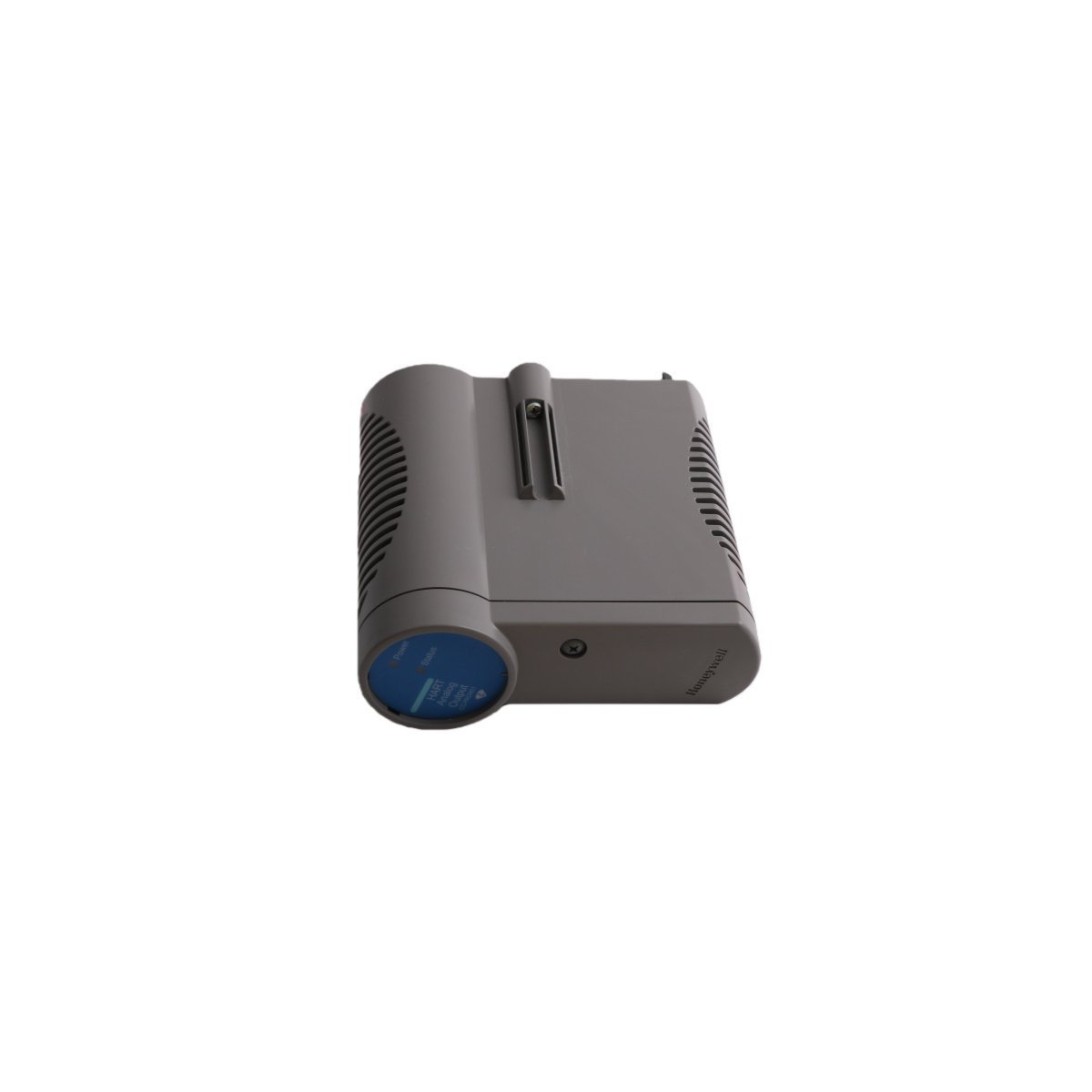

Honeywell CC-PAOH01 51405039-175 Analog Output Module

The Honeywell CC-PAOH01 51405039-175 serves as a high-tier signal interface within the Experion PKS Series C architecture. This module converts digital control processor commands into precise analog current signals. It effectively drives final control elements like valves, actuators, and variable frequency drives. Furthermore, the unit supports critical process loops requiring rapid response times and high accuracy. Its integration into the Series C I/O row optimizes cabinet space and enhances system communication.

Advanced Signal Precision and HART Integration

This analog output module features 16 channels of high-resolution 4-20 mA current control. It provides 12-bit digital-to-analog conversion for superior process stability. Because the module includes integrated HART protocol support, operators can access secondary instrument data remotely. This capability allows for simplified device configuration and more effective troubleshooting of field assets. Additionally, the unit executes 100ms update rates to maintain tight control over dynamic process variables.

Key Technical Characteristics

• HART Communication: Facilitates digital data exchange with smart field instruments for enhanced diagnostics.
• Open-Wire Detection: Monitors loop integrity constantly to identify broken field wiring immediately.
• Redundancy Options: Supports optional redundant configurations to eliminate single points of failure.
• Fast Loop Processing: Delivers a 100ms update interval for high-speed industrial applications.
• Environmental Hardening: Operates reliably in harsh conditions with IP66 and NEMA 4X rated protection.
• Fault Tolerance: Includes extensive self-diagnostics to identify internal hardware issues before they impact production.

Technical Specifications Table

Operational Reliability and Application

Process industries utilize the CC-PAOH01 for temperature, pressure, and flow control applications. The module’s non-incendive field power design improves safety in hazardous industrial locations. Moreover, the 51405039-175 allows for easy hot-swapping to reduce maintenance downtime significantly. Its high-resolution output minimizes process variability in chemical and refining operations. Consequently, facilities achieve better product quality and higher operational efficiency through consistent signal management.
