Product Brief
The Honeywell 10020/1/2 acts as a high-integrity core execution unit within industrial safety environments. This hardware coordinates critical logic and system diagnostics to protect complex plant operations.
Functional Overview

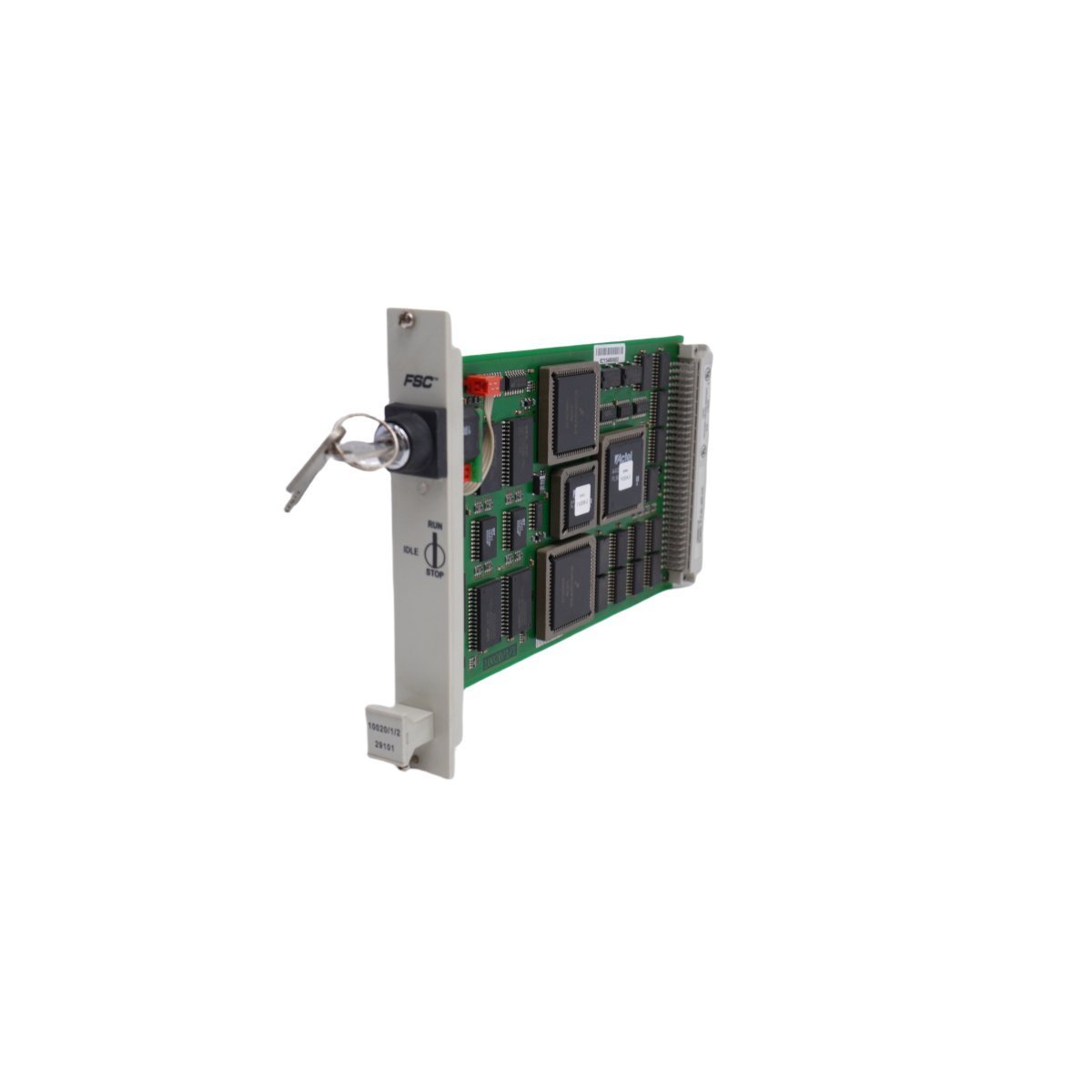

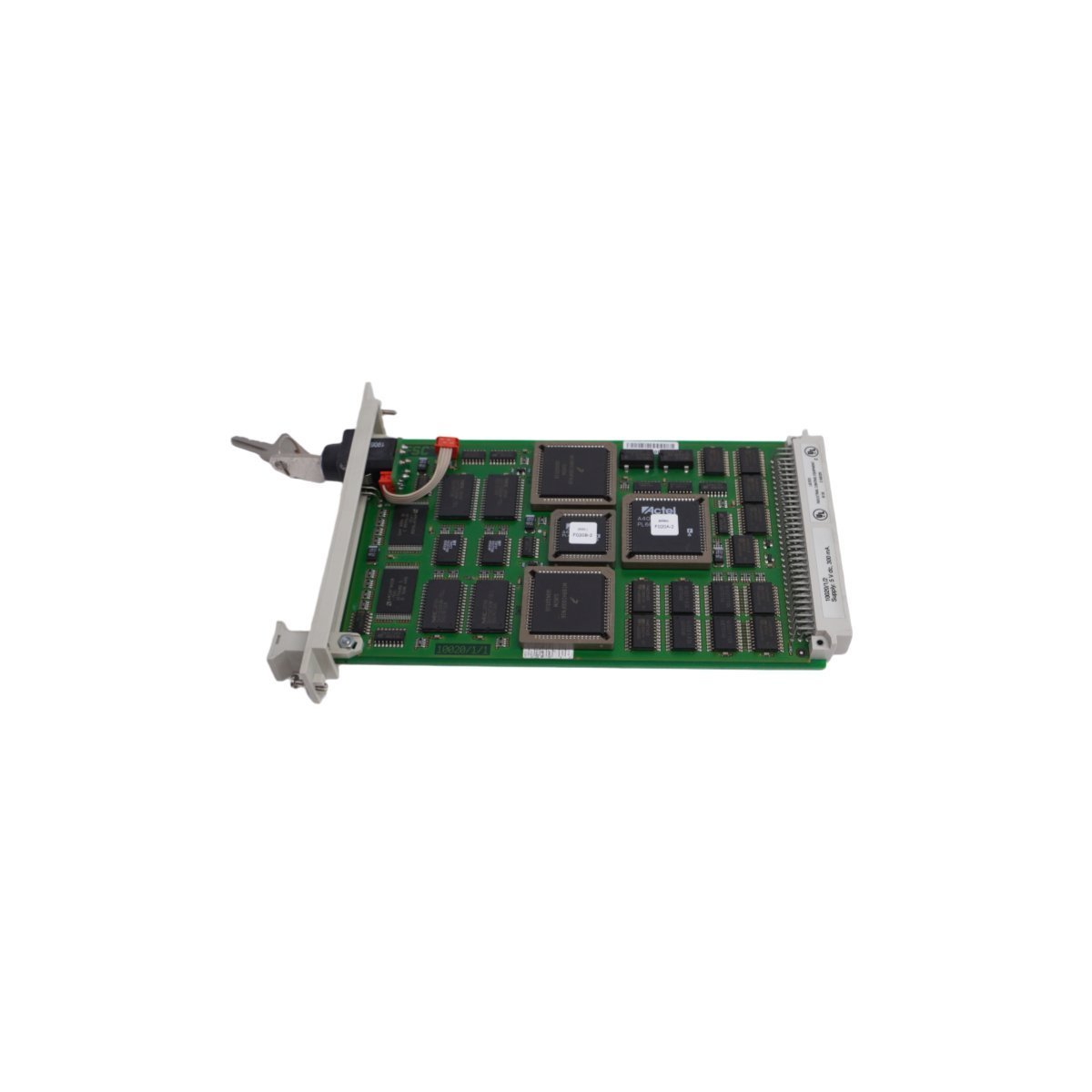

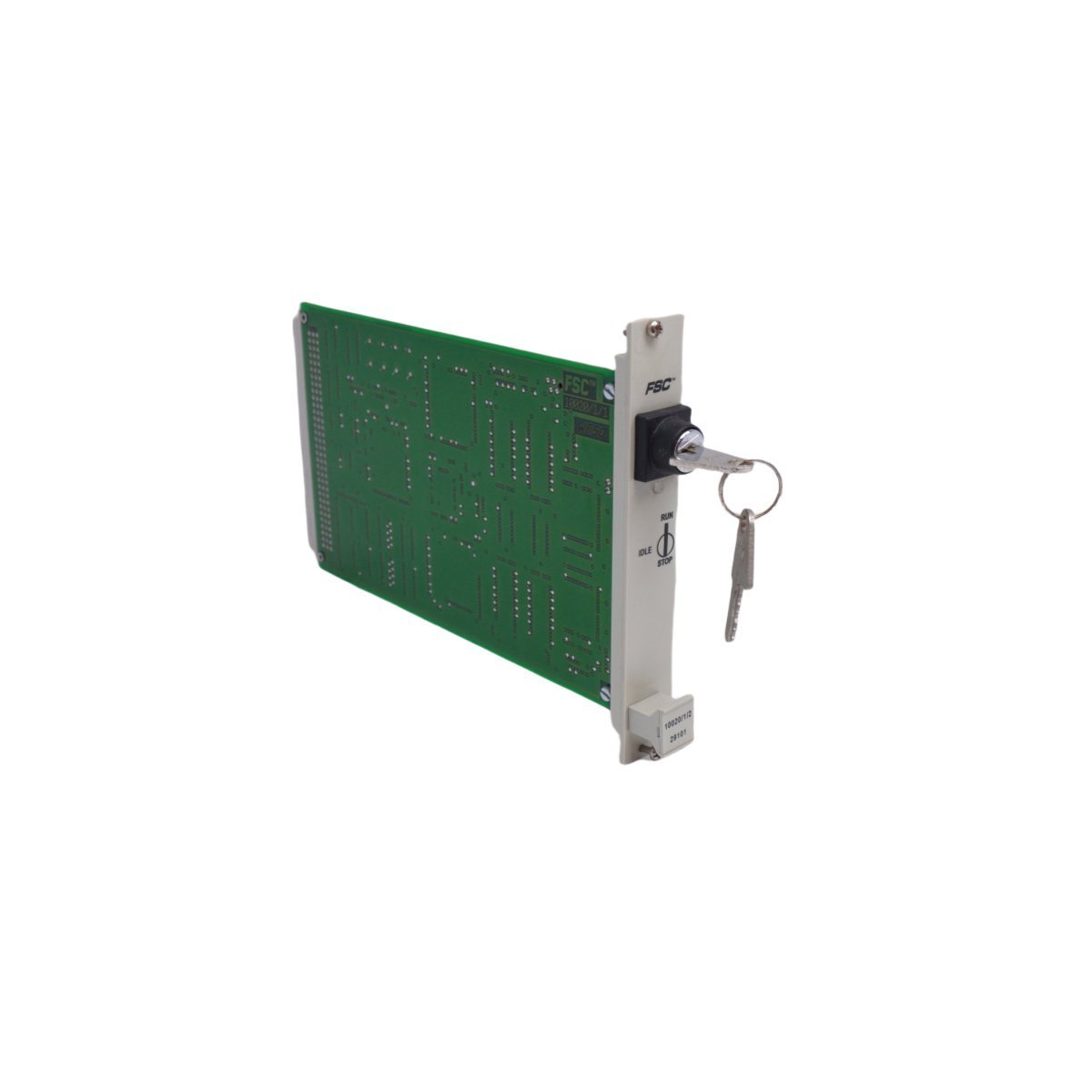

The 10020/1/2 Quad Processor Module serves as a primary processing component for the legacy Honeywell Fail Safe Control (FSC) system. Operating within a Distributed Control System (DCS) network, this module executes vital safety logic and controls automated processes. The quad-processor architecture provides parallel processing capabilities that significantly improve fault tolerance. Consequently, the unit maintains strict control integrity during critical hardware anomalies.
Engineers deploy this module to manage emergency shutdown procedures, burner management systems, and fire and gas monitoring applications. The internal circuitry utilizes low-power components, which reduces thermal stress and prolongs the lifespan of the underlying hardware.
Technical Specifications
- Manufacturer: Honeywell
- Model Designation: 10020/1/2
- Module Type: Quad Processor Module / Central Processing Unit (CPU)
- System Compatibility: Honeywell Fail Safe Control (FSC) System / DCS
- Current Consumption: 300 mA at 5 VDC
- Physical Dimensions: 4.0 cm x 18.5 cm x 12.7 cm
- Net Weight: 0.36 kg
- Country of Origin: United States
- HS Code: 8537101190
- Network Integration: Functions alongside designated Ethernet routing hardware for peer-to-peer subsystem communication.
- Product Lifecycle Status: Discontinued by the manufacturer on December 31, 2018.
Key Operational Features
Automated Diagnostics and Reliability
The processor runs continuous self-test routines to discover internal faults. When the module detects an anomaly, it immediately generates real-time system alerts to protect downstream equipment. This proactive mechanism helps plant operators isolate issues rapidly, which limits unexpected operational downtime.
Modular Configuration and Scalability
The flexible architecture supports seamless integration into existing FSC chassis setups. Operators can scale or modify their safety configurations by pairing this processor card with various input and output modules. The streamlined backplane interface also simplifies installation and routine maintenance workflows.
