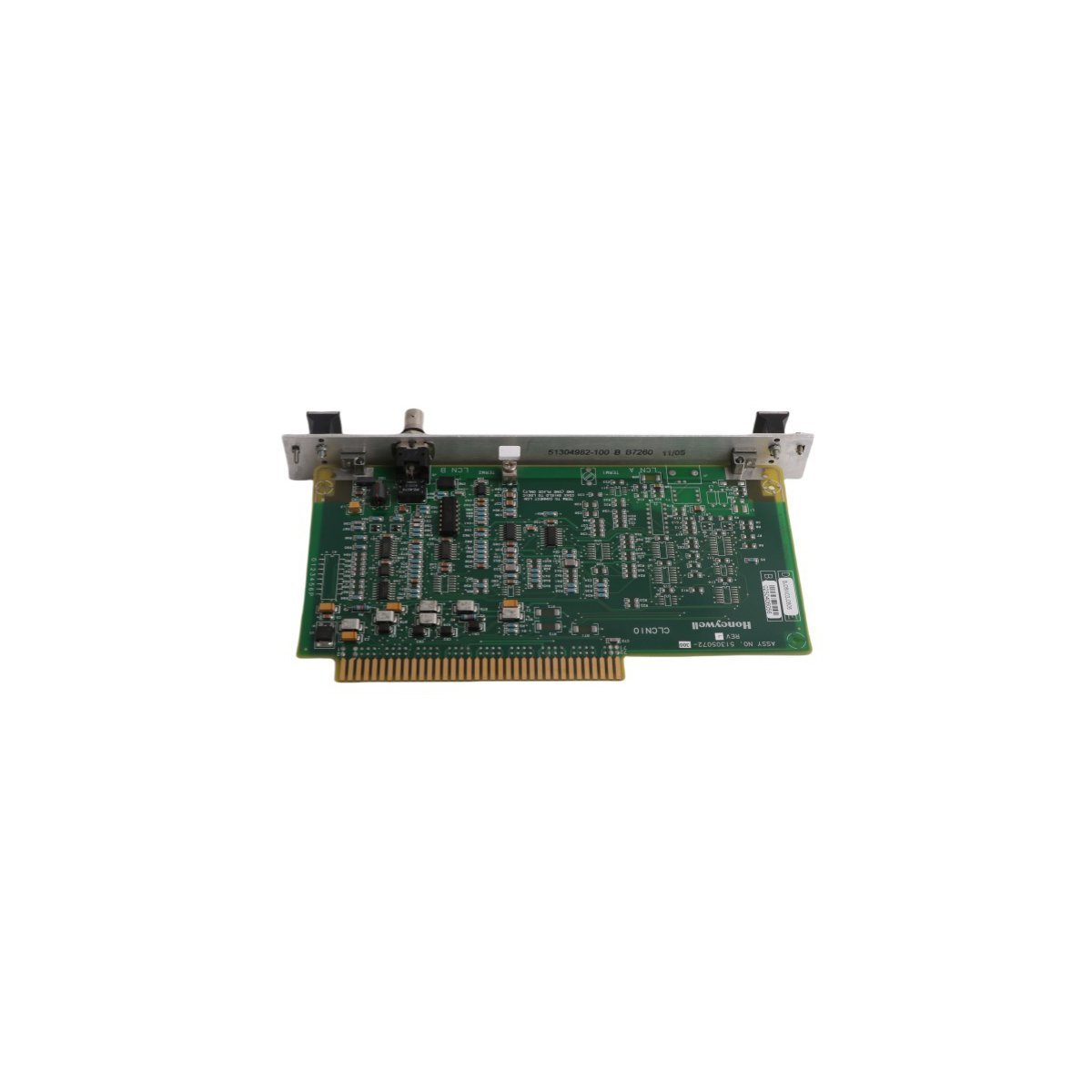

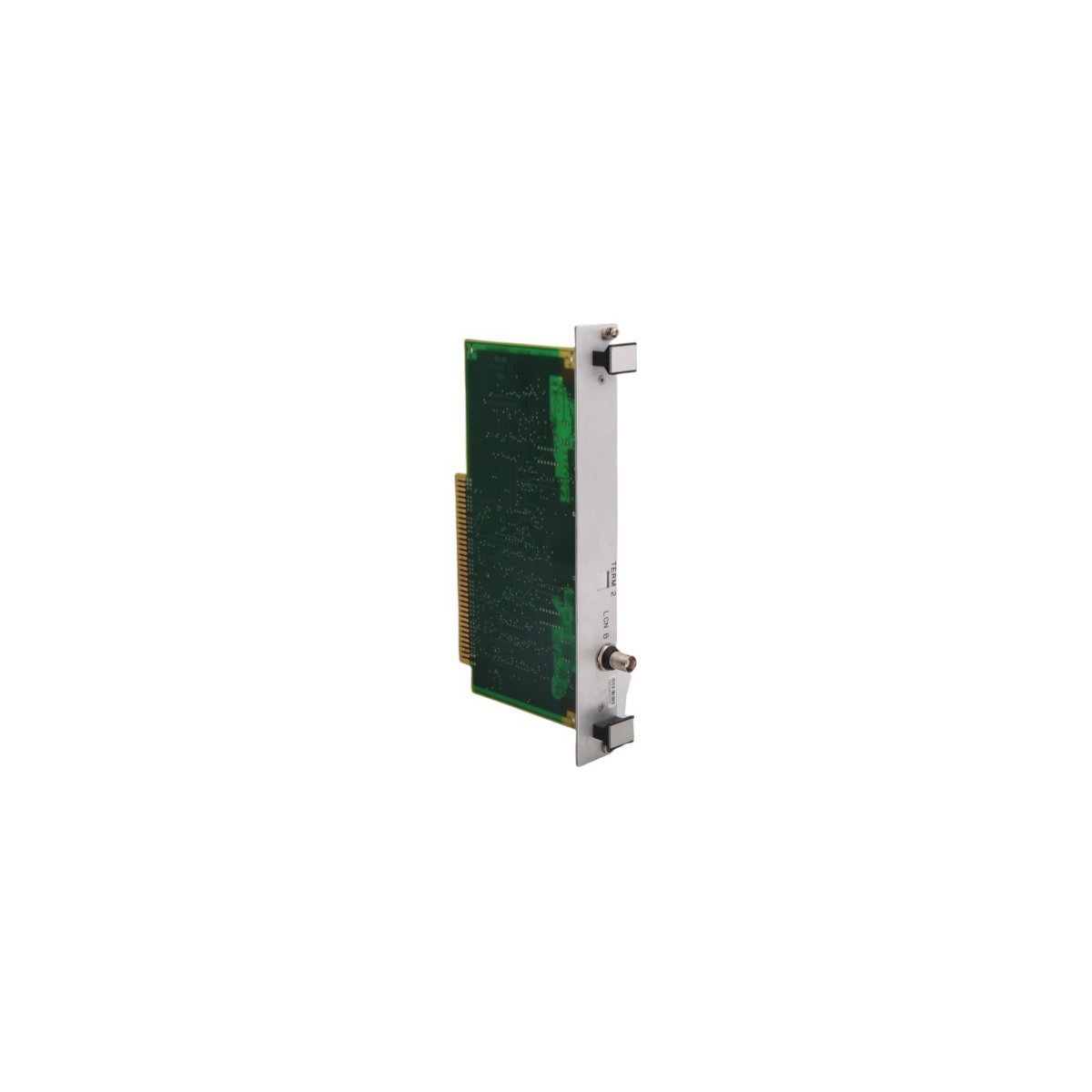

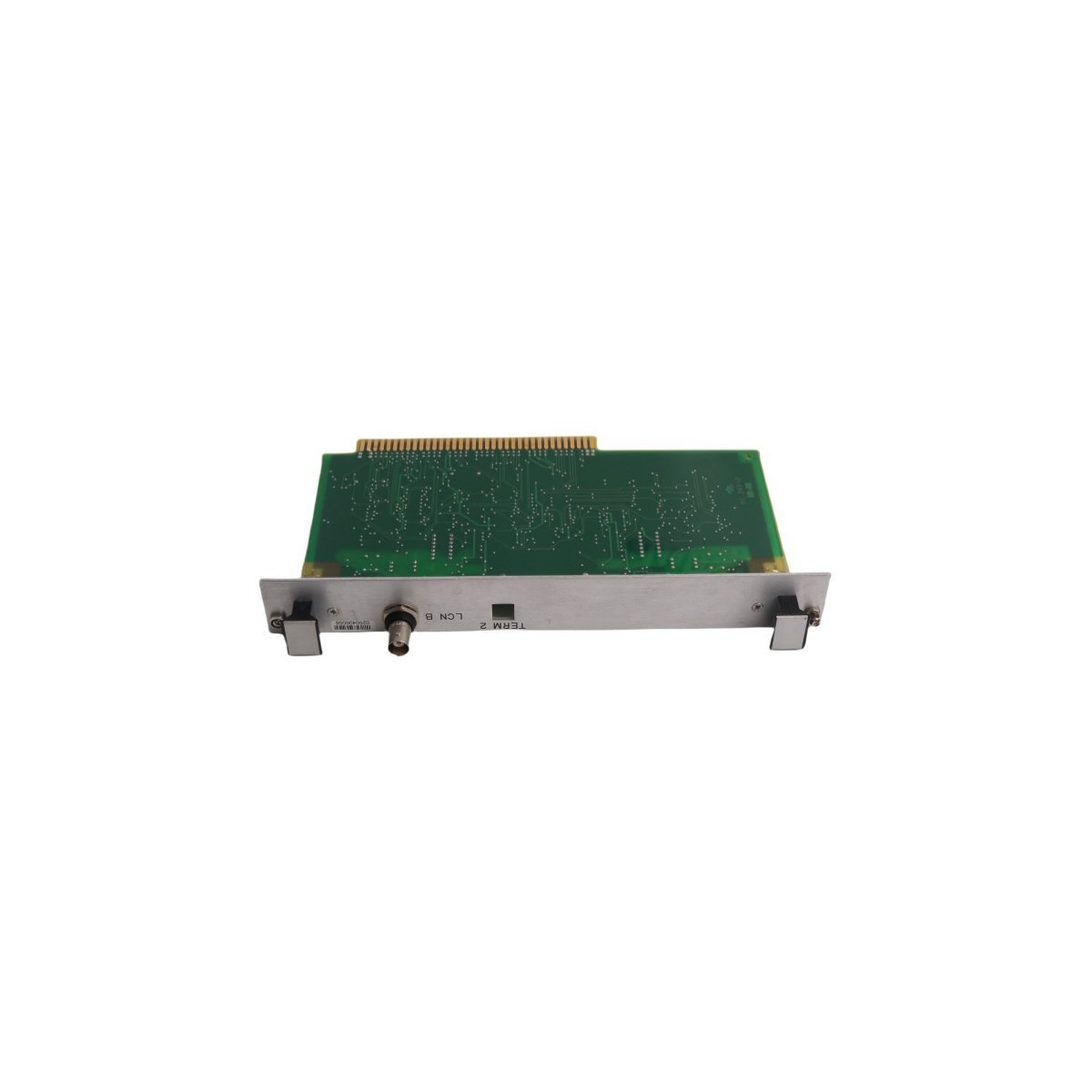

Honeywell 51305072-300 I/O Card TDC 3000 Module

Honeywell 51305072-300 I/O Card CLCN-B

Configured for signal interfacing within TDC 3000 systems, the Honeywell 51305072-300 (51305072-300 I/O Card CLCN-B) provides direct physical execution of I/O signal processing and routing across distributed control networks.

Hardware Specifications

Process Control and Communication Interface

The 51305072-300 module manages data flow between field instrumentation and the controller backplane. Engineers deploy this card to execute 4-20 mA HART loop protocol communications, which permits the DCS to access secondary diagnostic data alongside primary process variables. To maintain signal integrity, the module architecture incorporates channel-to-channel isolation, which prevents ground potential shifts and common-mode noise from contaminating sensitive analog measurements.

Frequently Asked Questions

Q: Can the 51305072-300 module perform hot-swapping during active system operation?

A: No, the card requires the local I/O nest to be de-energized before extraction. Operators must follow strict power isolation protocols to prevent electrical transients from damaging the communication bus or backplane pins.

Q: How does the module maintain accuracy in the presence of thermal fluctuations?

A: The card implements active cold junction compensation (CJC) for temperature-sensitive inputs. This feature preserves measurement precision by dynamically adjusting internal reference offsets as cabinet ambient temperatures shift.

Field Installation Guidelines

1. Mounting: Seat the card fully into the designated TDC 3000 I/O nest slot. Engage the mechanical retention levers to establish a stable bond between the card connectors and the backplane.
2. Grounding: Connect the I/O nest chassis to the primary cabinet protective earth (PE) bus. This connection minimizes electromagnetic interference and ensures the module operates within specified noise immunity limits.
3. Cabling: Route shielded twisted-pair cables through designated signal conduits. Ensure that cable shields terminate only at the cabinet grounding bar to avoid ground loops.
4. Commissioning: Verify the module status via the TDC 3000 operator interface after installation. Confirm that the loop current maintains valid ranges and check for any diagnostic alerts indicating configuration mismatches.
