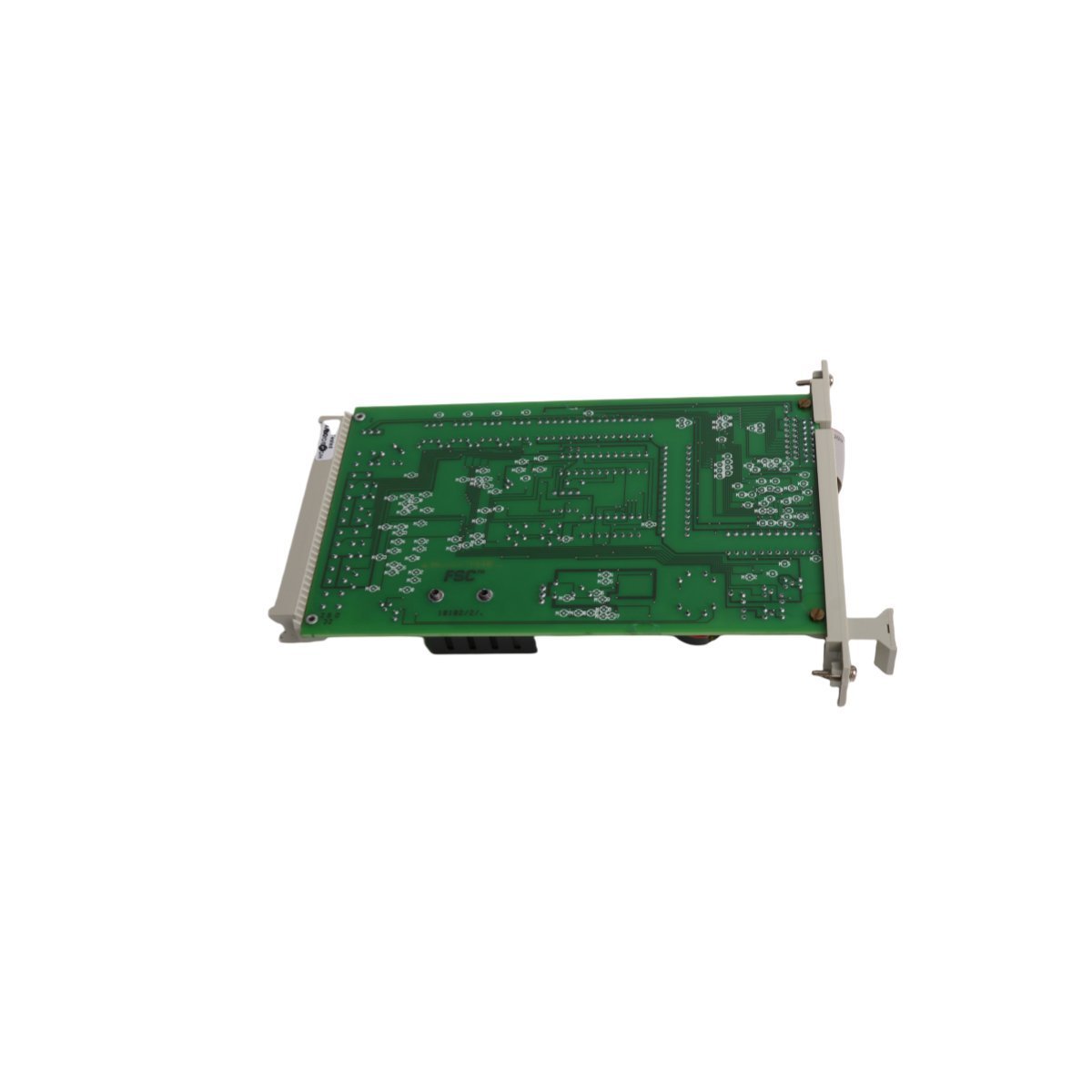

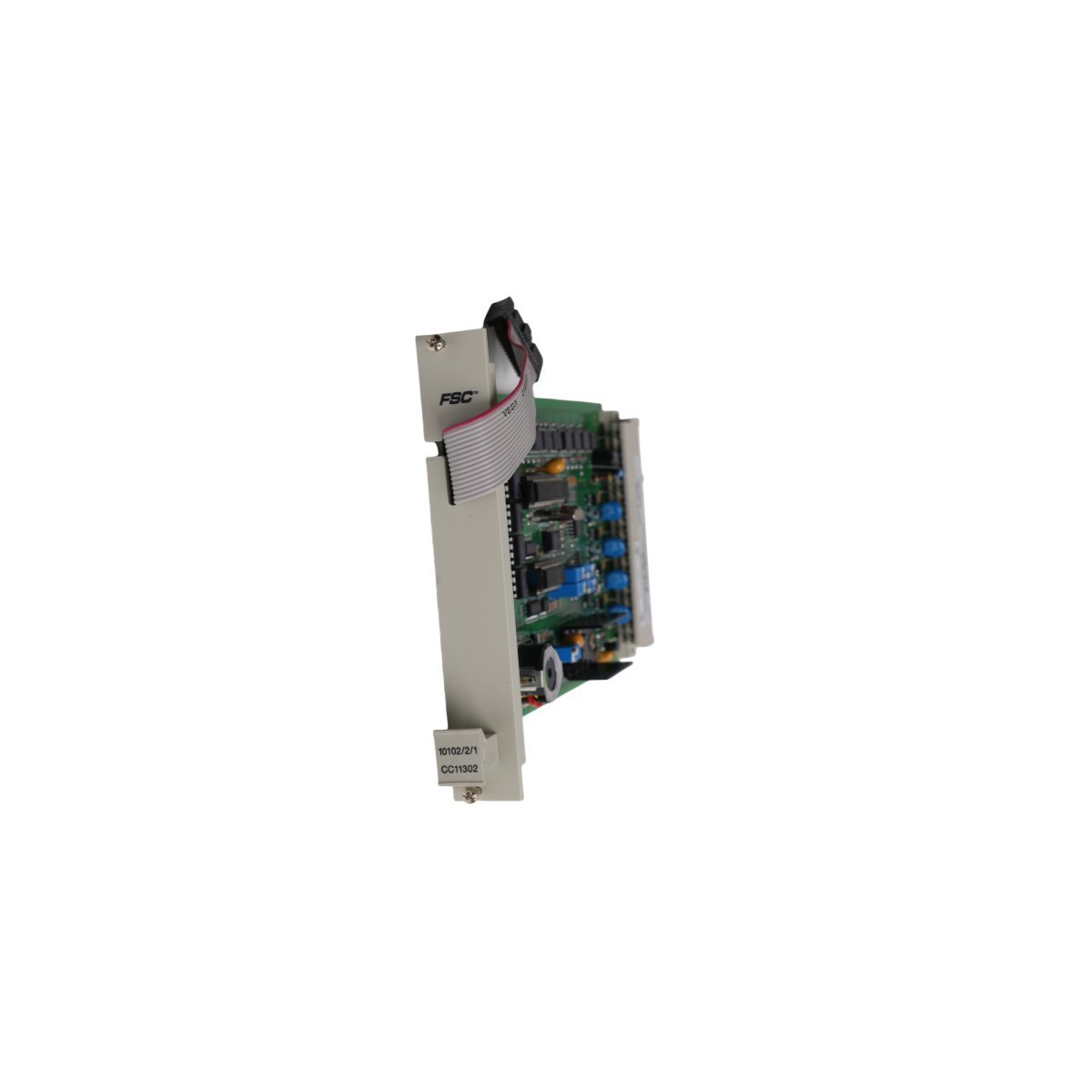

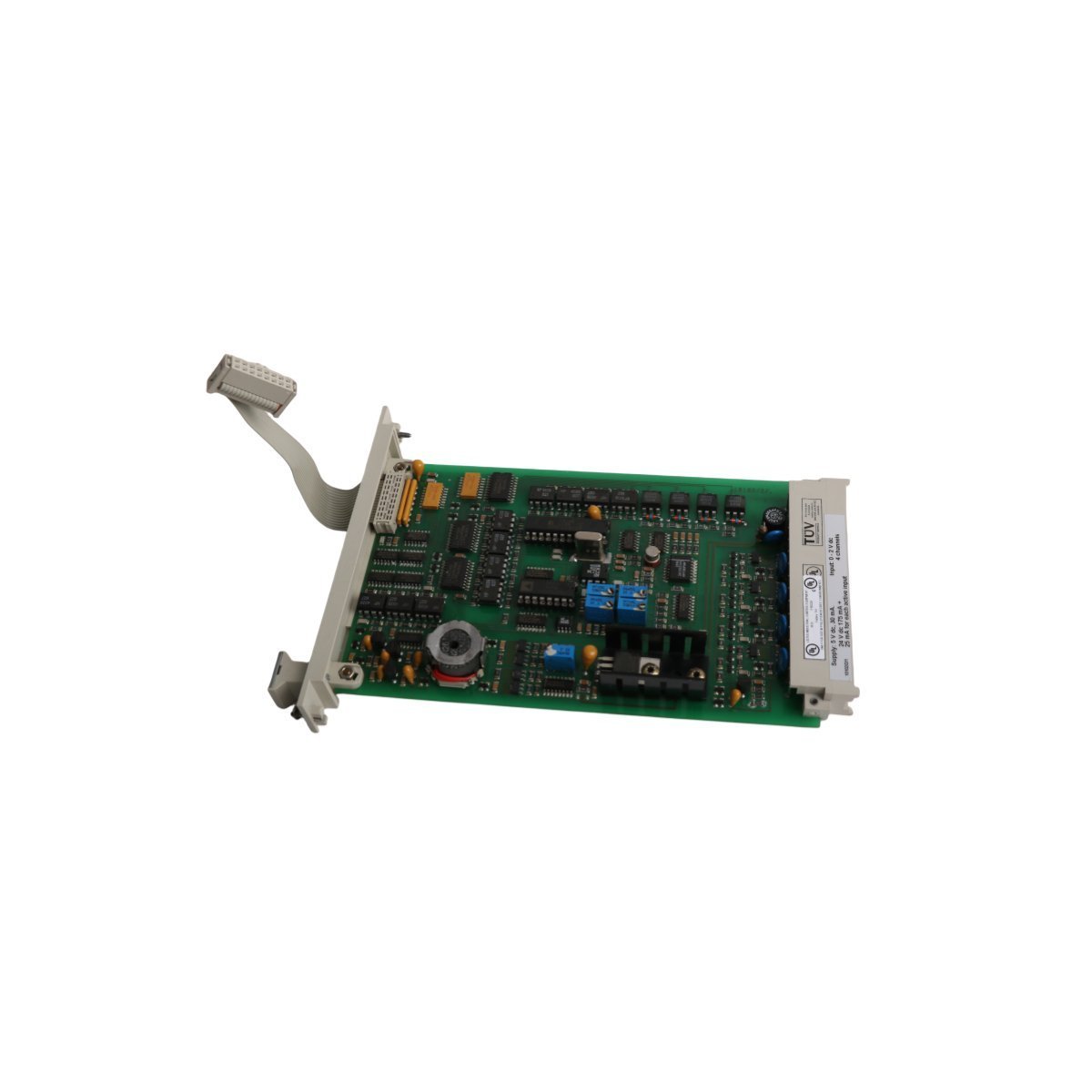

Honeywell 10102/2/1 FSC Fail-safe Digital Input Module

The Honeywell 10102/2/1 serves as a specialized digital input interface for the Fail Safe Control (FSC) system. This module captures discrete signals from safety-critical field equipment like emergency stop buttons and limit switches. Because it utilizes a fail-safe architecture, the hardware ensures that any internal fault results in a safe system state. Consequently, it prevents dangerous process conditions during electronic failures. The module provides the foundation for high-availability protection layers in modern industrial plants.

Advanced Diagnostics and Fault Tolerance

Honeywell incorporates extensive self-diagnostic capabilities within the 10102/2/1 hardware. The module continuously monitors the integrity of the input loops to detect open circuits or short conditions. Furthermore, it utilizes internal redundancy to maintain operational uptime during component stress. This proactive monitoring allows technicians to identify wiring issues before they impact plant safety. The hardware filters out electrical noise to ensure only valid state changes reach the controller. Therefore, operators avoid nuisance trips while maintaining maximum protection levels.

Key Technical Specifications

The following table details the physical and operational parameters for the 10102/2/1 module.
