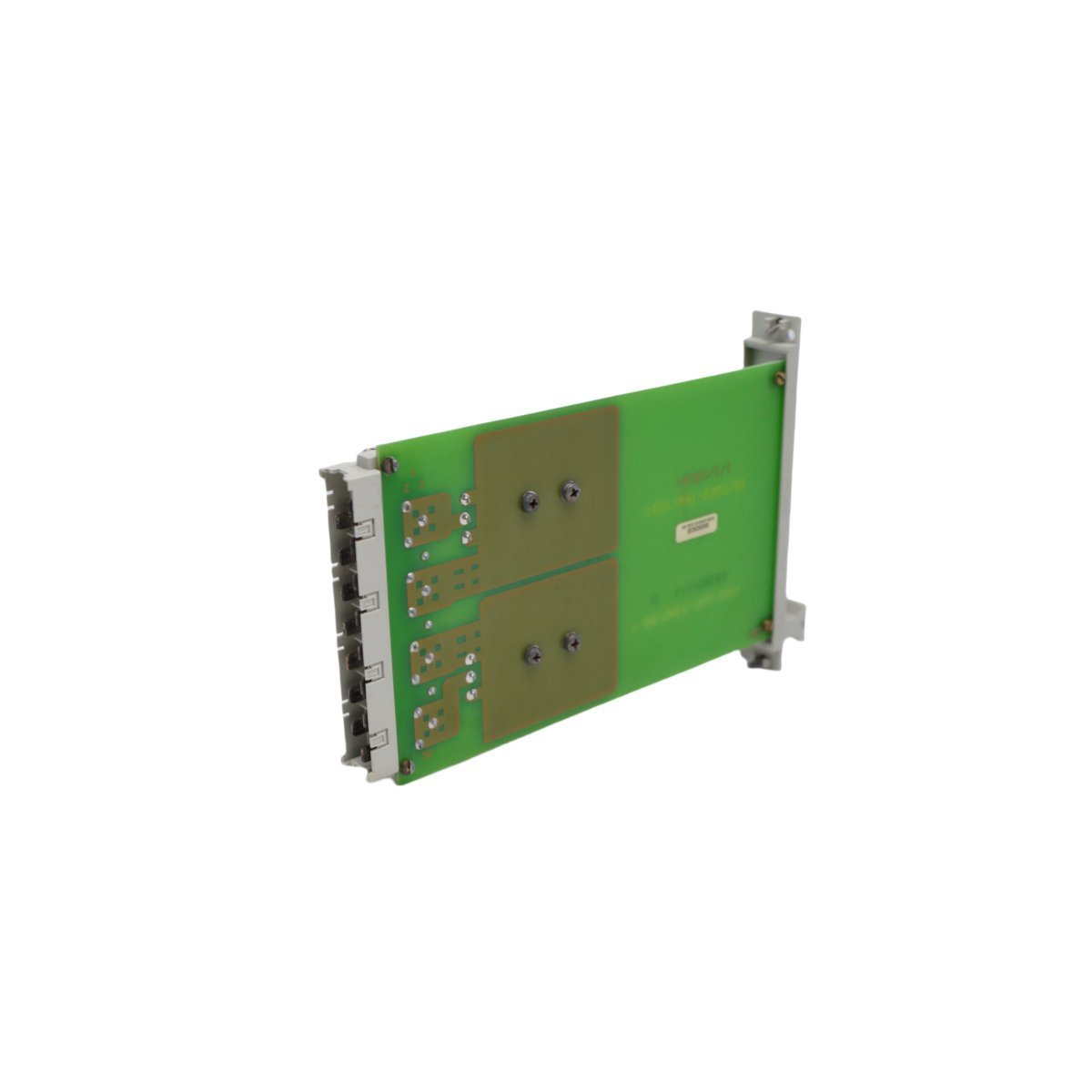

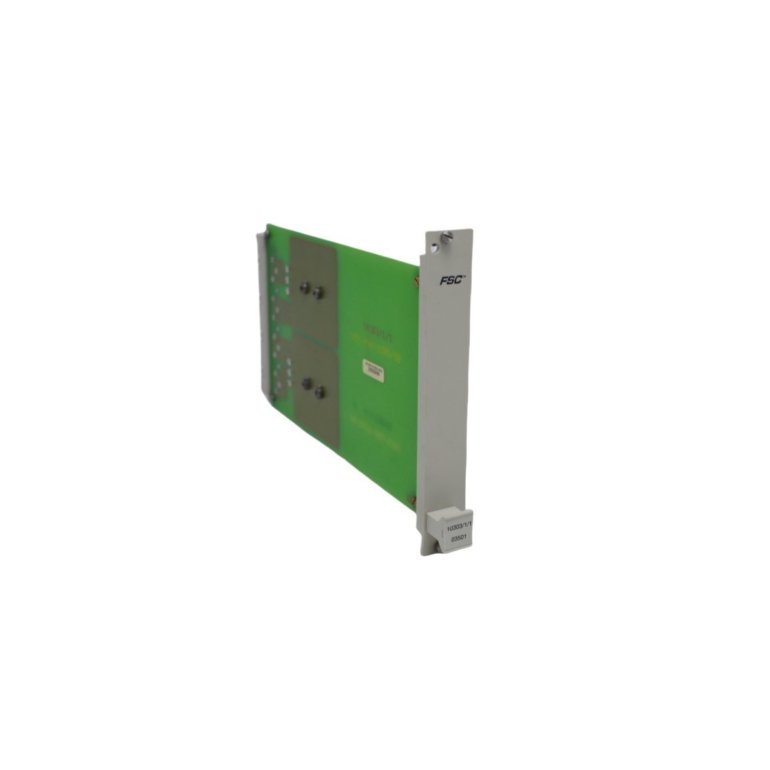

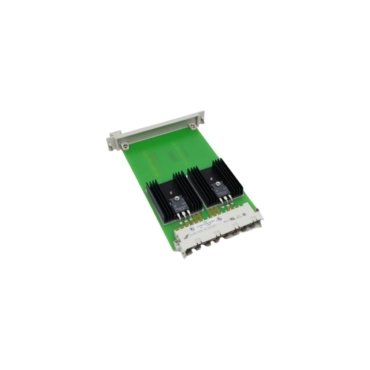

Honeywell 10303/1/1 Power Supply Module

The Honeywell 10303/1/1 serves as a critical power distribution component within the Fail Safe Control (FSC) system. This module provides the necessary regulated voltage to drive CPU controllers and I/O assemblies. Because it supports mission-critical safety functions, the hardware maintains high electrical stability. The module ensures that logical operations continue without interruption during minor input fluctuations. Consequently, it protects the system from data corruption and unexpected shutdowns. This reliability makes it a cornerstone for emergency shutdown (ESD) and fire and gas (F&G) applications.

Intelligent Diagnostics and System Health

This power module incorporates advanced diagnostic circuitry to monitor real-time performance. It tracks output voltage levels and thermal conditions to prevent hardware overstress. Furthermore, the 10303/1/1 communicates status data directly to the central processor. This integration allows maintenance teams to identify power irregularities before they cause system failure. Early detection of these issues significantly reduces unplanned downtime in complex refineries and power plants. Therefore, the module contributes to a proactive maintenance strategy for the entire DCS environment.

Primary Technical Specifications

The following table summarizes the mechanical and operational characteristics of the 10303/1/1 module.
