CI626V1 3BSE012868R1 ABB AC500 AF100 Communication Interface Modules

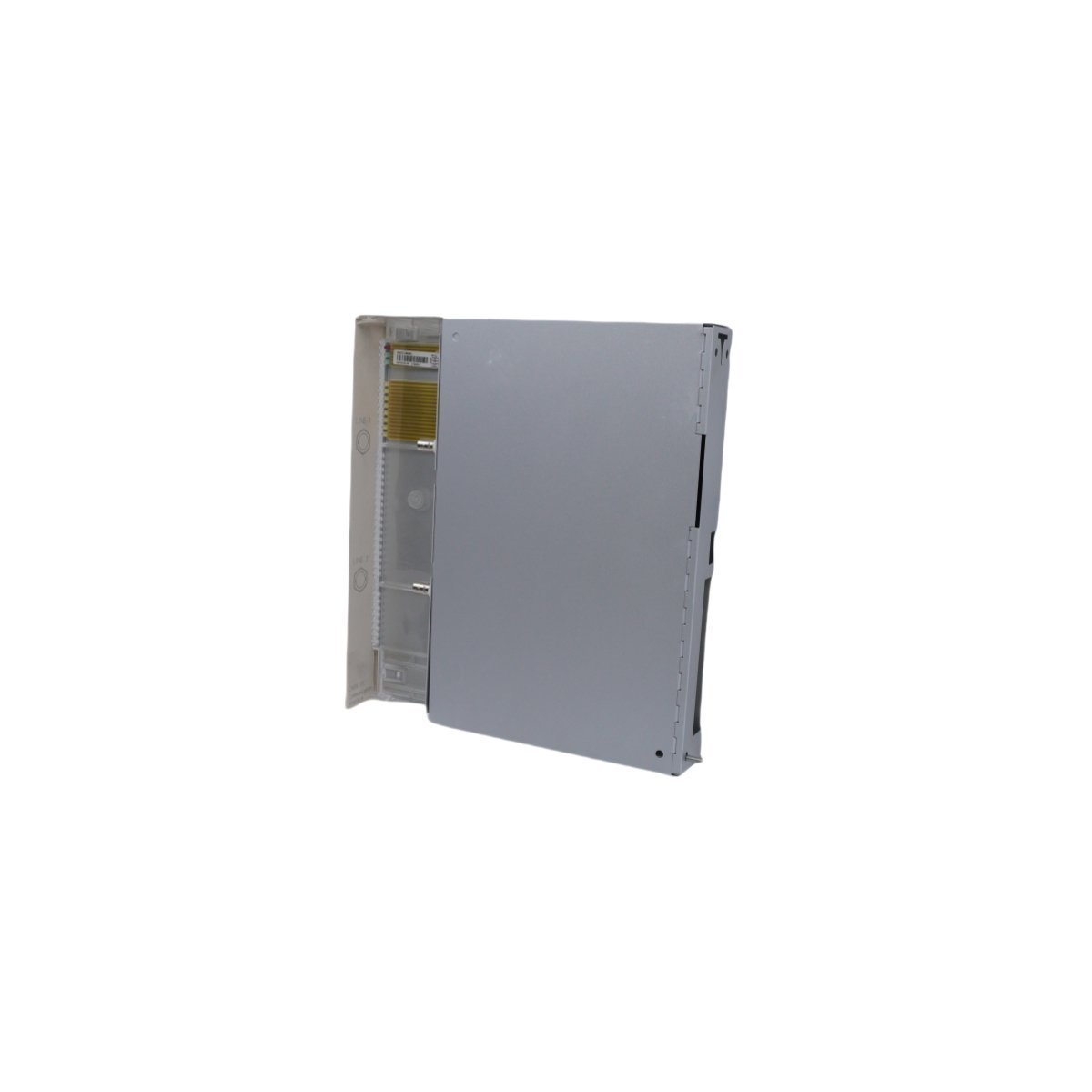

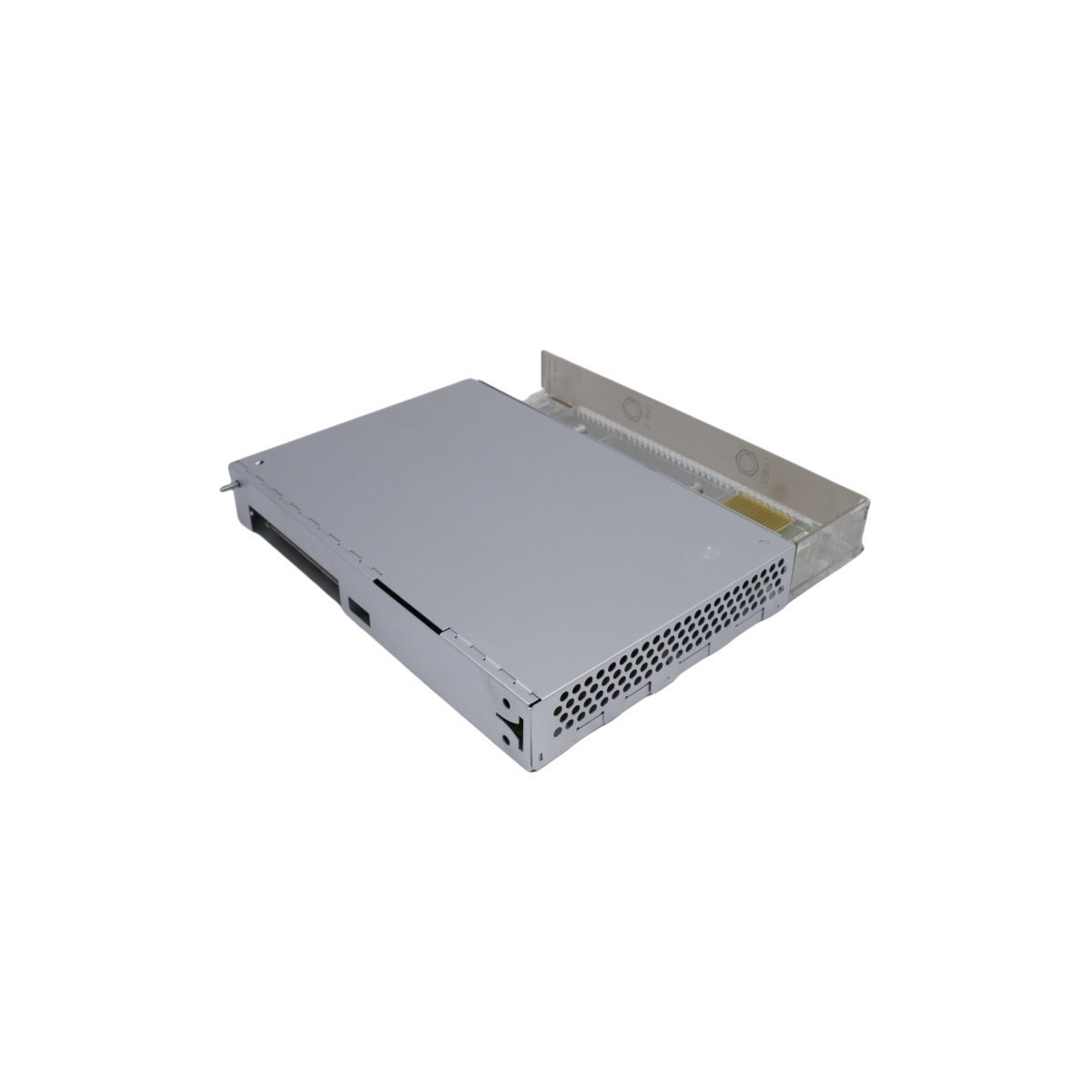

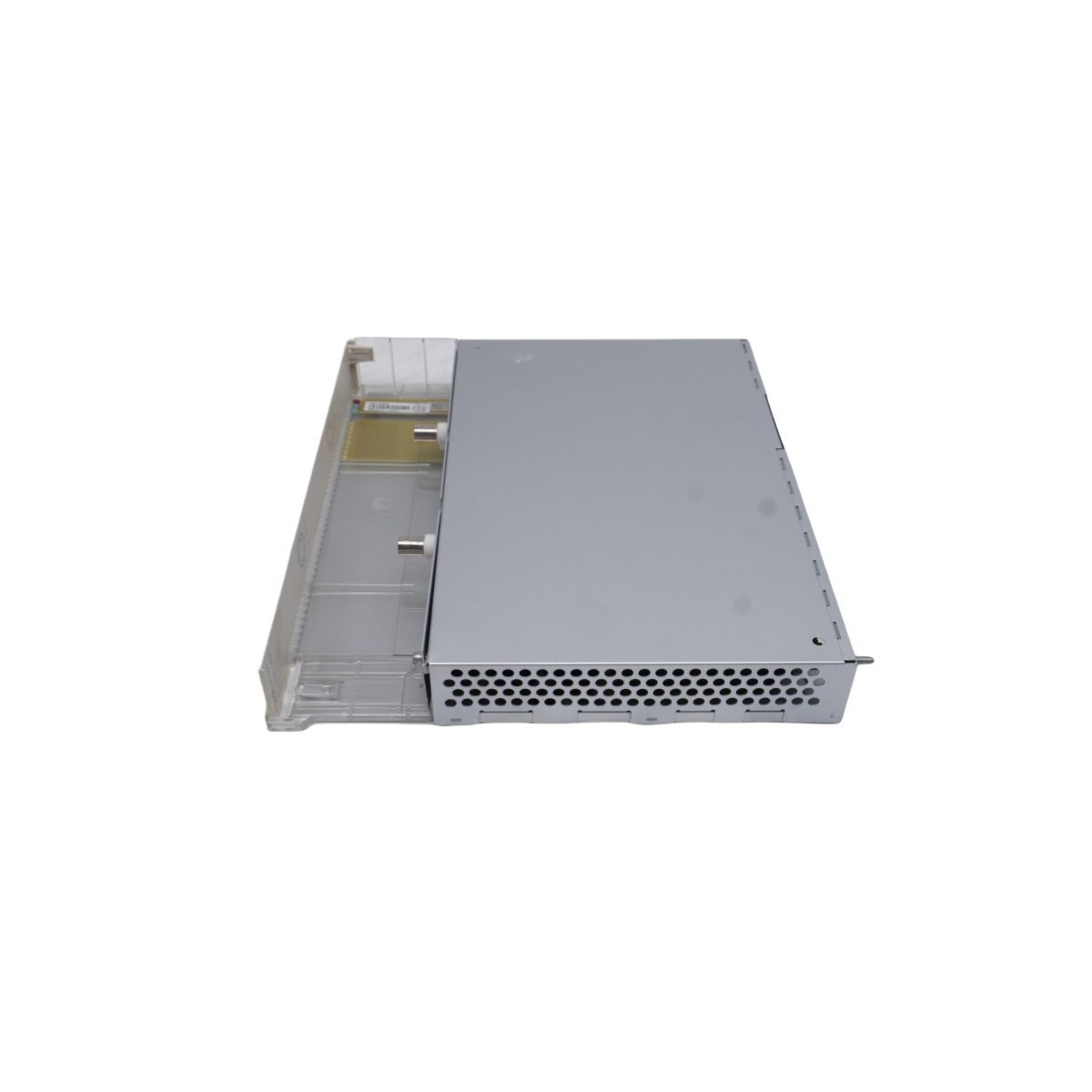

ABB CI626V1 3BSE012868R1 AF100 Interface Module

The ABB CI626V1 3BSE012868R1, also cataloged as the CI626V1 AF100 Interface Module, operates as a dedicated hardware component for deterministic fieldbus communication and packet routing within ABB AC500 DCS platforms. Engineers specify this unit to connect local processing racks directly to Advantage Fieldbus 100 (AF100) networks, ensuring low-latency data transmission across distributed control nodes.

Suffix Breakdown & Model Matrix

The catalog designation CI626V1 3BSE012868R1 contains structured hardware assembly identifiers that dictate compatibility across controller racks:

• CI626V1: Identifies the core functional module generation and hardware design revision for AF100 bus interfacing.
• 3BSE012868R1: Represents the specific ABB commercial hardware assembly part number, designating physical circuit board revisions and component layouts.

Hardware Specifications

Deterministic Network Performance and Backplane Velocity

ABB designed the CI626V1 3BSE012868R1 module to optimize backplane bus communication velocity across complex fieldbus topologies. The onboard communication processor manages cycle-critical AF100 packet arbitration independently, which offloads execution overhead from the primary controller. Furthermore, integrated firmware flash compatibility mechanisms ensure seamless handshaking between redundant communication channels. As a result, the subsystem maintains deterministic execution times without packet collisions or data buffer overruns.

Frequently Asked Questions

Q: How does the module handle network redundancy during an active channel fault?

A: The board monitors physical signal levels continuously, so when an active AF100 coaxial line fails, internal logic instantly shifts packet traffic to the secondary channel without disturbing execution loops.

Q: What precautions prevent module damage during hot-swapping procedures?

A: Maintenance personnel must follow strict hot-swap protocol limits and verify backplane power isolation guidelines, because unaligned insertion can cause current spikes across the edge connector pins.

Field Installation Guidelines

Technicians must wear grounded anti-static wrist straps while handling the CI626V1 3BSE012868R1 module. Align the PCB edge guides carefully with the sub-rack card slot, and subsequently apply firm, uniform pressure until the locking handles lock the module flush into the backplane.

Connect high-quality coaxial cables to the front-panel AF100 ports using standard BNC connectors, ensuring proper termination resistors reside at both ends of the segment. In addition, route communication cables away from high-voltage AC lines to prevent signal interference, and maintain clear cabinet ventilation space so that internal heat dissipates efficiently.a
