Brief Product Description
The ABB HIEE300043R1 ALA334 A01 serves as a dedicated LED status indicator board for industrial excitation control systems. It provides clear visual feedback to ensure efficient monitoring and system diagnostics.
Technical Overview and Functional Description

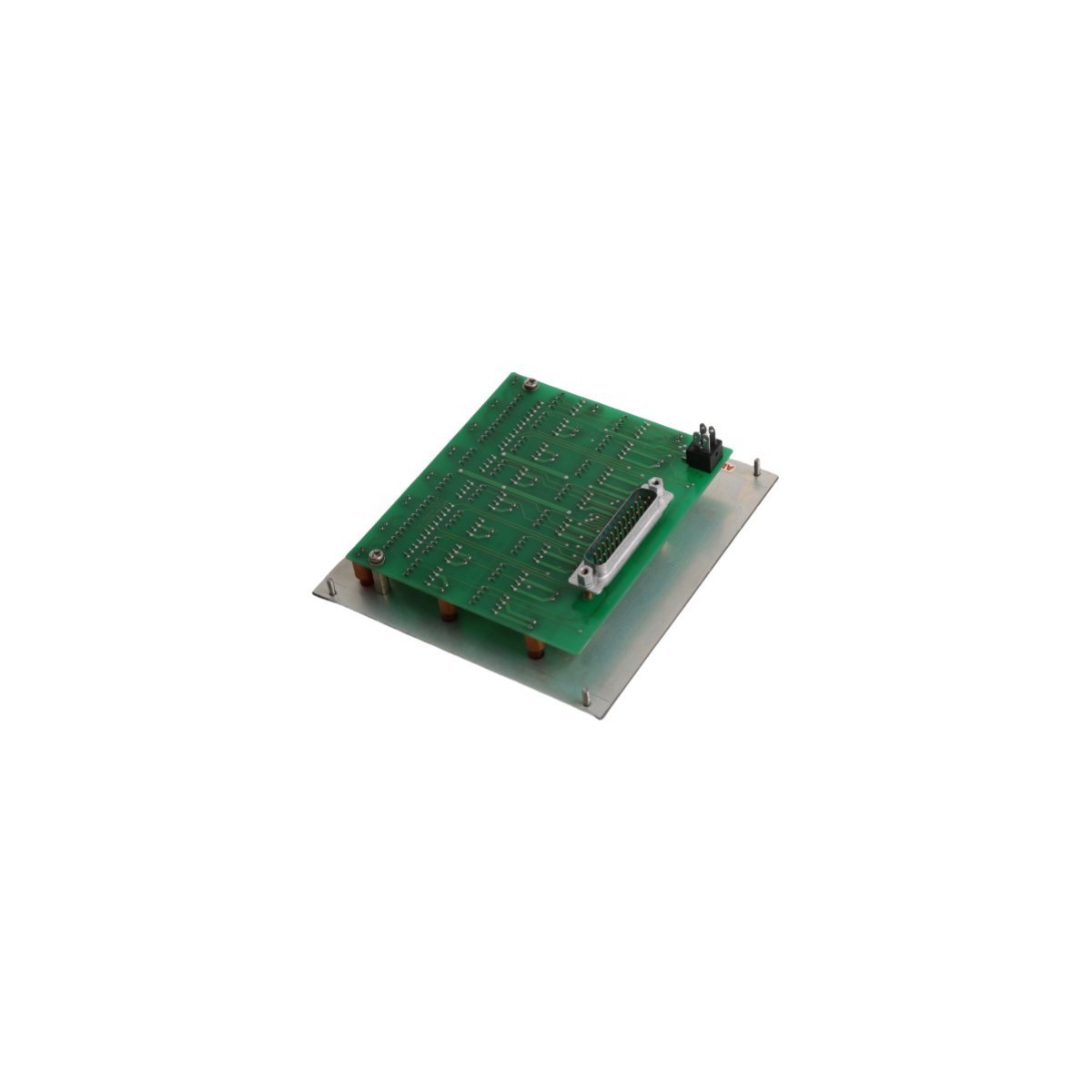

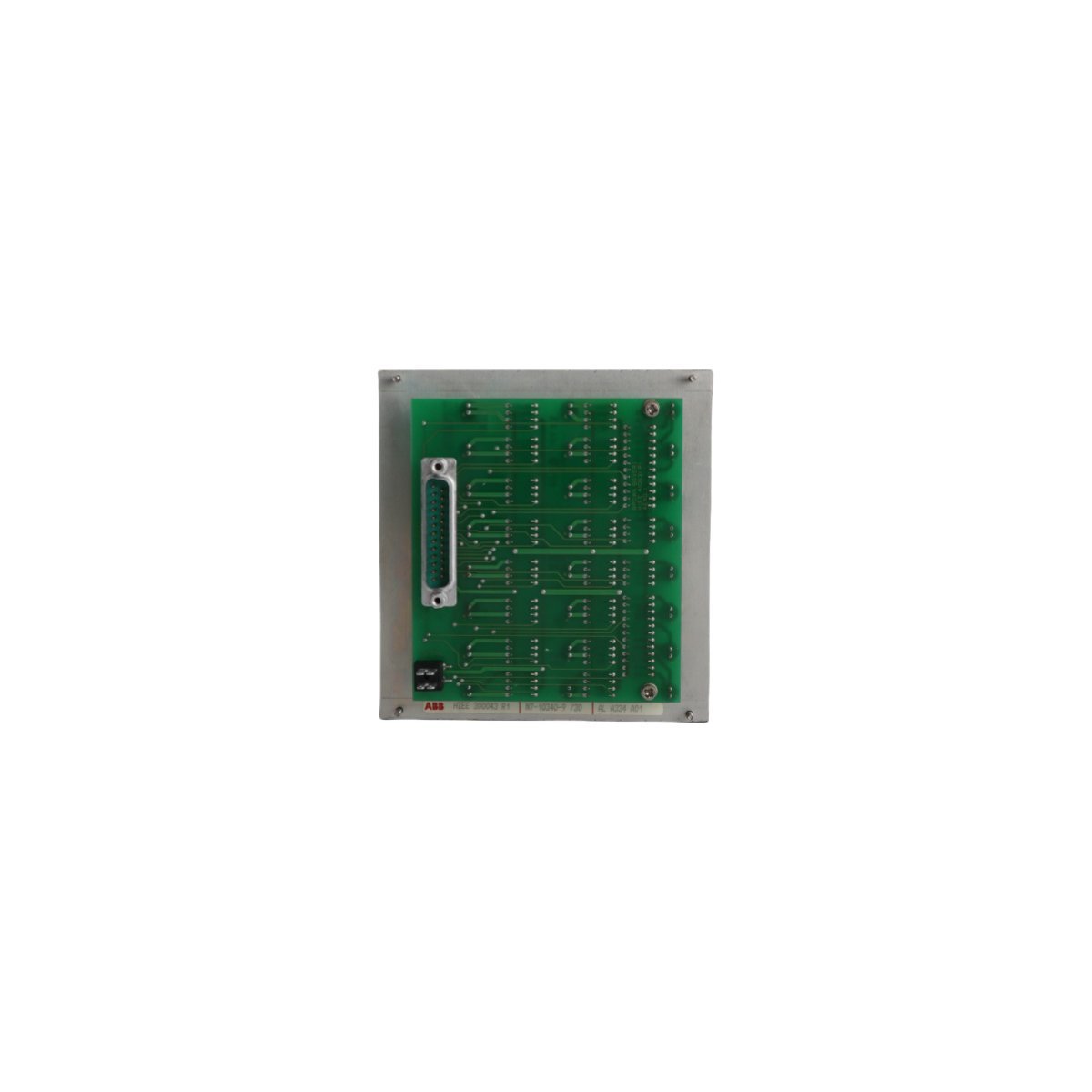

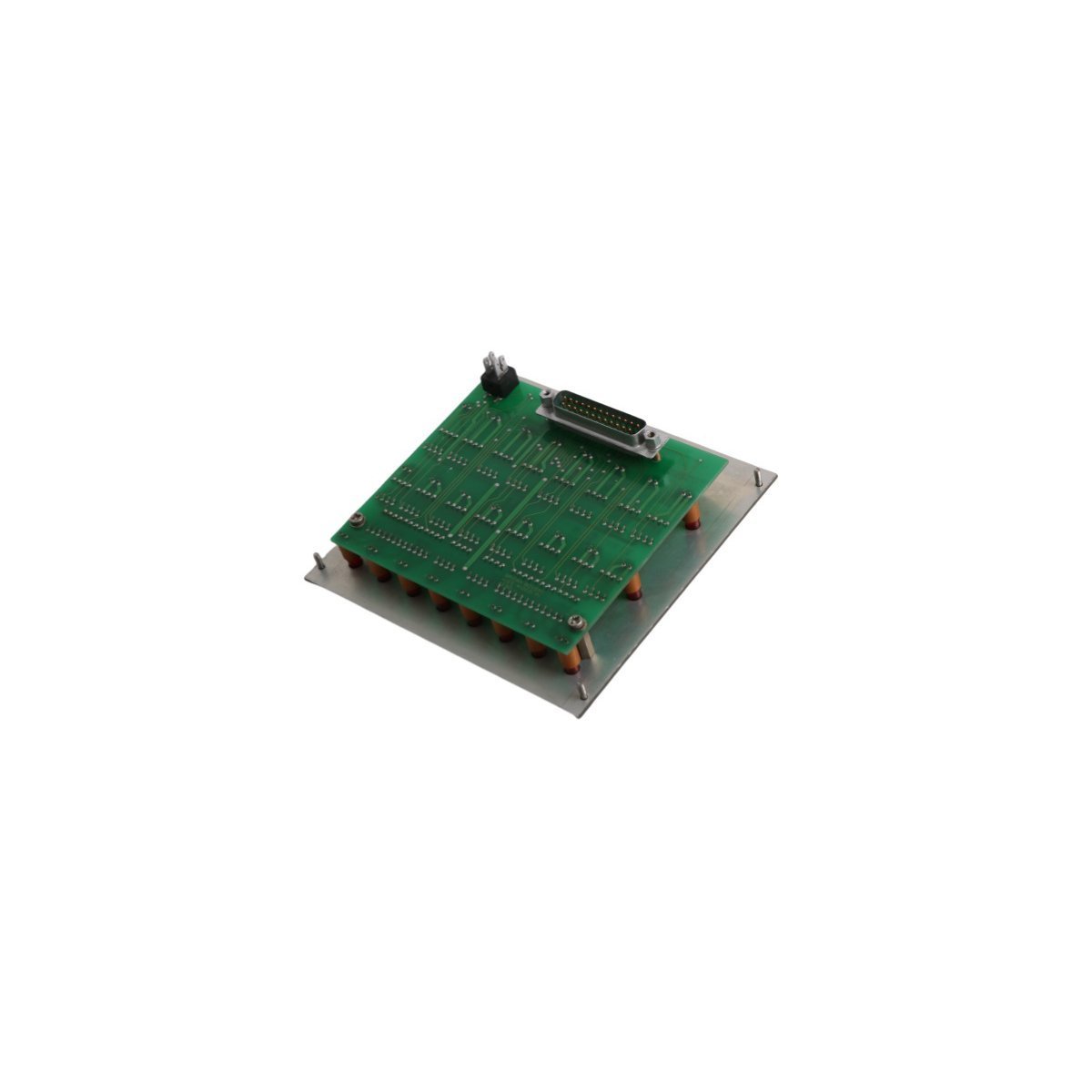

The ABB HIEE300043R1 (Model ALA334 A01) is a specialized luminous diode board developed for the UNITROL 5000 excitation control series. It functions primarily as a high-intensity visual signaling unit within distributed control systems (DCS). Because industrial operations require continuous uptime, this module features robust solid-state components that offer superior longevity compared to traditional filament lamps.
The board integrates directly into the control architecture to display critical operational states, alarms, and system health diagnostics. Consequently, plant operators can quickly perform visual inspections and identify system faults. Its engineered design minimizes thermal output while maximizing light emission, which maintains reliable operation even inside tightly enclosed electrical cabinets.
Applications
- Excitation Systems: Specifically optimized for deployment in ABB UNITROL 5000 voltage regulator frameworks.
- Power Generation: Suitable for monitoring control panels in thermal, hydro, and nuclear power plants.
- Industrial Automation: Operates effectively within DCS cabinets across chemical processing and heavy manufacturing facilities.
Technical Specifications
Product Specifications
- Manufacturer: ABB
- Part Number (Order Code): HIEE300043R1
- Model Number: ALA334 A01
- Component Type: Luminous Diode Board (LED Indicator Module)
- System Compatibility: UNITROL 5000 Excitation Systems / DCS
- Lifecycle Status: Active
- Country of Origin: Sweden
- Harmonized System (HS) Code: 8537101190
Physical Characteristics
- Net Weight: 0.16 kg
- Dimensions (W x H x D): 12.0 cm x 12.8 cm x 3.2 cm
- Minimum Order Quantity: 1 unit
