HESG324063R100/G ABB Excitation System Card Procontic b Module

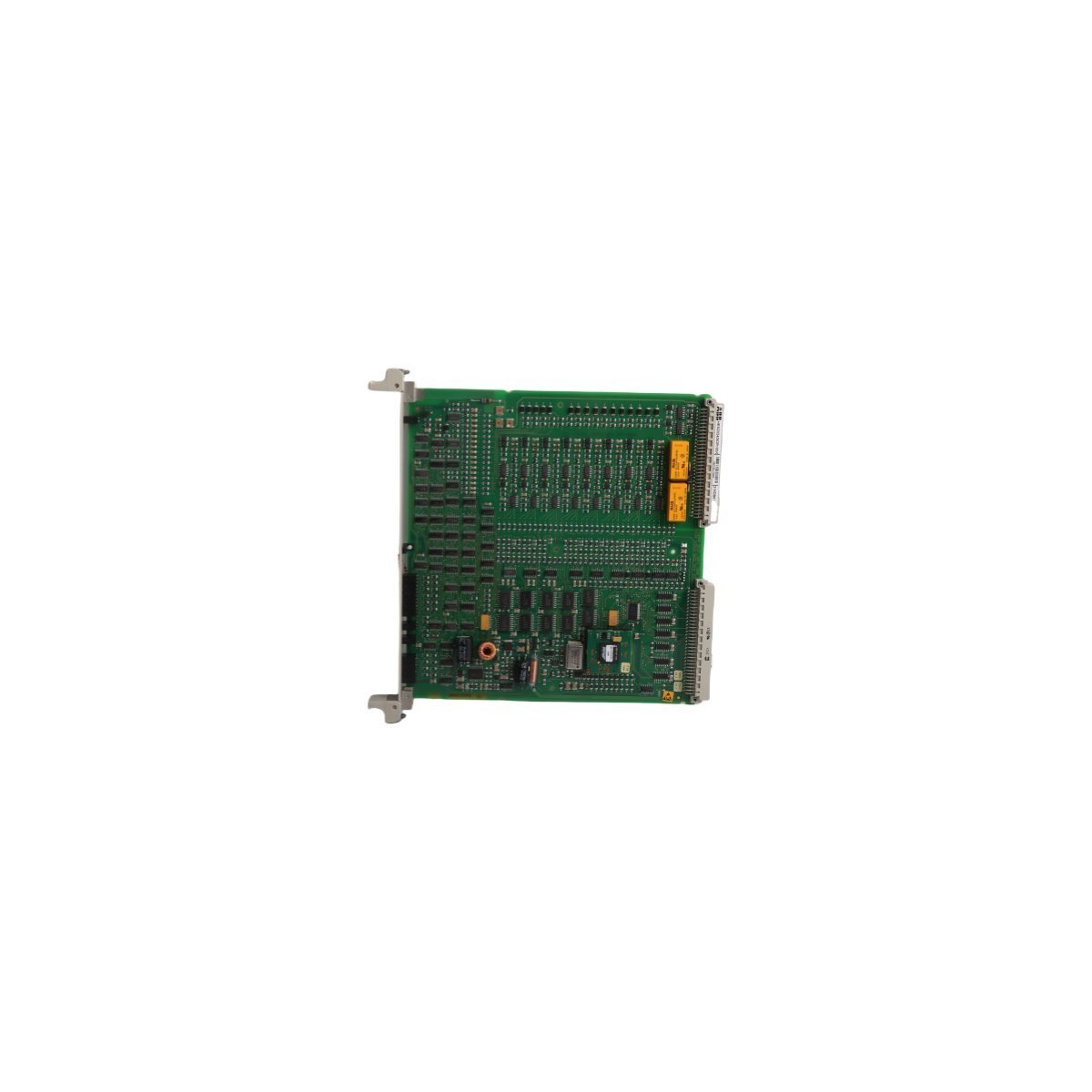

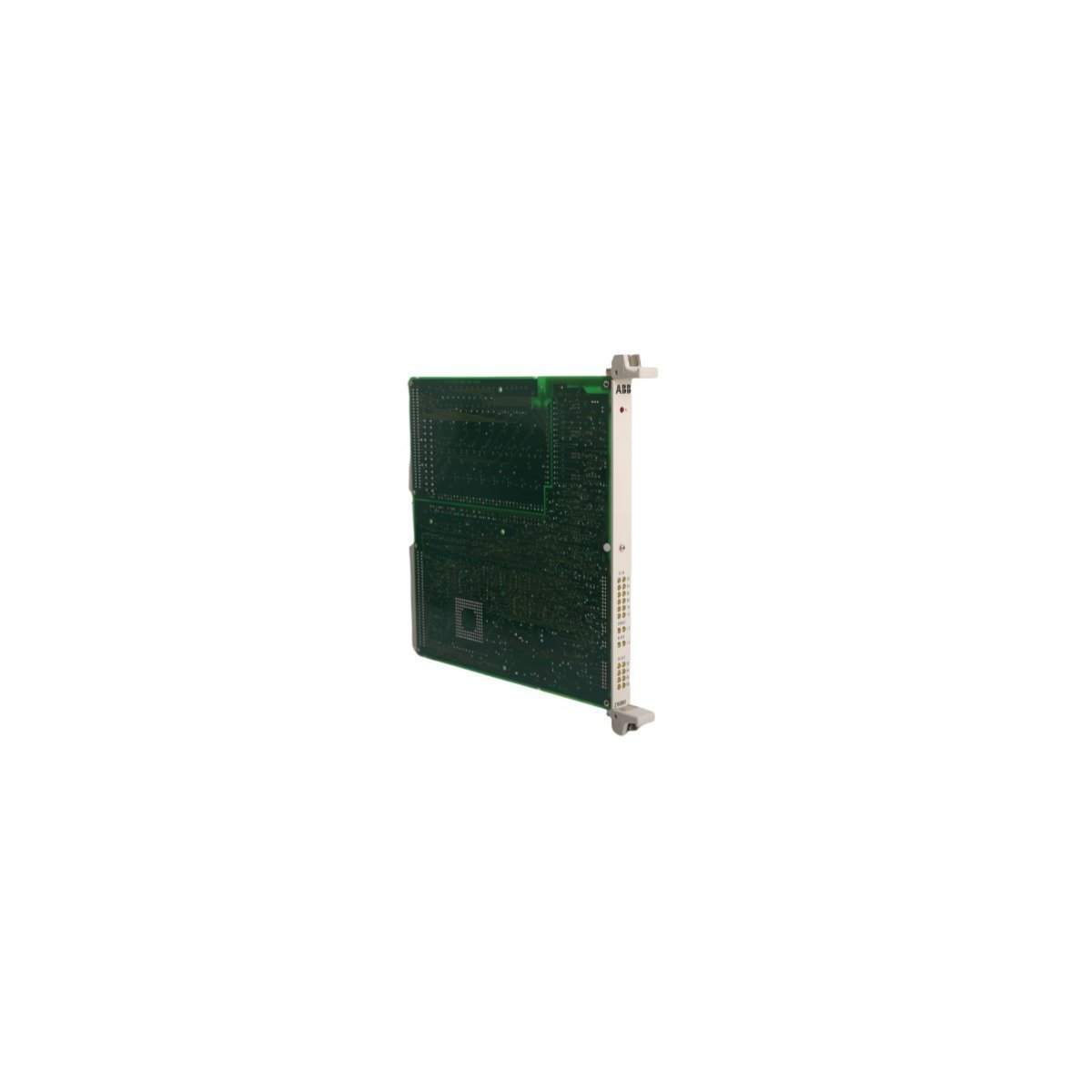

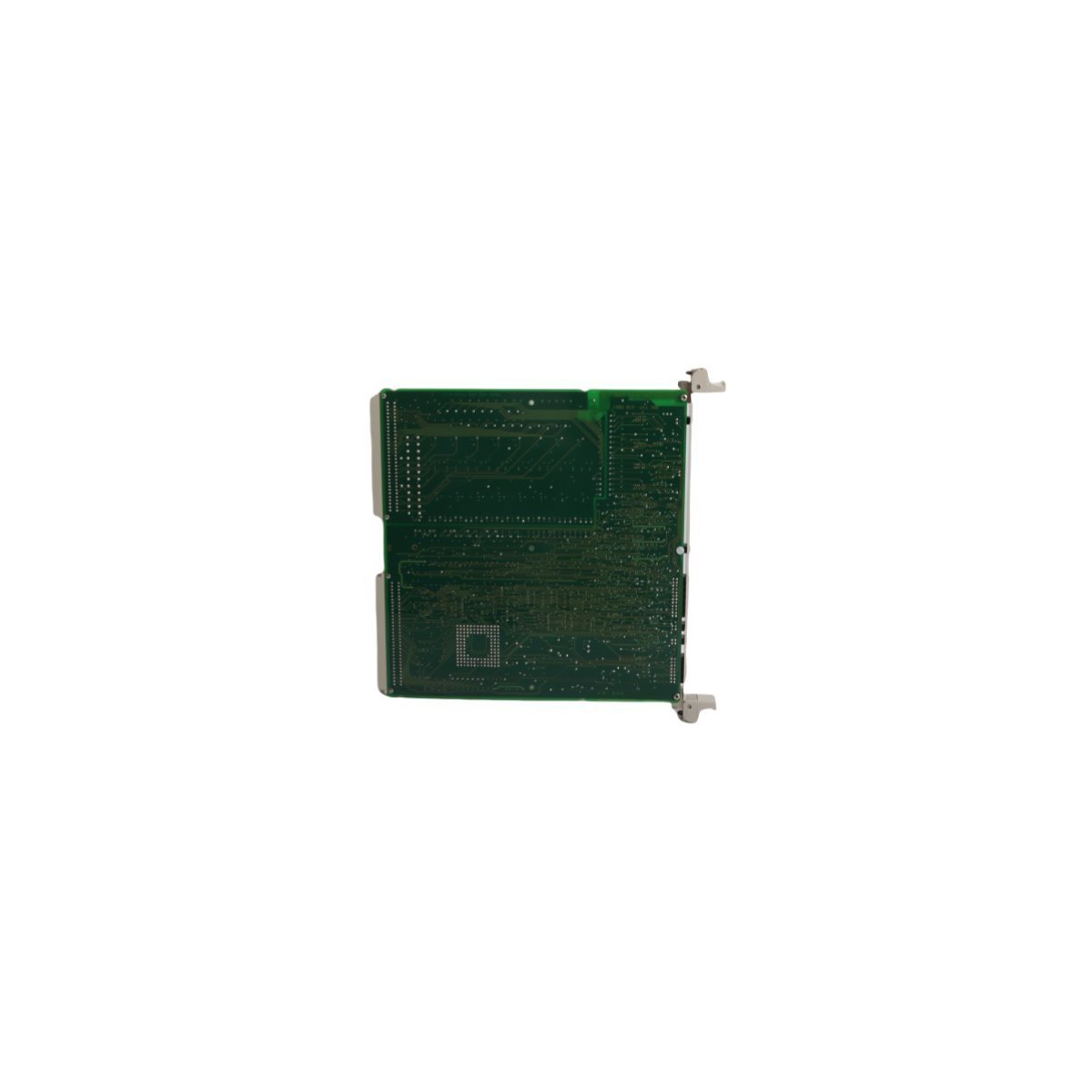

ABB HESG324063R100/G 216DB61 Excitation System Card

Configured for precise voltage regulation and field current control in industrial power management platforms, the ABB HESG324063R100/G 216DB61 (HESG324063R100/G) Excitation System Card provides direct electrical excitation management. It functions as the primary interface between the control system and the generator field winding, facilitating signal processing for system synchronization and excitation stability.

Suffix Breakdown & Model Matrix

Hardware Specifications

ABB Industrial Control Characteristics

The HESG324063R100/G 216DB61 integrates with the Procontic b series architecture to maintain deterministic control loops. The module architecture supports high-speed backplane bus communication, which enables real-time synchronization with primary DCS processors. Firmware flash compatibility ensures that the card maintains logical alignment with evolving system requirements, while the hardware design accommodates high I/O density scaling within the excitation cabinet. Furthermore, the internal logic executes signal processing with minimal latency, which allows for stable control of generator field voltage during transient load fluctuations.

Frequently Asked Questions

Q: Does the HESG324063R100/G 216DB61 support hot-swapping during active operation?

A: No, this module requires system power-down prior to extraction to prevent potential damage to the backplane bus pins and to ensure the integrity of the excitation loop.

Q: How does the module handle firmware updates within the existing rack?

A: Updates are performed via the system communication bus. Technicians must verify that the base station controller supports the specific firmware revision ID associated with the G-suffix before initiating the flash sequence.

Field Installation Guidelines

1. Static Discharge Prevention: Always utilize an anti-static wrist strap connected to the chassis ground before handling the card to prevent electrostatic discharge (ESD) damage to sensitive microelectronic components.
2. Backplane Insertion: Align the card within the designated chassis guide rails. Apply even pressure to the front faceplate until the connector fully seats into the backplane. Secure the card using the integrated captive screws to ensure proper grounding contact.
3. Signal Cabling: Route excitation feedback signals separately from high-voltage power cables to minimize electromagnetic interference (EMI). Utilize shielded twisted-pair cabling for all control loops and ensure the shield drain wire is connected to a dedicated earth busbar at the cabinet entry point.
4. Validation: After installation, measure the terminal feedback voltage to confirm it falls within the nominal range specified by the generator excitation sequence before energizing the field output.
