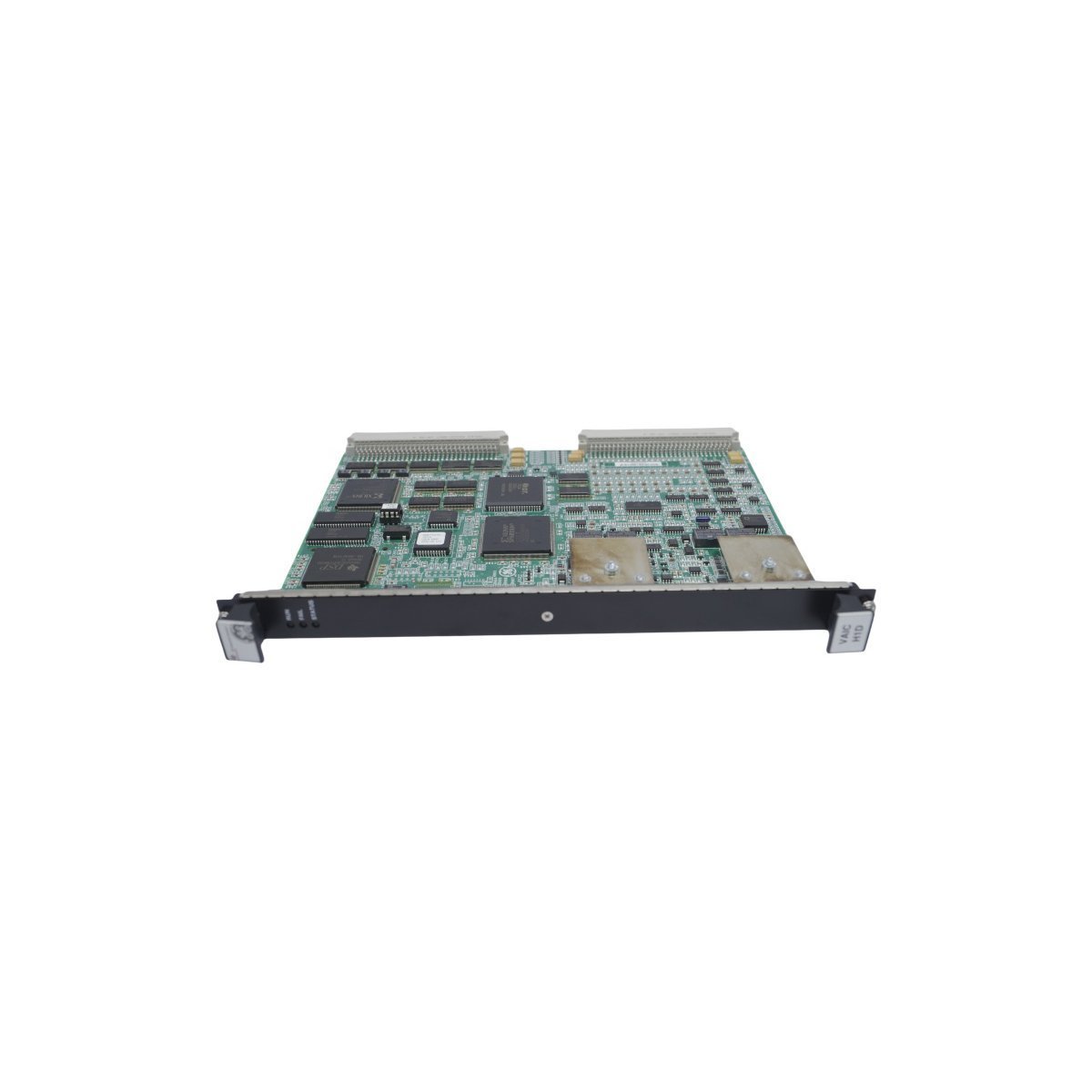

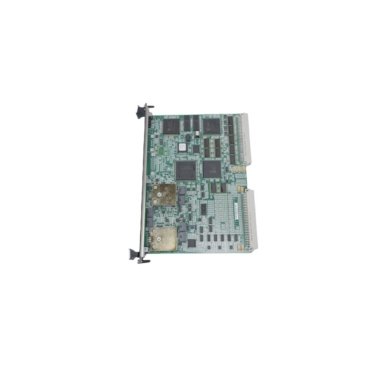

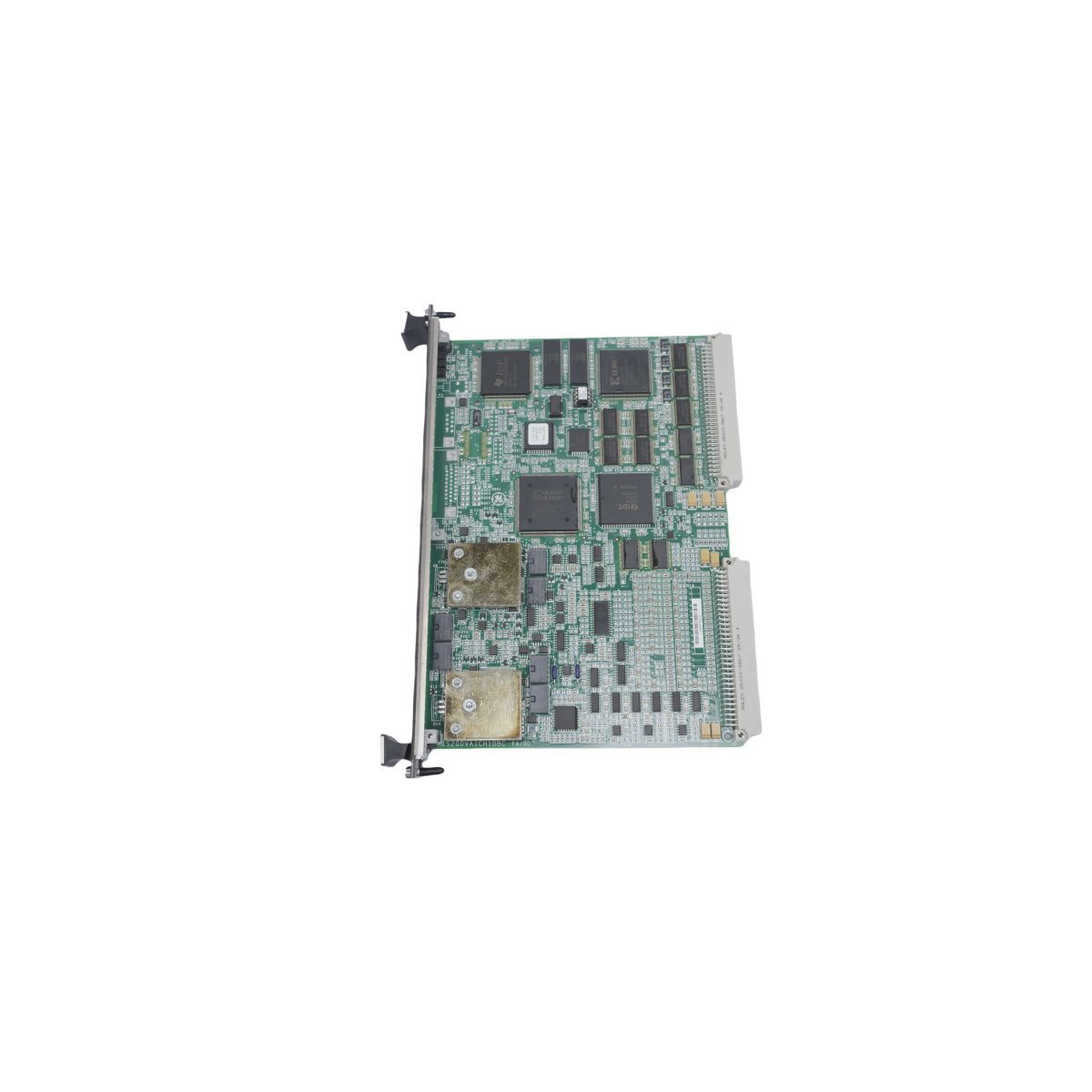

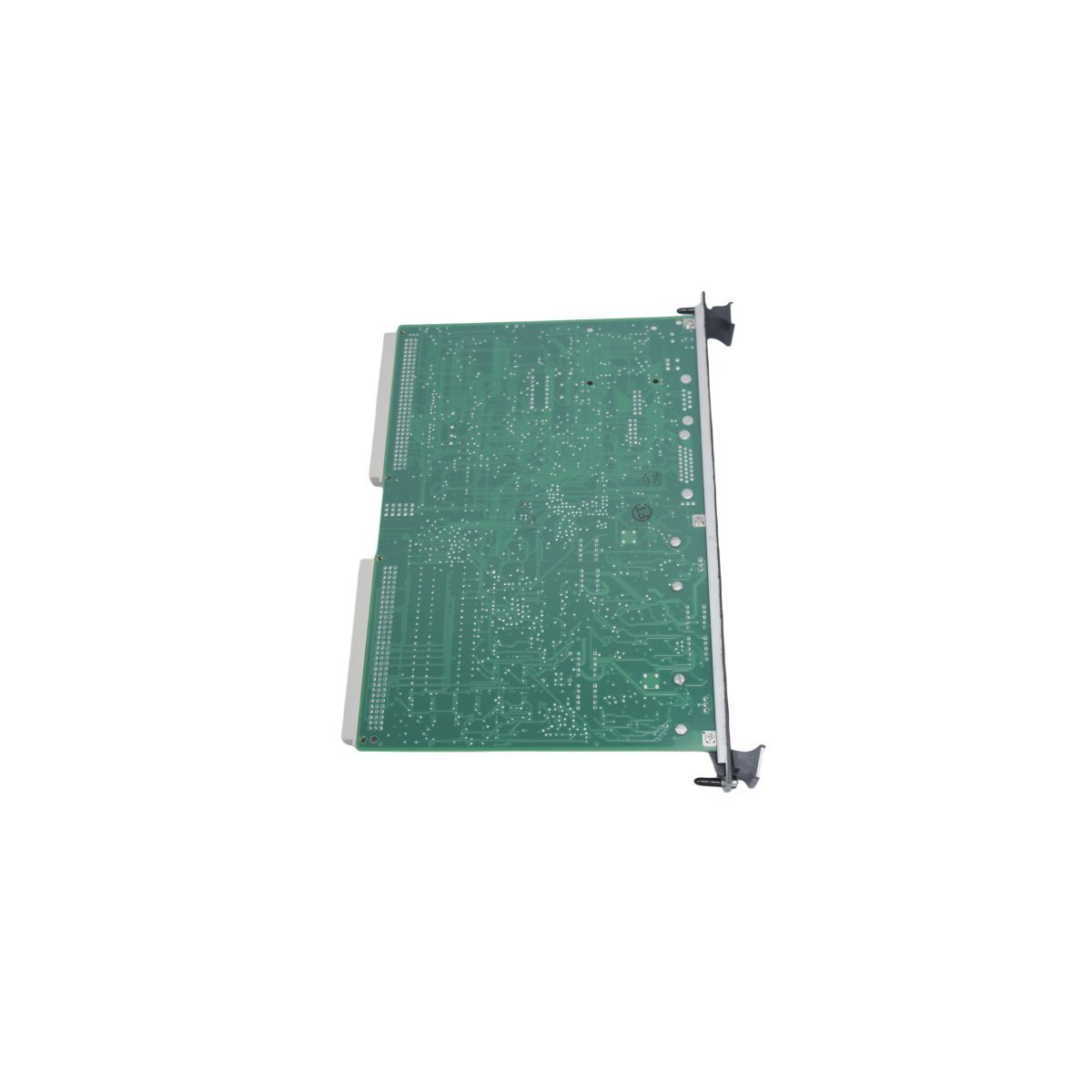

General electric IS200VAICH1DBC Analog I/O Board

The GE IS200VAICH1DBC serves as a high-performance analog interface within the Mark VI and EX2100 control systems. This board manages critical data acquisition by converting field signals into actionable digital information. Specifically, the module handles complex RTD and thermocouple linearizations for precise thermal monitoring. It features a high-speed CPU housed in a compact, single-width VME form factor. Industrial operators rely on this processor for stable signal filtering in large-scale power generation environments.

Technical Specification Overview

Signal Processing and Calibration Features

The IS200VAICH1DBC utilizes an internal sensor characteristic library to automate measurement calibrations. This architecture supports 32-bit floating-point math for superior calculation accuracy. Furthermore, the board integrates seamlessly with two TBAI terminal blocks to expand input capacity. Users can update configuration settings through software while the system remains operational. This live-adjustment capability prevents unnecessary downtime during process tuning or sensor recalibration.

Hardware Interface and Connectivity

The front panel includes a narrow faceplate equipped with three diagnostic LEDs. These indicators provide real-time visual feedback regarding the operational health of the board. On the reverse side, two 37-pin connectors link the processor to the VME rack backplane. This connection facilitates rapid data exchange with other system components and controllers. The assembly consists of high-grade integrated circuits, relays, and diodes to ensure long-term durability. Each component features distinct part markings for simplified maintenance and identification.

System Compatibility and Revision Status

As a D-rated revision, the IS200VAICH1DBC maintains full functional parity with earlier versions of the VAIC series. It meets the rigorous safety and performance standards established for GE gas and steam turbine controls. Moreover, the board design emphasizes electromagnetic compatibility to reduce signal noise in high-interference areas. This module remains a critical spare part for maintaining the lifecycle of the EX2100 excitation system. Its robust design supports high-availability applications across global energy infrastructure.
