IC200GBI001 GE VersaMax Genius Network Interface Module

GE IC200GBI001 VersaMax Genius Network Interface Module

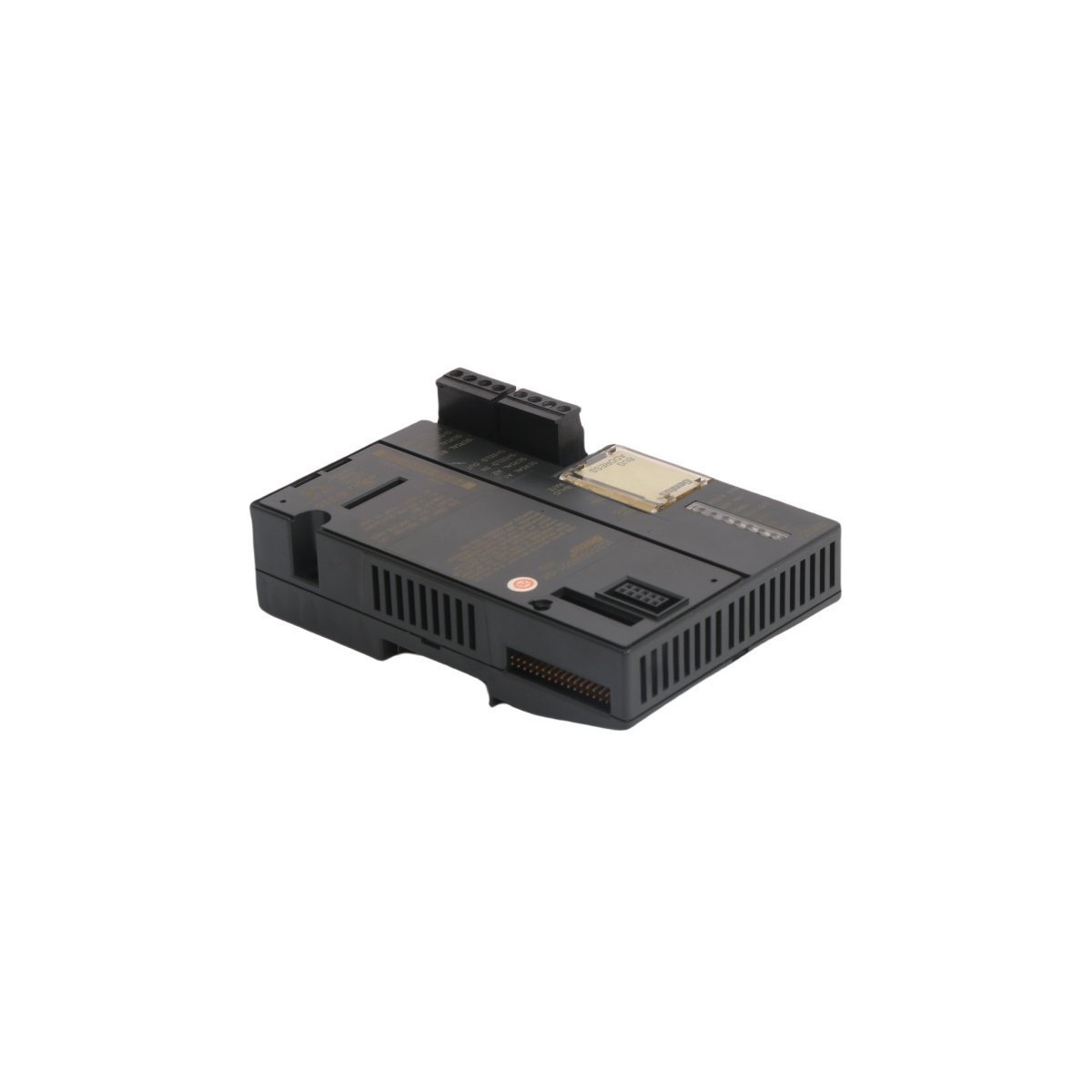

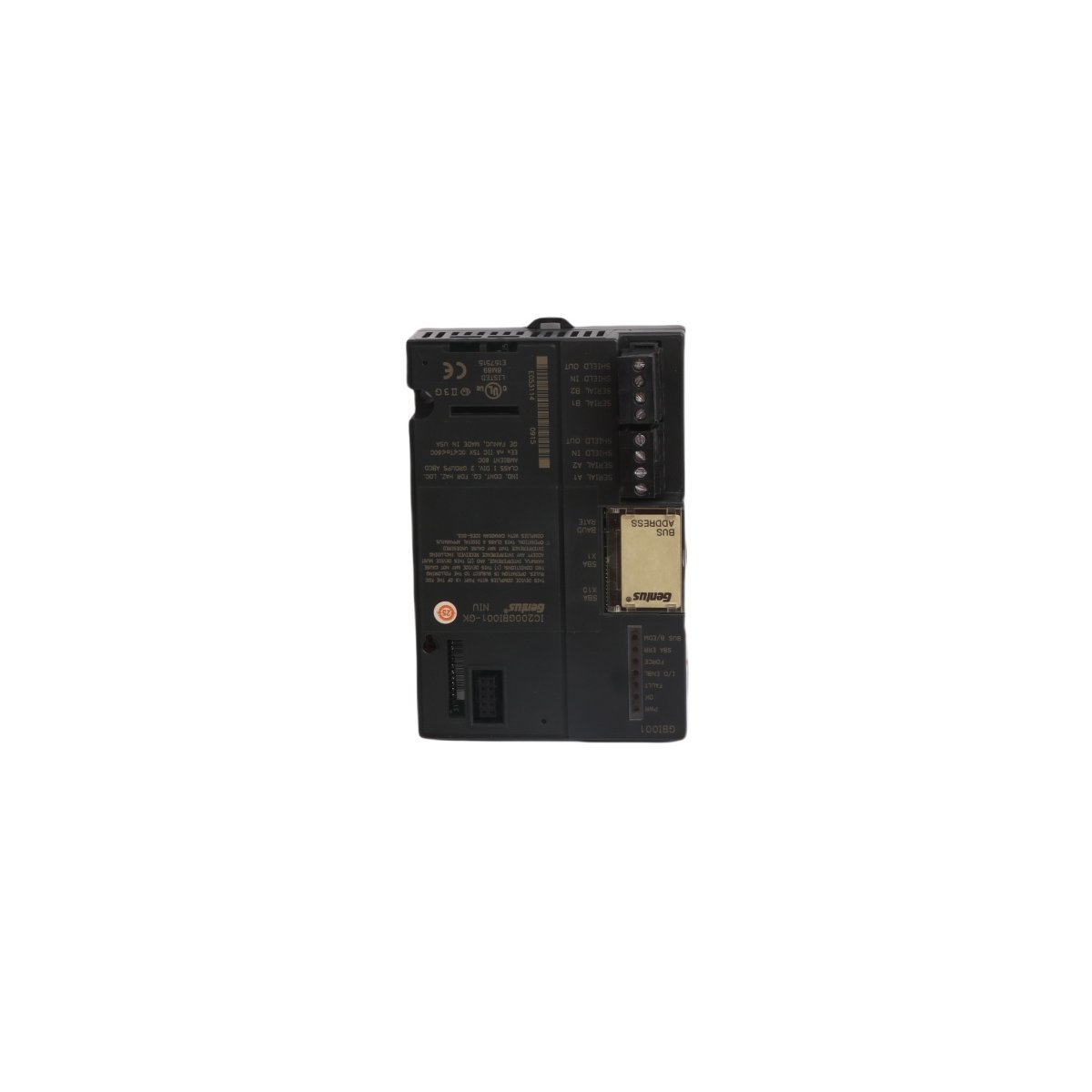

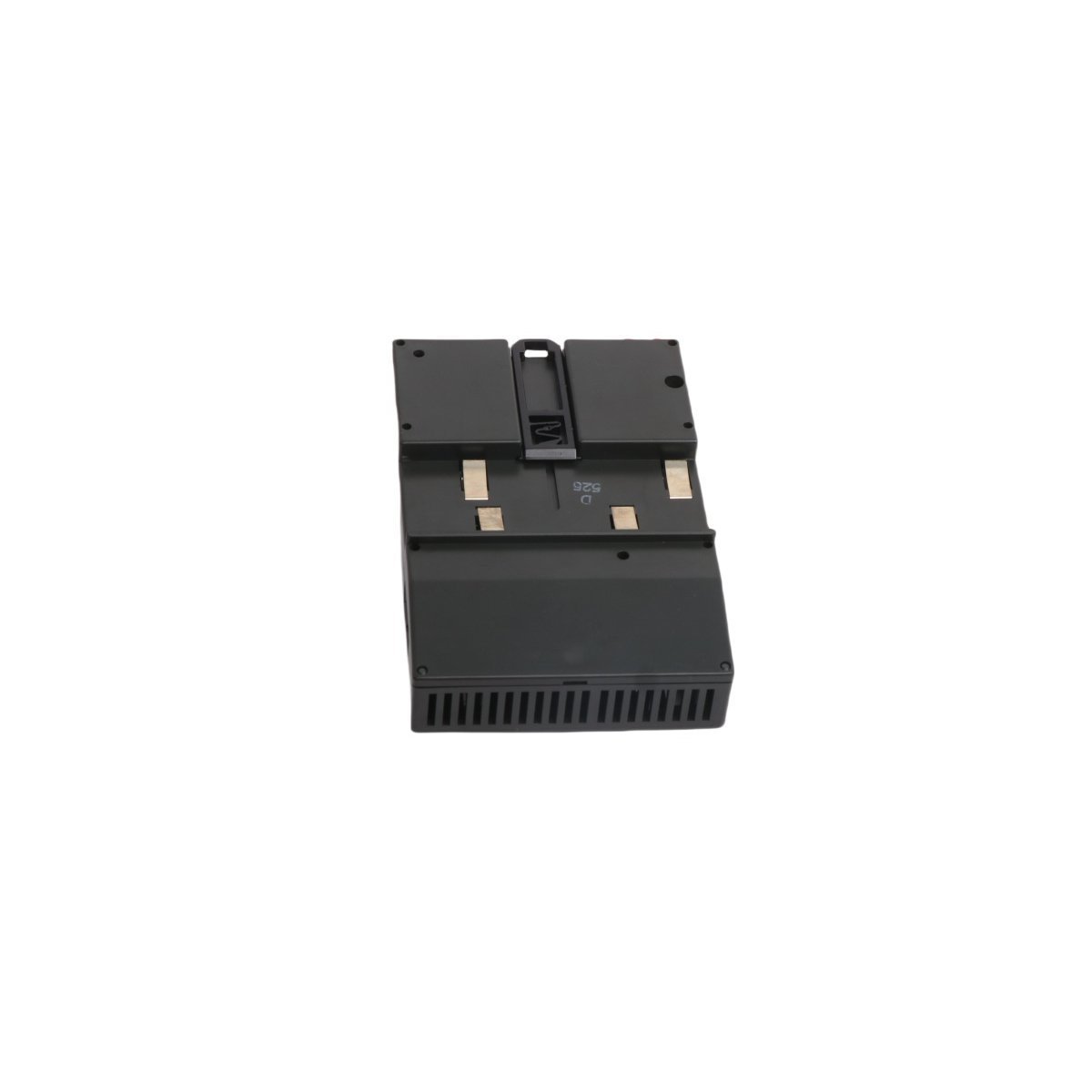

The GE IC200GBI001, also cataloged as the IC200GBI001 Network Interface Module, operates as a dedicated hardware component for bridging Genius Bus communication signals to local VersaMax I/O modules within GE VersaMax PLC networks. Mounted at the head of an I/O station, the unit receives bus commands from a host controller, processes real-time cyclic I/O data, and transfers signals directly across the local backplane. Onboard status LEDs display real-time network health and power diagnostic states, enabling rapid field verification.

Hardware Specifications

Backplane Bus Communication Velocity & Firmware Integrity

The IC200GBI001 network module manages backplane bus communication velocity by coordinating cyclic transfers between the Genius Bus master and target expansion modules. Consequently, the unit translates network packets into internal backplane protocol frames without requiring separate CPU intervention. In addition, onboard EEPROM chips preserve firmware flash compatibility, enablingfield update procedures over serial interfaces while onboard memory registers maintain deterministic I/O scan timing across connected modules.

Frequently Asked Questions

Q: Does the IC200GBI001 supply backplane operating power directly to attached I/O modules?

A: No, field technicians must install an integrated power supply module onto the VersaMax carrier baseplate to power both the IC200GBI001 interface and adjacent expansion modules.

Q: How do operators configure network baud rates and station addresses for the IC200GBI001?

A: Software configuration tools set the Genius Bus station address and communication speed, sending configuration parameter files across the network during initial station boot setup.

Q: Can maintenance teams swap the IC200GBI001 while field I/O wiring remains connected?

A: Yes, because field wiring connects directly to I/O carrier bases rather than the module housing, operators can unlatch and replace the interface module without disturbing field terminal blocks.

Field Installation Guidelines

1. Disconnect main system power before latching the network module onto the VersaMax module carrier base.
2. Align the connector pins on the back of the module with the carrier receptacle, pressing firmly until locking clips engage.
3. Terminate Genius Bus shielded twisted-pair cables at designated terminal block connectors, maintaining correct polarity for serial data lines.
4. Connect cable shield drain wires directly to local DIN-rail ground tabs, keeping unshielded conductor lengths below 25 mm.
5. Install 75 Ohm or 150 Ohm termination resistors across the serial data lines at both physical ends of the Genius network trunk.
