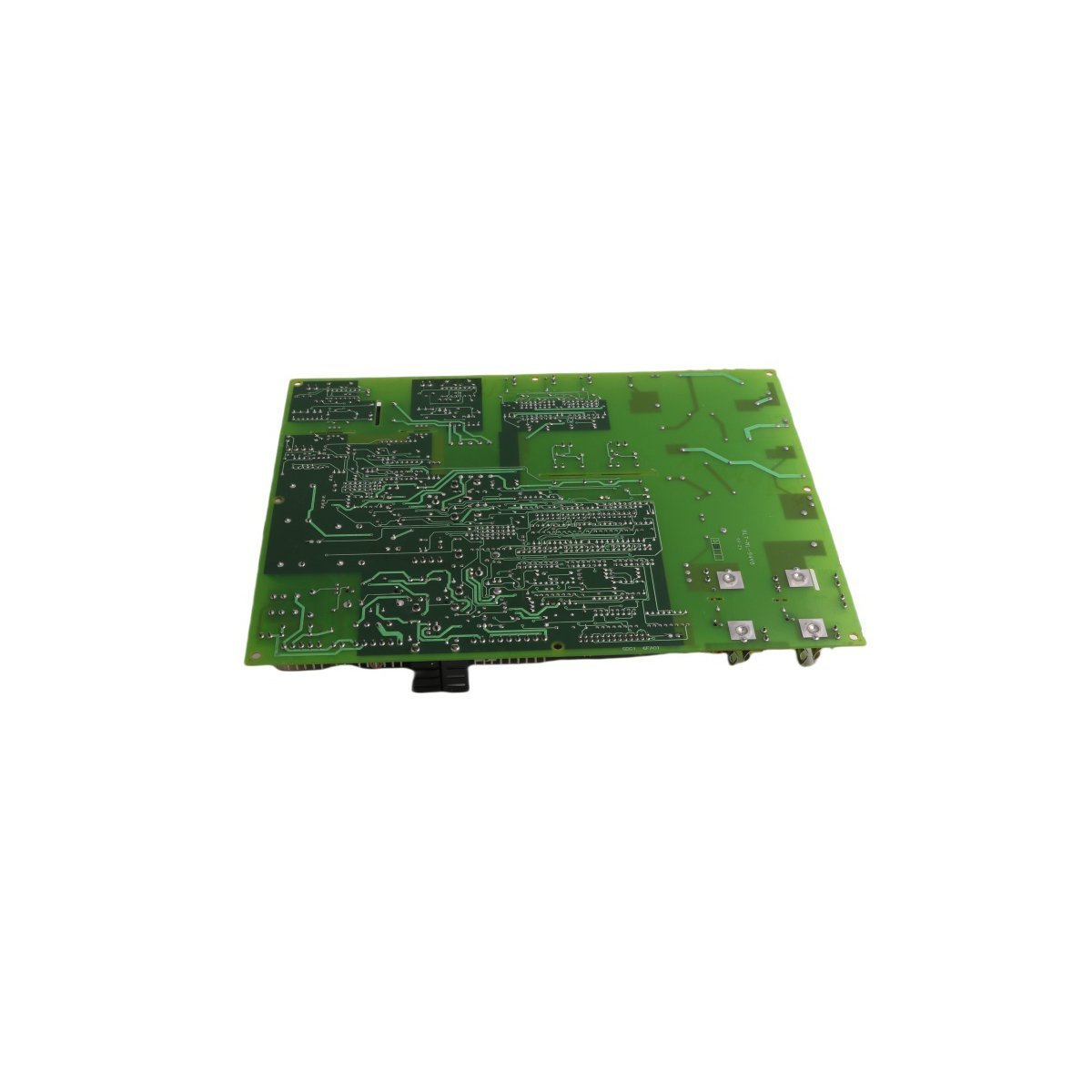

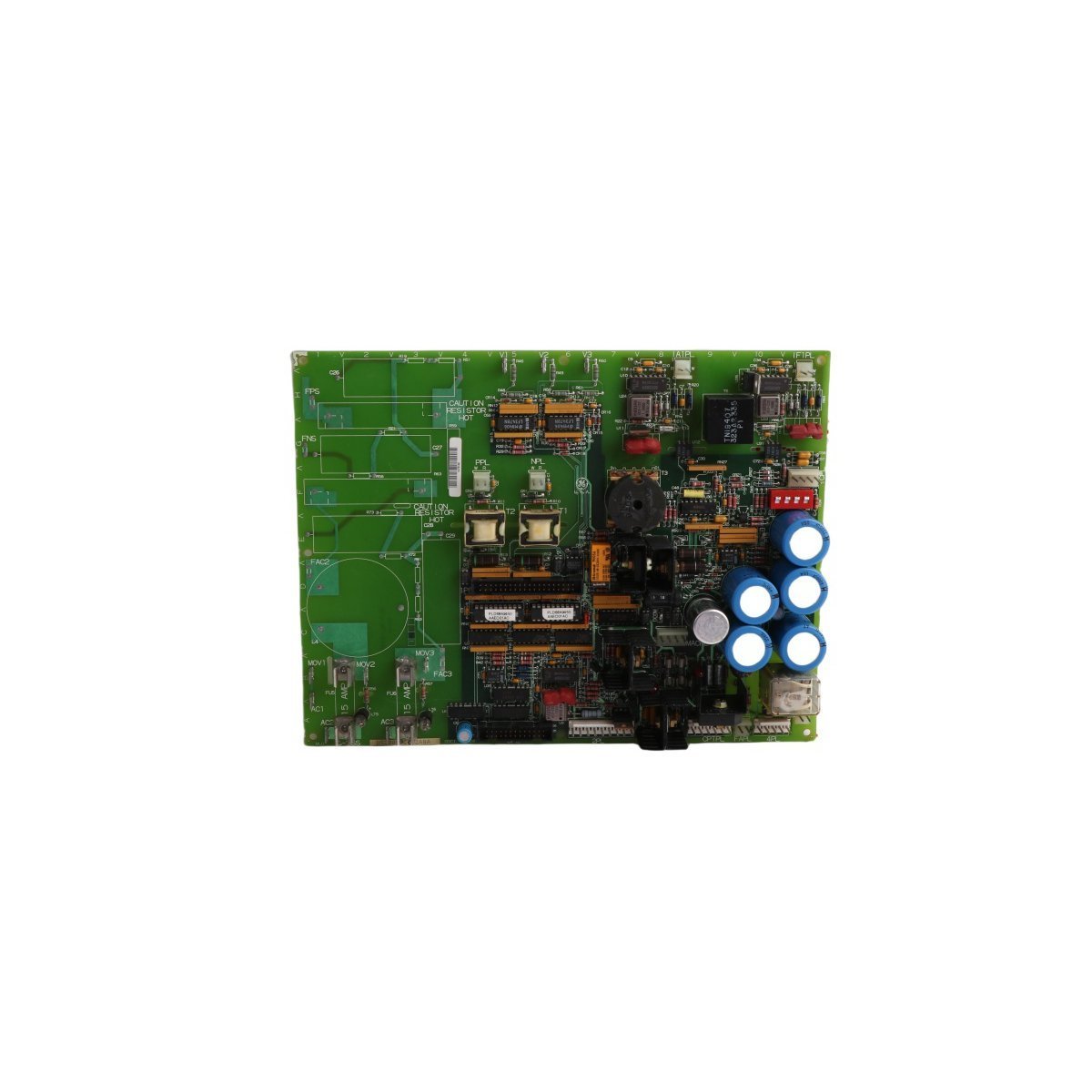

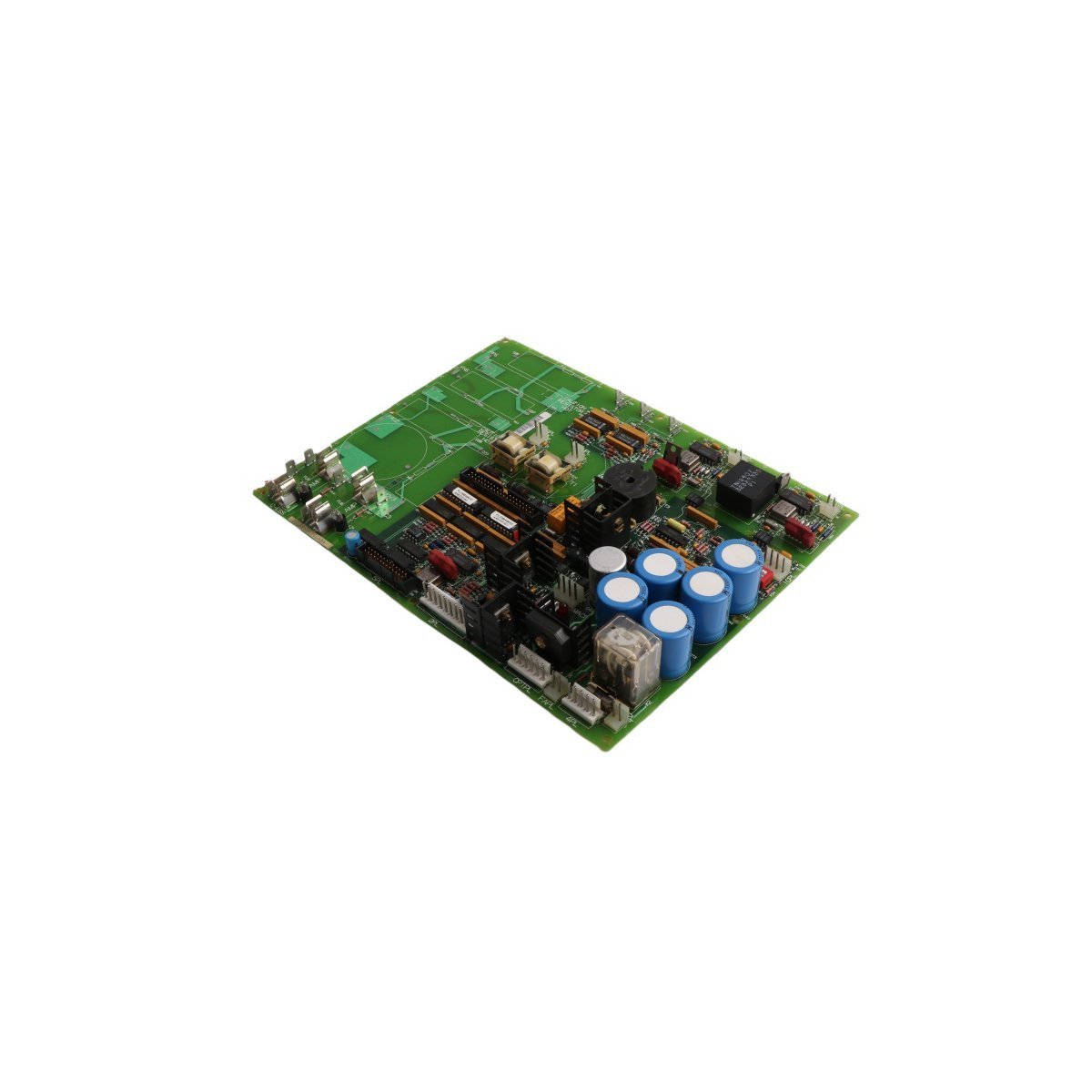

General electric DS200SDCIG2ABA DC Power Supply

The GE DS200SDCIG2ABA serves as a specialized DC power supply and high-voltage instrumentation interface for the Mark V Speedtronic series. This board, commonly identified as the SDCI card, manages critical power regulation and signal measurement for heavy-duty industrial drives. It provides the necessary electrical infrastructure to monitor SCR (Silicon Controlled Rectifier) performance in complex turbine control systems.

Core Functionality and Hardware Features

This module integrates high-voltage instrumentation with localized power distribution. It features six primary protective fuses, designated FU1 through FU6, to safeguard internal circuitry. Each fuse includes a dedicated LED indicator for immediate visual troubleshooting of power faults. These visual cues allow technicians to identify blown components without manual testing.

Furthermore, the board utilizes several Berg-type jumpers and switches for hardware customization. Jumpers JP1, JP2, and switch SW1 enable users to select between various test modes or customer-specific configurations. This adaptability ensures the SDCI board functions correctly across different drive cabinet architectures within the Mark V ecosystem.

Signal Conditioning and Protection

The DS200SDCIG2ABA acts as a bridge between high-voltage SCR bridges and low-voltage control logic. It processes feedback signals to ensure precise drive speed and torque regulation. Integrated suppression components protect sensitive digital modules from electrical noise and voltage spikes. Consequently, the system maintains stable instrumentation readings even in harsh industrial electromagnetic environments.

Technical Specifications
