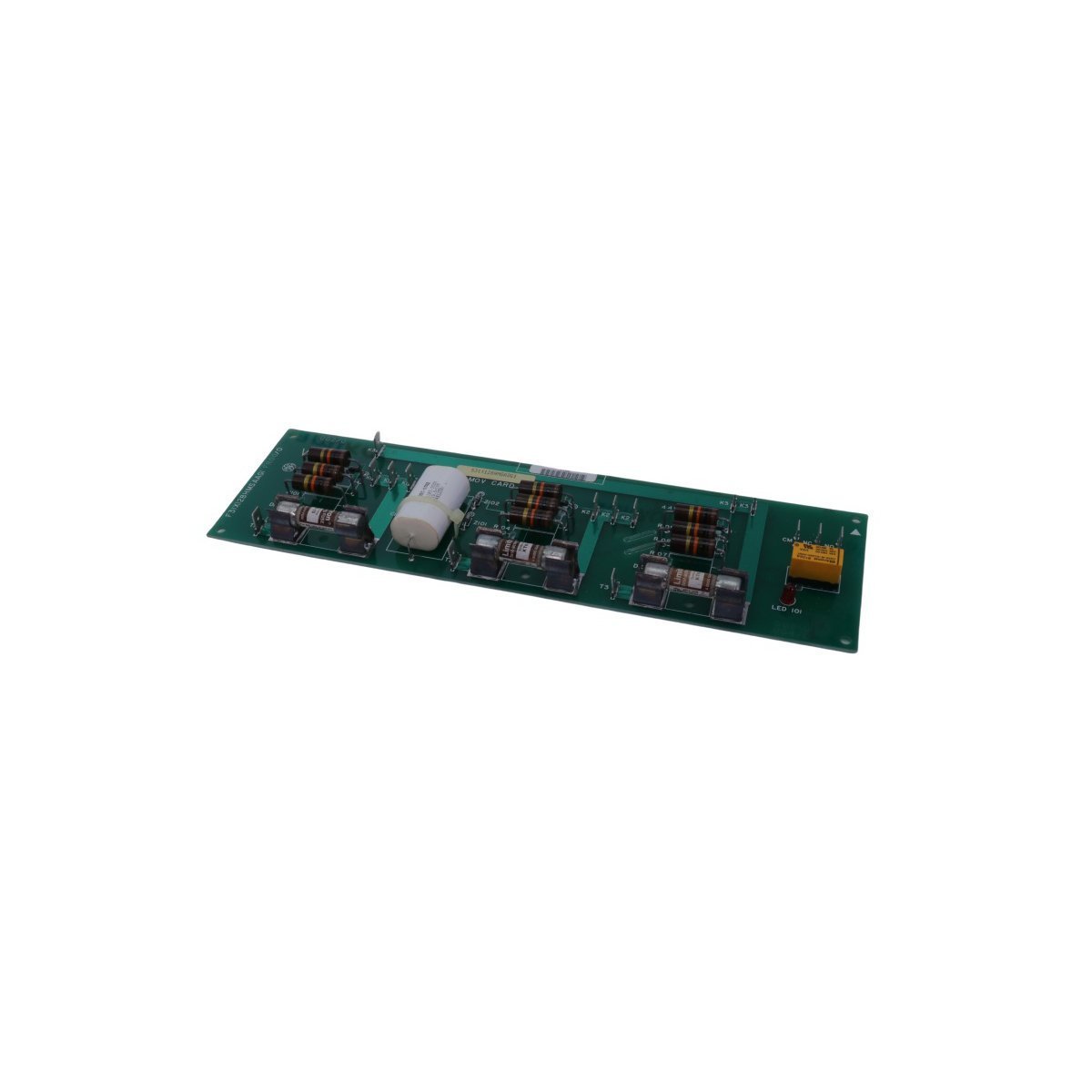

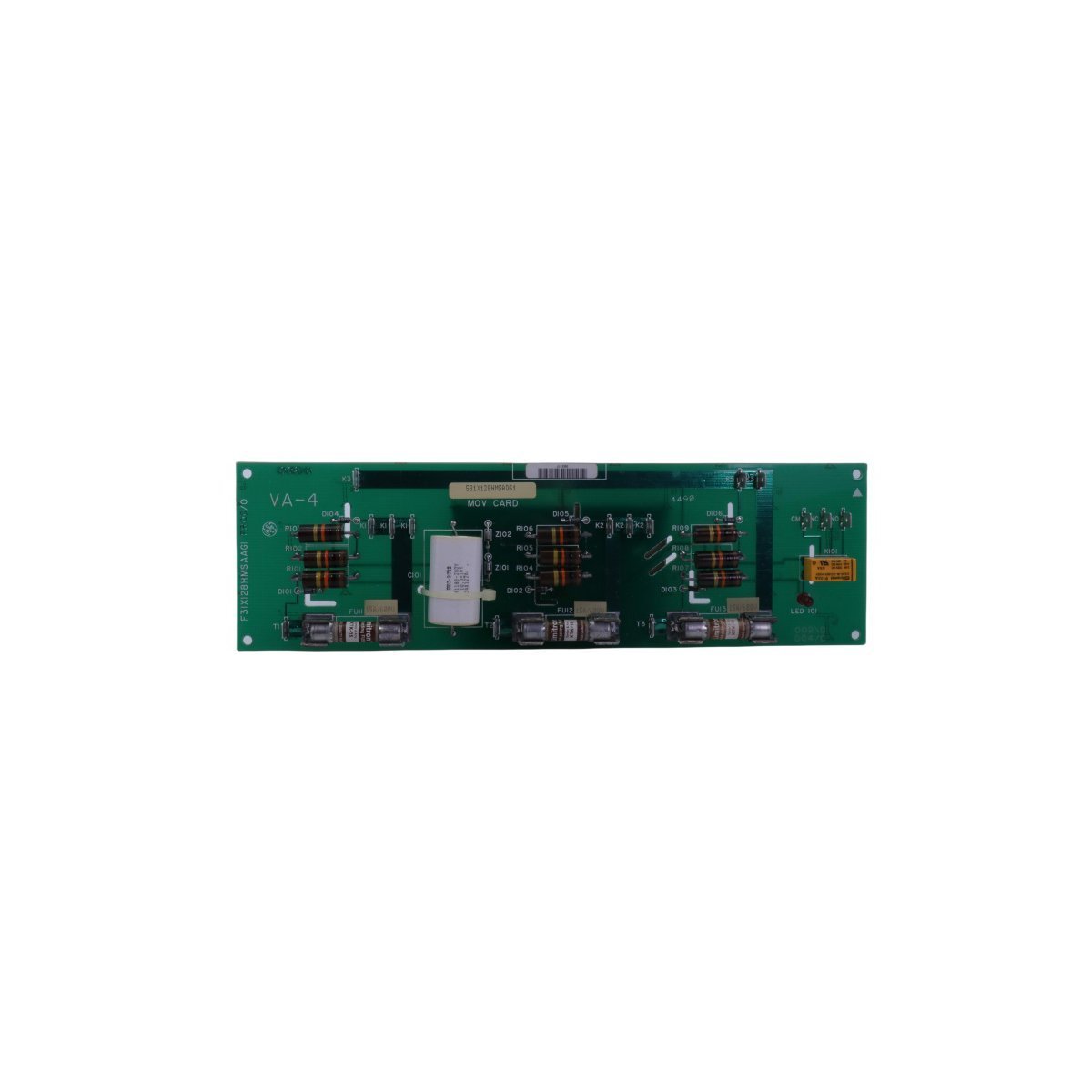

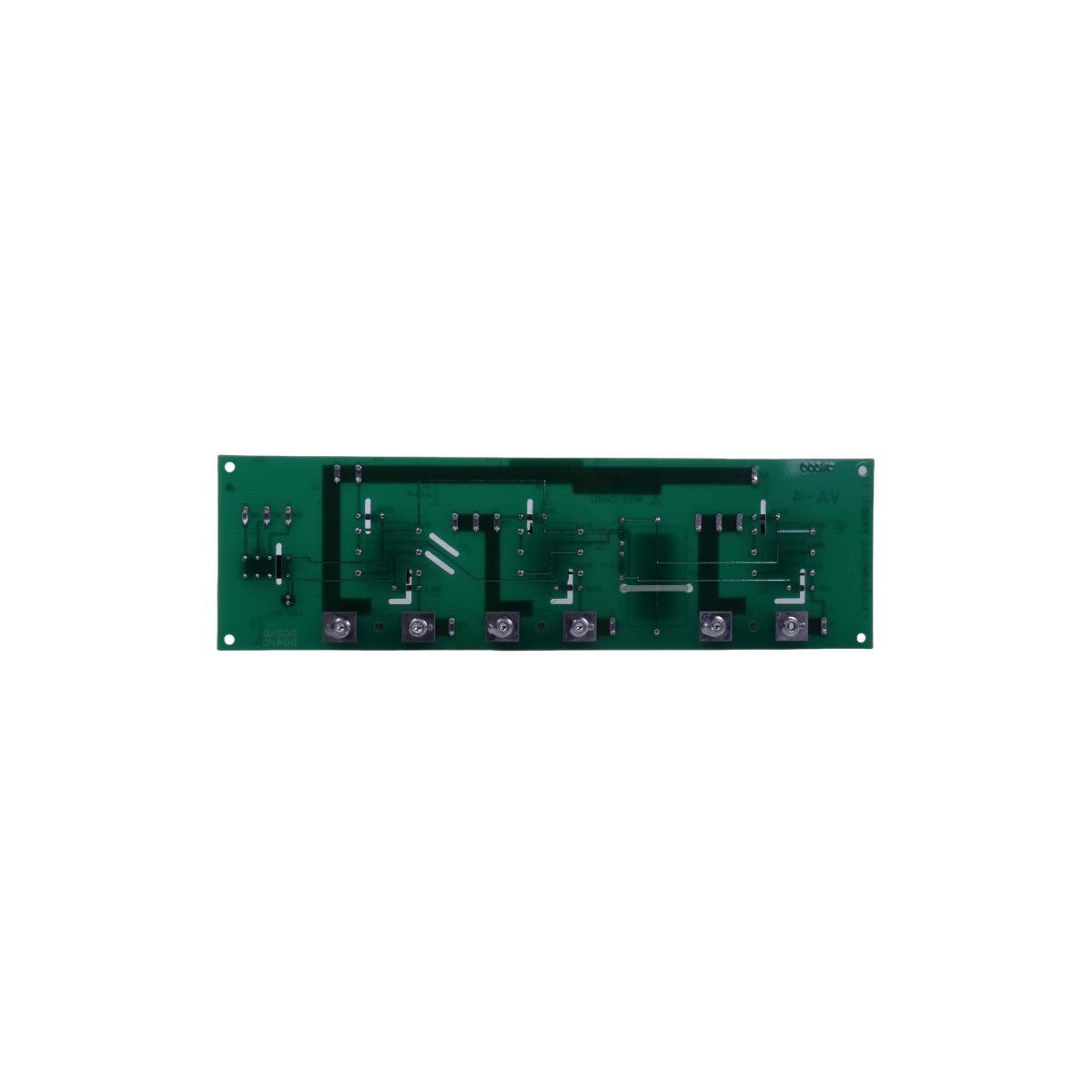

General electric 531X128HMSADG1 High-Performance Power Supply Card

The GE 531X128HMSADG1 is a specialized high-performance power supply card engineered for industrial drive systems. This board delivers stable electrical regulation within the 531X series ecosystem. It provides critical voltage transformation for various control components in Distributed Control Systems (DCS). Because it handles sensitive power tasks, the card maintains system integrity during peak loads. Consequently, engineers use this module to ensure consistent performance in heavy-duty turbine and drive applications.

Advanced Circuitry and Component Layout

This power card features a compact footprint packed with precision electronic components. The hardware includes various metal film resistors and network arrays for stable impedance. Furthermore, the board utilizes diverse capacitors like ceramic and polyester vinyl types for noise filtration. A single aluminum electrolytic capacitor manages larger energy storage requirements. These elements work together to provide a clean and ripple-free power output to the drive logic.

Integrated Control and Adjustment Features

The 531X128HMSADG1 offers several manual calibration points for field optimization. It houses seven potentiometers that allow technicians to fine-tune voltage and resistance levels. Additionally, a seven-toggle switch labeled Tach Range provides adjustable speed feedback parameters. Multiple jumper switches and TP test points facilitate rapid diagnostic procedures. This level of manual control ensures the power supply matches specific site requirements perfectly.

Installation and Interface Connectivity

Secure installation is straightforward thanks to pre-drilled mounting holes in every corner. The board interfaces with the wider system via two vertical male pin connectors. A dedicated three-position terminal strip handles primary wiring connections efficiently. Moreover, integrated circuits like analog line receivers manage incoming signals with high fidelity. This streamlined connectivity allows for quick replacement in existing 531X drive cabinets.

Technical Specifications
