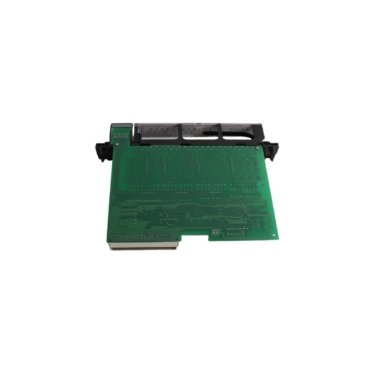

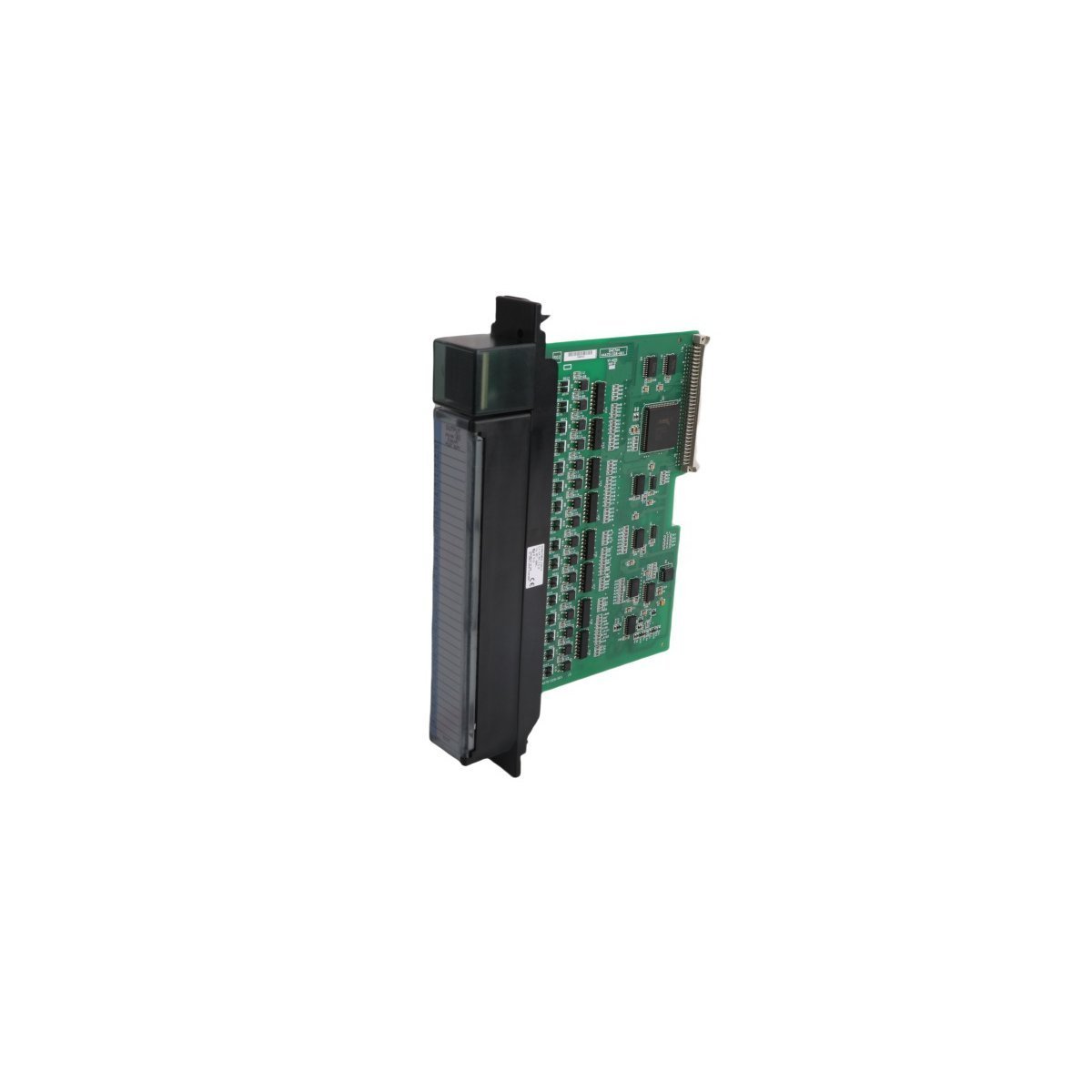

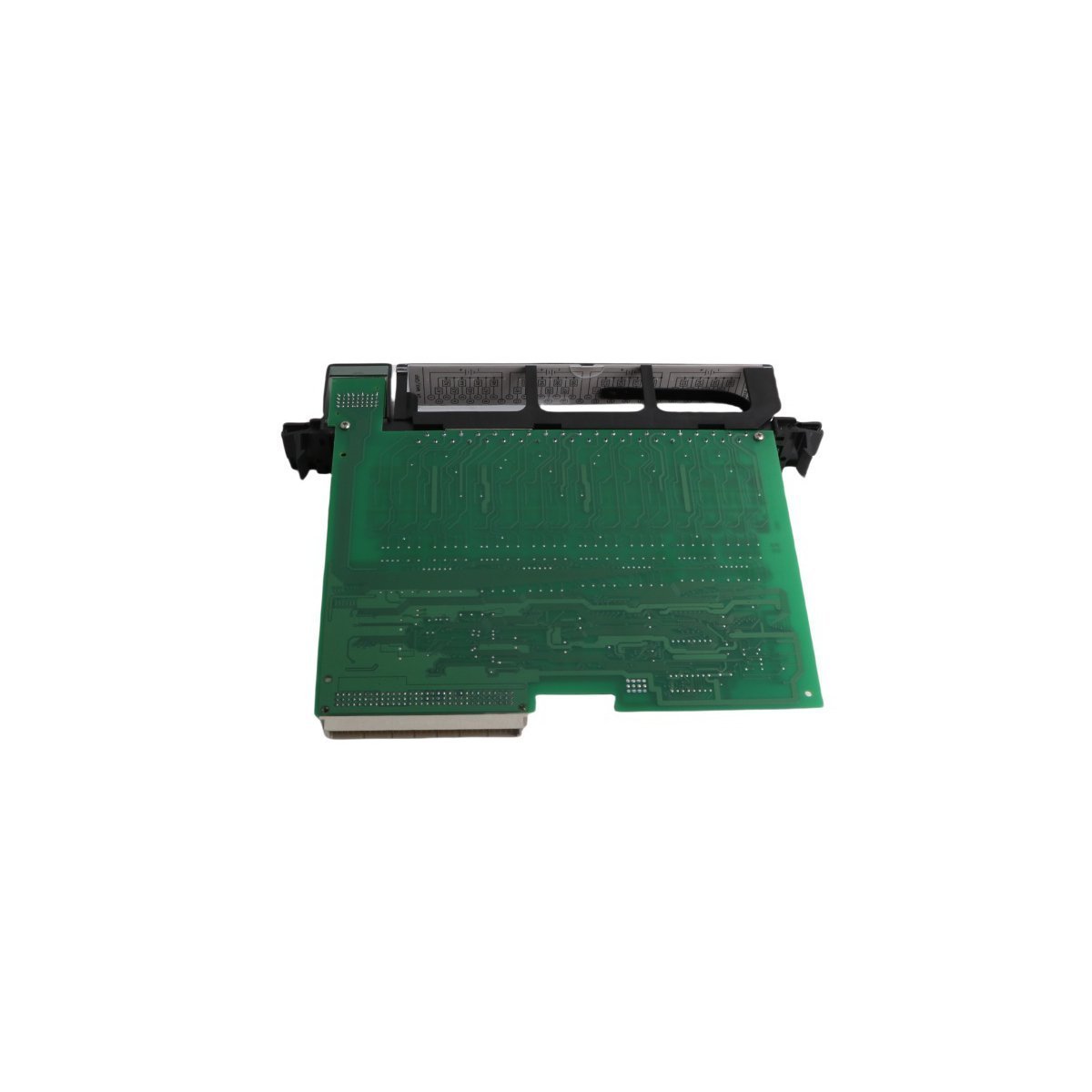

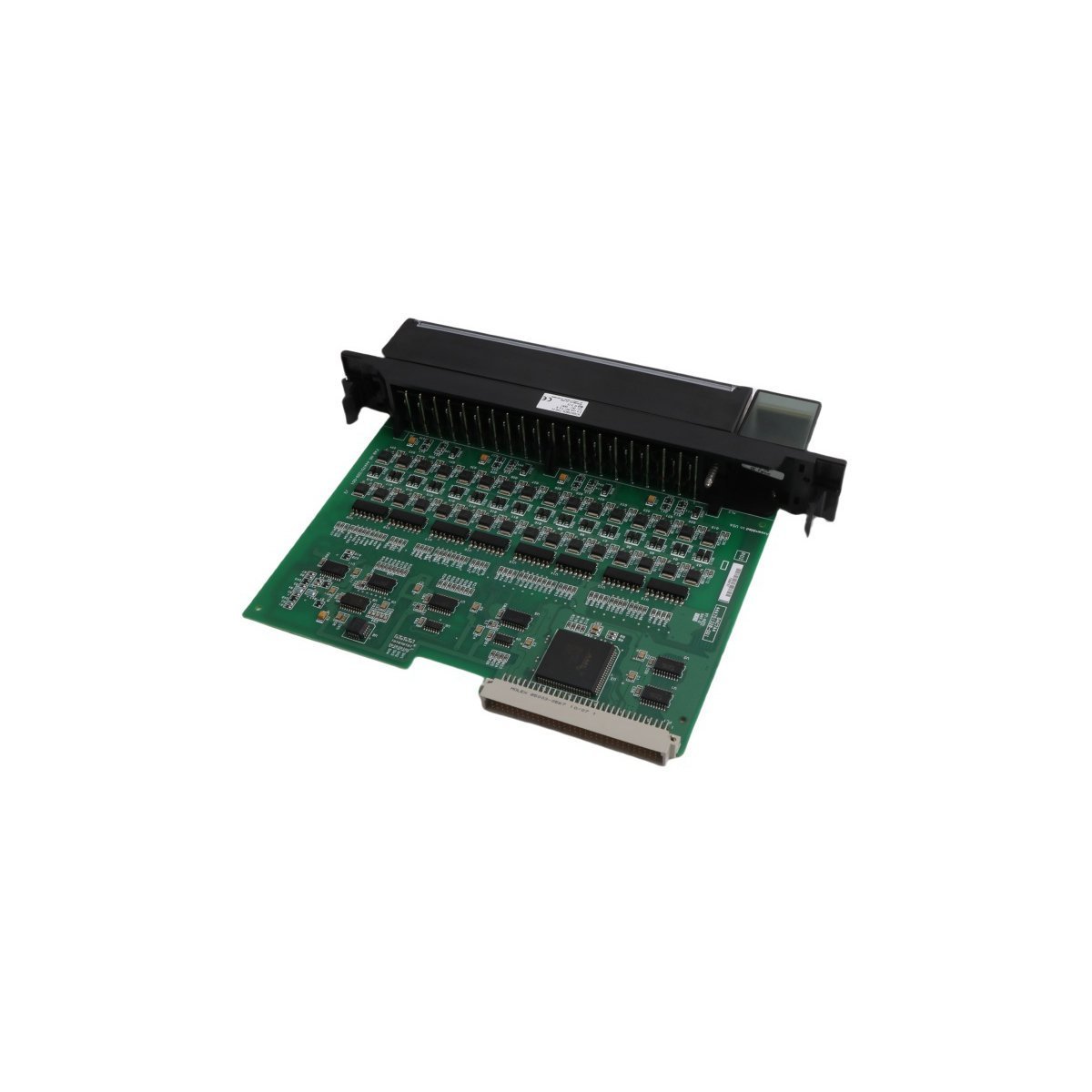

GE Fanuc IC697MDL750 Discrete Output Module

The IC697MDL750 serves as a high-density digital control interface for the GE Series 90-70 PLC platform. This module features thirty-two discrete output points designed to drive various DC loads. It effectively manages industrial actuators such as solenoid valves, motor starters, and indicator lamps. Users can configure the unit for 24 VDC or 48 VDC power environments. The hardware maintains consistent performance within a broad operating range of 20 to 60 VDC. Its design adheres to the VME C.1 standard for seamless backplane integration.

Advanced Protection and Functional Design

The IC697MDL750 incorporates robust safety features to ensure long-term reliability in harsh environments. High-quality optical isolation protects the sensitive internal PLC logic from field-side electrical noise. Furthermore, the module minimizes heat generation through its low voltage drop architecture. The front panel includes a comprehensive LED array for real-time diagnostic monitoring. These indicators allow technicians to verify the status of every individual output point quickly. A separate “Module OK” LED confirms the successful completion of internal power-up diagnostics.

Electrical Capacity and Channel Grouping

• Current Rating: 0.5 Amps maximum per individual channel
• Group Capacity: 2.0 Amps maximum per group of eight
• Inrush Handling: 10 Amps peak for 20 milliseconds
• Response Time: 1 millisecond for both On and Off transitions
• Voltage Drop: 1.0 Volt maximum during active states
• Isolation Level: 1500V between backplane and output channels
• Inter-group Isolation: 500V between separate output groups
