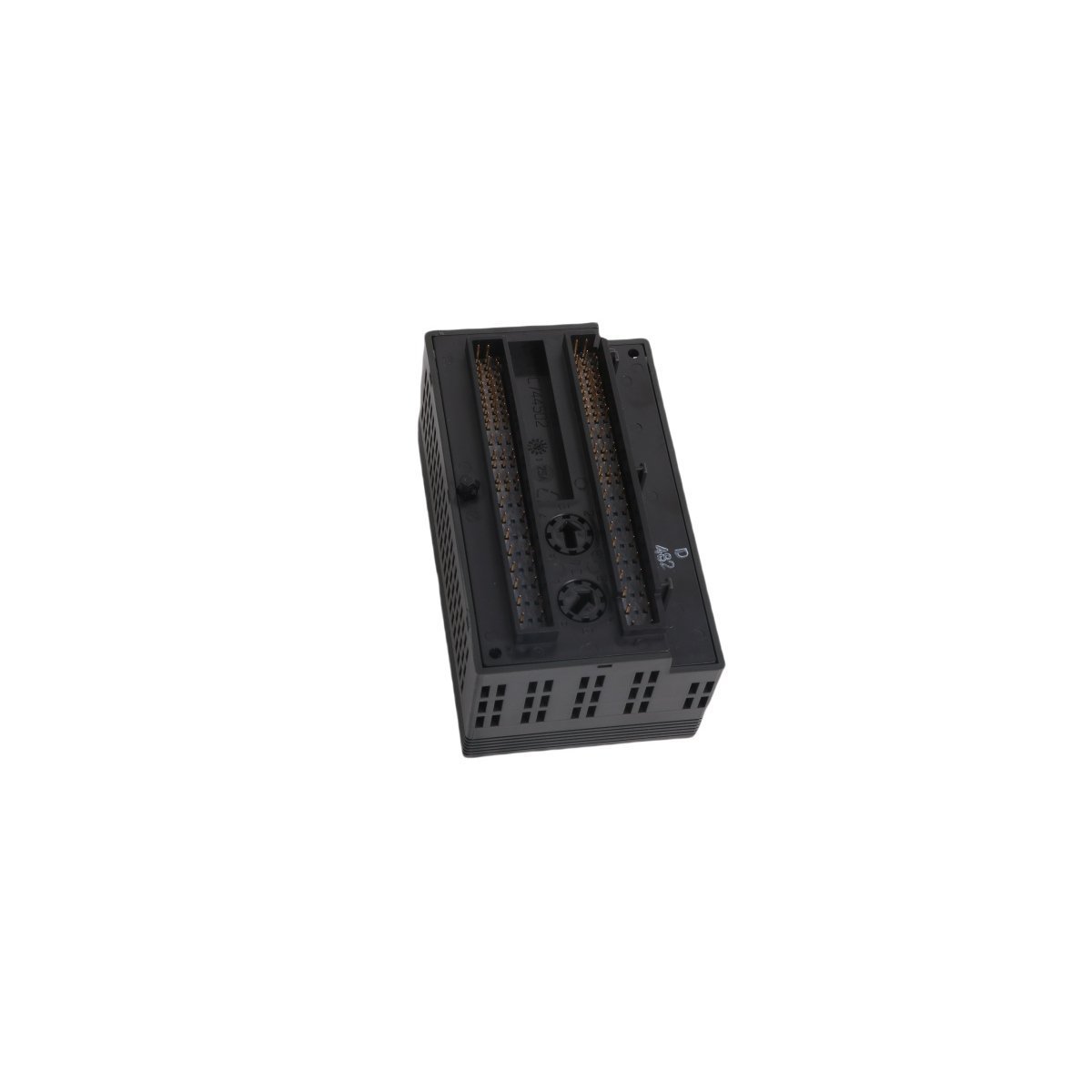

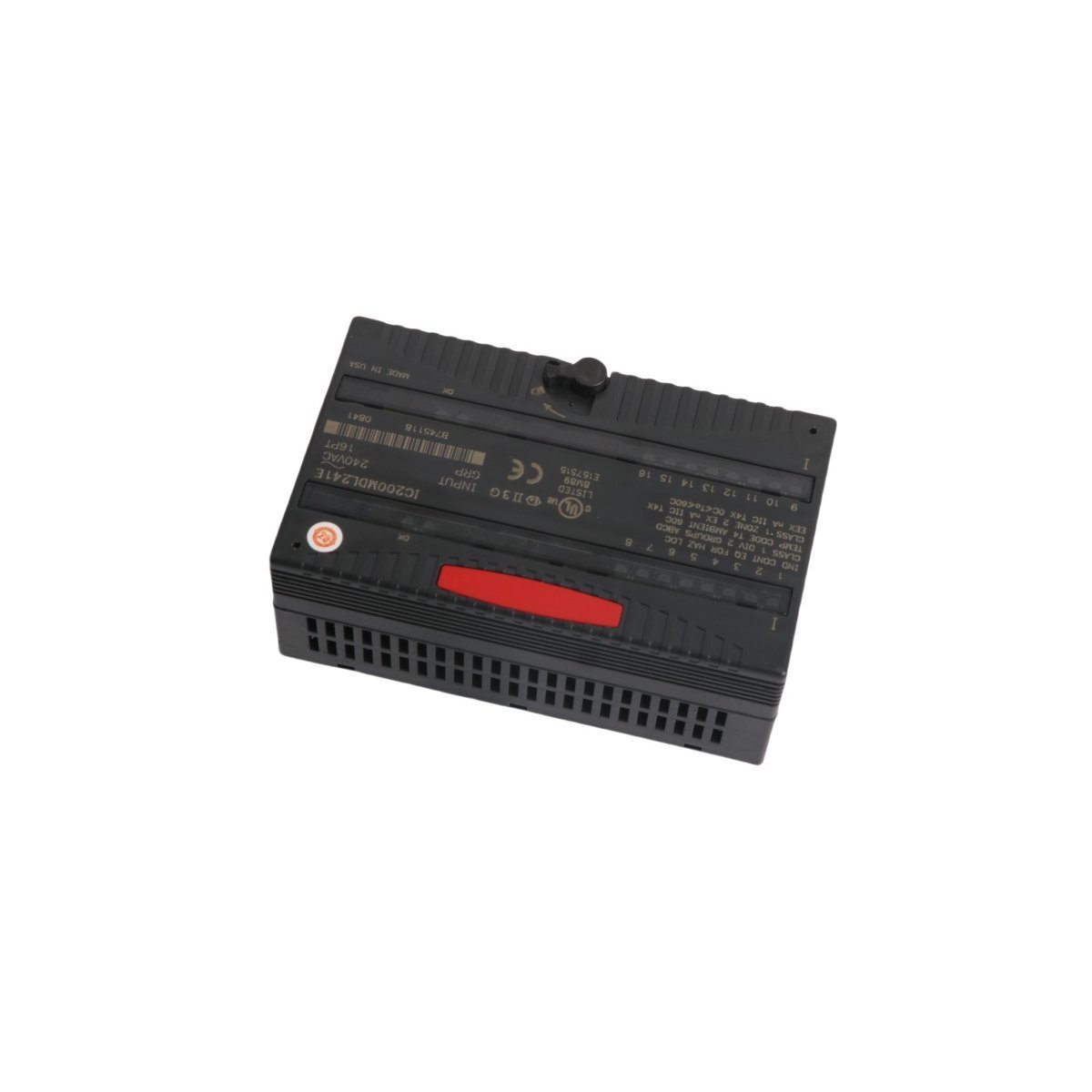

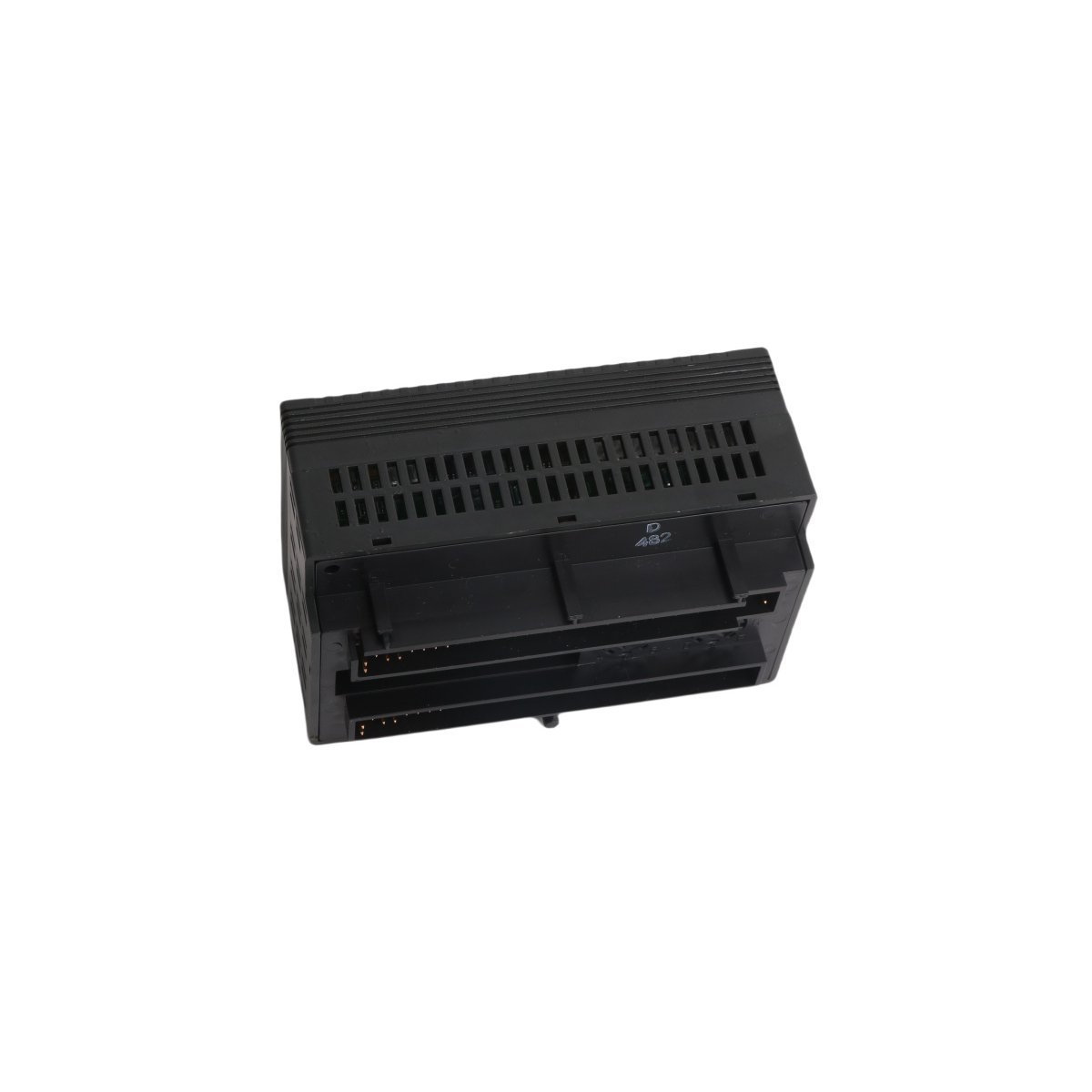

The IC200MDL241 functions as a high-density discrete interface for the Emerson VersaMax I/O platform. This module captures alternating current signals from field-level devices. It converts these signals into logic data for the central processing unit. Common applications include monitoring remote pushbuttons, limit switches, and industrial sensors. Because of its compact form factor, the module provides high-performance control in space-limited enclosures. The hardware mounts easily on DIN rail-supported carriers for rapid system expansion.
Diagnostic Monitoring and Maintenance
The front panel includes seventeen independent LED indicators for real-time troubleshooting. Sixteen LEDs show the active or inactive state of each specific input channel. A separate “Power” LED confirms that the module receives sufficient backplane voltage. This module supports hot-swapping into powered carriers to minimize system downtime. Furthermore, the snap-in terminal design simplifies the field wiring process for maintenance personnel.
Signal Architecture and Input Characteristics
- Nominal Voltage: 240 VAC
- Operating Range: 0 to 264 VAC
- On-State Voltage: 155 to 264 VAC
- Off-State Voltage: 0 to 40 VAC
- Frequency Range: 47 to 63 Hz
- Backplane Current Draw: 110 mA at 5V DC
Electrical Isolation and Safety Standards
- Group-to-Backplane Isolation: 1500 VAC for 60 seconds
- Group-to-Group Isolation: 1500 VAC for 60 seconds
- Input Impedance: 103 kOhms typical at 60 Hz
- Response Time: 20 ms typical for On/Off transitions
Technical Performance Summary
| Specification | Value |
| Points per Module | 16 (2 groups of 8) |
| Input Type | Reactive AC |
| Weight | 0.1 kg |
| Dimensions | 11 x 5.8 x 6.5 cm |
| System Compatibility | VersaMax PLC and I/O |
