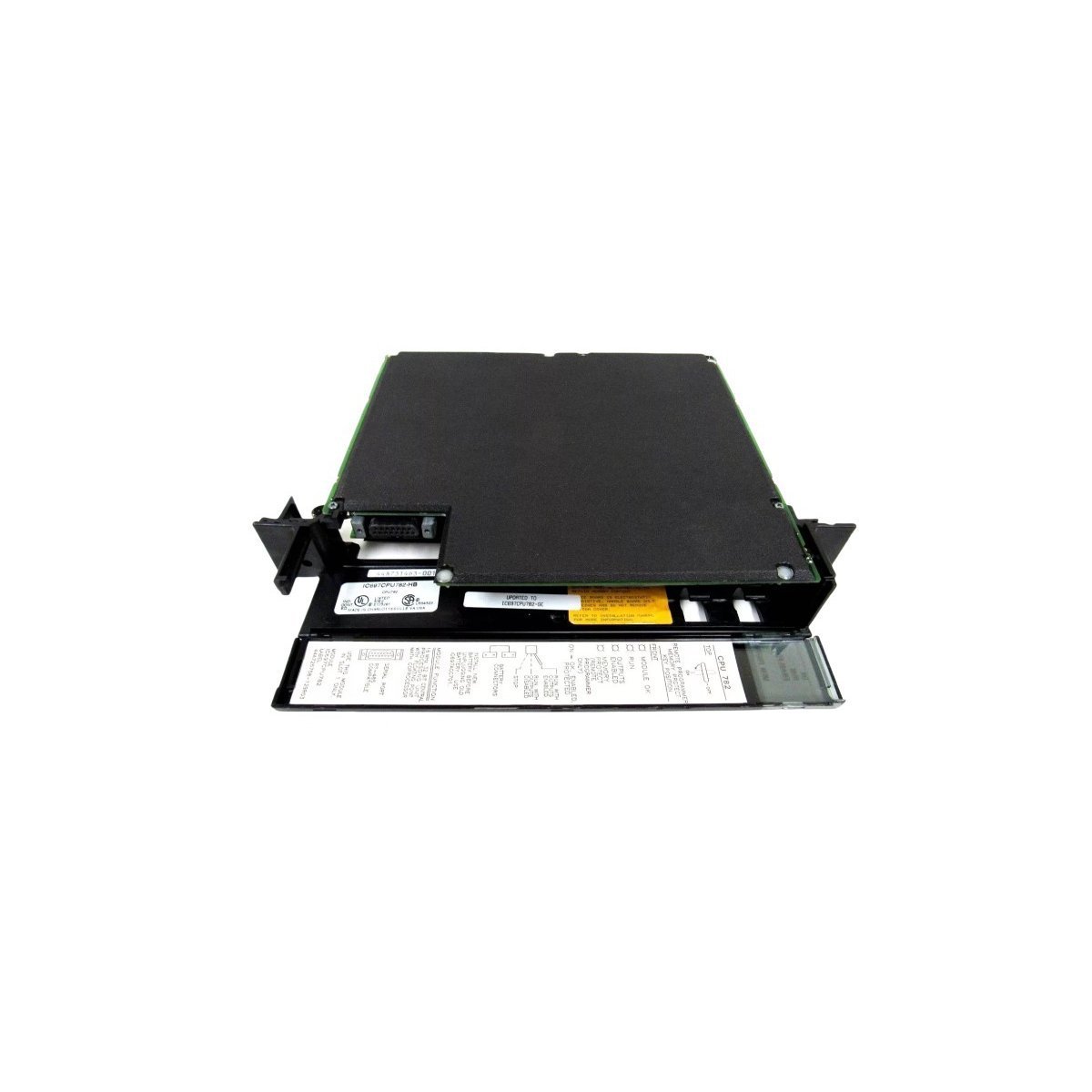

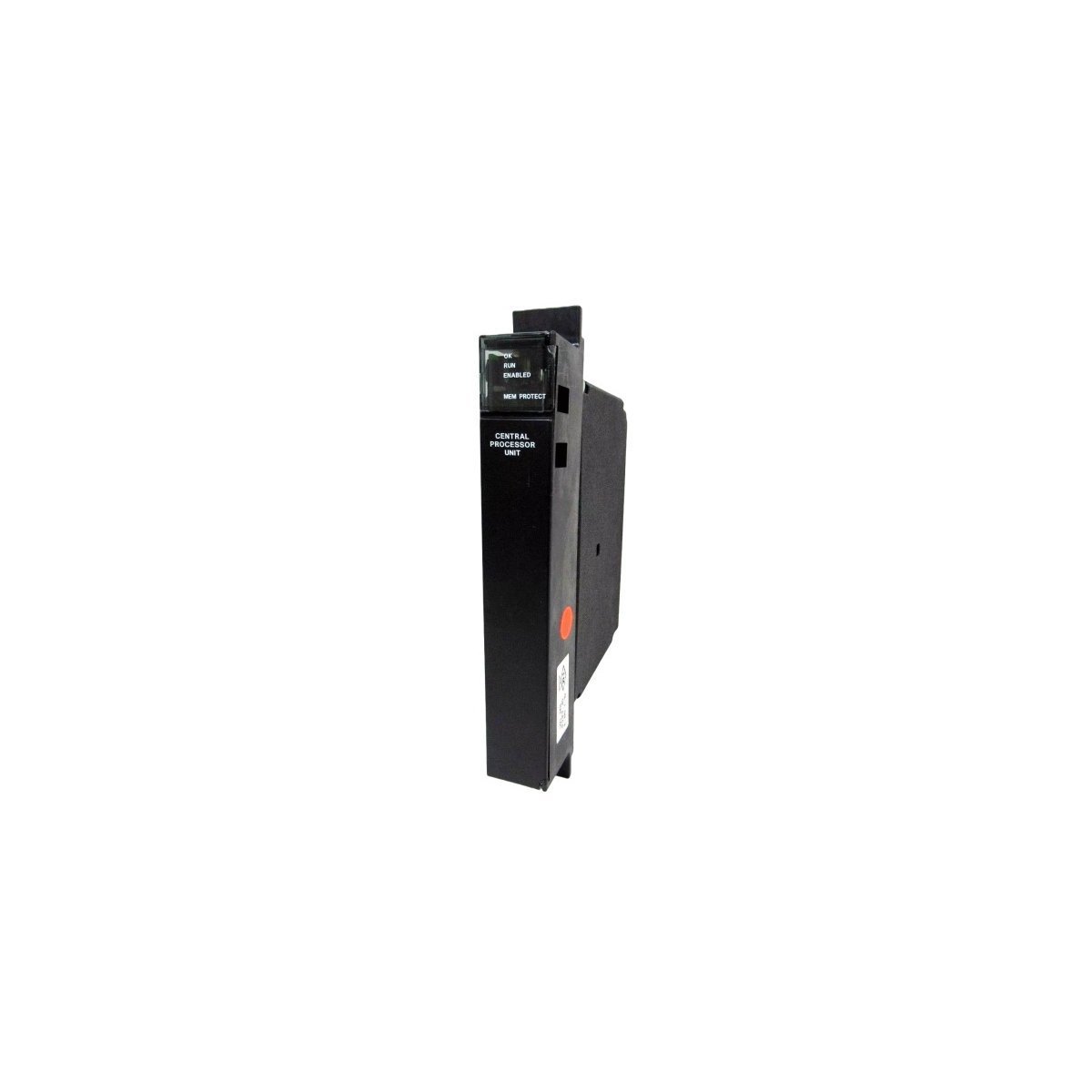

GE Fanuc IC697CPU782 Expandable Floating Point CPU

The GE Fanuc IC697CPU782 serves as a high-speed central processing unit within the Series 90-70 PLC ecosystem. This module utilizes an 80386DX microprocessor running at 16 MHz to manage complex industrial automation tasks. It stands out due to its dedicated floating-point math capabilities, which allow for rapid execution of sophisticated calculations. Consequently, this CPU is a primary choice for systems requiring precise PID control and advanced arithmetic operations.

Core Processing Performance and Memory Configuration

Efficiency defines the IC697CPU782, as it executes Boolean logic at a rate of 0.4 microseconds per function. To support large-scale applications, the module handles up to 12,288 discrete I/O points and 8,000 analog I/O points. While the base unit provides robust performance, users can also install expansion memory to reach up to 512 KB of total capacity. This flexibility ensures the processor can accommodate growing program complexities and extensive data logging requirements.

System Integration and Software Compatibility

Engineers can program the IC697CPU782 using several standard GE Fanuc software packages. Supported environments include Logicmaster 90-70, VersaPro, and Proficy Machine Edition. The module communicates through the VME C.1 standard backplane, allowing it to interface seamlessly with various smart option modules and I/O drivers. Furthermore, the CPU supports multiple programming interfaces, including serial ports, parallel connections, and Ethernet when paired with optional communication modules.

Industrial Durability and Data Security

Operational reliability is a hallmark of the Series 90-70 line. The IC697CPU782 includes a physical key switch for memory protection, which prevents unauthorized logic changes during operation. To maintain data integrity during power loss, a lithium battery (IC697ACC701) backs up the internal RAM for approximately six months. The hardware itself is built for extreme conditions, featuring a vibration rating of 1 G and a shock resistance of 15 G.

Optimal Application Environments

This CPU module excels in high-demand sectors such as power generation, oil and gas, and large-scale manufacturing. Because it fits into standard 5-slot or 9-slot IC697 racks, it remains a versatile component for both new installations and system upgrades. The combination of floating-point precision and rugged mechanical design ensures long-term stability in mission-critical control loops.
