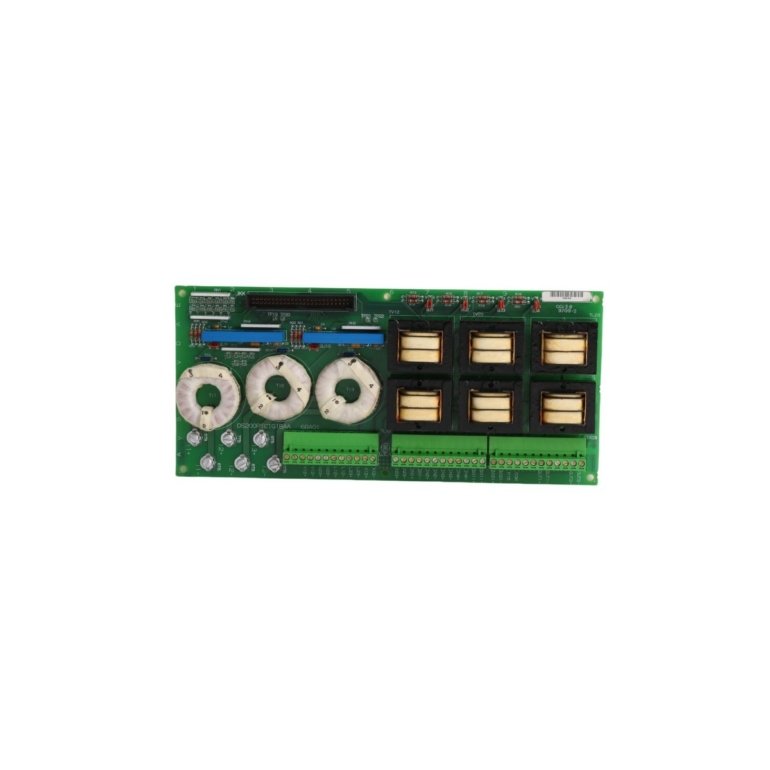

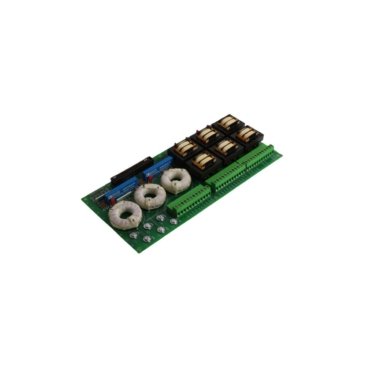

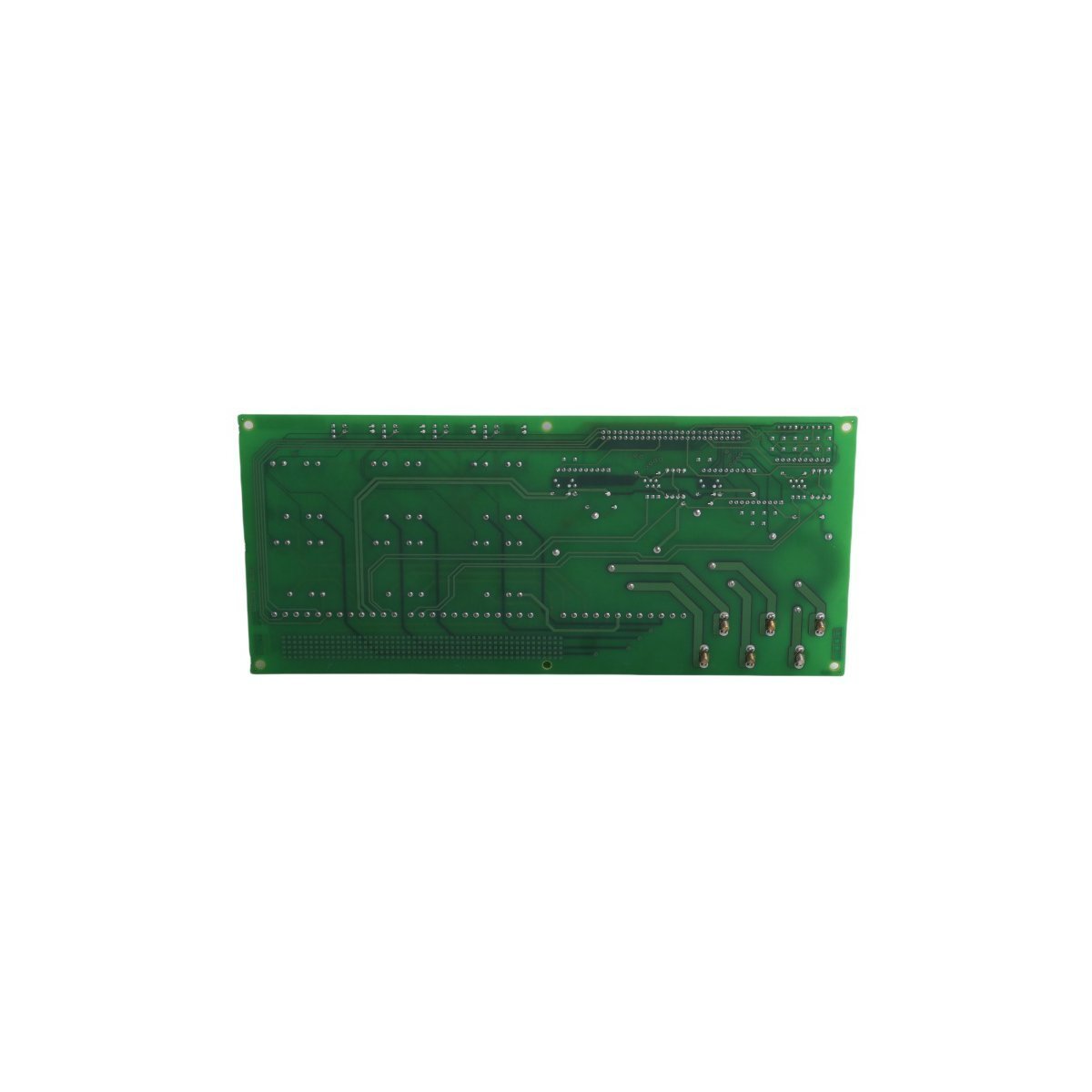

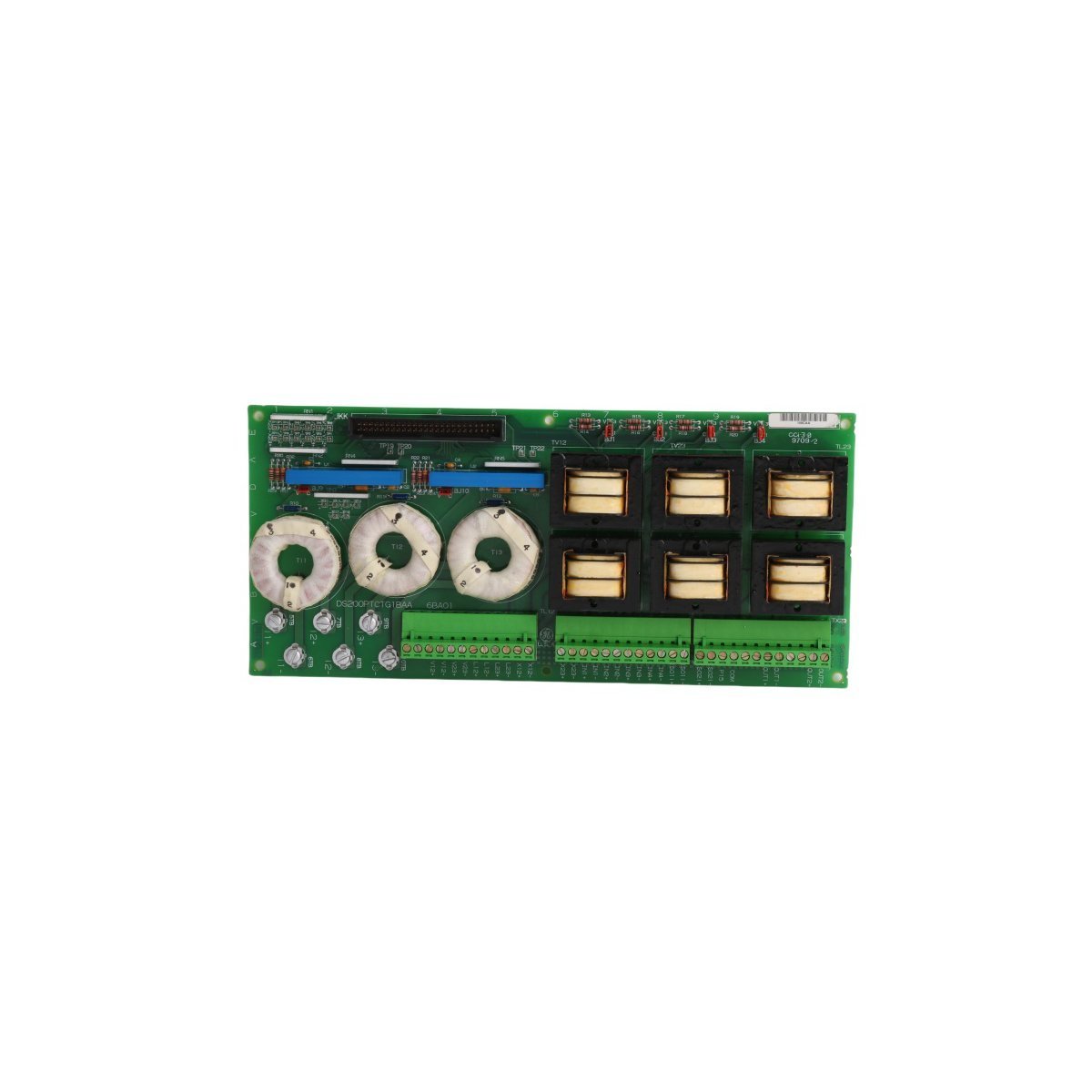

GE Fanuc DS200PCTMG1AAA Advanced Drive Board

The GE DS200PCTMG1AAA is a sophisticated drive control board developed for the Speedtronic Mark V turbine control system. This module plays a critical role in managing gas and steam turbine operations by providing precise signal processing and drive logic. Because the Mark V series emphasizes high reliability, this board integrates seamlessly into the Distributed Control System (DCS) architecture to handle complex automation sequences. Its primary function involves bridging the gap between high-level control instructions and the physical execution of drive commands.

High-Performance Processing and Precision

The core strength of the DS200PCTMG1AAA lies in its high-speed computational capabilities. Specifically, the board utilizes a powerful onboard processor to execute real-time control algorithms with minimal latency. This ensures that turbine parameters remain within safe operational limits even during rapid load changes. Furthermore, the 64 KB of dedicated memory provides ample space for firmware and localized logic execution. Consequently, the board maintains consistent performance in high-stakes environments where even slight timing deviations could impact system safety.

Industrial Durability and Environmental Resistance

General Electric engineered the DS200PCTMG1AAA to withstand the extreme conditions often found in power generation facilities. For instance, the board operates reliably across a wide temperature spectrum ranging from -40°C to +70°C. This thermal resilience is complemented by a robust physical build that resists industrial vibrations and electromagnetic interference. Therefore, this advanced drive board remains a dependable component for long-term deployment in harsh, mission-critical settings.

Scalability and Diagnostic Capabilities

In addition to its processing power, the module offers a modular and scalable architecture. This flexibility allows engineers to expand the system as operational requirements grow. Maintenance efficiency is also a priority, as the board features built-in diagnostic tools that simplify troubleshooting. By providing clear feedback on internal states and communication health, the DS200PCTMG1AAA significantly reduces the time required for system recovery. Moreover, the inclusion of 16 input and 16 output channels provides a balanced I/O density for standard drive interface tasks.

Technical Specification Overview

• System Compatibility: Mark V Speedtronic Control
• Input Power Requirement: 12V DC
• Processor Architecture: Real-time Advanced Drive Logic
• Onboard Memory: 64 KB
• I/O Configuration: 16 Input Channels / 16 Output Channels
• Communication Interface: RS-485 Protocol
• Operating Temperature: -40°C to +70°C
• Mechanical Dimensions: 140mm x 145mm x 51mm
