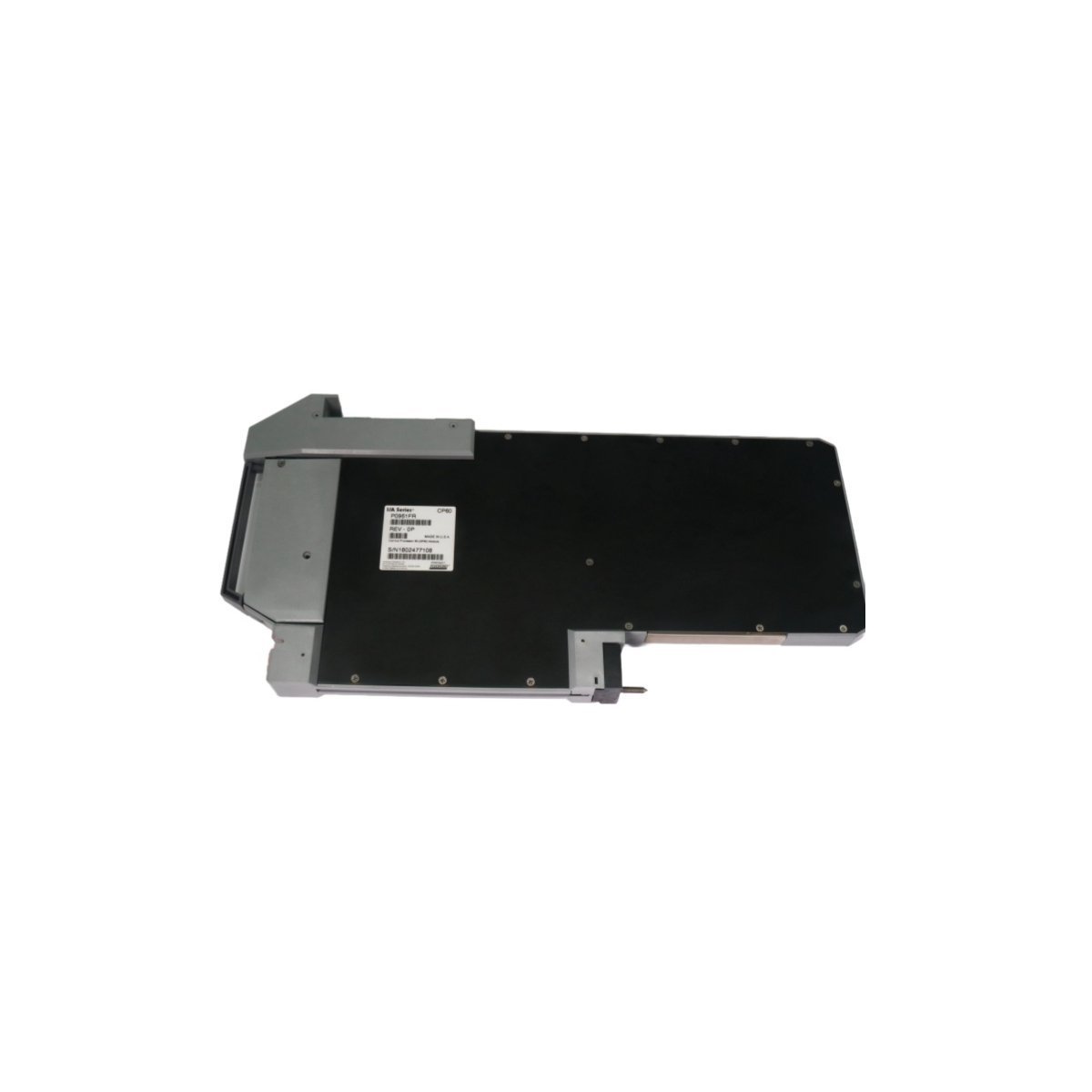

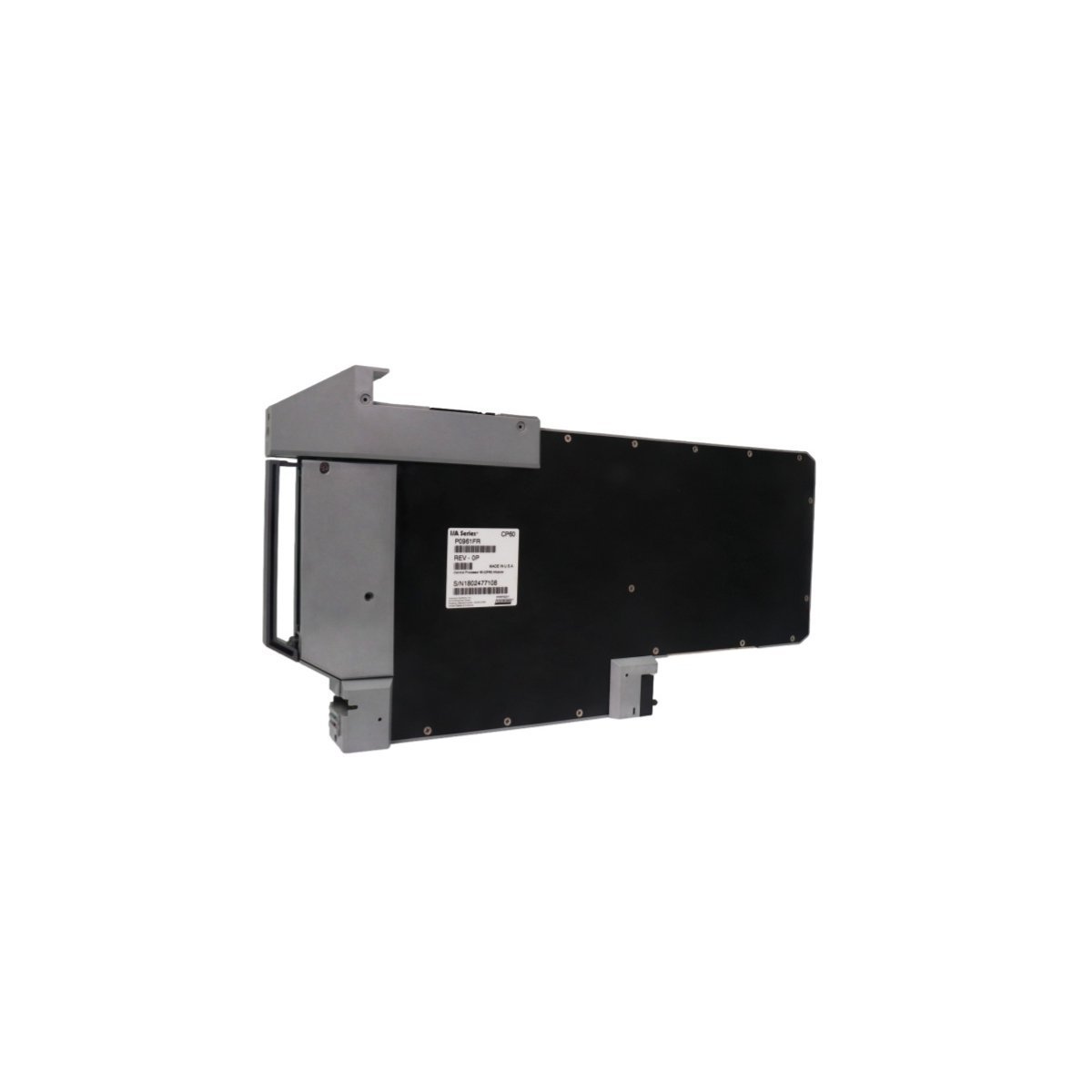

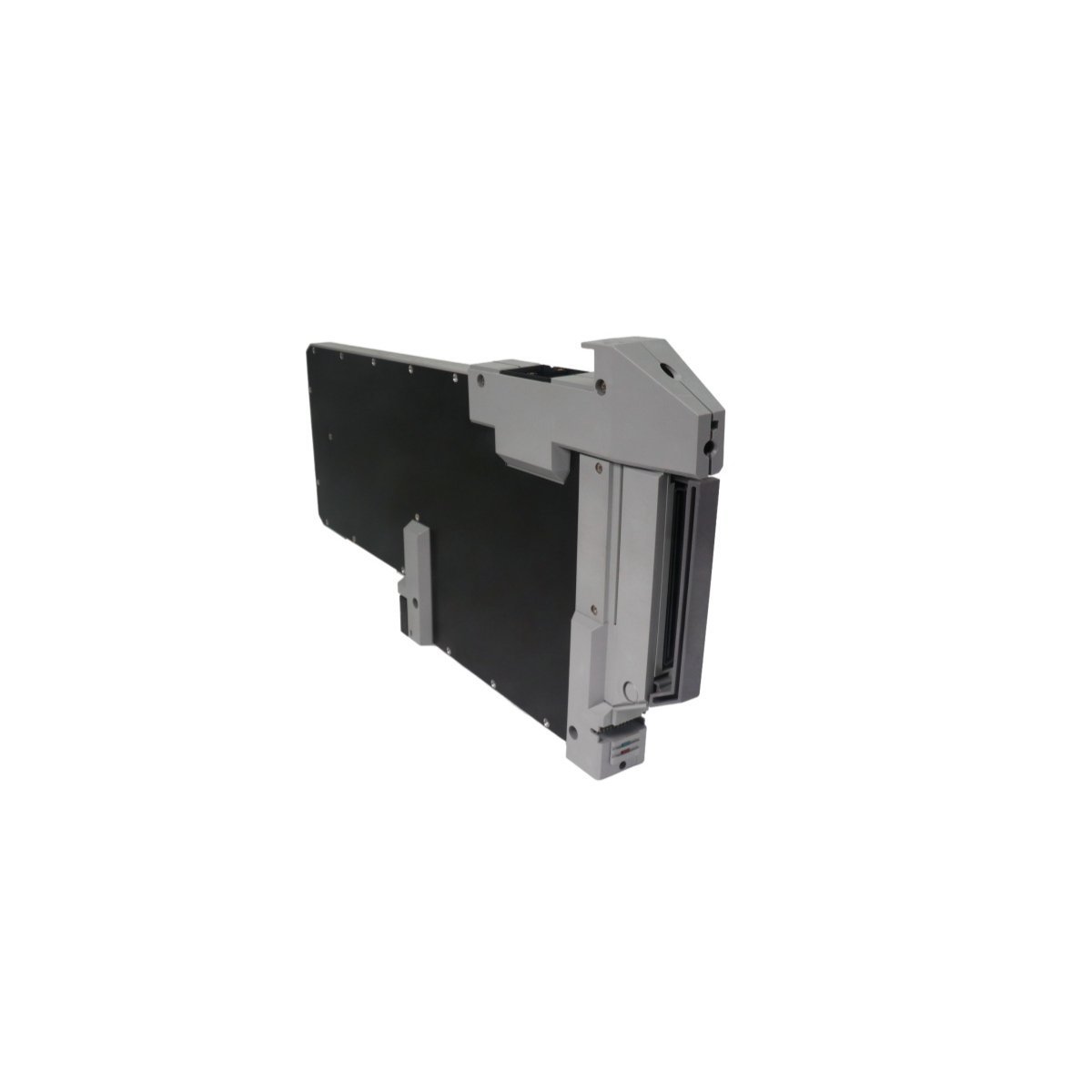

Foxboro CP60 P0961FR Control Processor

The Foxboro CP60 P0961FR serves as a central intelligence hub for the I/A Series Distributed Control System. This high-performance module executes complex control algorithms and manages real-time data acquisition across the plant network. It handles critical regulatory logic and sequential operations to maintain process stability. Furthermore, the processor performs constant alarm monitoring and provides instantaneous status notifications. This capability ensures that operators can respond quickly to any process deviations or system faults.

System Integration and Strategy

The P0961FR module interfaces directly with various Fieldbus Modules to expand its control reach. This connectivity allows engineers to implement diverse automation strategies within a single framework. Users can deploy simple feedback loops or complex multi-variable feedforward schemes. Consequently, the processor scales effectively from basic monitoring tasks to advanced continuous process control. Its architecture supports seamless communication with integrated Ethernet routers for high-speed data exchange.

Engineering and Configuration

A unified software environment simplifies the management of the CP60 hardware. This workspace combines control configuration and display design into one integrated tool. Therefore, developers can manage field devices and system documentation through a single graphical interface. Live-updating features ensure that system records remain accurate during active maintenance. This streamlined workflow reduces the time required for both initial deployment and long-term troubleshooting.

Technical Characteristics

The module utilizes a 32-bit RISC CPU architecture to achieve rapid processing speeds. It features a compact hardware footprint suitable for high-density cabinet installations.

• Manufacturer: Foxboro (Schneider Electric)
• Model Number: CP60
• Part Number: P0961FR
• Processor Type: 32-bit RISC
• Input Voltage: 24V DC
• Operating Temperature: 0 to 60 °C
• Communication: Ethernet / Fieldbus
• Weight: 0.3 kg
• Dimensions: 4.5 x 11.5 x 11.5 cm
