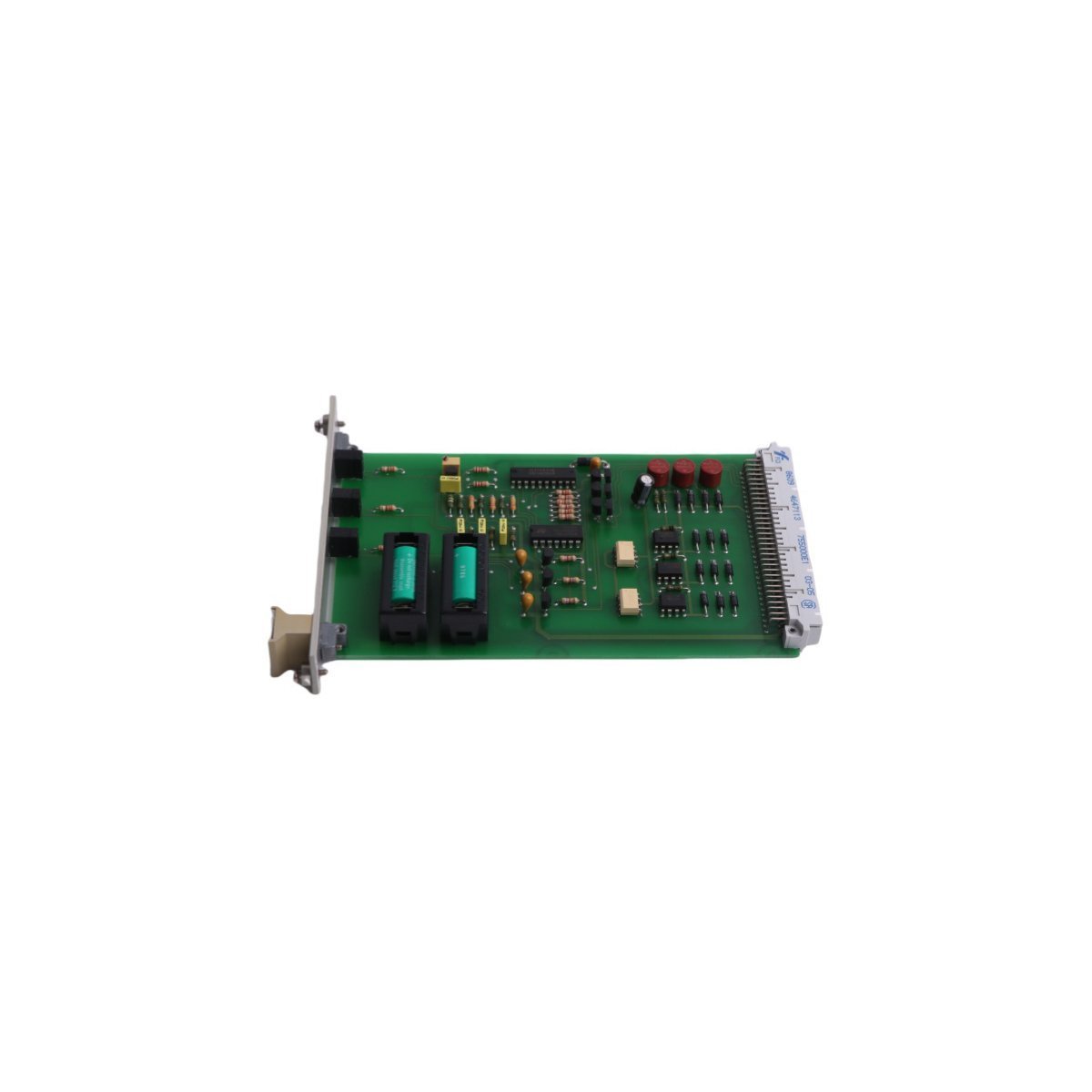

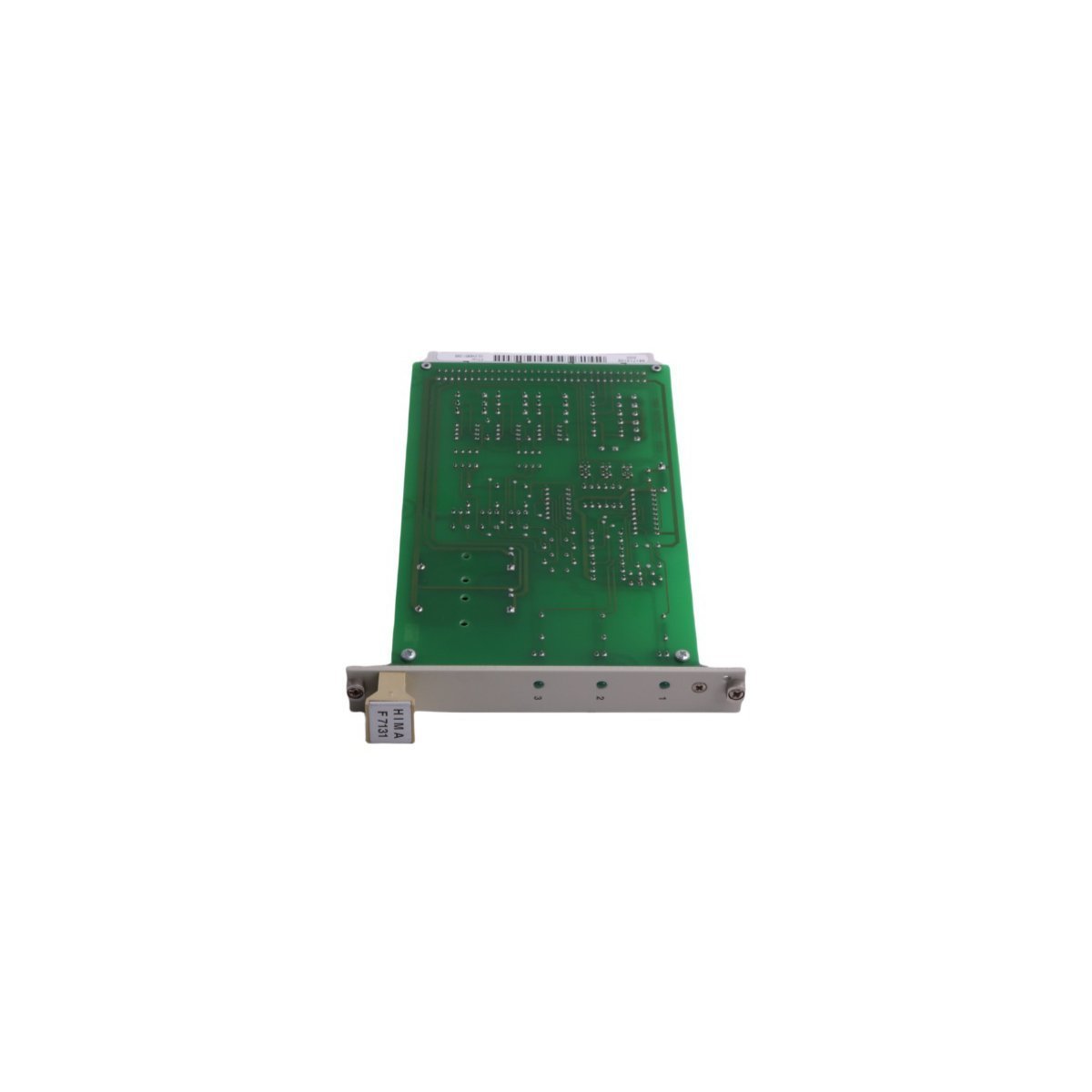

HIMA F7131 Power supply monitoring Module

The HIMA F7131 serves as a dedicated supervisor for critical system voltages within safety-instrumented architectures. It primarily monitors up to three 5V power sources equipped with buffer batteries.¹ This module ensures that the central logic units receive stable and continuous power for safety execution. Because it utilizes independent sensing circuits, it provides real-time verification of power health. The hardware architecture specifically supports the H41q and H51q safety controller families. Consequently, it acts as an essential safeguard against unexpected system resets or data loss.

Diagnostic Interface and Signal Integration

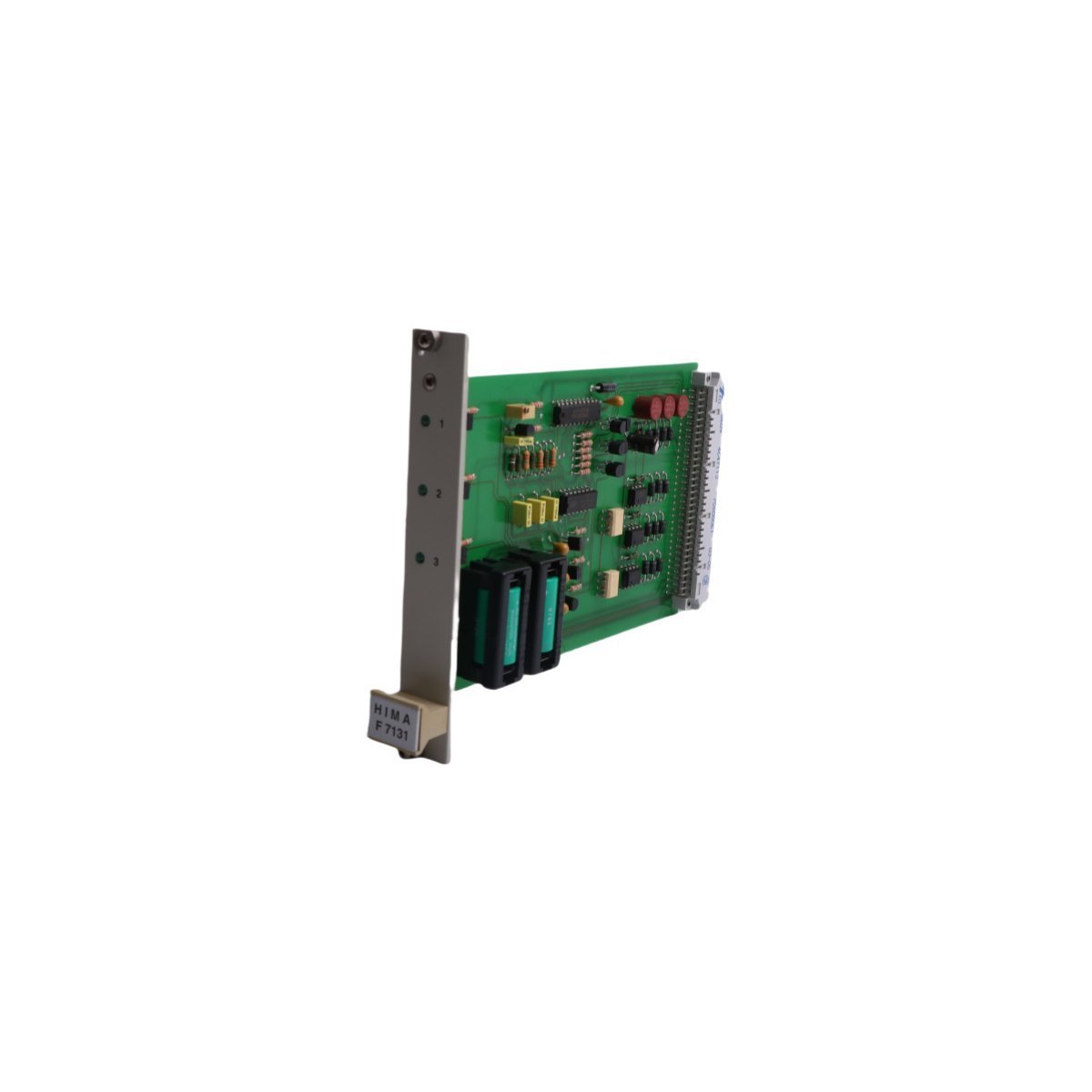

This monitoring unit features an intuitive front-facing diagnostic interface for immediate field verification. Three high-visibility LEDs indicate the status of each supervised power supply channel. Furthermore, the F7131 generates three distinct test bits for the F8650 or F8651 central modules. These digital signals allow user programs to trigger alarms or shutdown sequences based on power quality. The module also includes three 24V outputs to supervise auxiliary power supply kits.⁶ These versatile signaling options ensure that the DCS maintains full visibility over the electrical infrastructure.

Technical Specifications Summary

The following table details the electrical and physical parameters of the HIMA F7131:

Installation and Maintenance Requirements

Deploying the F7131 requires precise alignment with the HIMA backplane to ensure reliable signal contact. Technicians must verify battery voltages during scheduled annual maintenance cycles. Because the module reached its official discontinuation date in 2018, users should secure remaining stock for legacy support. Replacing the module involves a simple pull-and-plug procedure to minimize system downtime. Always follow ESD safety protocols when handling the sensitive internal circuitry. These steps ensure the long-term reliability of mission-critical safety systems.
