F8652X HIMA 1.2GHz Dual-Core Safety-Related CPU Controller

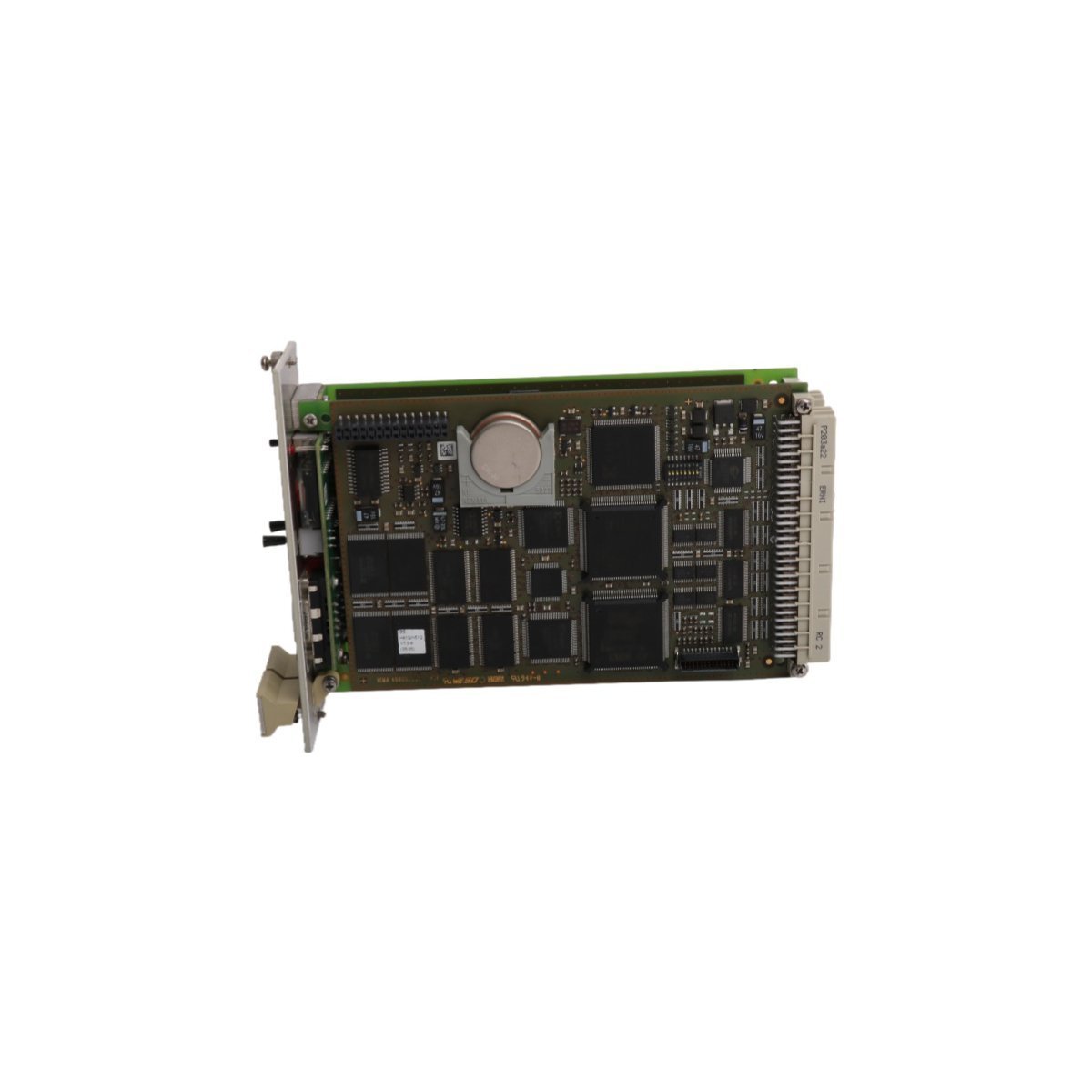

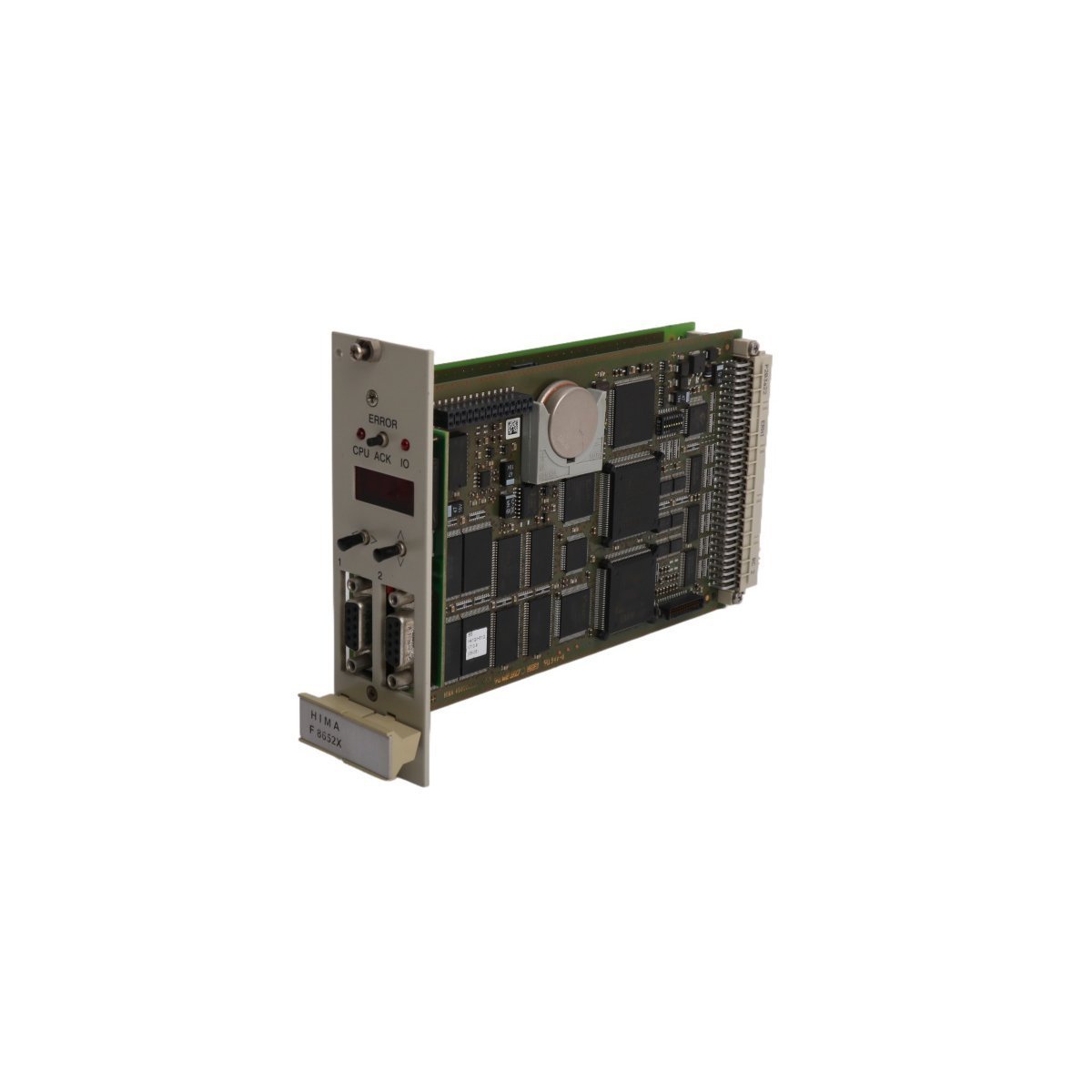

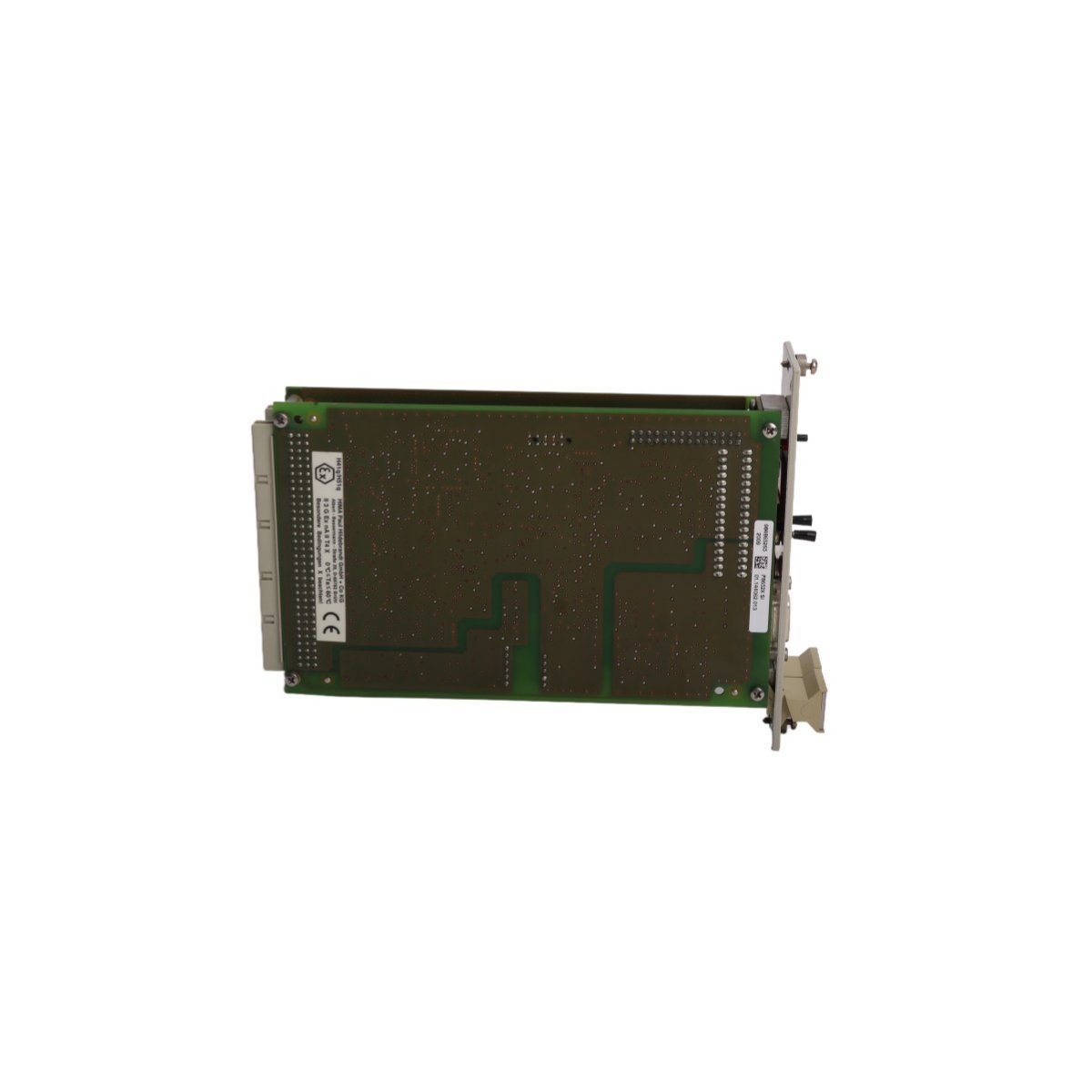

HIMA F8652X HIMax Safety Central Module

The HIMA F8652X operates as a high-performance central processing unit for the HIMax safety system, providing the computational power necessary for SIL 3-rated industrial protection.

Core Functional Role

The F8652X Central Module serves as the primary intelligence for advanced Safety Instrumented Systems (SIS). This module executes complex safety logic with high precision, ensuring that critical industrial processes remain within safe operating limits. By utilizing a dual-processor architecture, the module achieves a high level of hardware fault tolerance while maintaining rapid scan times. Furthermore, it manages all communication between distributed I/O modules and higher-level DCS or PLC systems, acting as the deterministic heart of the factory safety network.

Performance and Hardware Architecture

HIMA engineered the F8652X with a powerful 1.2 GHz dual-core processor and 4 GB of DDR4 RAM to handle data-intensive safety applications. The inclusion of 64 GB SSD storage allows for extensive event logging and sequence-of-events (SOE) recording, which is vital for post-incident analysis. Moreover, the Linux-based operating system provides a stable and secure environment for safety block execution. The hardware also supports multiple communication protocols, including high-speed Ethernet and serial interfaces like RS-485, facilitating flexible integration into diverse industrial infrastructures.

Reliability and Maintenance Features

Continuous availability remains a hallmark of the F8652X design. The module supports hot-swapping, which means technicians can replace or upgrade hardware without interrupting the active safety process. Additionally, redundant power supply inputs protect the central module against electrical failures. Comprehensive onboard diagnostics monitor the health of the CPU, memory, and internal bus in real-time. Consequently, operators can identify and resolve potential issues before they escalate into system-wide shutdowns, thereby maximizing plant uptime and personnel safety.

Technical Specifications Summary
