Product Overview

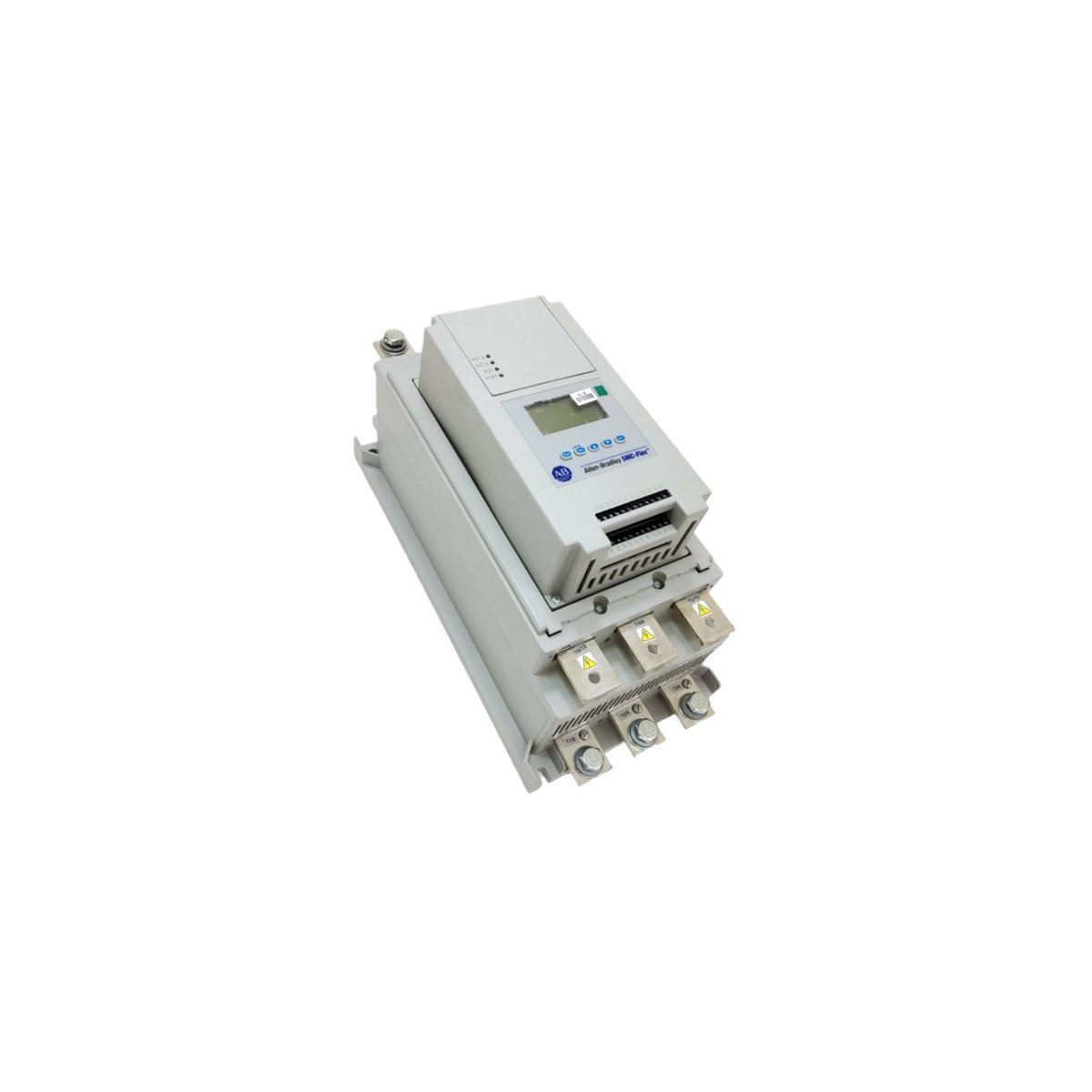

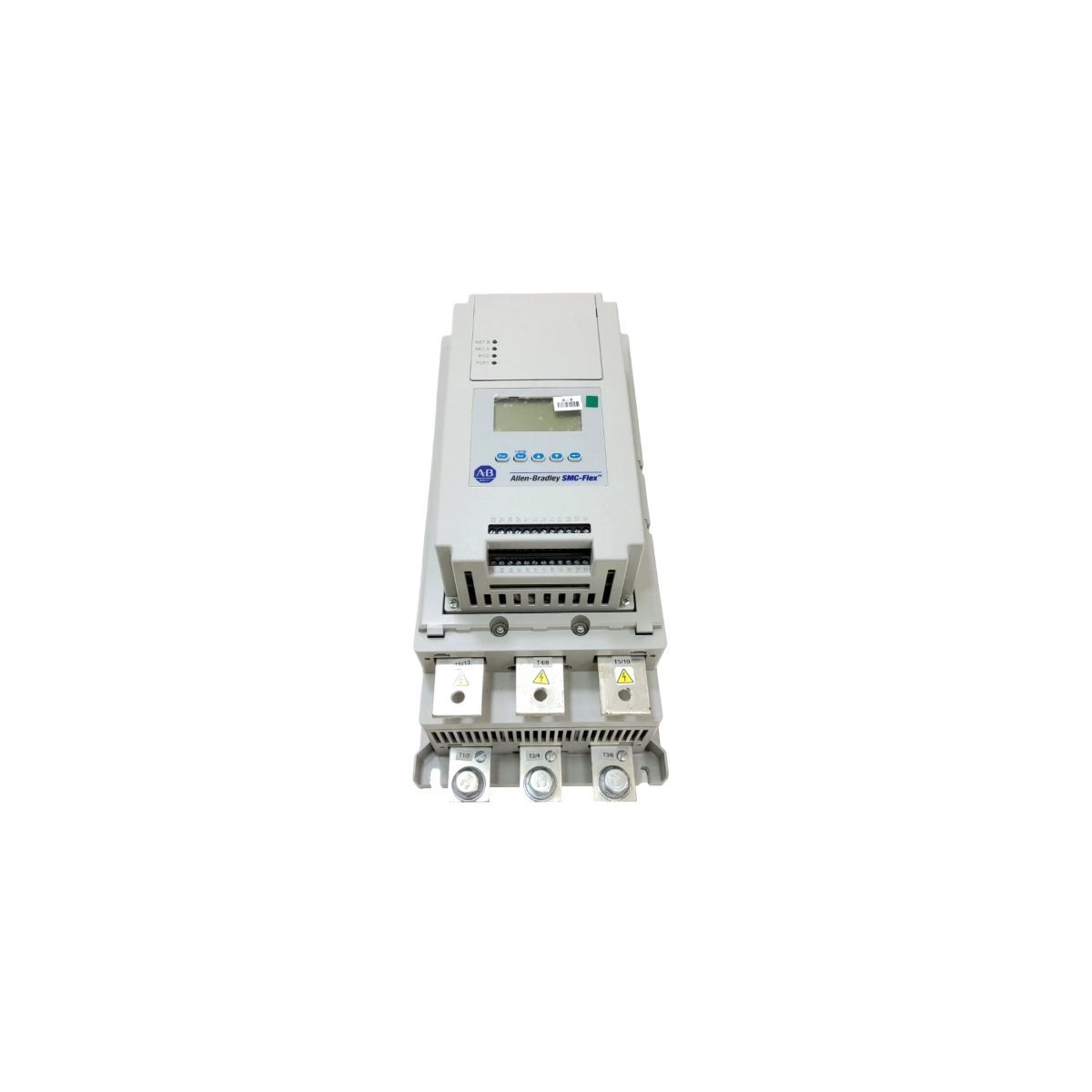

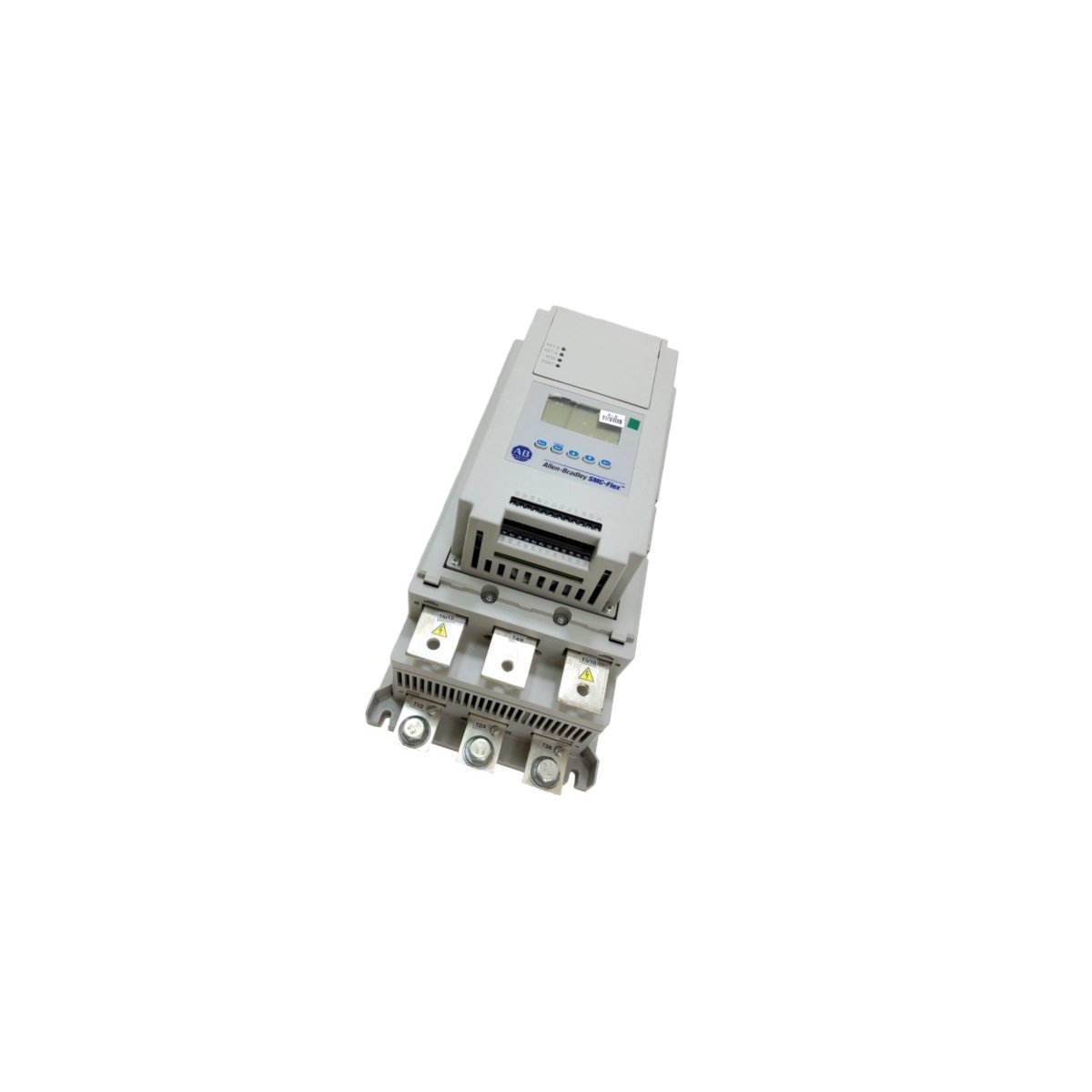

The 150-F135NBDB functions as a core component of the Allen-Bradley Bulletin 150 SMC Flex product line, delivering intelligent control for standard three-phase industrial motors. This solid-state controller manages high-current loads up to 135 Amps, effectively reducing mechanical stress on equipment and electrical surges on the power grid during startup. By utilizing internal SCR (Silicon Controlled Rectifier) technology, the module provides a smooth voltage ramp to the motor. Furthermore, the unit features an integrated bypass contactor, which engages once the motor reaches full speed to minimize heat dissipation and improve energy efficiency. Consequently, the 150-F135NBDB serves as a vital link between human operator commands and heavy-duty mechanical execution, ensuring every start-stop cycle remains within safe electrical parameters.
Technical Specifications
Brand: Allen-Bradley / Rockwell Automation
Model Number: 150-F135NBDB
Controller Type: SMC Flex Solid State Controller
Current Rating: 135 Amps
Input Voltage: 200…460V AC (Internal Power)
Control Voltage: 100…240V AC
Frequency: 50/60 Hz
Starting Modes: Soft Start, Full Voltage, Current Limit, Dual Ramp
Protection: Electronic Overload (I²t), Undervoltage, Overvoltage, Phase Reversal
Interface: LCD Display with DPI Communication port
Enclosure Rating: Open Type (IP00)
Dimensions: 135mm Frame Size
Operational Characteristics
The 150-F135NBDB offers a versatile array of starting modes, including Current Limit, Soft Start, and Selectable Kickstart, allowing engineers to tailor motor behavior to specific load requirements. This flexibility proves especially beneficial for applications such as centrifugal pumps, where the controller’s specialized pump control mode eliminates fluid hammer effects. Additionally, the module facilitates advanced braking options, such as SMB Smart Motor Braking and Accu-Stop, to bring high-inertia loads to a controlled halt quickly. Because the unit features a built-in LCD and keypad, maintenance personnel can access real-time metering data and fault history directly at the device, which streamlines troubleshooting and reduces system downtime.
Engineering Advantages
The primary engineering benefit of the 150-F135NBDB lies in its comprehensive motor protection suite. The controller utilizes advanced I²t algorithms to monitor thermal levels constantly, preventing motor burnout during heavy-duty cycles. Moreover, the inclusion of phase loss and phase imbalance detection ensures the system shuts down before hardware damage occurs. Transitioning to an automated SMC Flex solution also enables seamless integration with PLC architectures via DPI (Drive Peripheral Interface) communication modules. This connectivity allows for remote monitoring and parameter configuration across EtherNet/IP or ControlNet networks. Ultimately, specifying the genuine 150-F135NBDB guarantees a reliable human-machine interface backed by the industrial ruggedness and safety standards synonymous with Rockwell Automation’s power control ecosystem.
