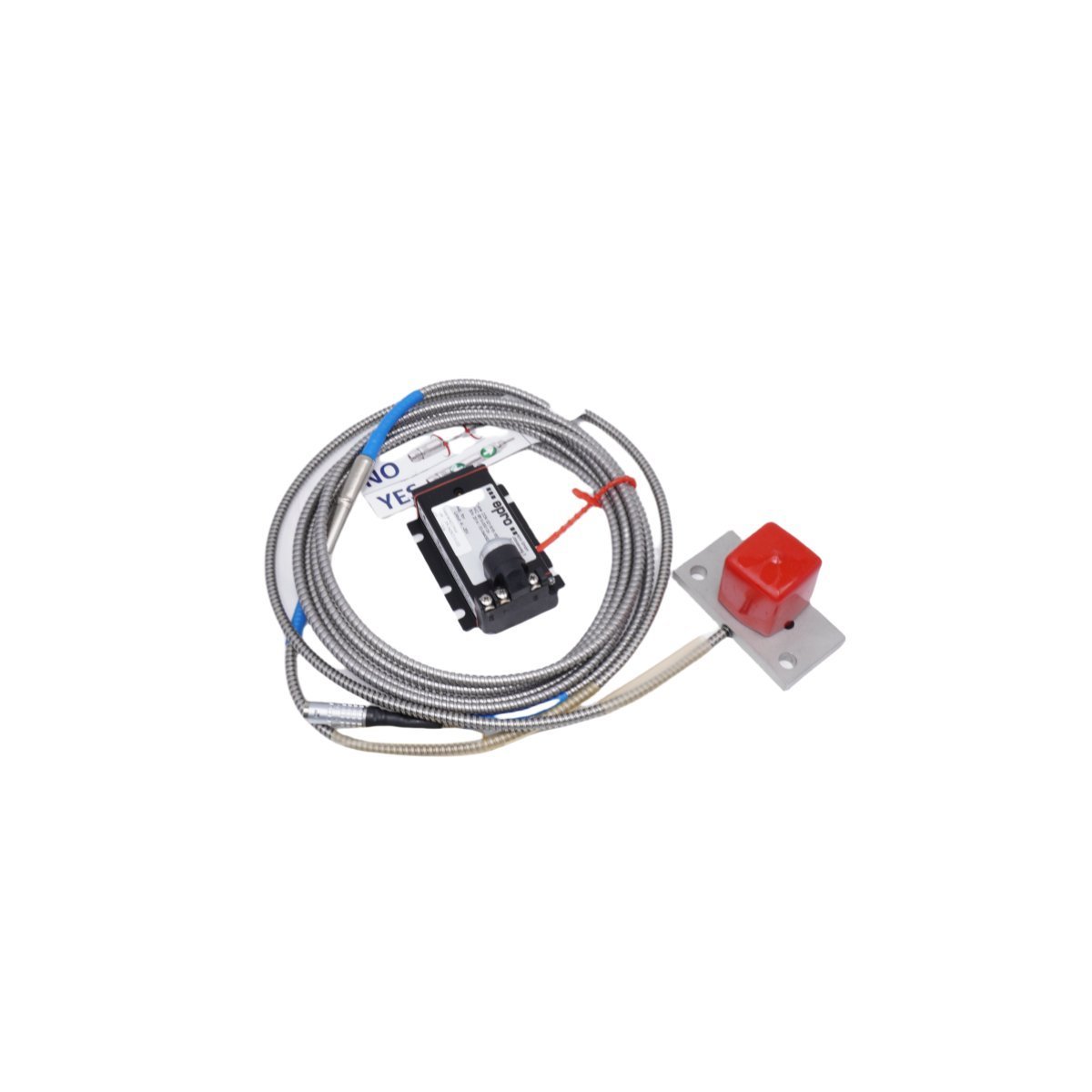

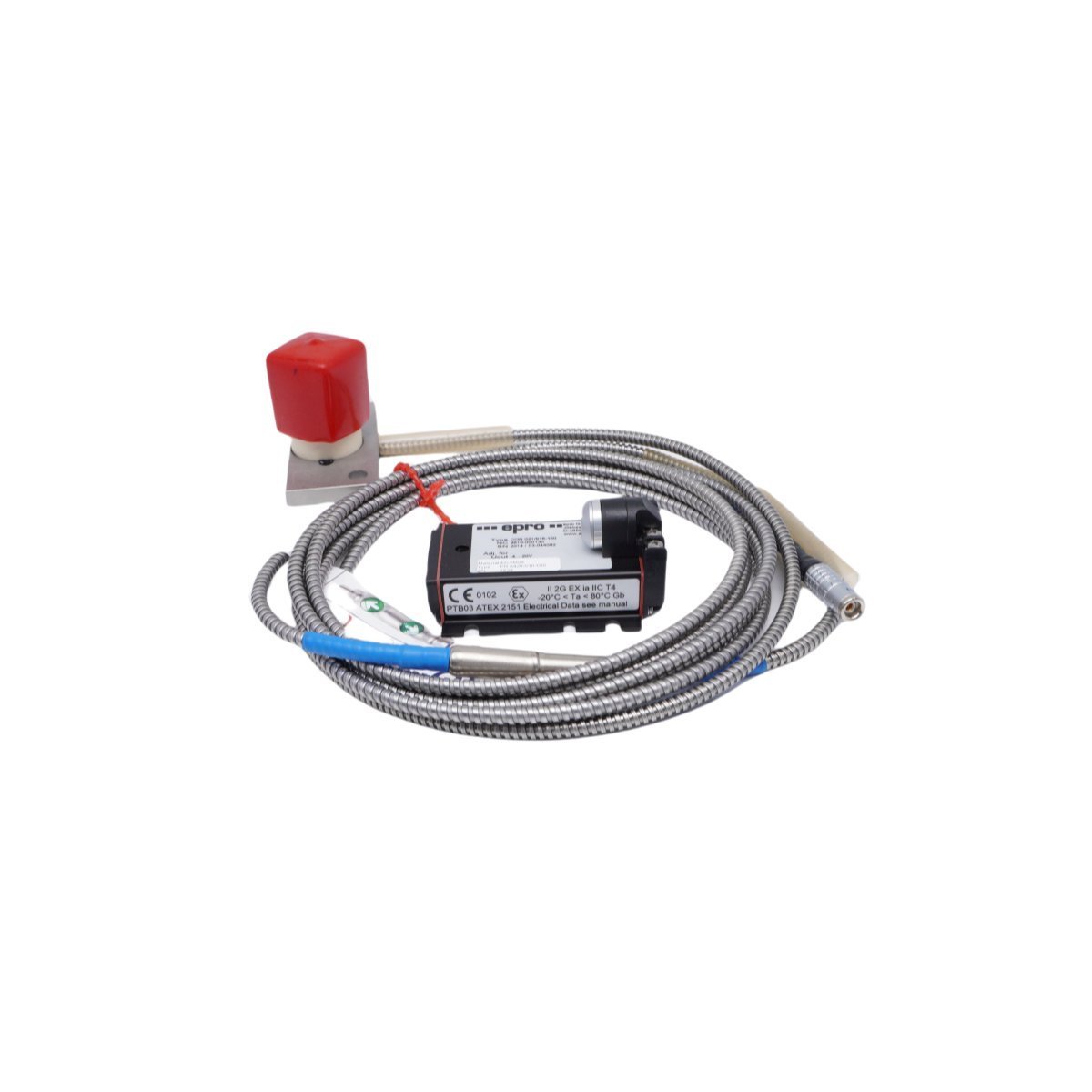

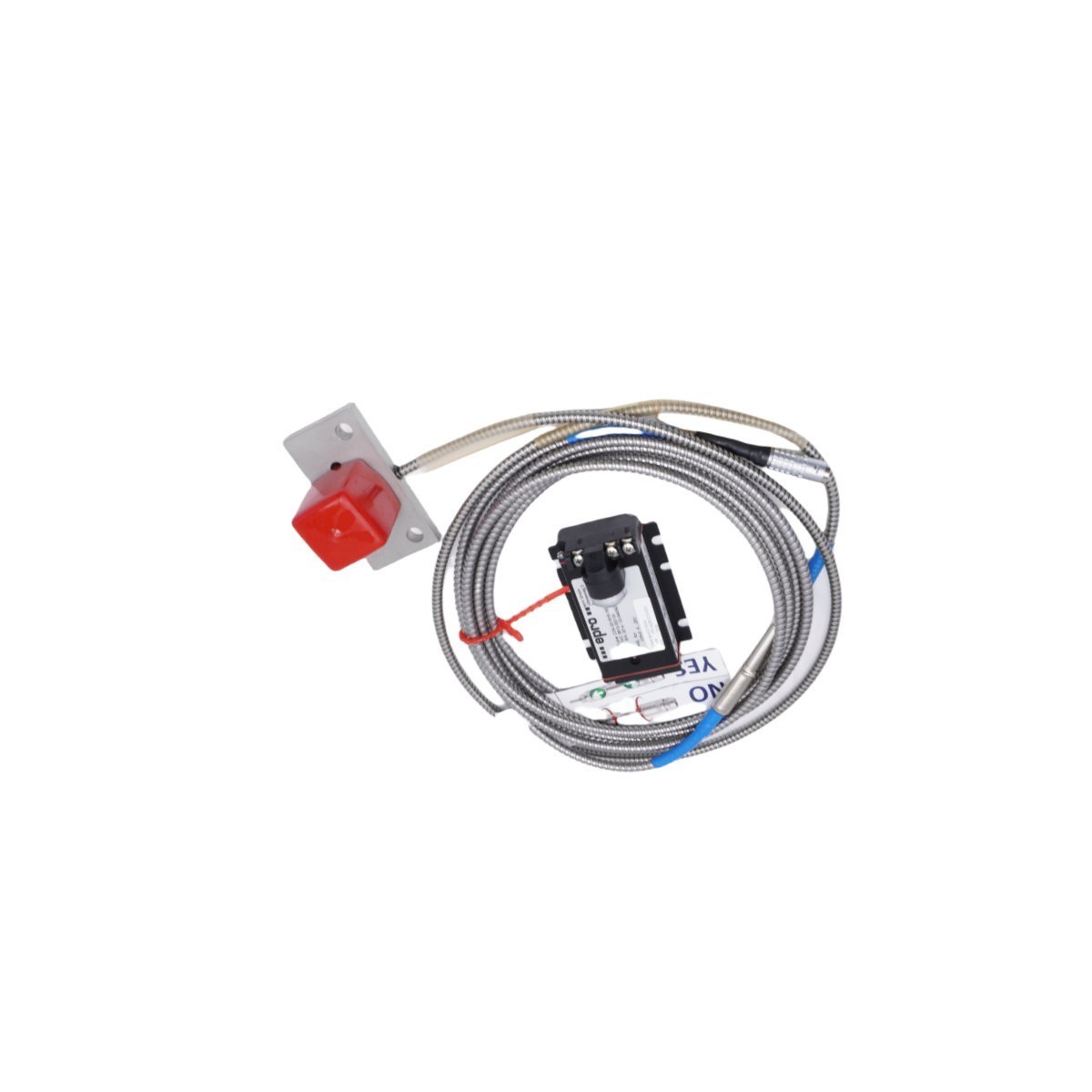

Emerson PR6426/010-000 CON021 EPRO Vibration Signal Converter Module

Emerson PR6426/010-000 CON021 EPRO Controller Module

The Emerson PR6426/010-000 CON021, also cataloged as the PR6426/010-000 Controller Module, operates as a dedicated hardware component for converting eddy current transducer signals into calibrated displacement outputs within Emerson EPRO DCS platforms. Engineers configure this signal conditioning unit to process raw analog feedback from non-contacting proximity sensors, generating proportional voltage outputs that correspond directly to physical shaft motion. By transmitting linear measurement signals to rack monitoring controllers, the hardware executes real-time telemetry processing across critical rotating machinery protection loops.

Suffix Breakdown & Model Matrix

Hardware Specifications

Eddy-Current Probe Scaling & Rotor Dynamics Monitoring

The Emerson PR6426/010-000 CON021 converter maintains precise eddy-current probe scaling to transform sensor coil impedance shifts into continuous millivolt feedback. During initial mechanical setup, field technicians verify gap voltage validation (-10 VDC targets) at the module output terminals to confirm that the transducer rests precisely in the center of its linear measuring range. The module output feeds continuous signals to processing racks for monitoring rotor dynamics, including radial vibration amplitudes and axial position shifts. Furthermore, integrated internal active filters provide cross-talk suppression when engineers position adjacent proximity sensors in close proximity inside crowded bearing housings.

Frequently Asked Questions

Q: How do technicians verify correct gap calibration on the driver module during commissioning?

A: Technicians measure the DC bias voltage across the signal output terminals using a calibrated multimeter, then manually adjust the mechanical probe depth until the output stabilizes at the -10 VDC nominal gap voltage target.

Q: Does the module support hot-swapping during active machinery operation?

A: Field personnel must not pull or insert the converter while power remains applied. Removing the module interrupts the -24 VDC supply loop and drops the vibration feedback signal, which causes the monitoring rack to trip system alarms or trigger a false channel fault.

Field Installation Guidelines

Technicians must mount the signal converter chassis securely inside an IP65-rated metal enclosure using standard DIN-rail retention clips. Ensure that the module casing makes direct metal-to-metal contact with the grounded mounting plate to establish an effective shielding barrier against external electromagnetic fields.

When connecting the sensor leads, installers must run the coaxial probe cable directly to the input terminals without splicing or shortening the factory conductor length. Field crews must isolate the cable shield from local structural steel and ground it exclusively at the dedicated driver system terminal. Maintain a minimum distance of 200 mm between signal wiring and high-power AC motor cables to eliminate line-frequency interference.
