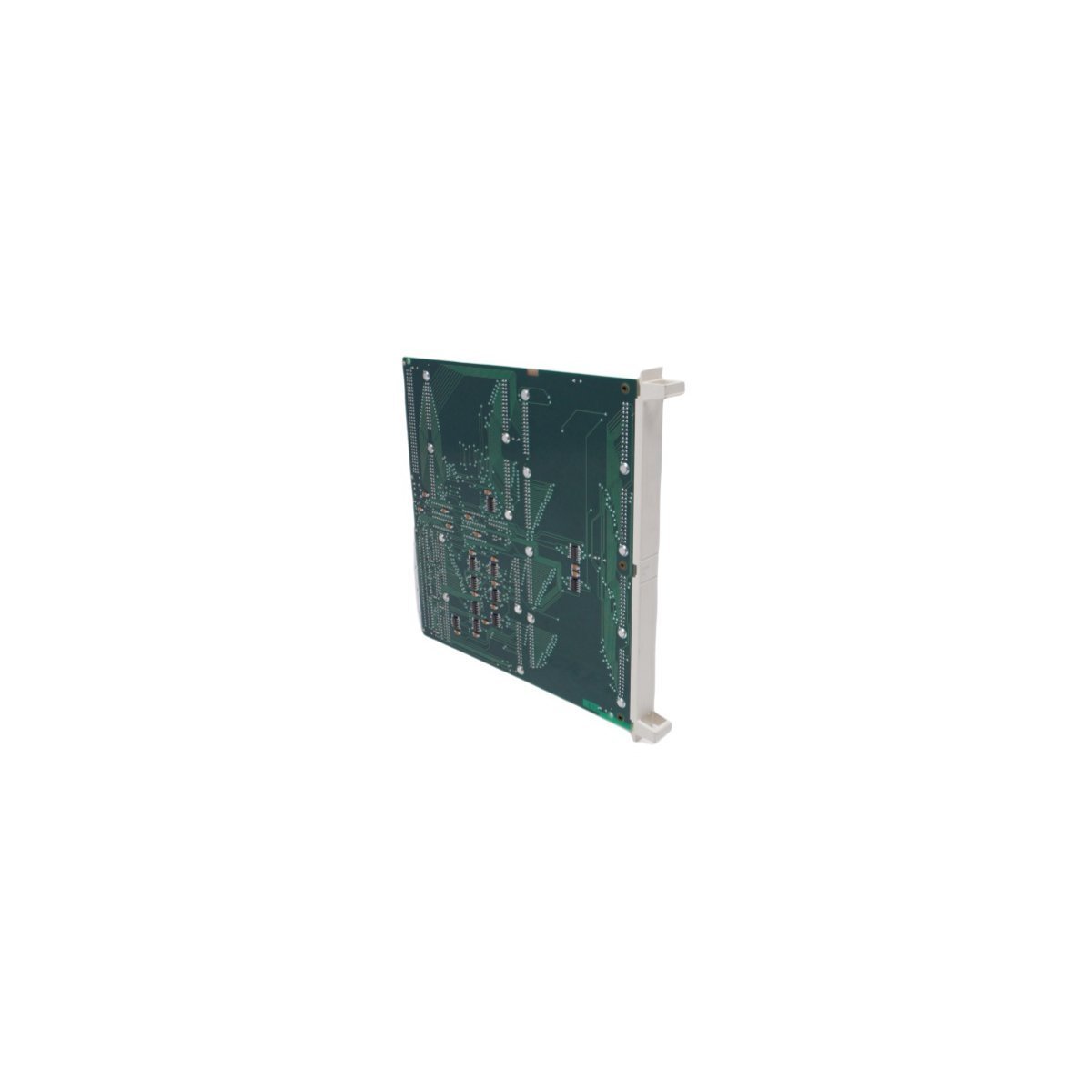

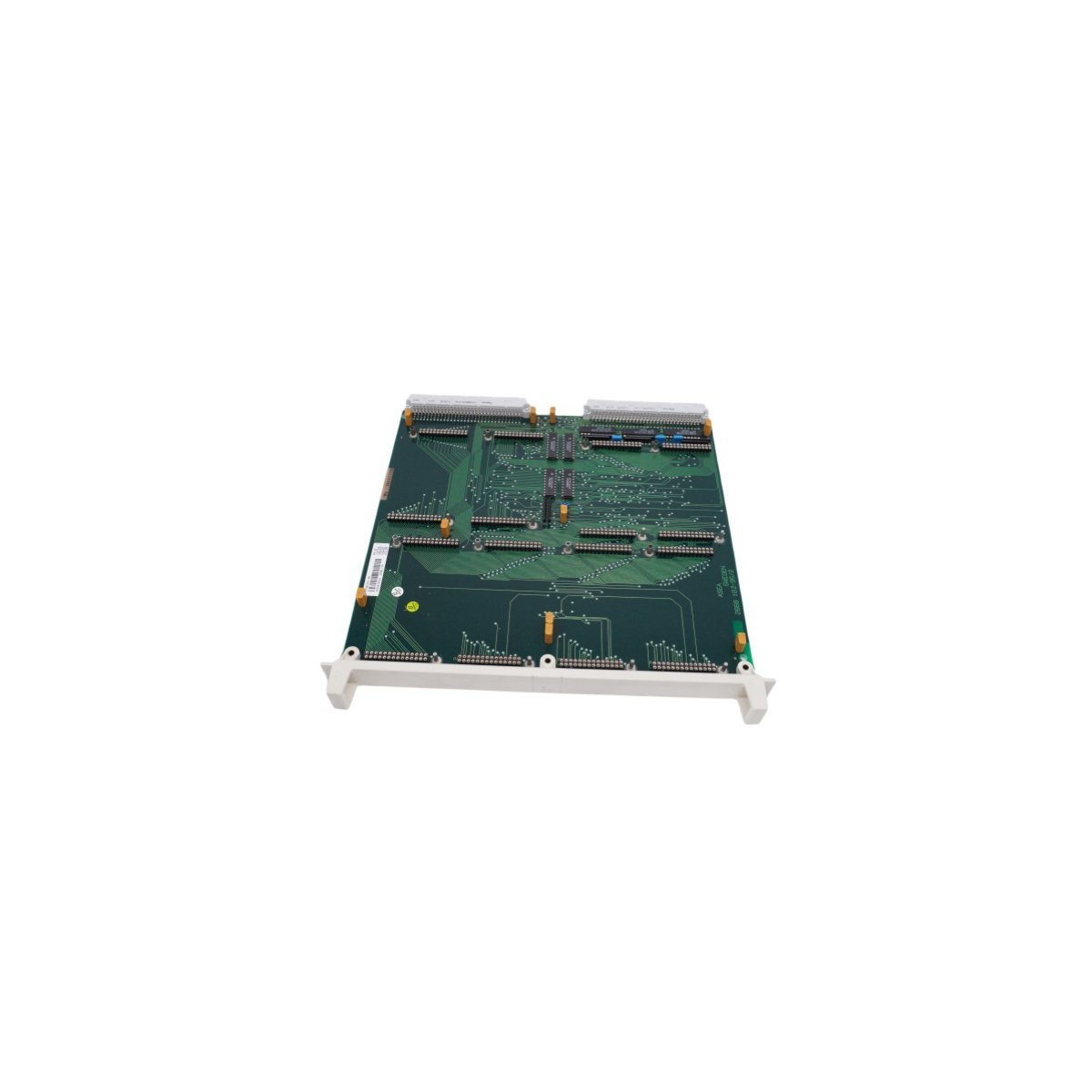

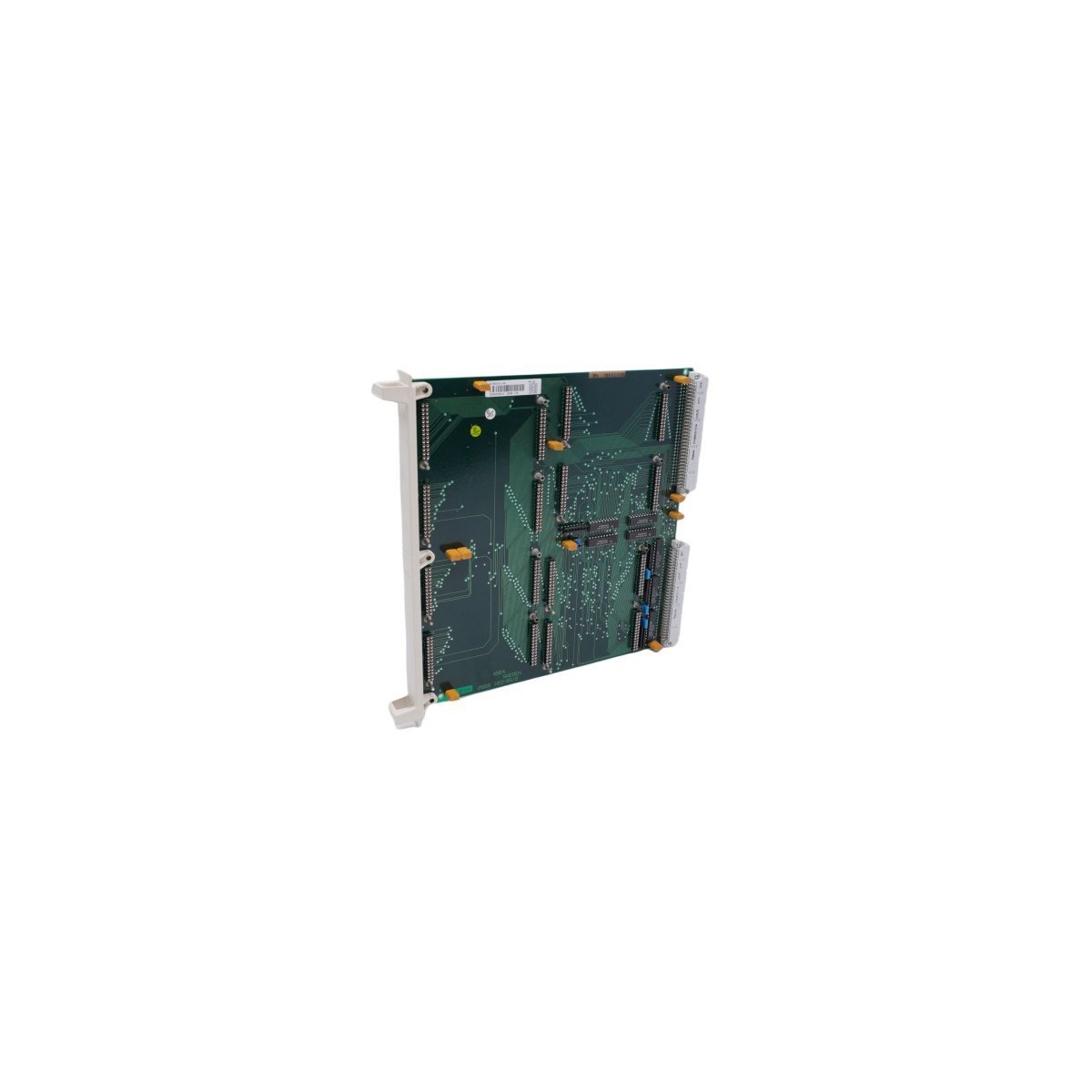

ABB DSMB176 57360001-HX MasterPiece Memory Board

The ABB DSMB176 57360001-HX, also cataloged as the DSMB176 Memory Board, operates as a dedicated hardware component for high-density program memory storage and execution within ABB MasterPiece DCS platforms. The unit interface interfaces directly with the processing subrack backplane to deliver low-latency data access while handling deterministic system instructions. Integrated hardware logic coordinates data buffering and bus arbitration across field communication channels, whereupon connected controllers process complex automation algorithms without memory throughput bottlenecks.

Hardware Specifications

Deterministic Backplane Communications & Firmware Flash Protocols

The module routes real-time data packets directly through the MasterPiece backplane bus, maintaining microsecond-level synchronization with the central processor card. Firmware flash compatibility protocols verify onboard image integrity during power-up sequences, preventing corrupted sector execution. Consequently, the memory board establishes high-throughput communication paths across Profinet and EtherNet/IP deterministic networks via external gateways, while internal parity hardware constantly audits storage cells against bit-flip errors.

Frequently Asked Questions

Q: Does the DSMB176 57360001-HX board support live insertion and extraction (hot-swapping) during subrack operation?

A: Technicians must power down the target subrack before module insertion or removal. Extracting the memory card while the backplane bus remains energized disrupts CPU memory addressing and causes an immediate system fault.

Q: How does the unit maintain data retention during main power interrupts?

A: Integrated onboard backup circuitry maintains volatile memory states across brief power dips, whereas non-volatile flash segments preserve critical parameters without external battery support.

Q: What mechanisms prevent communication interference with adjacent backplane cards?

A: Grounded multilayer PCB planes shield high-frequency address lines, thereby suppressing electromagnetic cross-talk across adjacent backplane bus slots.

Field Installation Guidelines

1. ESD Mitigation: Personnel must wear grounded wrist straps attached to the subrack frame before touching the card. Hold the circuit board strictly by its front ejector handles to protect edge-connector gold contacts from static damage.

2. Mechanical Insertion: Align the PCB edges with the subrack guide rails. Slide the board gently inward until the rear pins contact the backplane connector, whereupon firm pressure on the ejector handles seats the board completely into position.

3. Grounding & Shielding: Ensure that the subrack chassis maintains low-impedance bonding to the main cabinet earth bar. Fasten all front panel retaining thumbscrews securely to complete ground loop integrity and minimize RF emissions.

4. Thermal Spacing: Maintain clear ventilation paths above and below the card subrack. Unobstructed air flow keeps ambient operating temperatures strictly within the specified -20 to +55 deg C range.
