Emerson KJ4001X1-BA3 12P3378X012 VE3051C0 DeltaV 2 Wide Carrier Base

Emerson KJ4001X1-BA3 12P3378X012 VE3051C0 DeltaV M-series 2-Wide Carrier Control Module

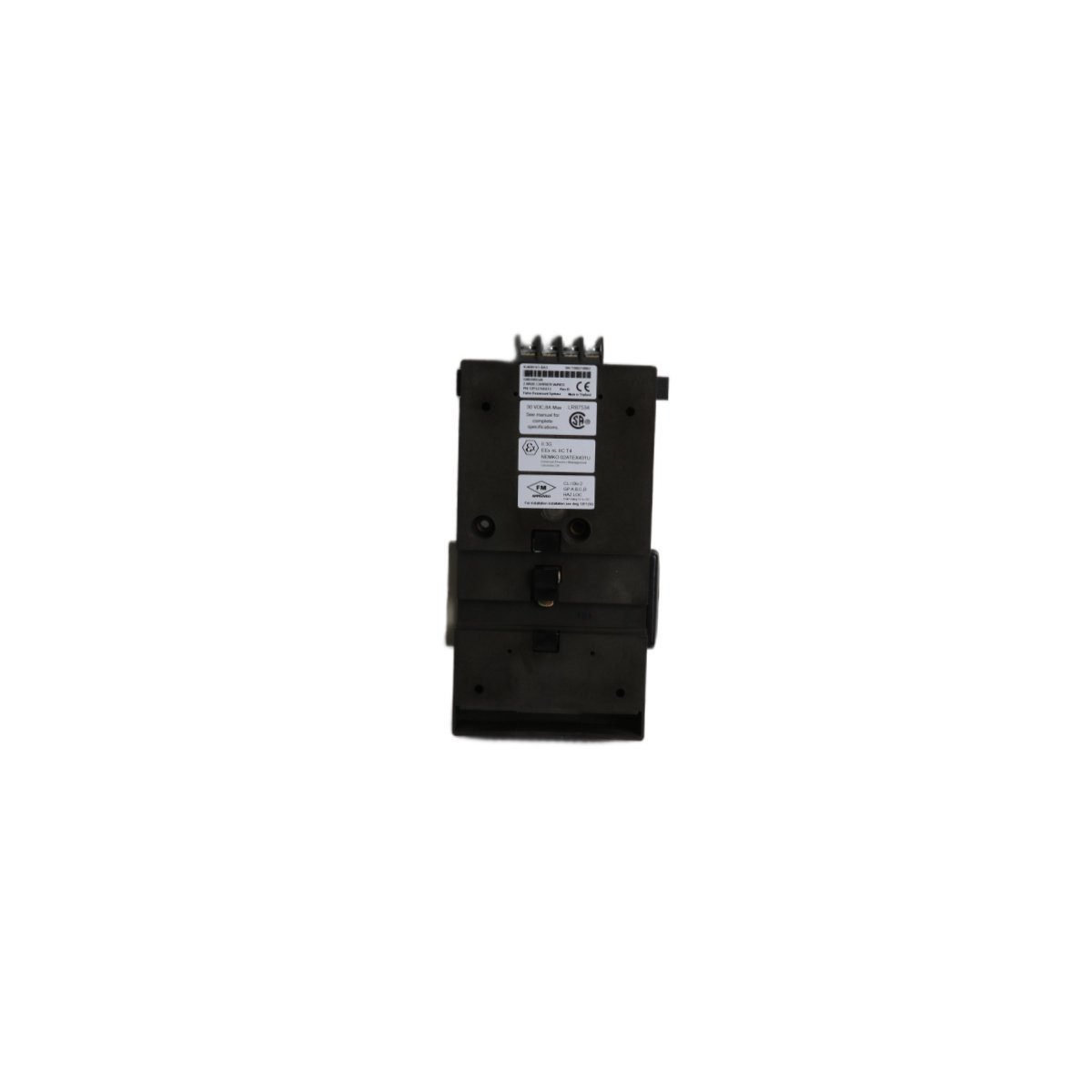

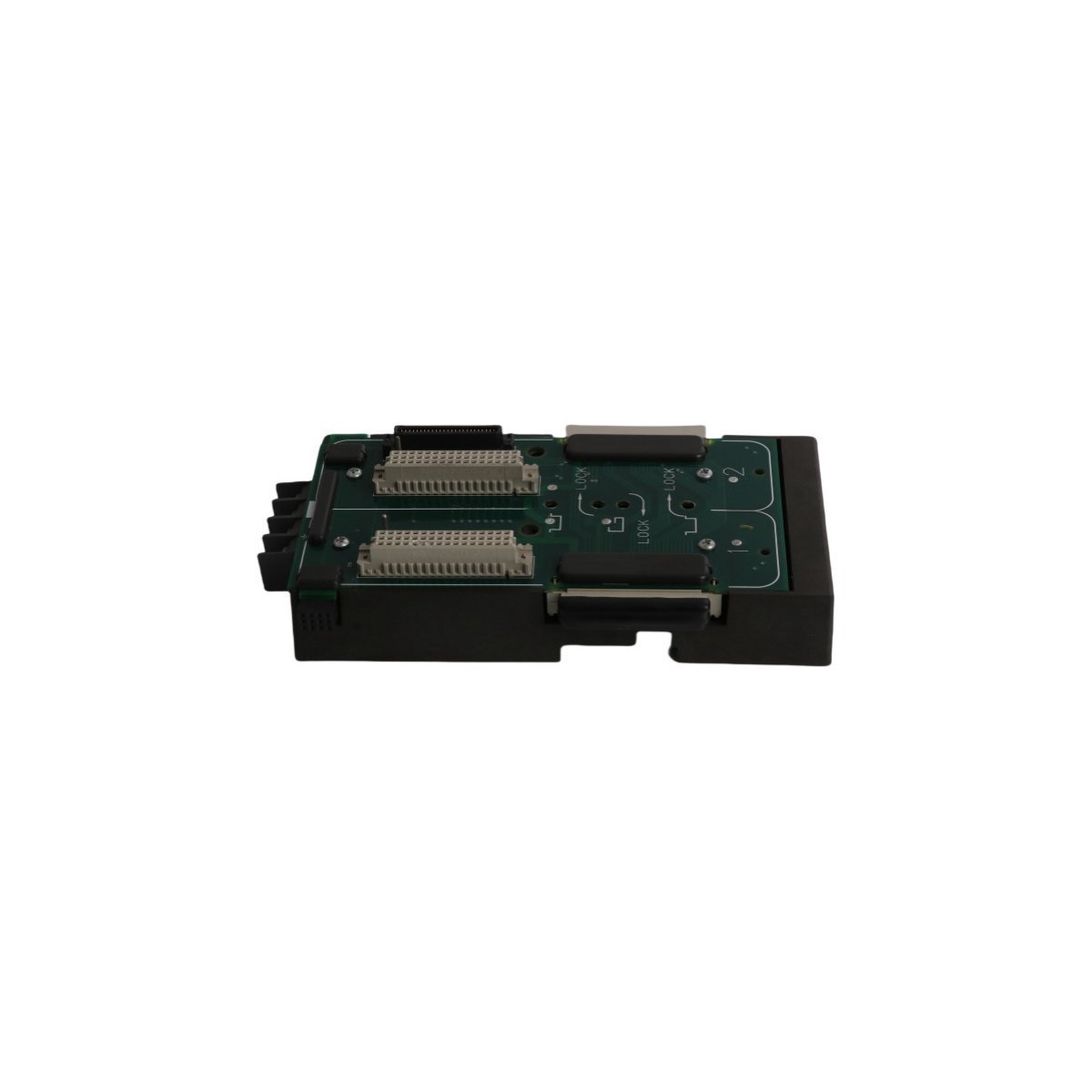

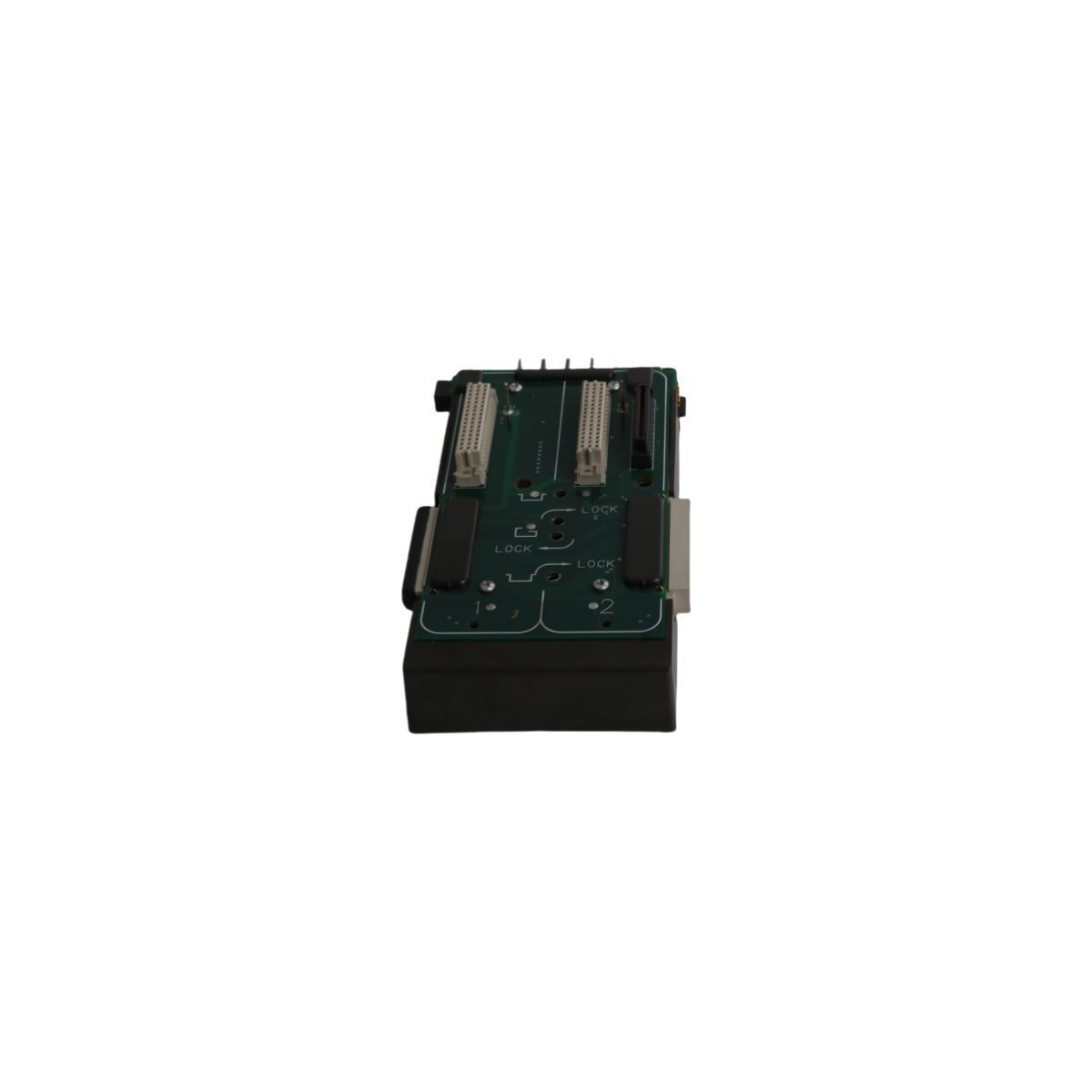

The Emerson KJ4001X1-BA3 12P3378X012 VE3051C0, also cataloged as the KJ4001X1-BA3 2 Wide Carrier Control Module, operates as a dedicated hardware component for backplane power distribution and signal routing within DeltaV M-series I/O Subsystem platforms. This base unit accepts up to two M-series controller or power supply modules, establishing physical mounting and electrical interconnectivity across the LocalBus network. By routing communication signals and power rails between mounted controllers and adjacent carrier assemblies, the hardware secures real-time processing and deterministic field data exchange.

Suffix Breakdown & Model Matrix

Hardware Specifications

DCS Backplane Signal Isolation & Bus Topology

The Emerson KJ4001X1-BA3 12P3378X012 VE3051C0 maintains structural integrity across the backplane by enforcing strict channel-to-channel isolation across internal power and signal paths. Integrated LocalBus trace networks pass 4-20 mA HART loop protocol parameters and digital process signals directly to connected controllers without adding signal degradation or transmission delay. The multi-layer backplane layout minimizes inductive coupling between parallel lines, which suppresses noise during high-speed data bursts. Furthermore, internal ground planes stabilize voltage references across downstream carrier links, securing continuous controller-to-I/O module communication across the DCS architecture.

Frequently Asked Questions

Q: Does this carrier module require external power connections to operate its internal circuits?

A: No, the carrier functions as a passive backplane assembly. It routes primary 24 VDC system power and 12 VDC LocalBus power directly from plugged power supply modules to adjacent controller and I/O carrier cards through integrated trace buses.

Q: Can engineers replace mounted controllers on this carrier while system power remains energized?

A: Yes, the carrier base supports hot-swapping of installed controller and power supply modules. Built-in pin-sequencing connects ground contacts before power lines, protecting internal logic circuits from power surges during insertion or removal.

Field Installation Guidelines

Engineers must mount the carrier unit directly onto a standard T-section DIN rail before installing any active modules. Snap the top rear latch onto the upper DIN rail lip, then swing the lower assembly downward until the locking tab engages fully. Secure the carrier to adjacent LocalBus carriers by sliding the integrated carrier connector lock firmly to the left.

Field technicians must verify that grounding terminals connect directly to the central cabinet earth bar using short, low-impedance copper grounding straps. Maintain a clearance of at least 50 mm above and below the carrier assembly to allow natural convection cooling. When wiring external system power to terminal blocks, installers must route power cables separately from low-level signal lines to eliminate electromagnetic interference (EMI).
