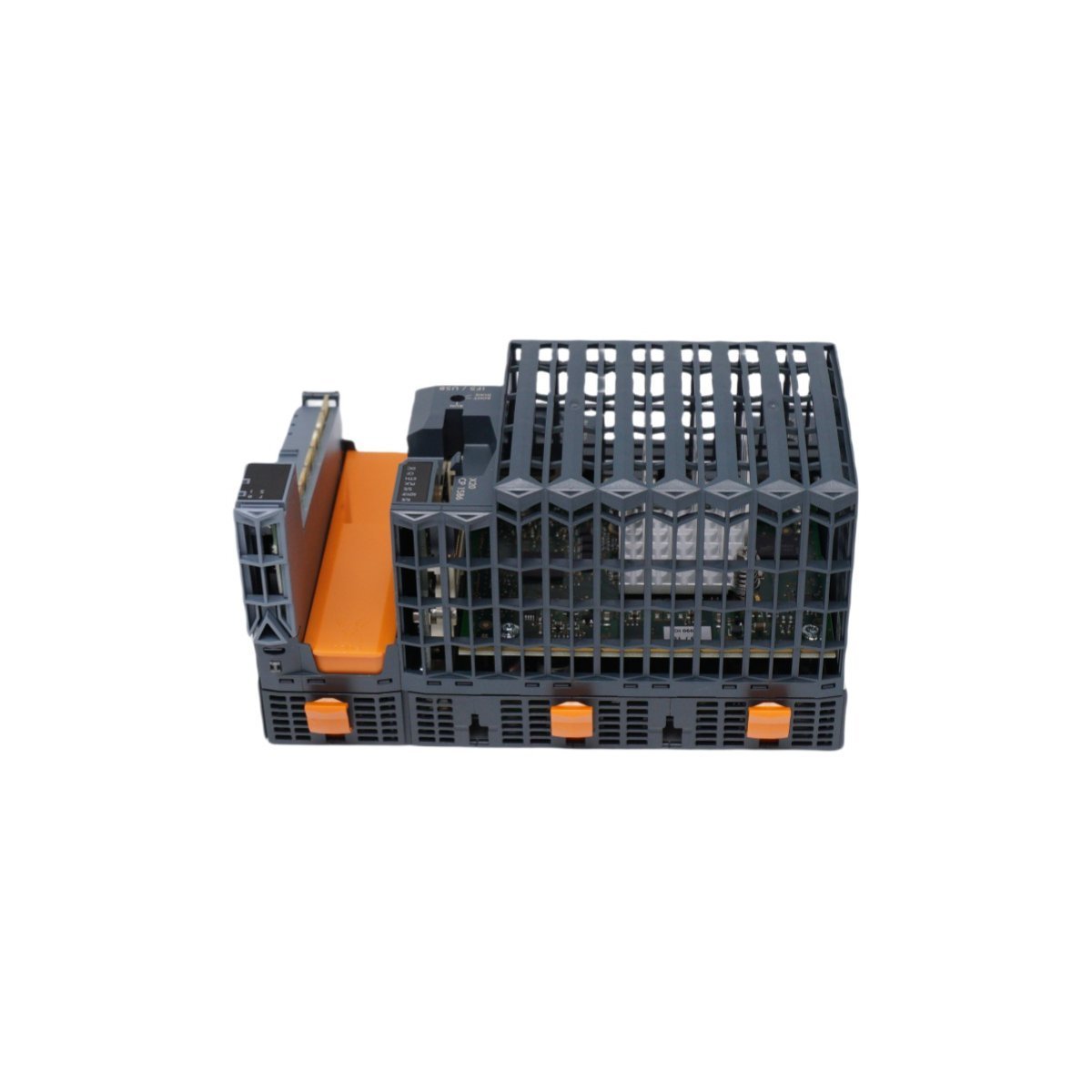

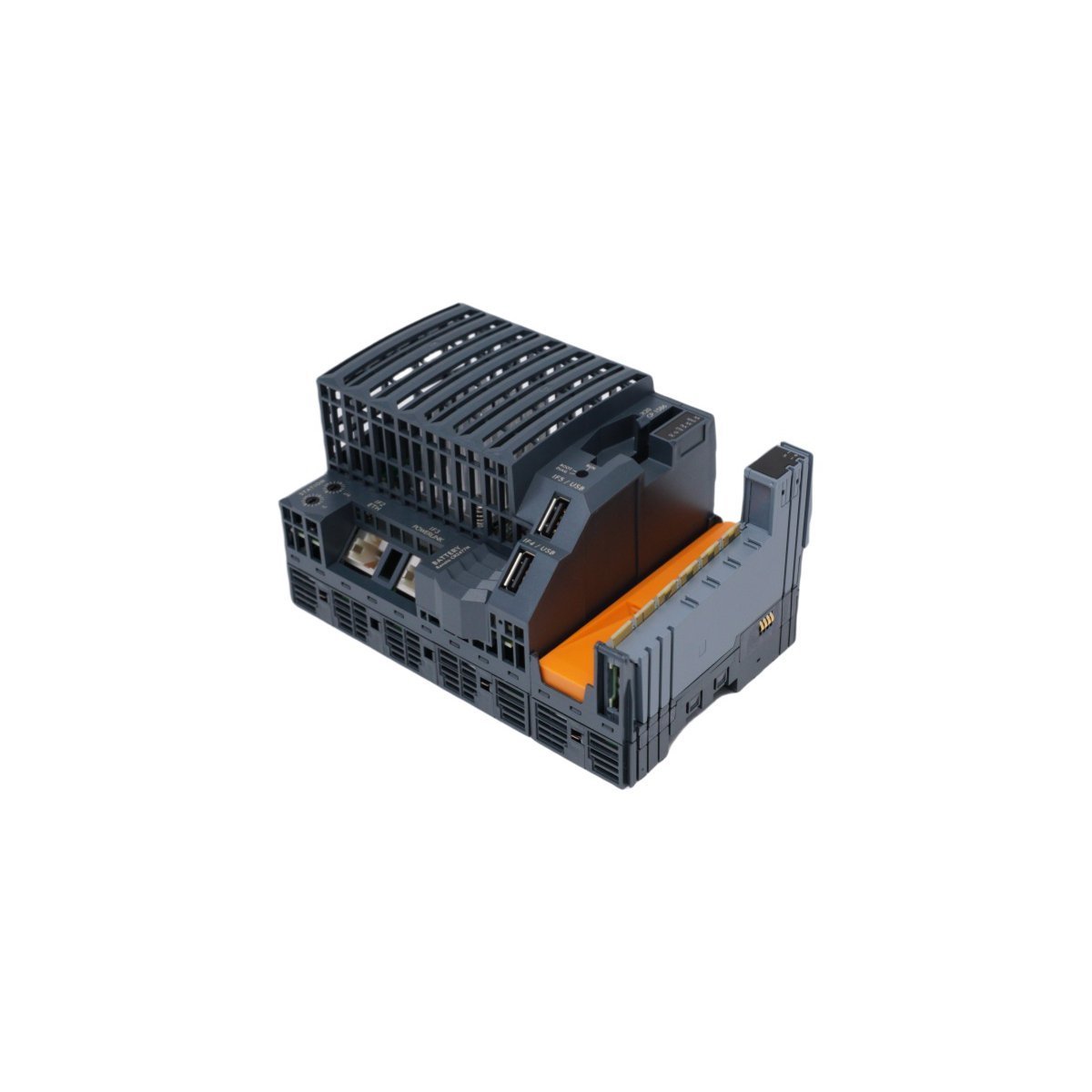

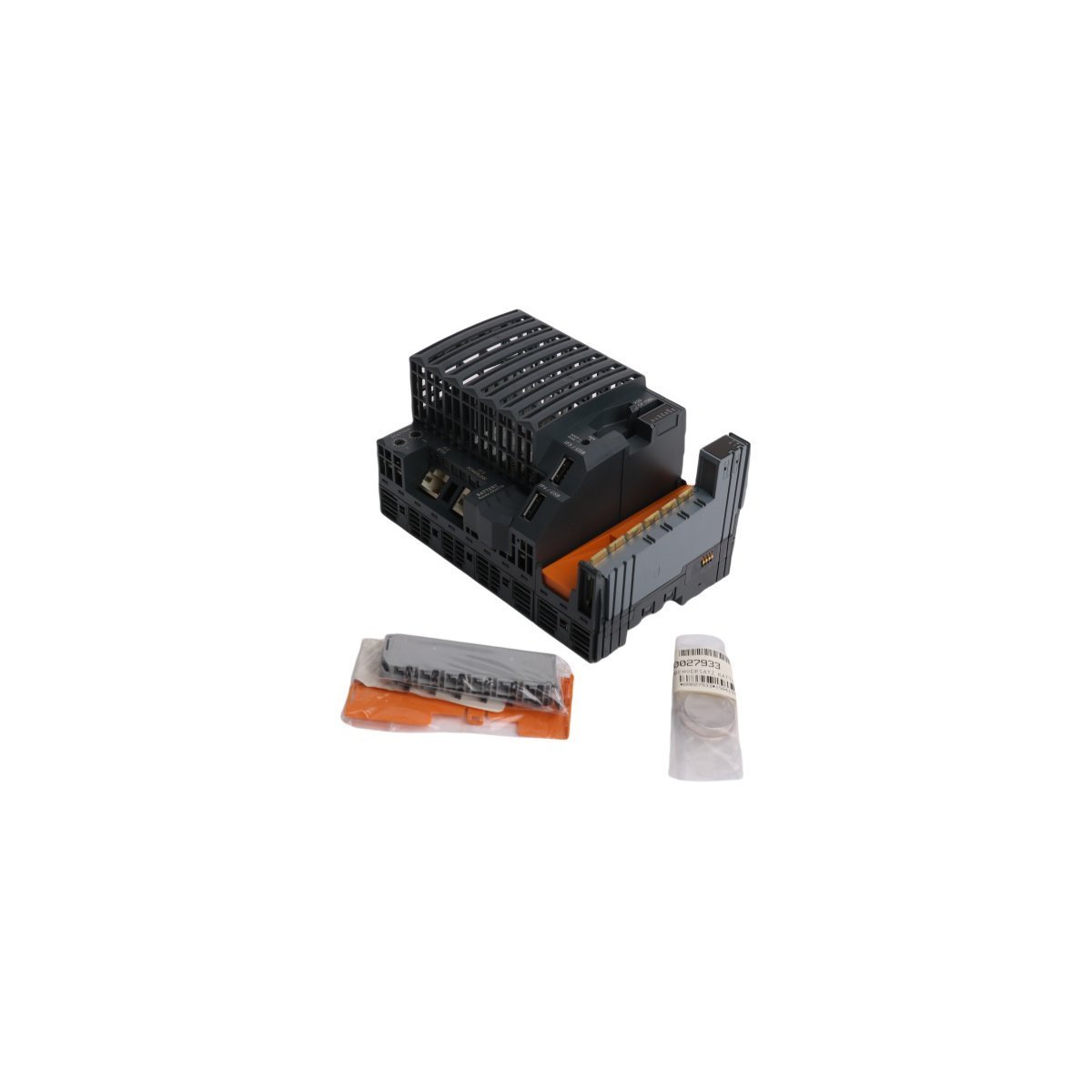

The B&R X20CP1586 represents a pinnacle in the X20 System controller family. This industrial CPU utilizes advanced Intel Atom technology for superior processing power. It features a 1.6 GHz dual-core processor to handle complex automation sequences. Consequently, the unit manages demanding control tasks with high efficiency and speed. The fanless design ensures long-term reliability in various industrial settings. It serves as the primary intelligence for high-end machine control solutions. Furthermore, the modular architecture allows for seamless integration into existing X20 topologies.
Core Technical Specifications
- Manufacturer: B&R Industrial Automation
- Model Number: X20CP1586
- Processor: Intel Atom 1.6 GHz Dual-Core
- Memory: 512 MB DDR2 RAM
- External Storage: CompactFlash slot (removable)
- Interfaces: 1x Ethernet (10/100/1000), 1x USB 2.0, 1x RS232
- Fieldbus: Integrated POWERLINK and CAN bus
- Expansion: 3 slots for X20 interface modules
- Operating Temperature: -25°C to +60°C
- Weight: 0.38 kg
Advanced Communication and Real-Time Control
Connectivity stands as a major strength of the X20CP1586 module. The integrated POWERLINK interface supports ultra-fast, deterministic data exchange. Therefore, this controller excels in precision motion control applications. It also includes an on-board I/O processor for rapid local signal handling. This secondary processor manages up to 128 X20 modules simultaneously. Furthermore, the three expansion slots accommodate various fieldbus protocols. These options include Profibus, EtherCAT, or additional Ethernet ports. Such flexibility allows the CPU to bridge multiple network standards.
Robust Design and Application Fields
The X20CP1586 thrives in challenging industrial environments. Its vibration-resistant construction protects internal components from mechanical stress. Additionally, the wide temperature range supports deployment in diverse climates. Users typically implement this CPU in CNC machinery and packaging lines. It also provides the necessary horsepower for complex robotics and printing systems. The unit supports full CPU redundancy for mission-critical operations. This capability guarantees maximum uptime for high-availability production plants. Maintenance remains simple due to the removable application memory card.
