Bently Nevada 330930-045-00-00 3300 NSv Cable TSI Vibration Sensor

Bently Nevada 330930-045-00-00 3300 NSv Extension Cable

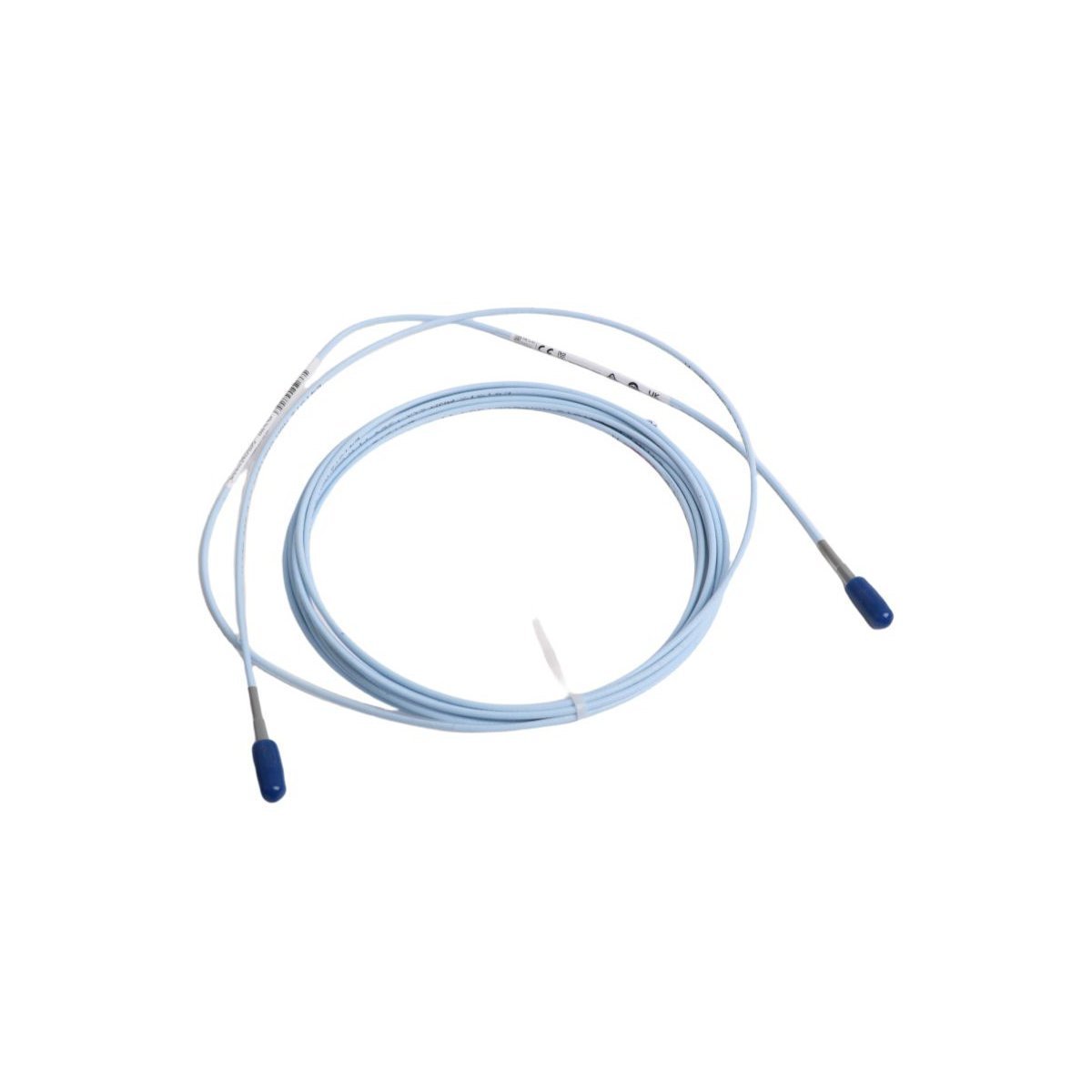

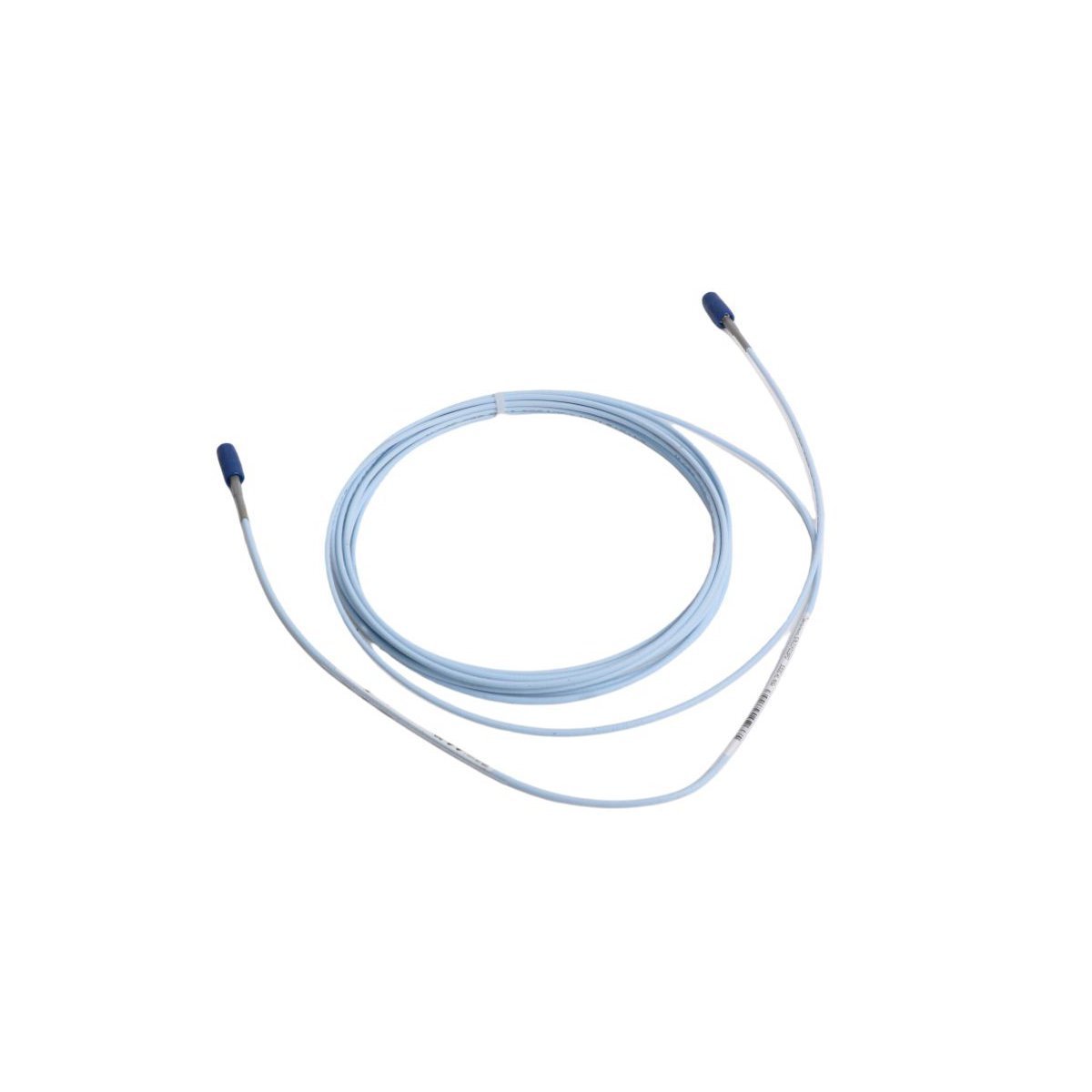

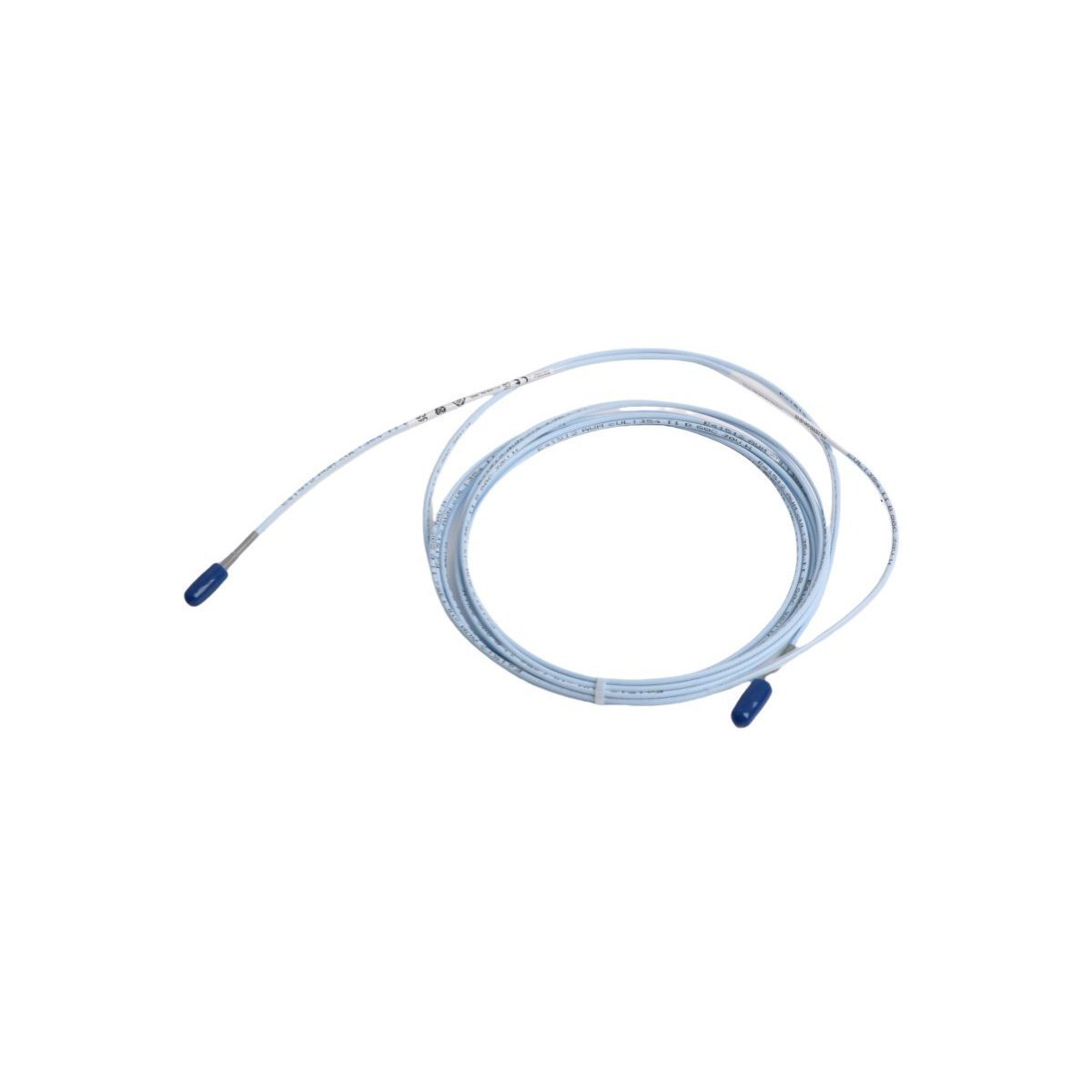

Configured for high-frequency signal transmission in TSI platform monitoring applications, the Bently Nevada 330930-045-00-00 (330930 3300 NSv Extension Cable) provides direct physical and electrical execution between eddy-current sensors and signal processing equipment. This component transfers raw high-frequency AC field modulations and DC gap voltage biases across tight-clearance rotating machinery setups. Built for integration with the 3300 XL Proximity Transducer System, the cable maintains tight electrical tolerances to minimize signal attenuation and eliminate cross-talk in dense installation spaces.

Hardware Specifications

Eddy-Current Probe Scaling & Voltage Validation

The 330930-045-00-00 extension cable maintains tight capacitive and inductive parameter constraints, which preserve the standard linear scale factor of 7.87 V/mm (200 mV/mil) for the 3300 NSv transducer system. Engineers rely on accurate cable capacitance balance to prevent system drift during gap voltage validation operations, targeting the nominal -10 VDC baseline at center-scale position. Furthermore, the internal shielding suppresses cross-talk between adjacent probe leads, maintaining full signal purity across dynamic rotor dynamics analysis sweeps without distorting peak vibration amplitudes.

Frequently Asked Questions

Q: How does cable capacitance impact probe calibration in target systems?

A: System calibrators match the total cable length directly to the Proximitor sensor internal oscillator circuit. Standard installation requires maintaining the exact designed 4.5-meter system length, because altering physical cable length shifts system capacitance, which compromises the linear scale factor calibration.

Q: What mechanisms protect signal transmission against high EMI environments?

A: Shielded outer braiding surrounds the 22 AWG central conductors to intercept and ground external high-frequency electrical interference, preventing signal distortion across long cabinet runs.

Field Installation Guidelines

Technicians must route the 330930-045-00-00 cable away from high-voltage motor supply lines and variable frequency drives to isolate the sensitive RF signal loop. During mechanical mounting, field personnel must enforce minimum bend radius limits of 25.4 mm (1.0 inch) to protect internal shielding integrity. Installers must secure all coaxial connectors via finger-tight torque, applying targeted thread-locking fluid or specialized rubber boots to prevent vibration-induced loosening. Connect the outer drain wire directly to the designated instrumentation shield bus bar at a single grounding point, thereby eliminating ground loops that could skew target gap voltage readings.
