330102-27-46-10-02-05 Bently Nevada 3300 XL 8 mm Proximity Probe Sensor

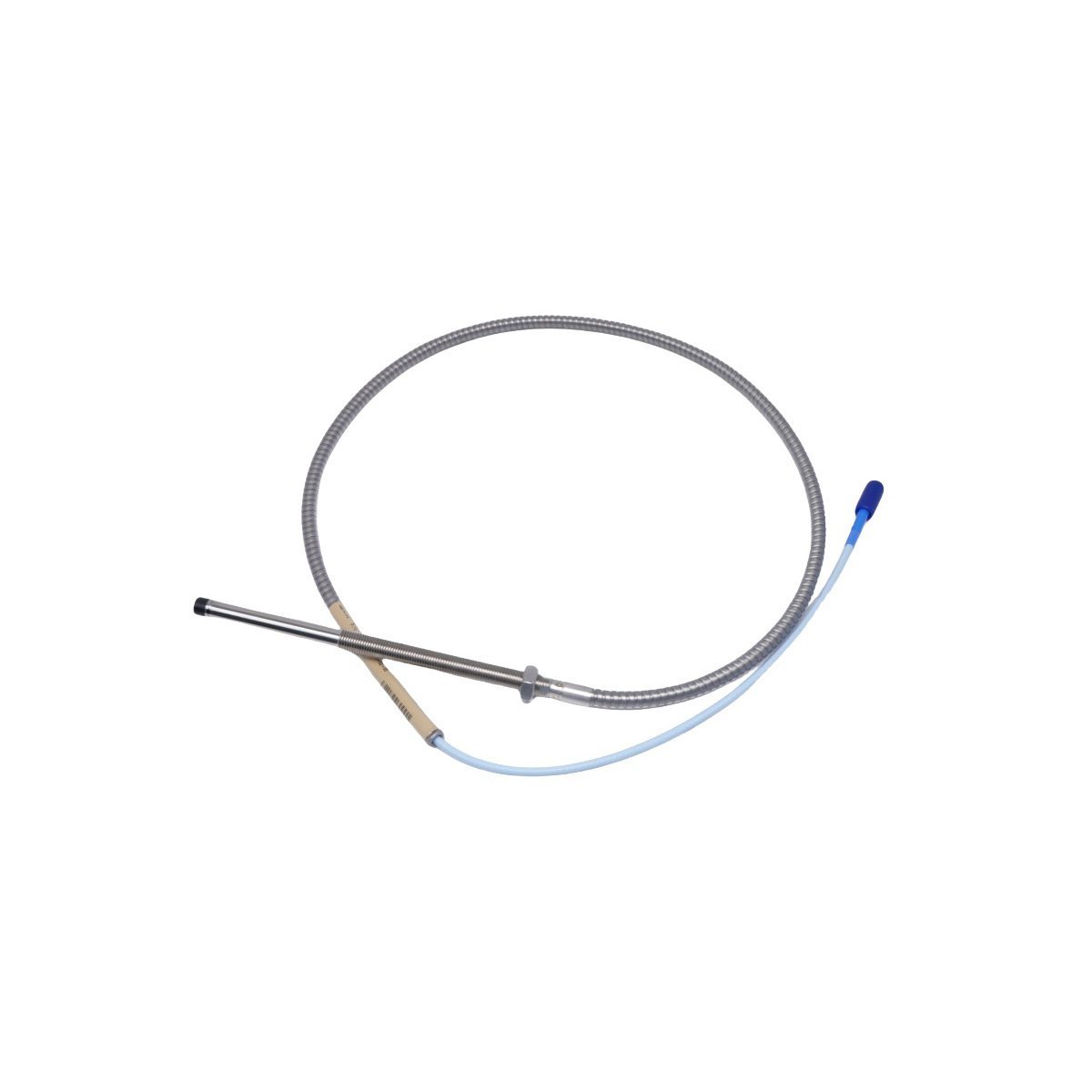

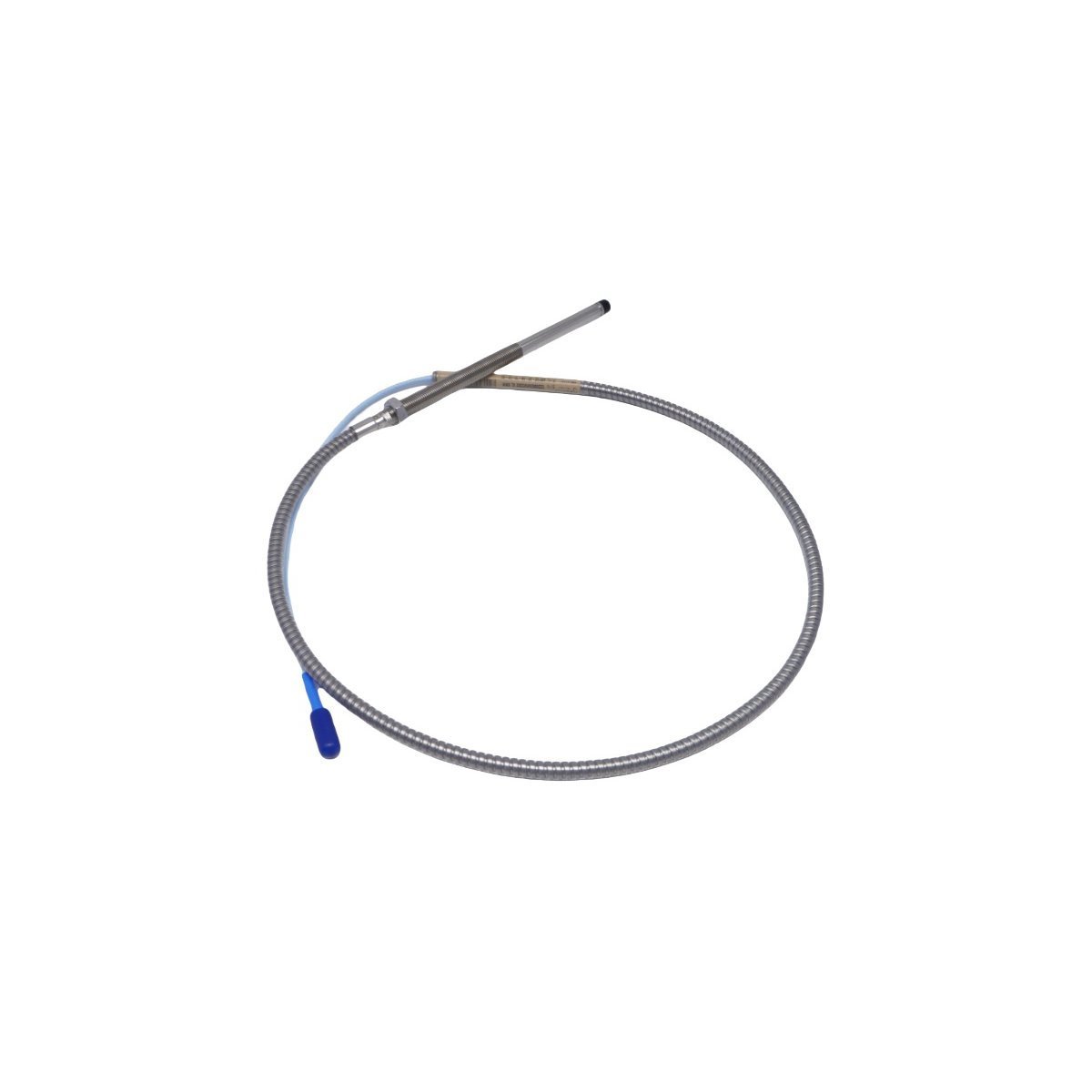

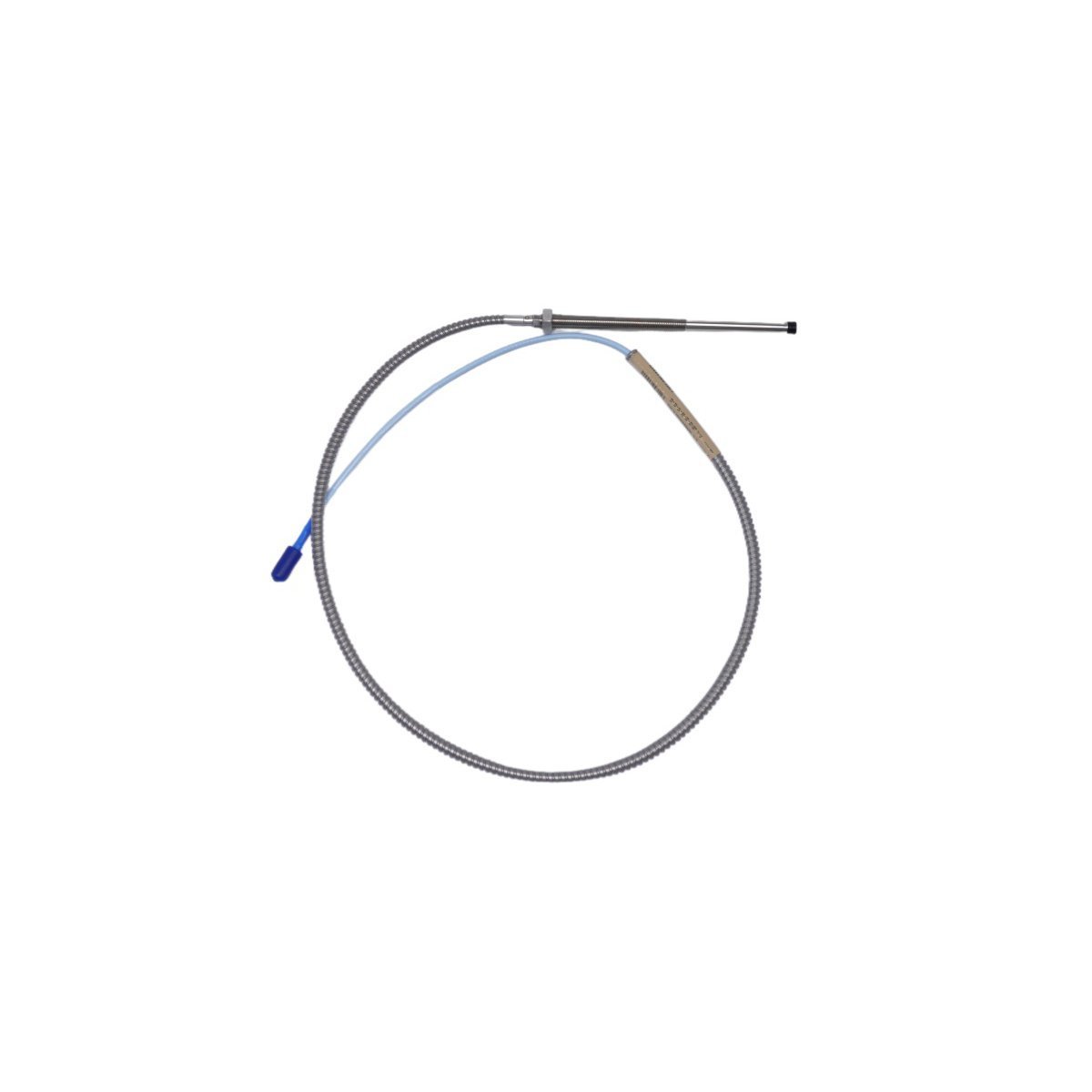

Bently Nevada 330102-27-46-10-02-05 3300 XL 8 mm Proximity Probe

The Bently Nevada 330102-27-46-10-02-05, also cataloged as the 3300 XL 8 mm Proximity Probe, operates as a dedicated hardware component for dynamic shaft vibration and static position acquisition within TSI monitoring platforms.

Suffix Breakdown & Model Matrix

Hardware Specifications

Eddy-Current Probe Scaling & Gap Validation

The transducer hardware executes continuous eddy-current probe scaling to translate the physical gap into a proportional voltage signal. During initial setup, technicians must conduct gap voltage validation to lock the bias target at -10 VDC, which positions the sensor at the midpoint of its linear response curve. This linear output allows the monitoring rack to evaluate dynamic rotor dynamics and shaft position without distortion, while proper axial spacing ensures total cross-talk suppression between orthogonal probe channels.

Frequently Asked Questions

Q: How do engineers confirm correct probe insertion depth during mechanical setup?

A: Installation personnel connect a calibrated multimeter to the Proximitor sensor output terminals and adjust the probe position until the DC bias voltage reads -10 VDC at the resting shaft position.

Q: What structural feature prevents the cable assembly from pulling out under operational mechanical stress?

A: The probe assembly incorporates CableLoc technology, which secures the internal cable attachment to withstand up to 330 N of pull force, while TipLoc molding locks the probe tip to the stainless steel body.

Q: Can maintenance staff swap proximity probes without removing power from the main TSI rack?

A: Yes, technicians can replace individual probes without de-energizing the main rack, provided they follow standard anti-static handling steps and secure the ClickLoc coaxial connection.

Field Installation Guidelines

Technicians must thread the probe body into standard 3/8-24 UNF tapped holes, ensuring a minimum of 5 full threads of engagement to maintain structural integrity under vibration. Personnel must route the coaxial cable through grounded metallic conduit while avoiding bend radii smaller than 30 mm. Field crews must push the ClickLoc connector firmly until the mechanical detent snaps, and they must terminate the outer cable shield at a single point to prevent ground loop noise.
