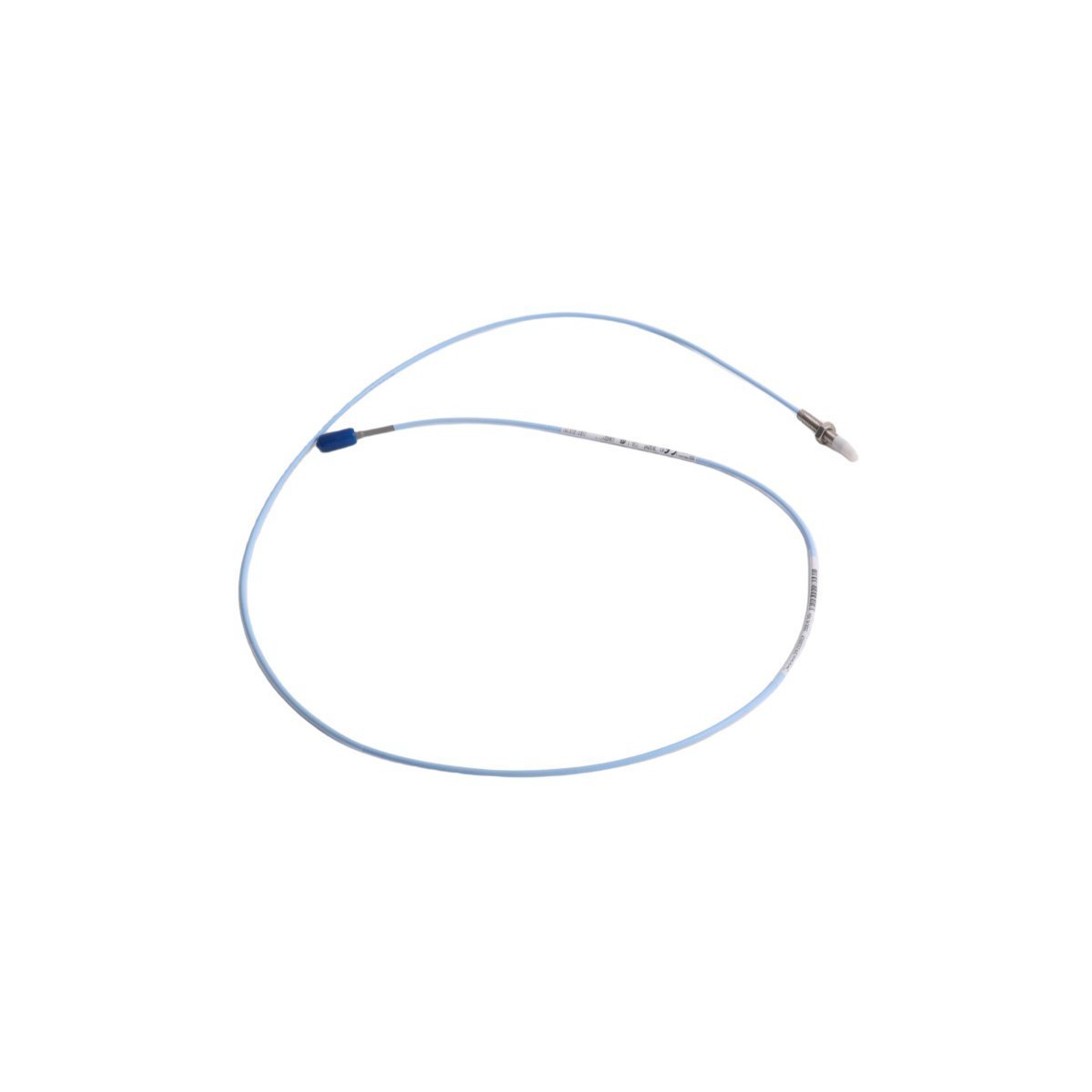

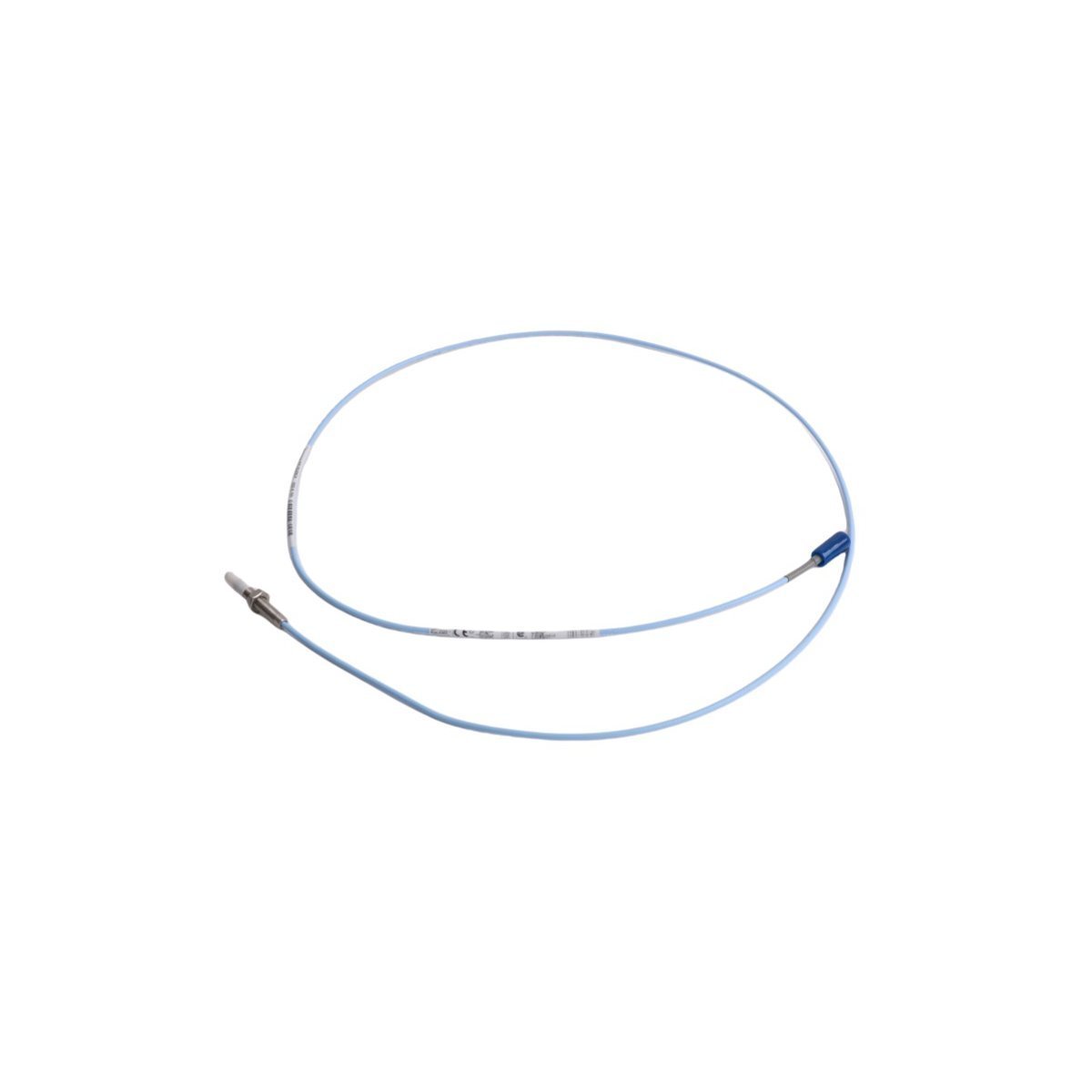

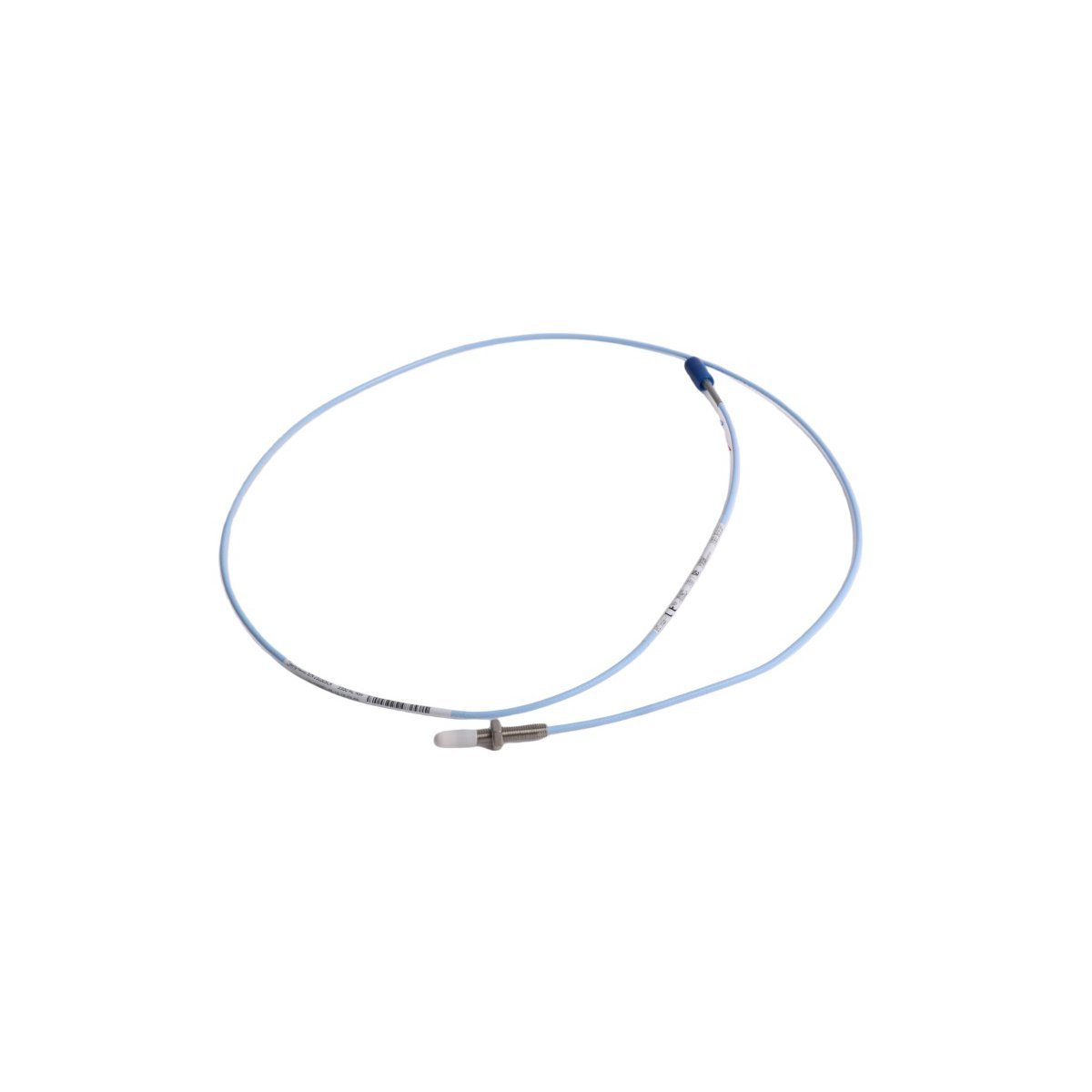

Bently Nevada 330901-22-40-10-01-05 3300 Series NSv Proximity Probe

Bently Nevada 330901-22-40-10-01-05 3300 NSv Proximity Probes

The Bently Nevada 330901-22-40-10-01-05, also cataloged as the 330901 3300 NSv Proximity Probes, operates as a dedicated hardware component for radial vibration, thrust position, tachometer, and Keyphasor measurements within TSI platforms. The component specifically targets constrained mechanical enclosures where traditional sensor footprints fail to clear internal boundaries. Operators deploy this hardware assembly to execute non-contacting eddy-current displacement monitoring on compact shafts and minimal targets.

Hardware Specifications

Eddy-Current Probe Scaling and Rotor Dynamics

The hardware utilises specialised eddy-current probe scaling to accommodate small-diameter targets without suffering severe calibration shifts. When engineering teams deploy the probe near narrow shaft shoulders or within tight counter-bores, the underlying physics require strict gap voltage validation (-10 VDC targets) to isolate the linear measurement field from surrounding metal masses.

The structural engineering of the sensor face optimizes cross-talk suppression metrics, which allows maintenance crews to mount adjacent tips in multi-axis setups without causing signal distortion. Consequently, the sensor tracks complex rotor dynamics on high-speed compressor components, translating mechanical orbital movements into uncorrupted raw radio frequency signals.

Frequently Asked Questions

Q: Does the 330901-22-40-10-01-05 hardware configuration support field splicing to bypass space obstructions? A: No, field engineers must never modify the physical length of the coaxial run. The 3300 XL NSv Proximitor calibrates its internal matching circuitry to the native impedance of the specified factory line length, meaning any manual alterations will disrupt the scale factor.

Q: How does target size below 15 mm affect the performance of the proximity probe? A: The NSv system maintains specific calibration scales for restricted target areas. If the observed target face falls below the 15 mm limit, the proximity sensor will exhibit a altered scale factor, which requires custom calibration settings within the monitoring rack.

Q: Can this sensor function alongside standard 3300 XL 8 mm Proximitor sensors? A: No, the 330901 transducer head requires direct matching with a 3300 XL NSv Proximitor Sensor. Standard 8 mm Proximitor electronics operate on different RF frequencies and drive configurations, which will cause complete loop failure if crossed.

Field Installation Guidelines

• Verify that the installation envelope maintains the specified mechanical clearance around the sensor tip to preserve side-view performance and eliminate parasitic counter-bore interference.
• Maintain strict separation between the sensor cable leads and high-voltage motor power wiring to ensure maximum electromagnetic isolation.
• Guide the probe body carefully through threaded mounting ports until the gap voltage reaches the recommended calibration baseline prior to locking the jam nuts.
• Enclose the ClickLoc coaxial connection junctions inside rigid connector protectors to isolate the RF signal loop from liquid oil and moisture penetration.
