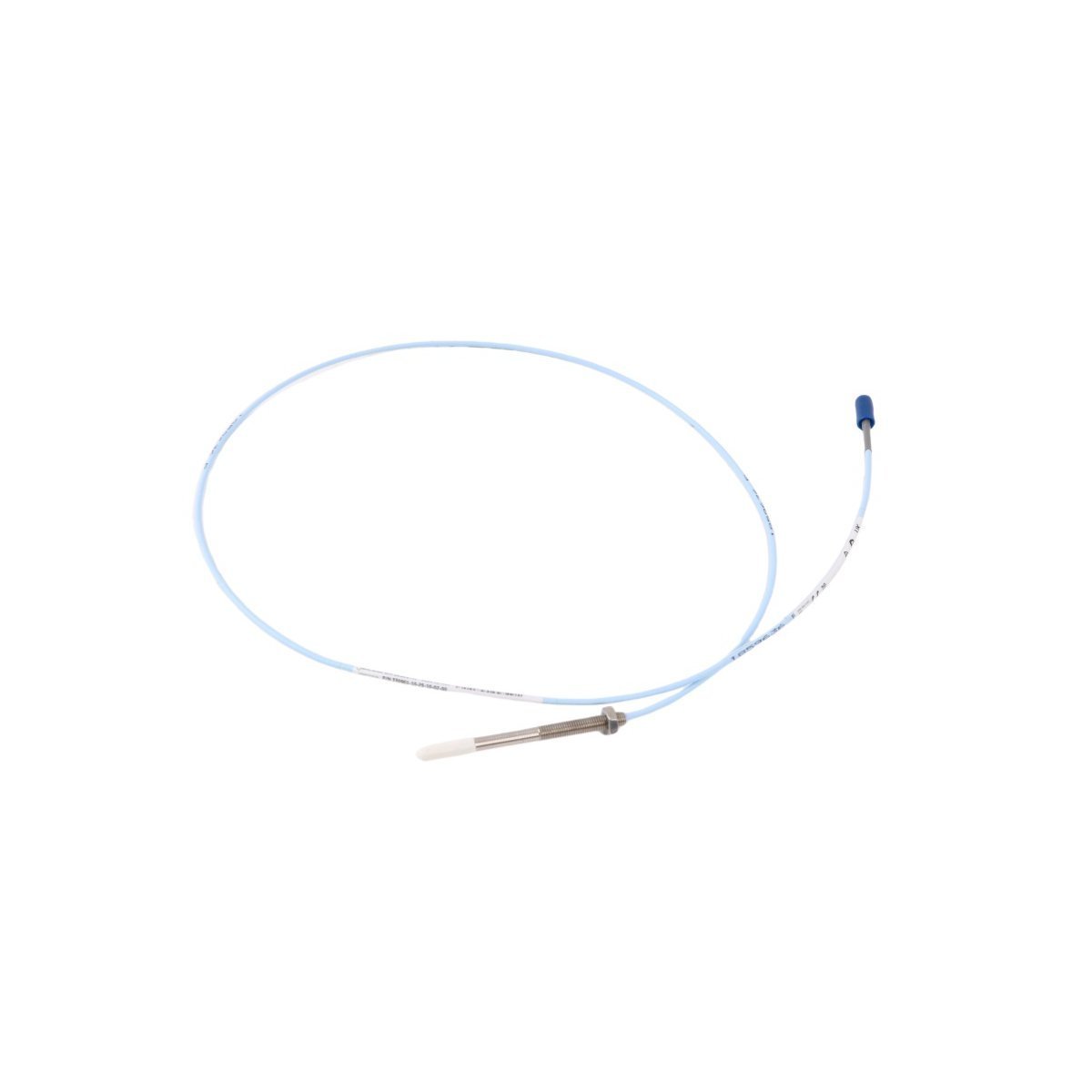

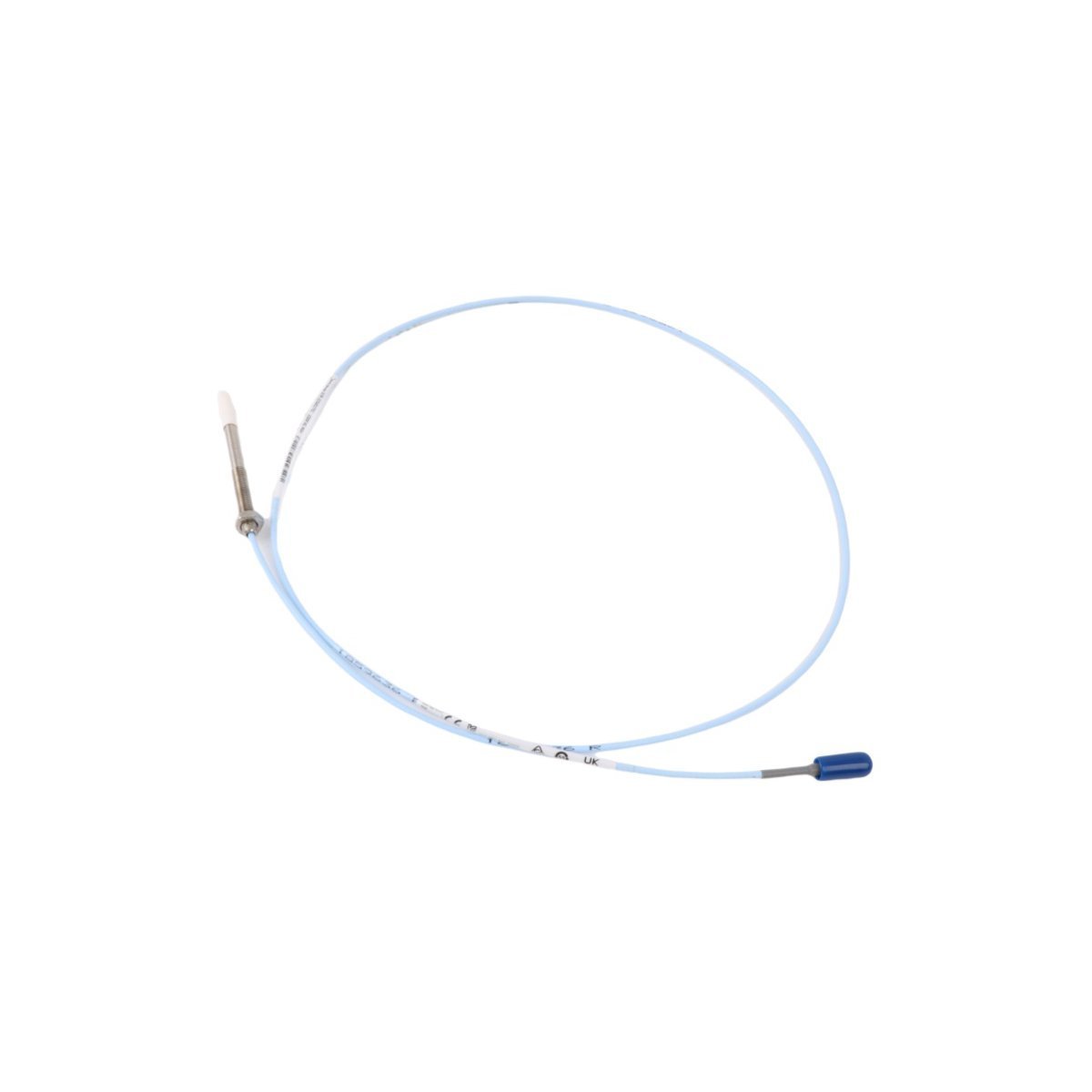

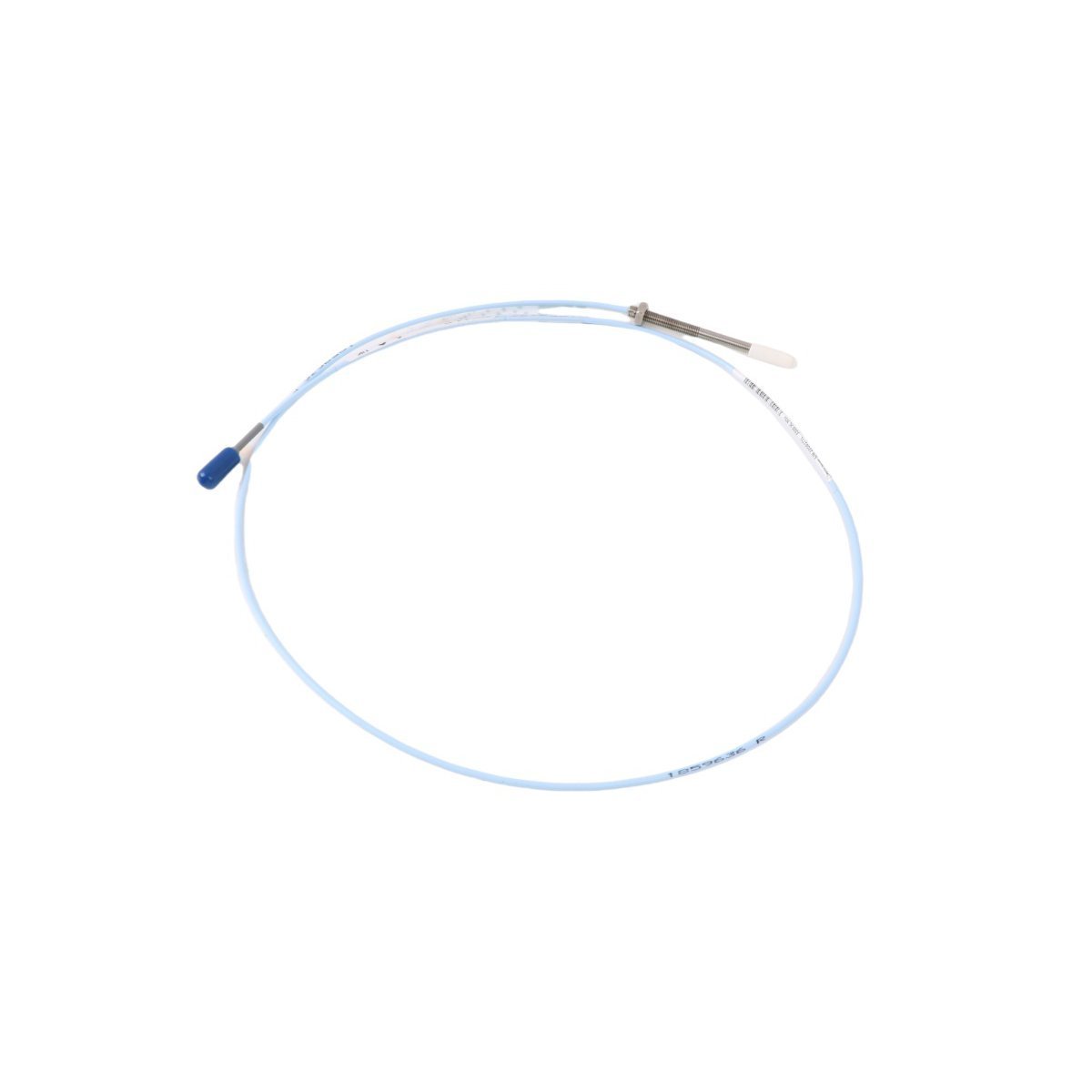

The Bently Nevada 330901-16-24-10-02-05, also cataloged as the 330901 3300 XL 8mm Proximity Sensor, operates as a dedicated hardware component for fluid-film bearing displacement and vibration monitoring within TSI platforms. The component transfers raw radio frequency signals between non-contacting proximity probe heads and external monitor racks. Field operators integrate this shielded physical link into the 3300 Proximity Transducer System to preserve measurement linearity and isolate core data paths from dynamic field interference.

Hardware Specifications

Eddy-Current Probe Scaling and Rotor Dynamics

The hardware design stabilizes eddy-current probe scaling configurations under continuous thermal and electrical shifts. By maintaining precise structural resistance balances across the internal conductors, the sensor assembly minimizes transmission changes to less than 2 mV per volt of supply alteration. This low-attenuation transmission scheme allows the processing monitors to execute real-time gap voltage validation (-10 VDC targets) without suffering baseline errors.

The heavy braided shield structure guarantees high cross-talk suppression levels, preventing inductive interference between adjacent signal lines. Because the cable geometry preserves accurate phase information, the downstream rack can track sub-micron rotor dynamics, translating physical shaft imbalances directly into linear analog data.

Frequently Asked Questions

Q: Does the 330901-16-24-10-02-05 support live hot-swap deployment?

A: Field engineers can physically disconnect the cable while the processing systems remain powered. However, the open electrical loop will instantly trigger a circuit fault condition on the active channel, which necessitates active relay bypassing at the monitor rack prior to line servicing.

Q: What is the maximum permissible distance between the sensor head and the diagnostic monitor panel?

A: The system allows for a maximum cumulative electrical transmission run of 305 meters, provided that the total resistance and capacitance match the specific Proximitor calibration parameters.

Q: How does the presence of Zener safety barriers affect the input supply parameters?

A: Zener safety barriers induce a inline voltage drop across the measurement loop. Consequently, field technicians must adjust and maintain the system supply voltage within a narrow -23 VDC to -26 VDC range to satisfy the internal driving thresholds.

Field Installation Guidelines

• Verify that the total electrical line length conforms exactly to the matching 5.0 meter or 9.0 meter Proximitor system calibration before securing physical mounting brackets.
• Run all raw transducer loops through dedicated, grounded metal conduits to achieve isolation from high-voltage switching equipment lines.
• Install dedicated industrial connector protectors over every ClickLoc mating junction to seal the electrical contact interface from airborne moisture and synthetic oil ingress.
• Secure the cable runs with non-conductive ties using standard mechanical spacing, keeping the physical bend radii within standard limits to avoid fracturing the inner conductor.
