330910-00-10-50-02-05 Bently Nevada 3300 Series Proximity Sensor Cable

Bently Nevada 330910-00-10-50-02-05 3300 Proximity Transducer System

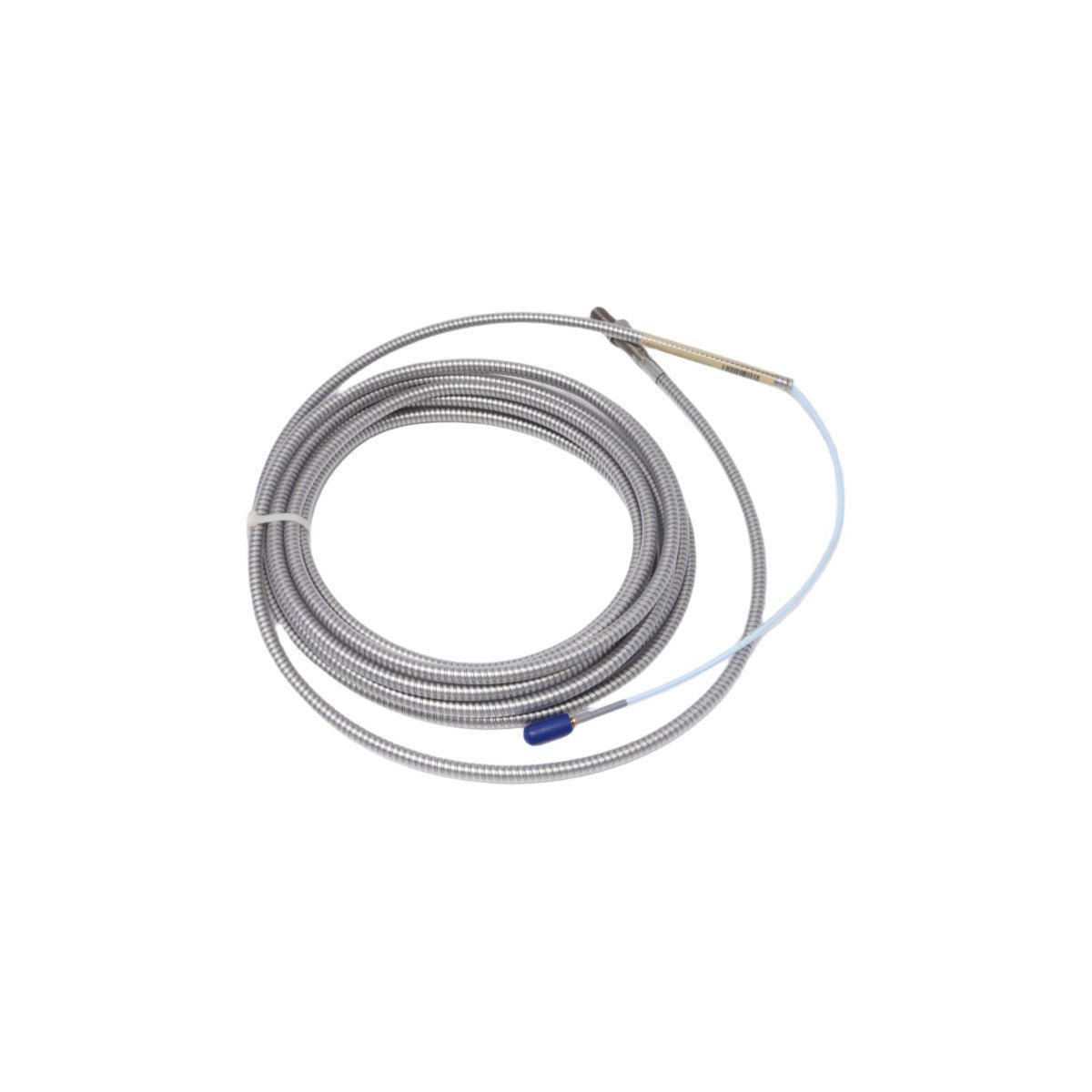

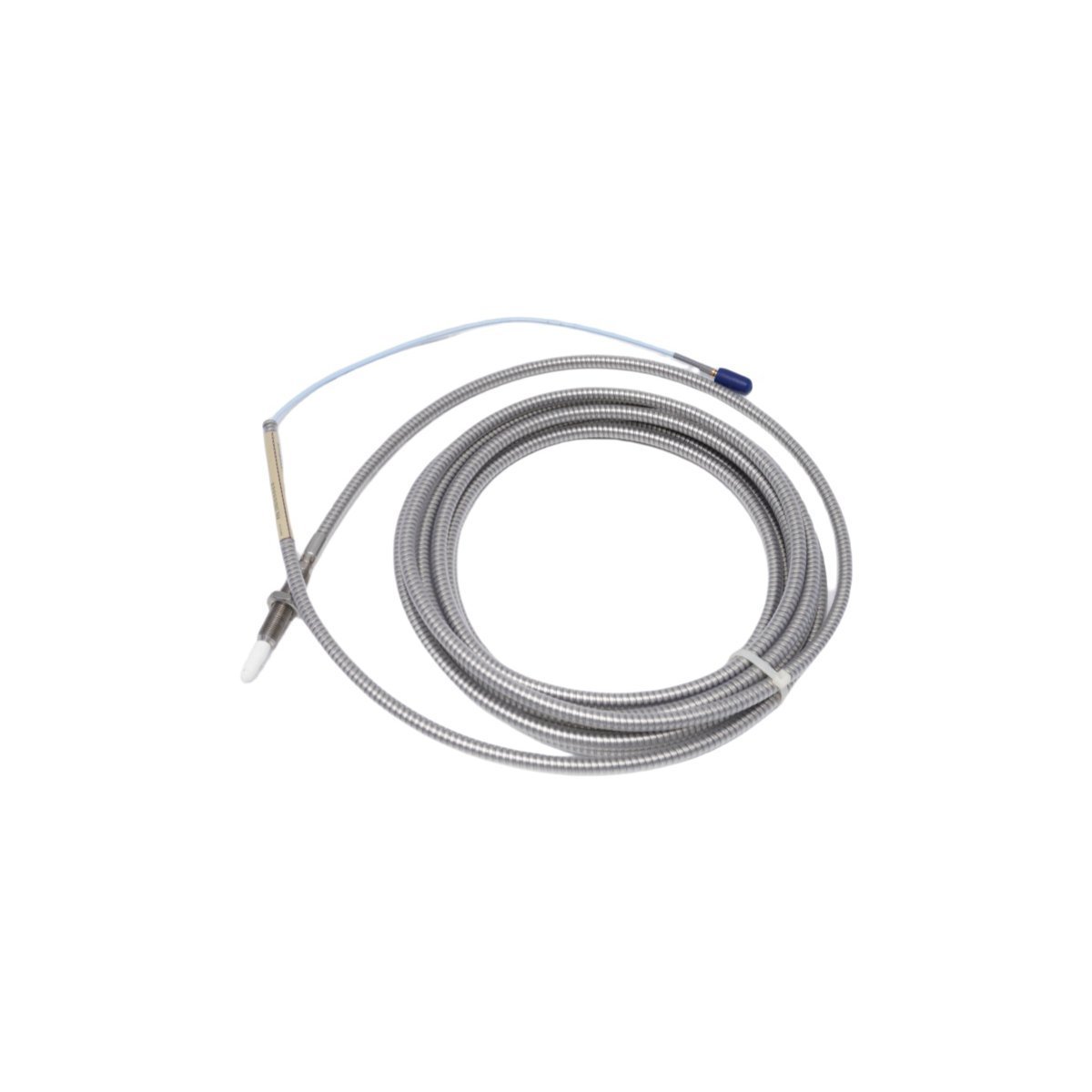

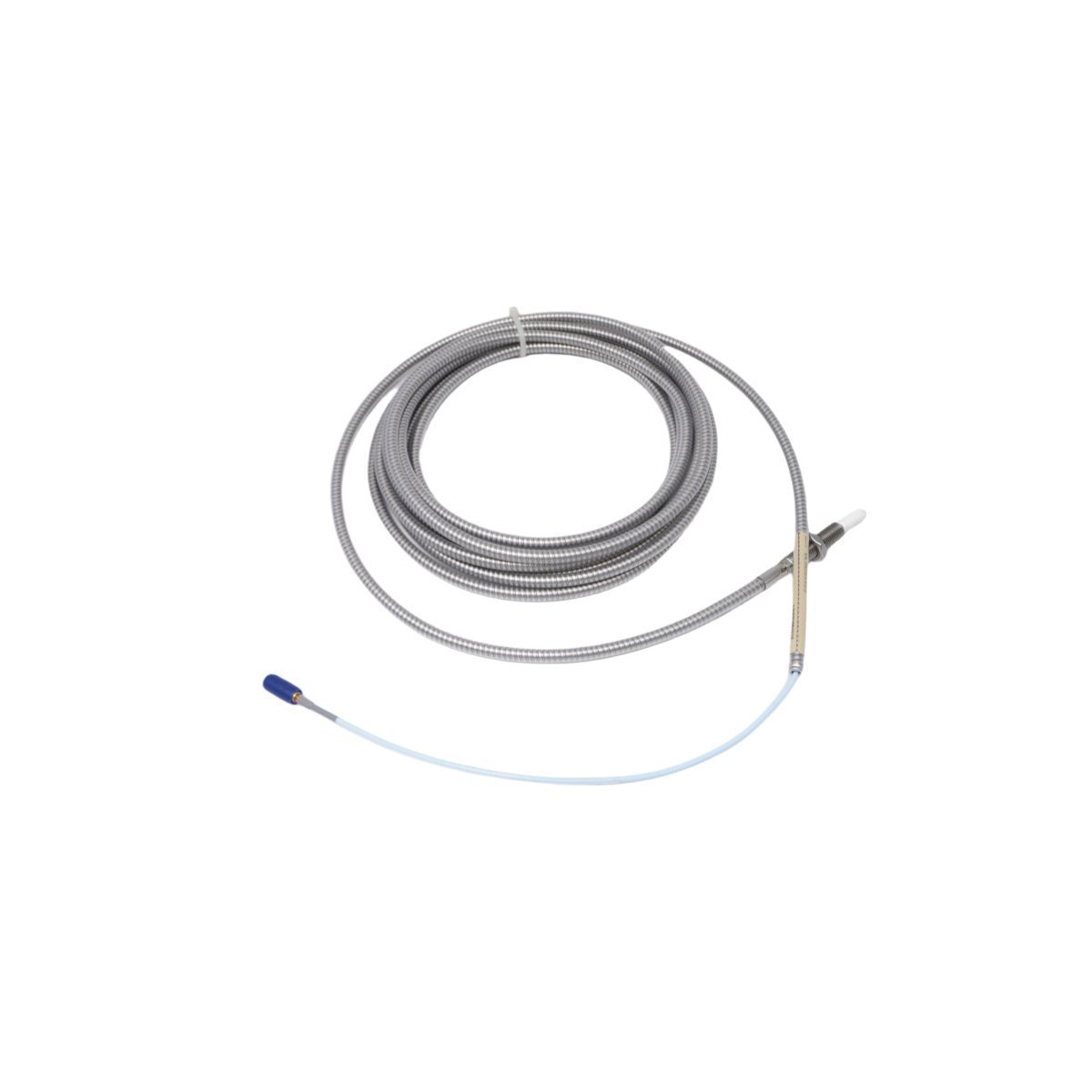

The Bently Nevada 330910-00-10-50-02-05, also cataloged as the 330910 Sensor Proximity Probe Cable, operates as a dedicated hardware component for fluid-film bearing displacement and vibration monitoring within TSI platforms. This high-performance assembly links the proximity sensor head directly to the processing monitors, enabling precise physical tracking of high-speed rotating shafts. Technicians deploy this hardware within the 3300 NSv system matrix to ensure continuous electrical transmission of dynamic machinery data under severe physical stress.

Hardware Specifications

Gap Voltage Validation and Cross-Talk Suppression

The proximity probe assembly interfaces directly with the 3300 NSv Proximitor Sensor to implement precise eddy-current probe scaling across tight machine clearances. Field personnel conduct gap voltage validation procedures by monitoring the DC output voltage, adjusting the mechanical position until the signal centers within the target -10 VDC linear operation envelope. This alignment allows the underlying rotor dynamics processing circuits to track micro-inch shaft displacement without clipping the peak dynamic signals.

Furthermore, the physical construction optimizes cross-talk suppression metrics. The dense, high-conductivity braided outer shield confines the high-frequency radio frequency excitation signal within the transmission line, preventing stray magnetic fields from inducing noise or phase distortion in adjacent sensor runs mounted inside the same tight bearing housing.

Frequently Asked Questions

Q: Can maintenance staff adjust or alter the physical length of the 330910 cable loop in the field? A: No. Field technicians must never cut or splice this coaxial cable assembly. The Proximitor calibrates its internal tank circuit to match the specific total electrical length of the probe and cable system, and altering this physical geometry shifts the scale factor calibration and invalidates the readings.

Q: How does the ClickLoc connector mechanism prevent signal degradation in high-vibration zones? A: The self-locking ClickLoc connection features gold-plated mating surfaces that establish constant electrical contact. The mechanical latching mechanism provides positive retention, which resists axial vibration forces and prevents the connection from loosening or generating intermittent continuity faults.

Q: Does the cable shield require grounding at both the probe tip and the monitor rack terminals? A: No. Dual grounding creates destructive ground loop currents. Field engineers isolate the probe case from structural ground and route the shield continuity strictly to the instrument common ground terminal located at the Proximitor block or monitor chassis.

Field Installation Guidelines

• Install external connector protectors over every joined ClickLoc interface pair to prevent moisture, oil, and liquid chemical ingress from degrading the high-frequency RF path.
• Guide the flexible extension run through dedicated protective conduit or cable trays, ensuring the bend radius never drops below the minimum specified limit to prevent internal core damage.
• Tighten the structural probe housing components securely using calibrated torque wrenches to ensure the physical mounting maintains a stable aspect angle under continuous machine thermal expansion.
• Terminate the field connections via the tool-free SpringLoc terminal strips,
