106765-20 Bently Nevada 3300 Series Interconnect Cables

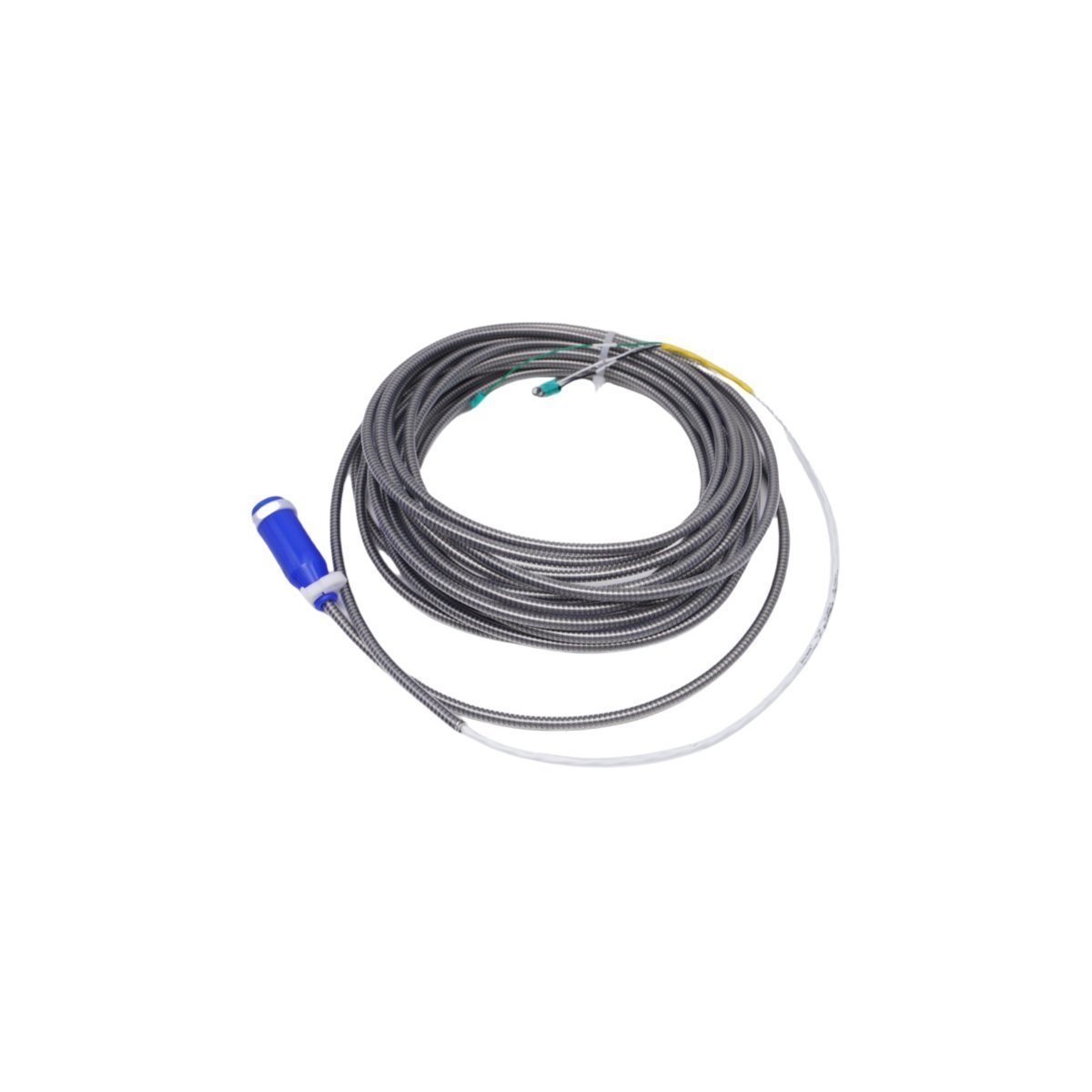

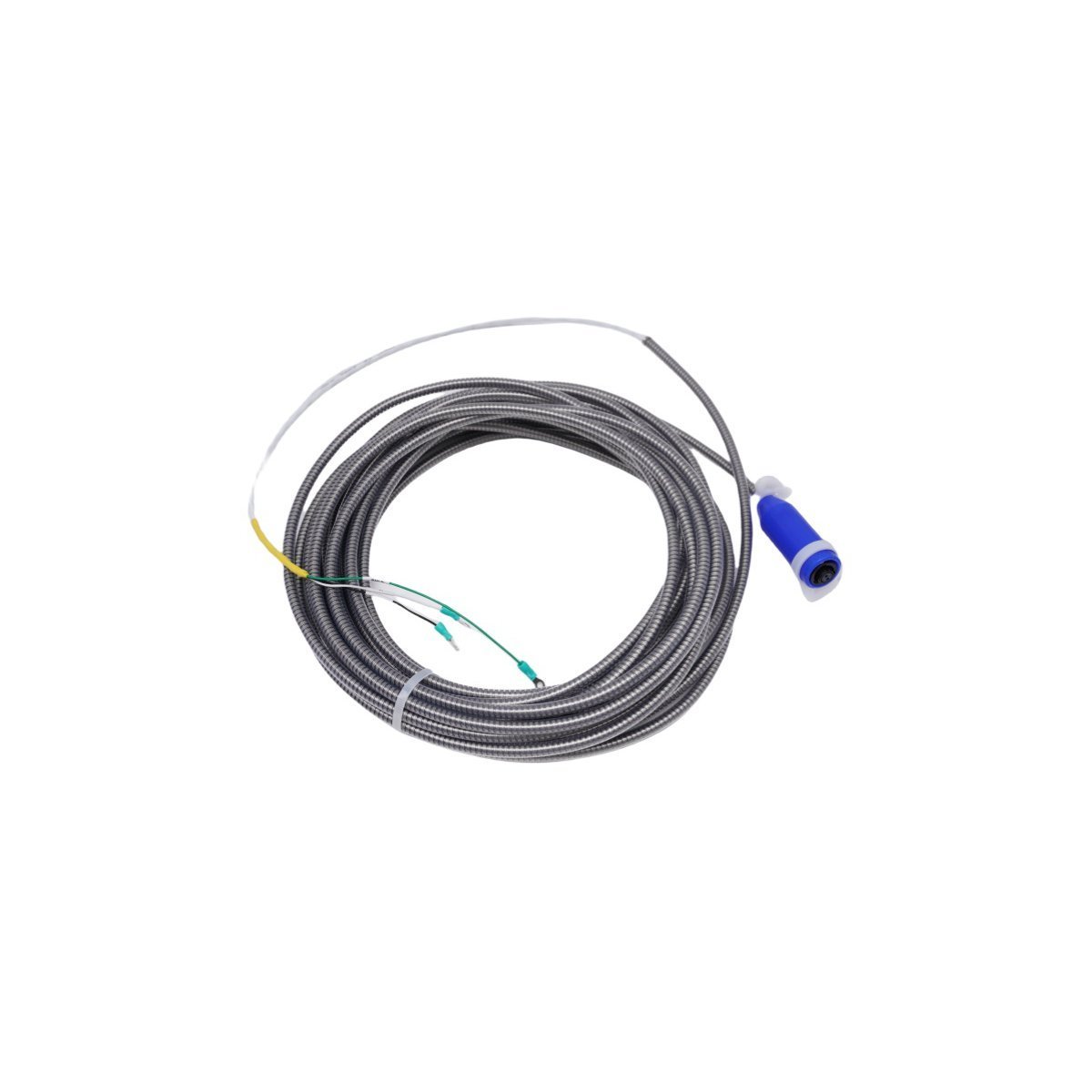

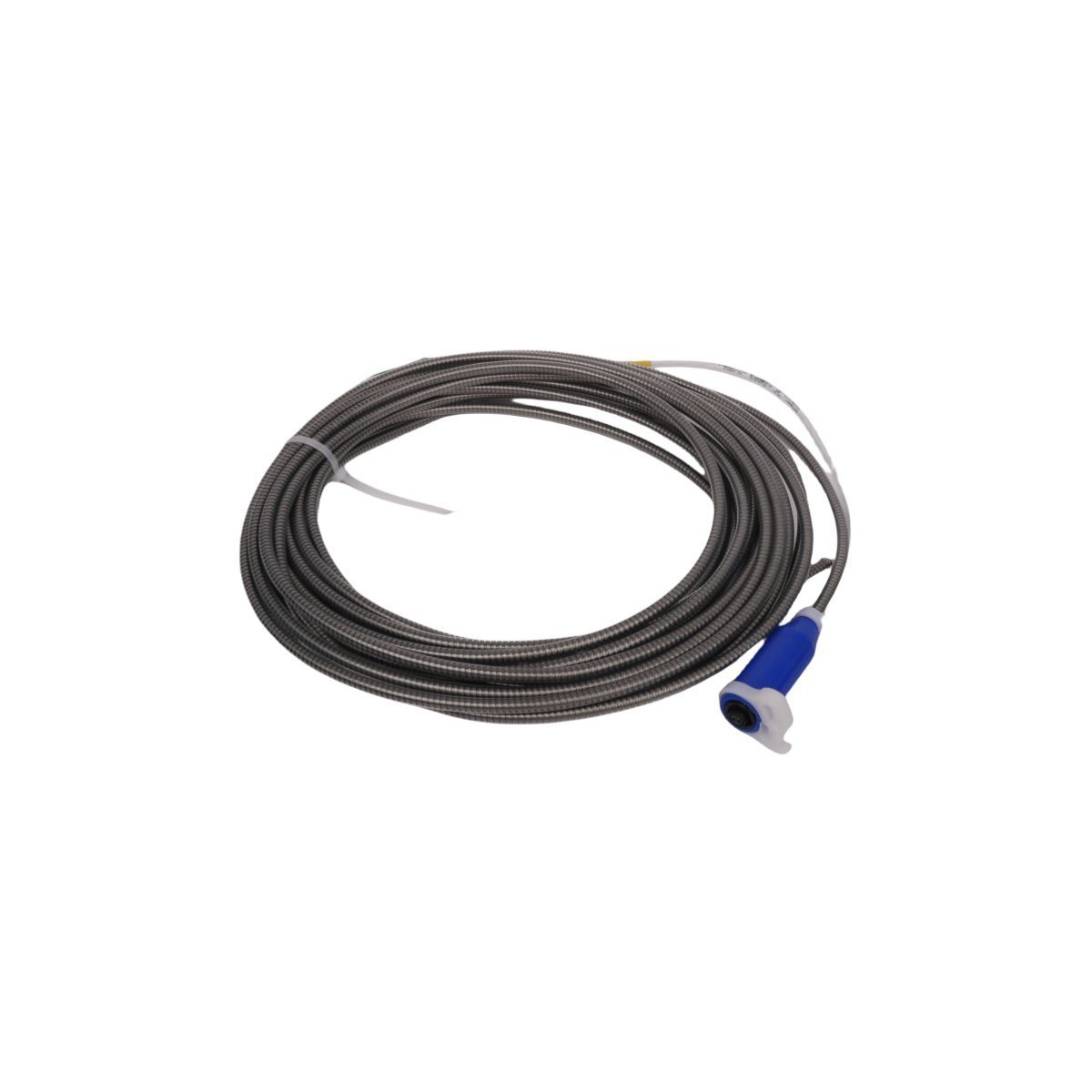

Bently Nevada 106765-20 Interconnect Cable

The Bently Nevada 106765-20, also cataloged as the 106765 Interconnect Cables, operates as a dedicated hardware component for low-loss dynamic signal transmission within TSI platforms. The assembly incorporates multi-conductor shielded wiring enclosed in an oil-resistant PVC outer jacket with an outer diameter of 8.2 mm (0.32 in) and a specified length of 20 ft (6.1 m). While linking vibration sensors to Proximitor signal conditioning units or monitor racks, this cable routes high-frequency raw dynamic signals across physical distances while shielding against external electromagnetic fields.

Suffix Breakdown & Model Matrix

Hardware Specifications

Eddy-Current Probe Scaling & Rotor Dynamics

The 106765-20 cable preserves eddy-current probe scaling linearity across the entire dynamic signal loop. Because proximity sensors rely on high-frequency RF excitation fields to detect shaft proximity, any unmatched capacitive loading or impedance variation distorts the 7.87 V/mm (200 mV/mil) transfer function. Consequently, this cable maintains strict capacitance-per-meter specifications, allowing technicians to perform gap voltage validation (-10 VDC targets) without signal attenuation. By providing stable impedance characteristics, the cable transfers transient shaft vibration and gap shifts directly to the monitoring rack, which enables early detection of unbalance and misalignment during complex rotor dynamics events.

Frequently Asked Questions

Q: How does proper shield grounding prevent signal interference in high-noise environments?

A: Engineers must ground the overall cable shield braid at a single point—typically at the monitor rack or terminal block ground—while leaving the field sensor end isolated. This single-point termination scheme breaks ground loops, prevents noise pickup, and preserves signal purity across long runs.

Q: Can maintenance personnel splice or alter the length of the 106765-20 cable in the field?

A: Technicians must avoid field splicing or shortening, as changing the physical cable length modifies overall loop capacitance and alters the factory calibration curve of the proximity transducer system.

Field Installation Guidelines

1. Conduit Routing and Physical Isolation: Route the cable through dedicated instrument conduit or trays. Maintain a minimum separation of 300 mm (12 in) from high-voltage AC power lines to minimize electromagnetic noise coupling.
2. Minimum Bend Radius Execution: Pull the cable smoothly through conduit bodies without exceeding the minimum bend radius of 65 mm (2.5 in). Exceeding this bend limit risks damaging the inner conductors and aluminum braid shield.
3. Shield Isolation Practices: Connect the cable shield braid strictly to the dedicated rack signal ground terminal. Cover exposed shield wires at the field end with heat-shrink tubing to prevent contact with local machine ground.
4. Strain Relief Application: Secure the cable using insulated P-clamps every 1.0 m (3.3 ft) along open tray runs. Providing strain relief near terminal blocks prevents physical tension on individual wire terminations.
