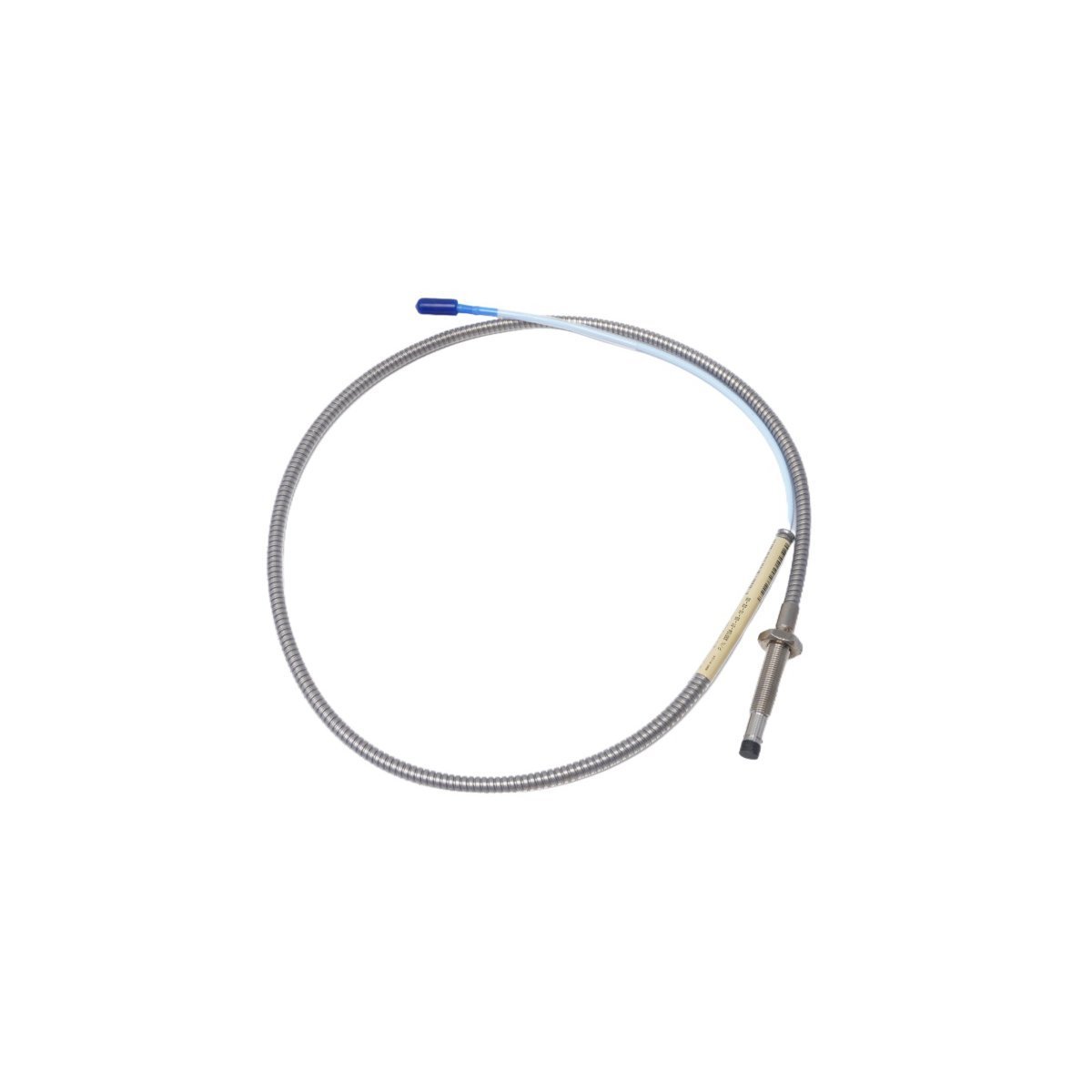

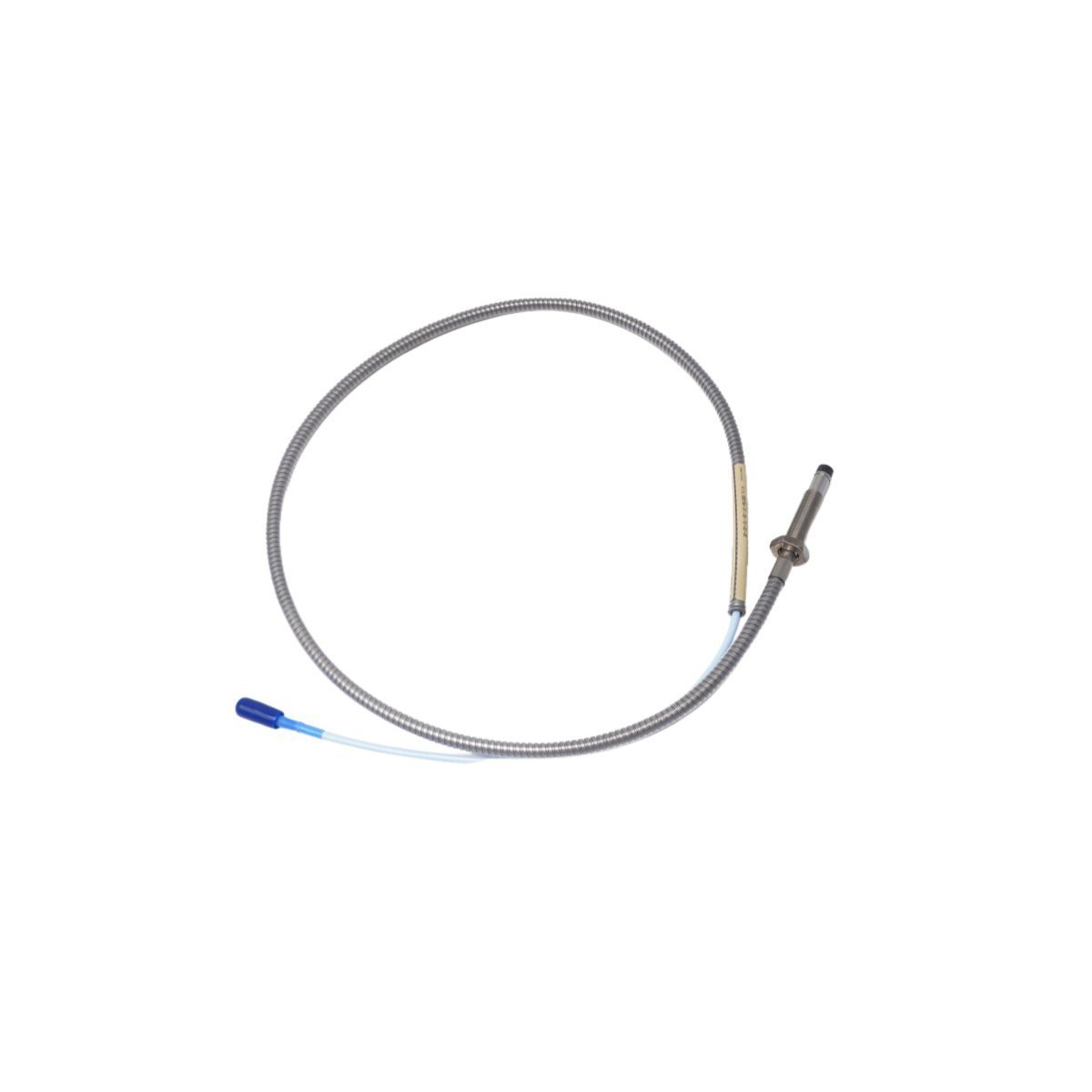

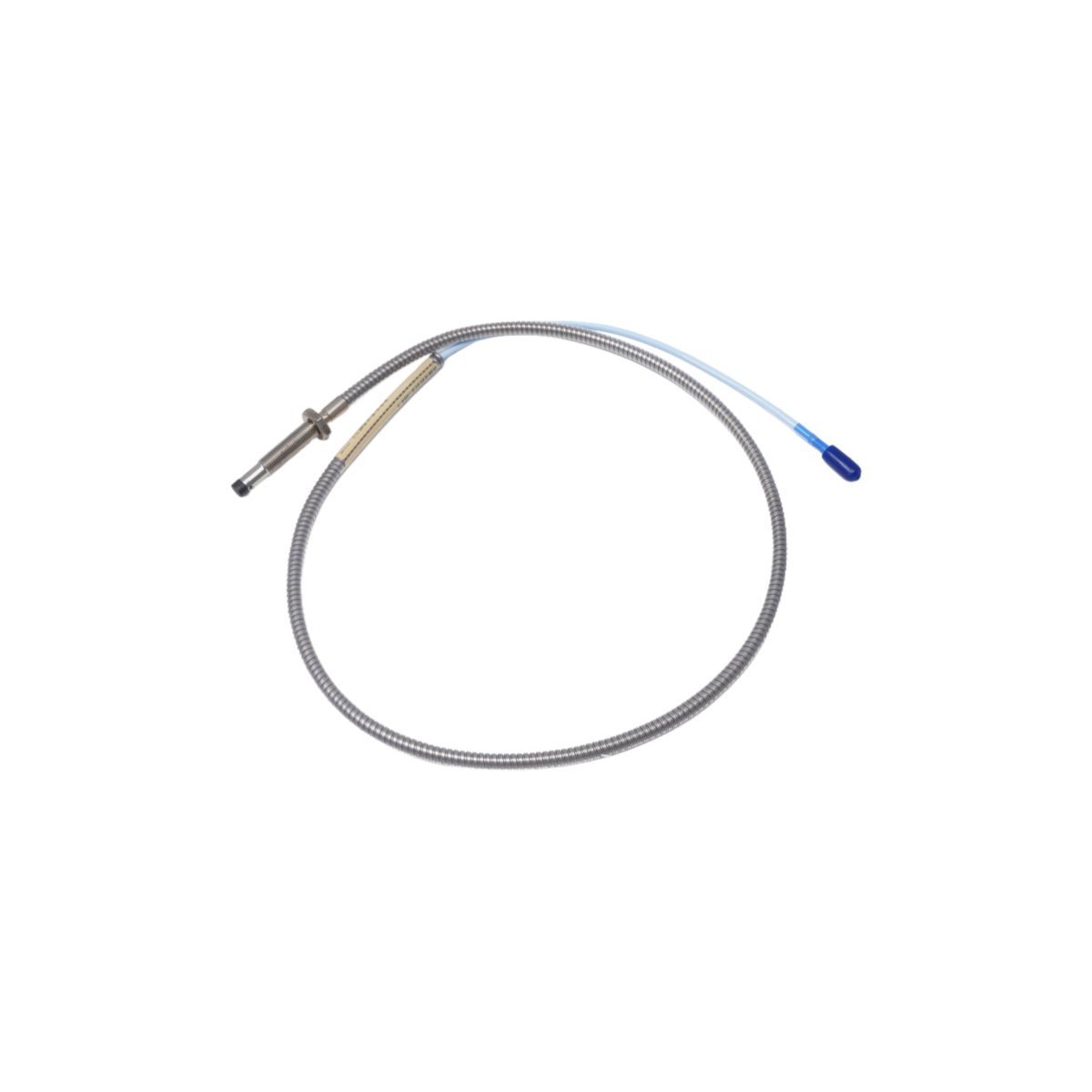

Bently Nevada 330104-01-14-05-01-05 8 mm Proximity Probe

The Bently Nevada 330104-01-14-05-01-05, also cataloged as the 330104 8 mm Proximity Probe, operates as a dedicated hardware component for continuous shaft vibration and position monitoring within Turbine Supervisory Instrumentation (TSI) networks.

Suffix Breakdown & Model Matrix

The 330104-01-14-05-01-05 utilizes a specific configuration matrix defined by Bently Nevada for the 3300 XL platform:

• 330104: 8 mm Proximity Probe.
• -01: Unthreaded length (0 mm).
• -14: Overall case length (140 mm).
• -05: Total probe length (0.5 m).
• -01: Connector option (Miniature coaxial ClickLoc connector with connector protector).
• -05: Agency approval option (Multiple approvals).

Hardware Specifications

Mechanical Monitoring & Eddy-Current Validation

The 330104 system employs eddy-current technology to measure the gap between the probe tip and the target shaft. Engineers must perform gap voltage validation during installation to ensure the sensor operates within the linear range, typically targeting -10 VDC at the mid-range point. Signal integrity relies on the suppression of cross-talk through proper cable routing and shielding. Rotor dynamics analysis depends heavily on the accuracy of these displacement measurements; therefore, the tip must maintain a precise physical distance from the rotor surface to avoid saturation or signal clipping.

Frequently Asked Questions

Q: What precautions should technicians observe when handling the ClickLoc connector?

A: Ensure the connector protector remains installed until final mating to prevent debris accumulation. When connecting to the extension cable, push until a distinct “click” is felt to confirm mechanical locking and electrical continuity.

Q: Can this probe be swapped with non-3300 XL series components?

A: No. The 3300 XL system components are calibrated as a matched set. Mixing legacy 3300 series components with 3300 XL probes will introduce non-linearity and calibration errors in the vibration data.

Field Installation Guidelines

1. Mounting Stability: Secure the probe in a rigid bracket to prevent mechanical resonance. Any vibration of the probe relative to the casing will be interpreted as shaft vibration.
2. Thread Engagement: Ensure at least 5 full threads of engagement if using a threaded mount to guarantee structural integrity under thermal expansion.
3. Shielding: Ground the cable shield only at the monitor terminal block end. Floating the shield at the probe end prevents ground loops that induce 50/60 Hz interference.
4. Clearance: Verify that the probe tip maintains a clear field of view (minimum radial clearance of 20 mm) from surrounding metal objects to prevent side-view interference with the eddy-current field.
