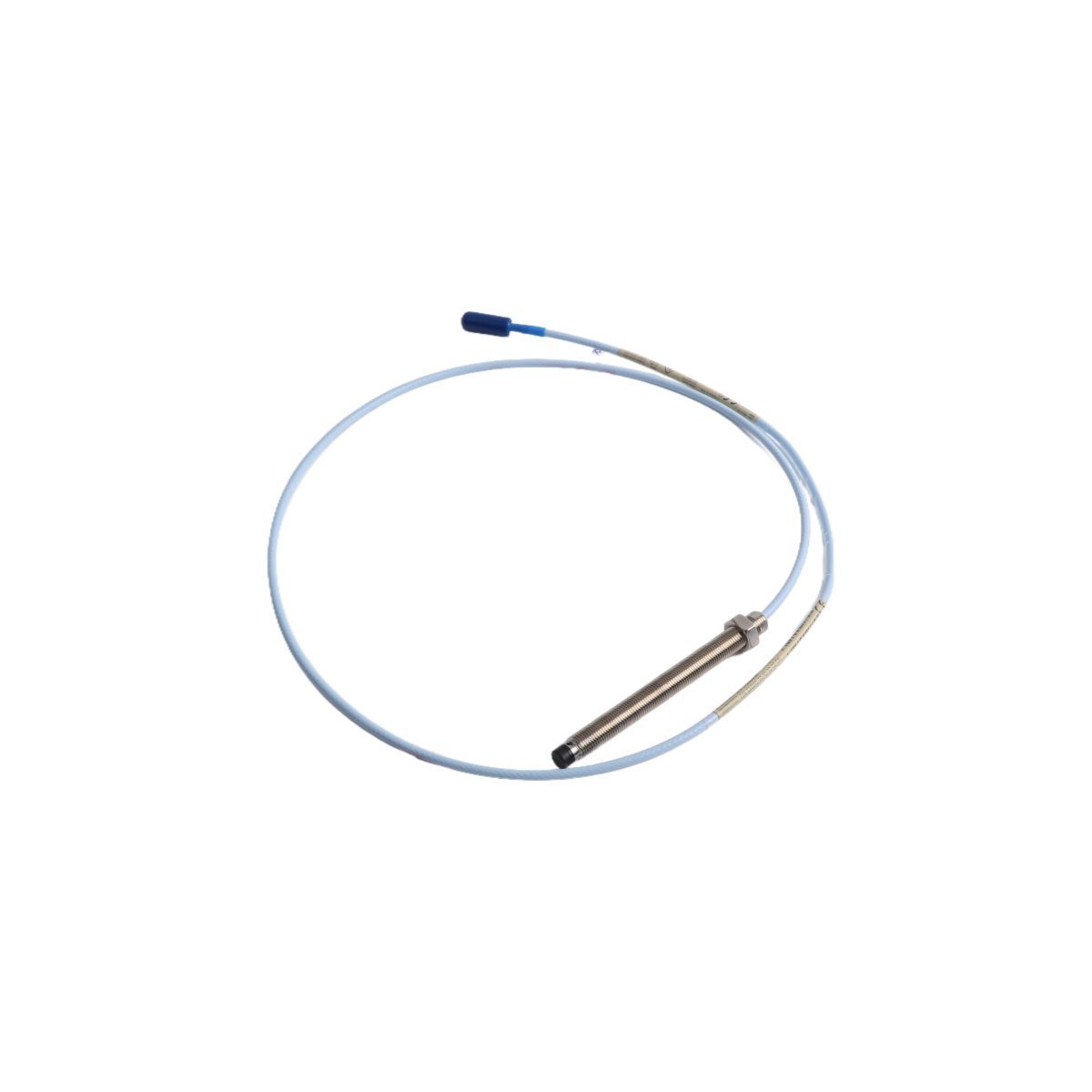

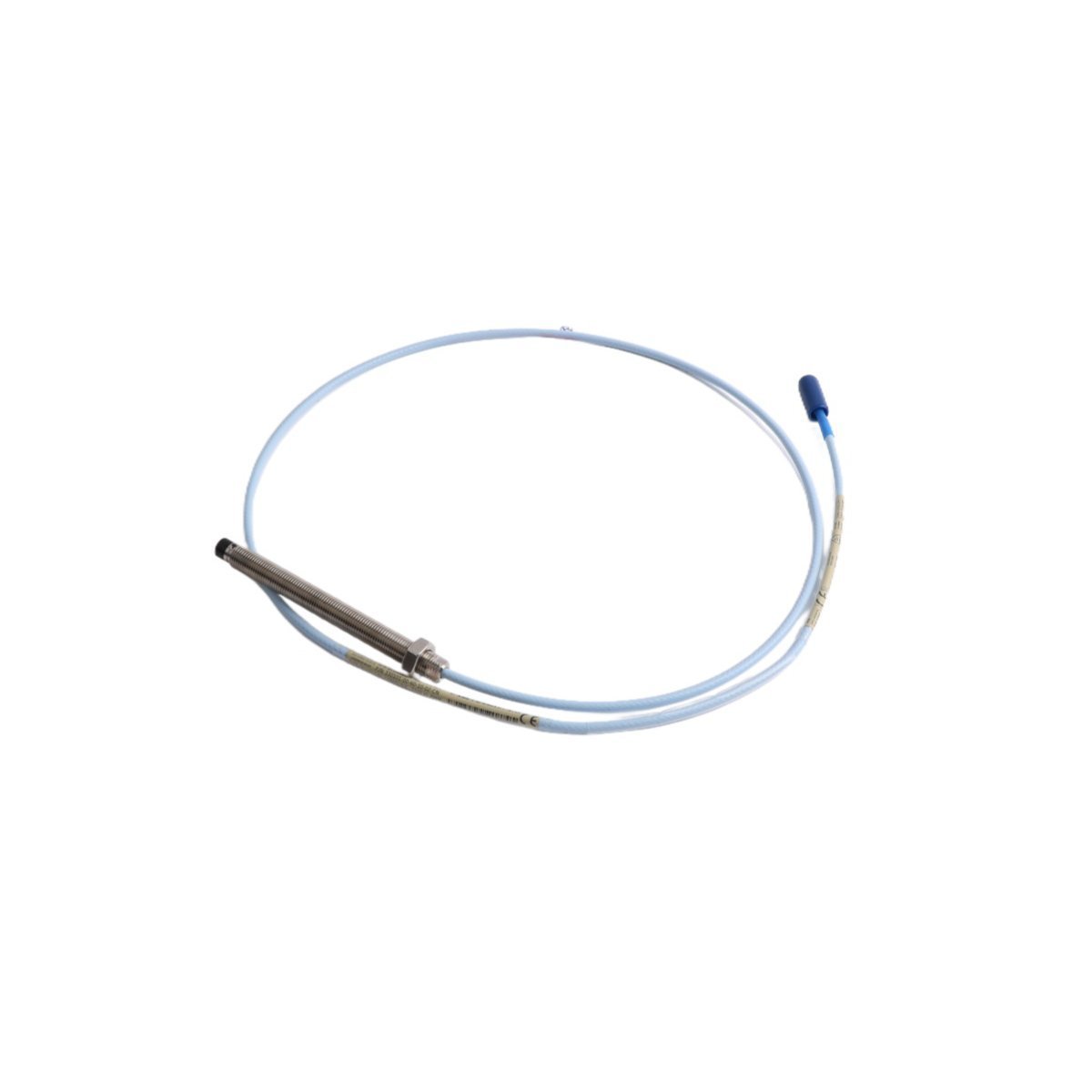

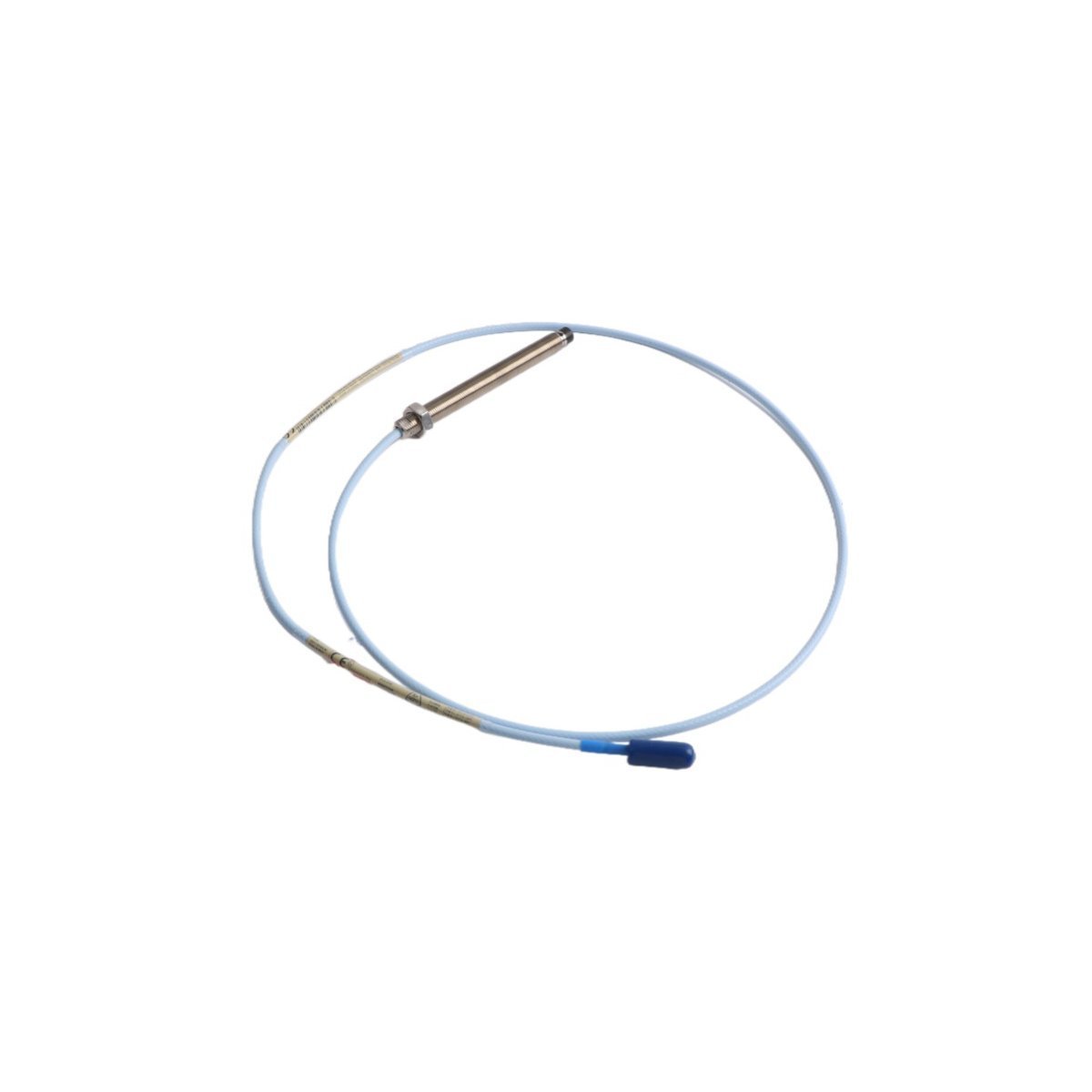

Bently Nevada 330101-00-40-20-12-05 3300 XL 8 mm Proximity Probes

Configured for precision displacement measurement in rotating machinery, the Bently Nevada 330101-00-40-20-12-05 (330101 Proximity Probe) provides direct physical execution of eddy current sensing for shaft position and vibration analysis.

Suffix Breakdown & Model Matrix

• 330101: Base model for 8 mm 3300 XL Proximity Probe.
• 00: Unthreaded length (0.0 mm).
• 40: Overall case length (40 mm).
• 20: Total length (2.0 meters).
• 12: Connector type (Miniature coaxial ClickLoc connector).
• 05: Agency approval (Multiple approvals).

Hardware Specifications

Mechanical Monitoring and TSI Integration

The Bently Nevada 330101-00-40-20-12-05 utilizes high-frequency electromagnetic fields to generate eddy currents on conductive targets. Users must perform careful eddy-current probe scaling to ensure the voltage-to-distance transfer function remains linear across the designated measurement range. During initial setup, technicians perform gap voltage validation (-10 VDC targets) to verify the sensor operates at the center of its linear range relative to the machine shaft. To maintain rotor dynamics data fidelity, engineers must ensure proper cross-talk suppression by adhering to minimum spacing requirements between adjacent probes. Proper installation ensures accurate observation of vibration, thrust position, and speed .

Frequently Asked Questions (FAQ)

Q: Can this probe be interchanged with previous 3300 series 5 mm or 8 mm components?

A: Yes, the 3300 XL system maintains backward compatibility with older 3300-series transducer systems, allowing users to integrate the new probe into existing setups without requiring total system replacement.

Q: Does the ClickLoc connector require special torque tools for installation?

A: Users should fasten the ClickLoc connector by hand until it clicks, ensuring a secure mechanical connection. While technicians often use pliers for traditional connectors, the ClickLoc design eliminates the need for torque wrenches to achieve the correct mating force.

Field Installation Guidelines

• Mounting: Thread the probe into the mounting bracket or machine housing. Maintain the 5-thread engagement rule to ensure mechanical stability, and tighten the lock nut to fix the probe position securely.
• Grounding: Route the coaxial cable away from high-voltage AC lines to minimize electromagnetic interference (EMI). Technicians should ensure the cable shield maintains continuity to the Proximitor sensor chassis.
• Protection: In applications with high-temperature or high-pressure fluids, utilize the armored cable option to prevent mechanical damage or fluid ingress into the coaxial dielectric.
• Verification: After installation, verify the probe gap voltage with a digital multimeter. A reading near -10 VDC confirms the probe is centered in the linear measurement range.
