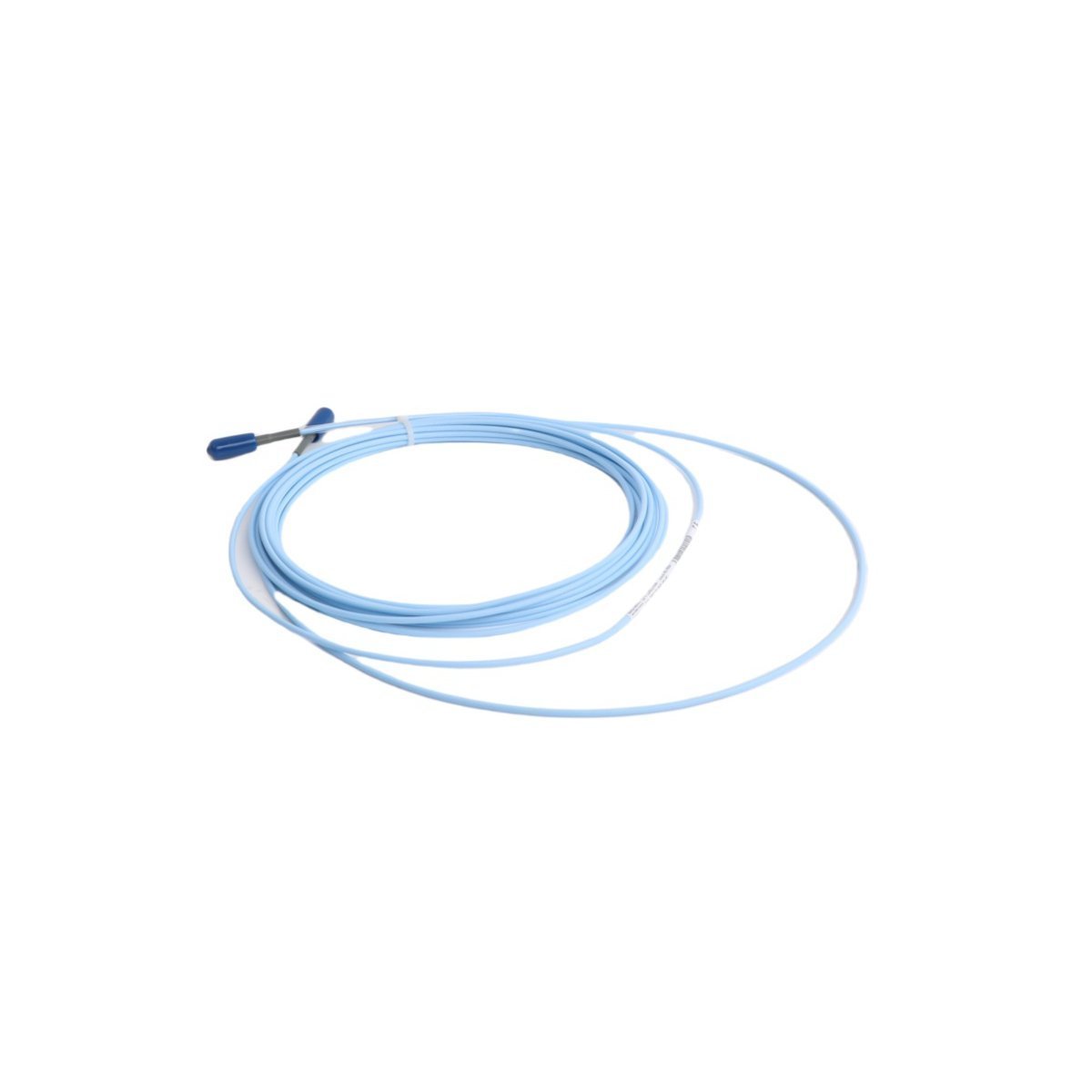

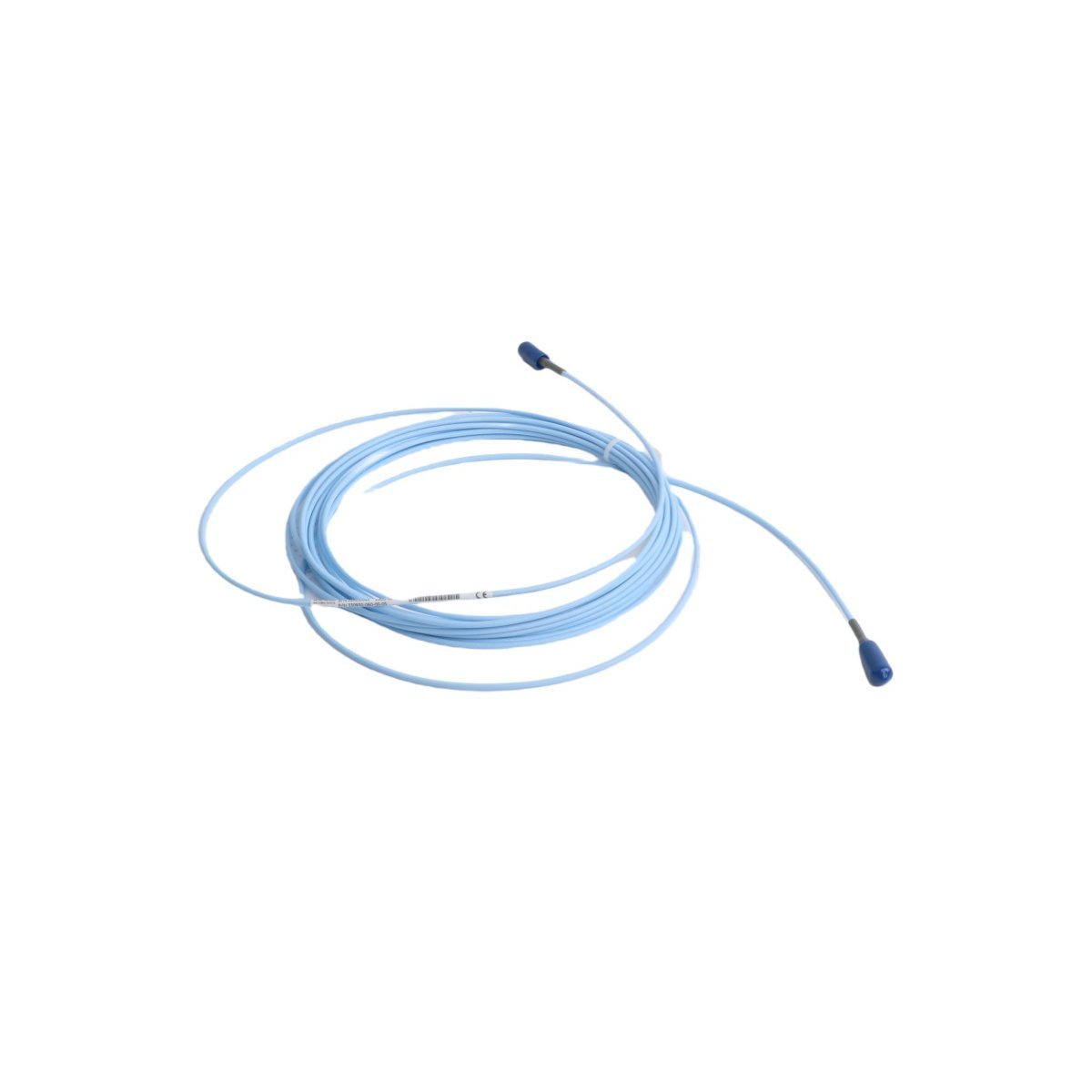

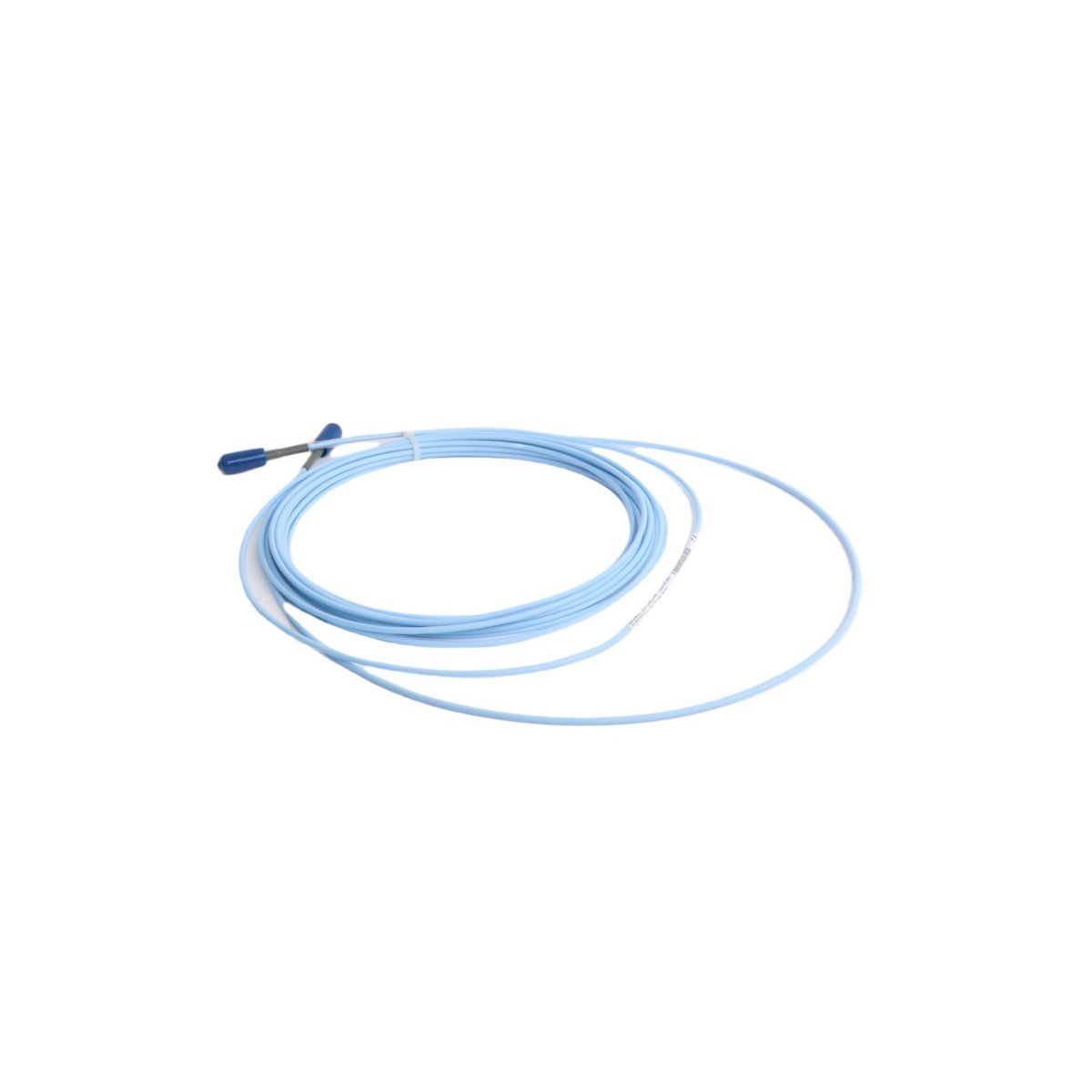

Bently Nevada 330930-060-00-05 3300 NSv Extension Cable

The Bently Nevada 330930-060-00-05, also cataloged as the 330930 3300 NSv Extension Cable, serves as the primary 330930 interconnection component utilized to execute reliable signal transmission across 3300 XL NSv Proximity Transducer System platforms.

Suffix Breakdown & Model Matrix

The 330930-060-00-05 follows the standard configuration matrix for the 3300 NSv platform:

• 330930: 3300 NSv Extension Cable.
• -060: Cable length (6.0 meters).
• -00: Armor option (None).
• -05: Agency approval option (Multiple approvals).

Hardware Specifications

Mechanical Monitoring & Eddy-Current Validation

The 3300 NSv system relies on high-frequency eddy-current coupling to monitor small-diameter shafts where standard 8 mm probes lack sufficient side-view clearance. The 330930 cable acts as a calibrated transmission line between the probe and the Proximitor Sensor. Impedance matching is critical; any physical damage to the coax or connector degrades the signal-to-noise ratio, directly impacting rotor dynamics data accuracy. The system requires -10 VDC gap target validation at the sensor output to ensure the transducer operates within the linear portion of its response curve.

Frequently Asked Questions

Q: Can this cable be trimmed to fit a shorter installation distance?A: No. The 3300 NSv system is a calibrated set consisting of the probe, extension cable, and Proximitor Sensor. Changing the cable length alters the system impedance and resonant frequency, which invalidates the calibration and leads to significant measurement errors.

Q: Why is there no armor option ( -00 ) on this specific model?A: The lack of stainless steel armor is a design choice to maximize cable flexibility, specifically intended for the tight spatial constraints found in small process gas compressors or refrigeration units where standard armored cables are too rigid to route properly.

Field Installation Guidelines

1. Bend Radius: Maintain a minimum bend radius of 25 mm for the coaxial cable to prevent internal insulation fatigue or conductor breakage.
2. Connector Protection: Use protective caps on both ends of the cable until the moment of final installation to prevent moisture or oil contamination of the contact surfaces.
3. Shielding Integrity: Ensure the connector housing is isolated from ground at the probe end to prevent ground loops. Verify continuity between the cable shield and the Proximitor terminal block.
4. Strain Relief: Utilize standard cable ties to provide strain relief at both the probe-to-cable and cable-to-sensor junctions, preventing mechanical tension from stressing the miniature connectors.
