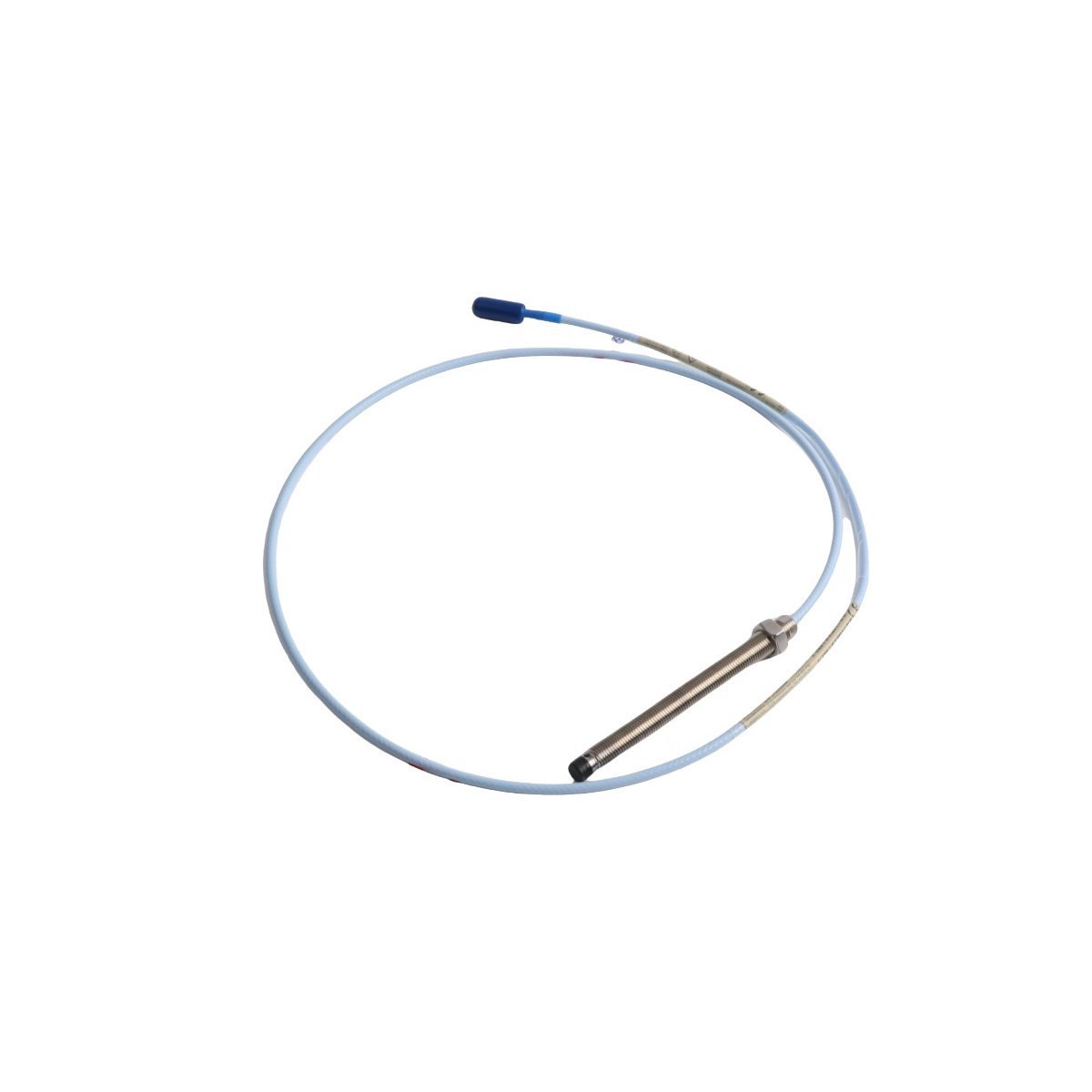

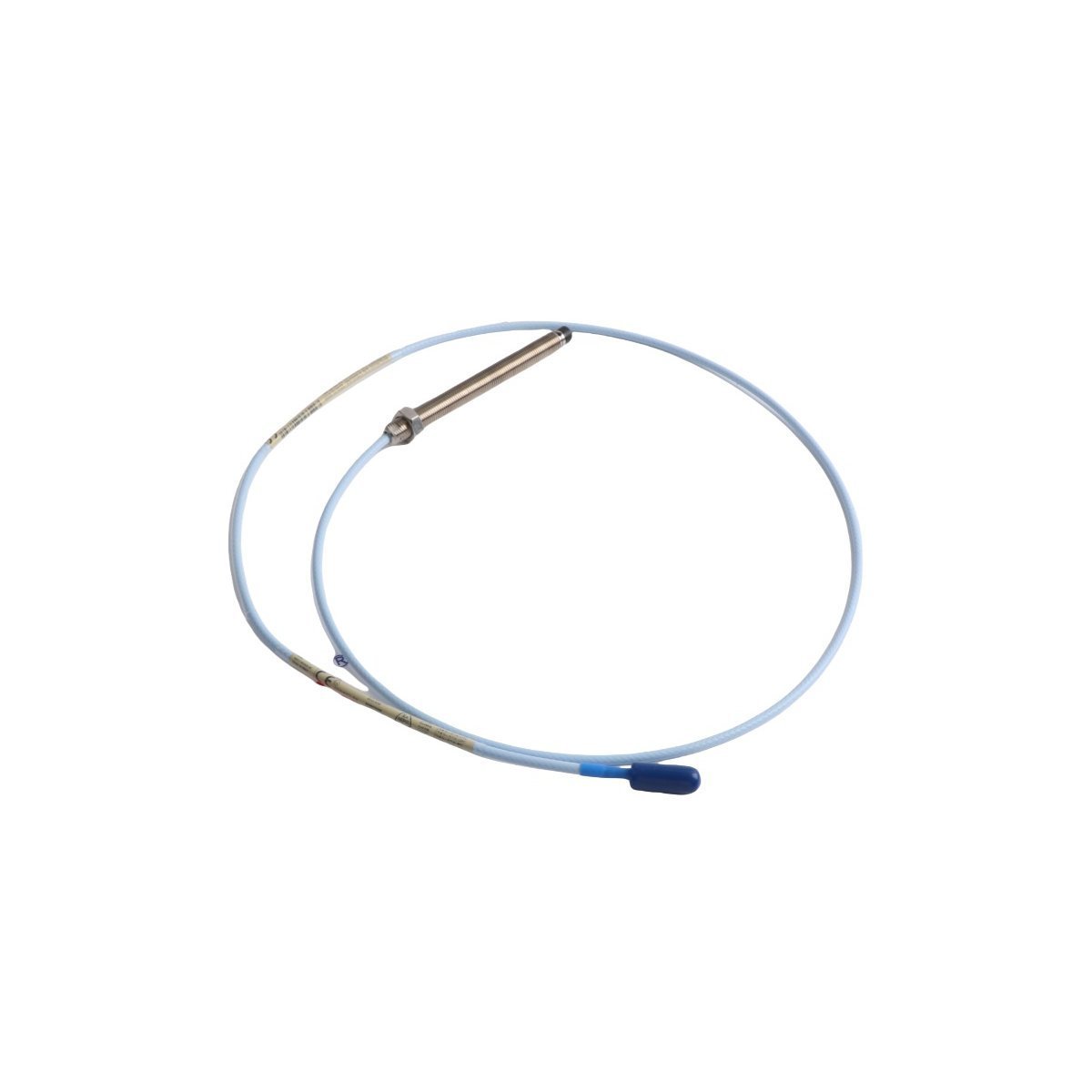

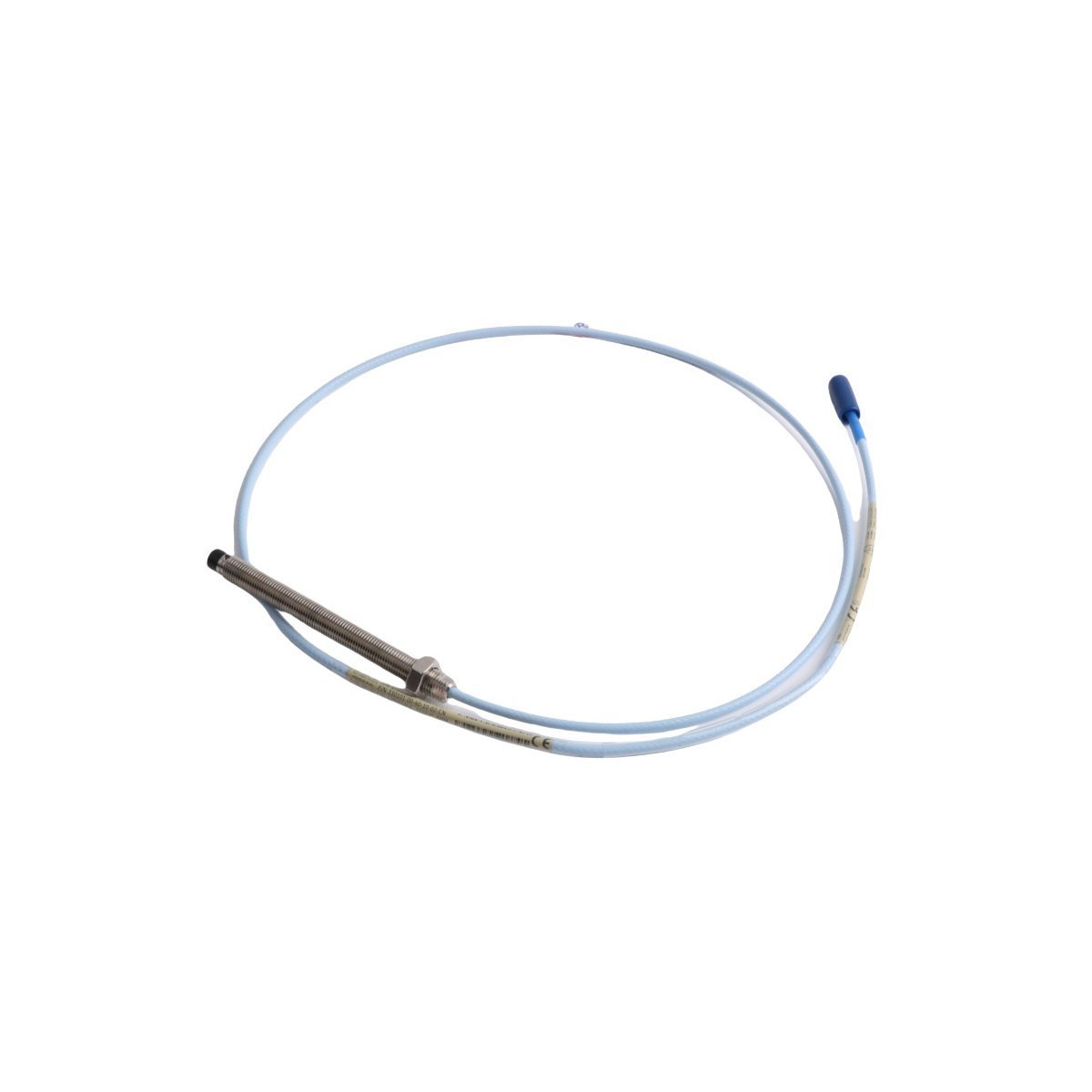

Bently Nevada 330101-00-48-20-12-05 3300 XL 8 mm Proximity Probes

The Bently Nevada 330101-00-48-20-12-05, also cataloged as the 330101 Proximity Probes, operates as a dedicated hardware component for precision vibration and position monitoring within Turbine Supervisory Instrumentation (TSI) platforms. The instrument converts the physical gap between the 8 mm probe tip and an observed conductive target surface into a continuous linear output voltage. When deployed with a 3300 XL extension cable and Proximitor sensor, this assembly transmits real-time dynamic vibration and static displacement metrics directly to machinery protection systems.

Hardware Specifications

Machinery Monitoring & TSI Characteristics

The transducer system relies on strict internal eddy-current probe scaling to achieve a standardized 200 mV/mil output sensitivity across the linear measurement range. During installation loop verification, instrumentation engineers track the gap voltage validation parameters to establish a -10 VDC center-point target. Because proximity probes operate in tight physical proximity to high-speed industrial machinery, the embedded FluidLoc cable blocks oil or process moisture migration through the internal sheath while the system design delivers optimized cross-talk suppression between parallel monitoring runs. The resulting clean signal loop allows continuous observation of critical rotor dynamics, tracking shaft centerline position changes and mechanical imbalances.

Frequently Asked Questions

Q: How does the FluidLoc cable option alter field reliability compared to standard coaxial cabling?

A: The FluidLoc cable contains an internal blocking material that prevents oil, moisture, or other process fluids from leaking out of the machine casing through the inside of the cable, shielding terminal junctions from contamination.

Q: Can an installation engineer mix a 3300 XL probe with an older non-XL 3300 series Proximitor sensor?

A: Although physical thread compatibility exists, mixing standard 3300 series and 3300 XL hardware components degrades the linear range and alters the nominal 200 mV/mil scale factor due to differences in oscillator circuit tuning.

Q: What structural failure occurs if the ClickLoc connector exceeds its mechanical bend radius?

A: Exceeding the specified bend radius crimps the internal coaxial shielding layer, which alters the high-frequency impedance of the cable system and induces measurement errors or signal dropouts.

Field Installation Guidelines

• Thread Engagement: Thread the 3/8-24 UNF probe body into the mounting bracket or casing wall until achieving a minimum of 5 full threads of engagement to withstand structural machine vibration.

• Shield Grounding: Maintain shield electrical isolation at the machine casing. Connect the cable shield drain wire exclusively to the clean instrumentation ground bus inside the main TSI monitor enclosure.

• Connector Tightening: Engage the ClickLoc miniature coaxial connectors manually until the mechanical detent clicks into position. Do not use pliers or other uncalibrated hand tools that risk stripping the coaxial interface.

• Physical Proximity Clearance: Ensure a minimum clearance diameter of 30.5 mm (1.2 inches) around the 8 mm probe tip to prevent side-view interference from adjacent structural steel walls.
