Bently Nevada 330930-045-00-05 3300 NSv Proximity Transducer Cables

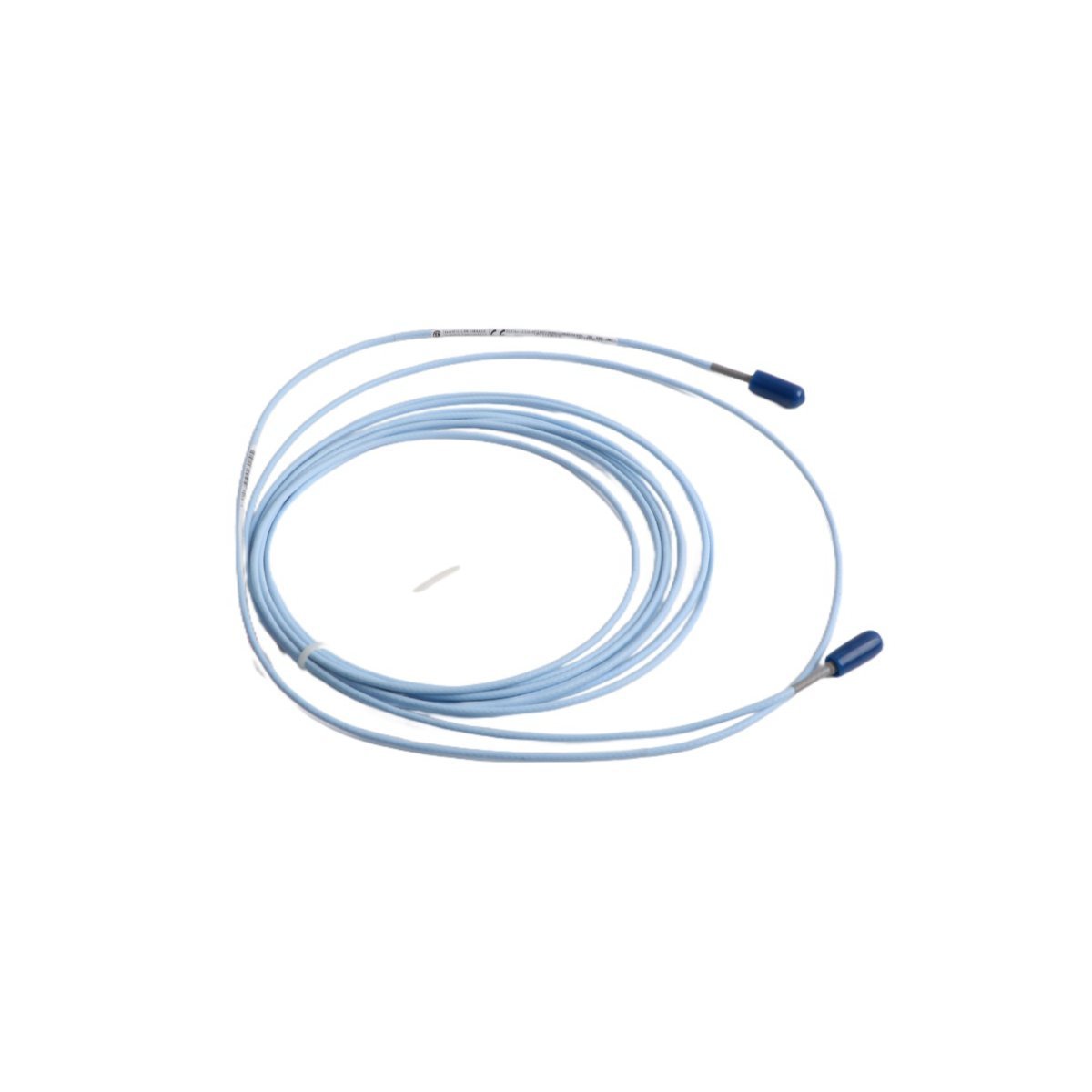

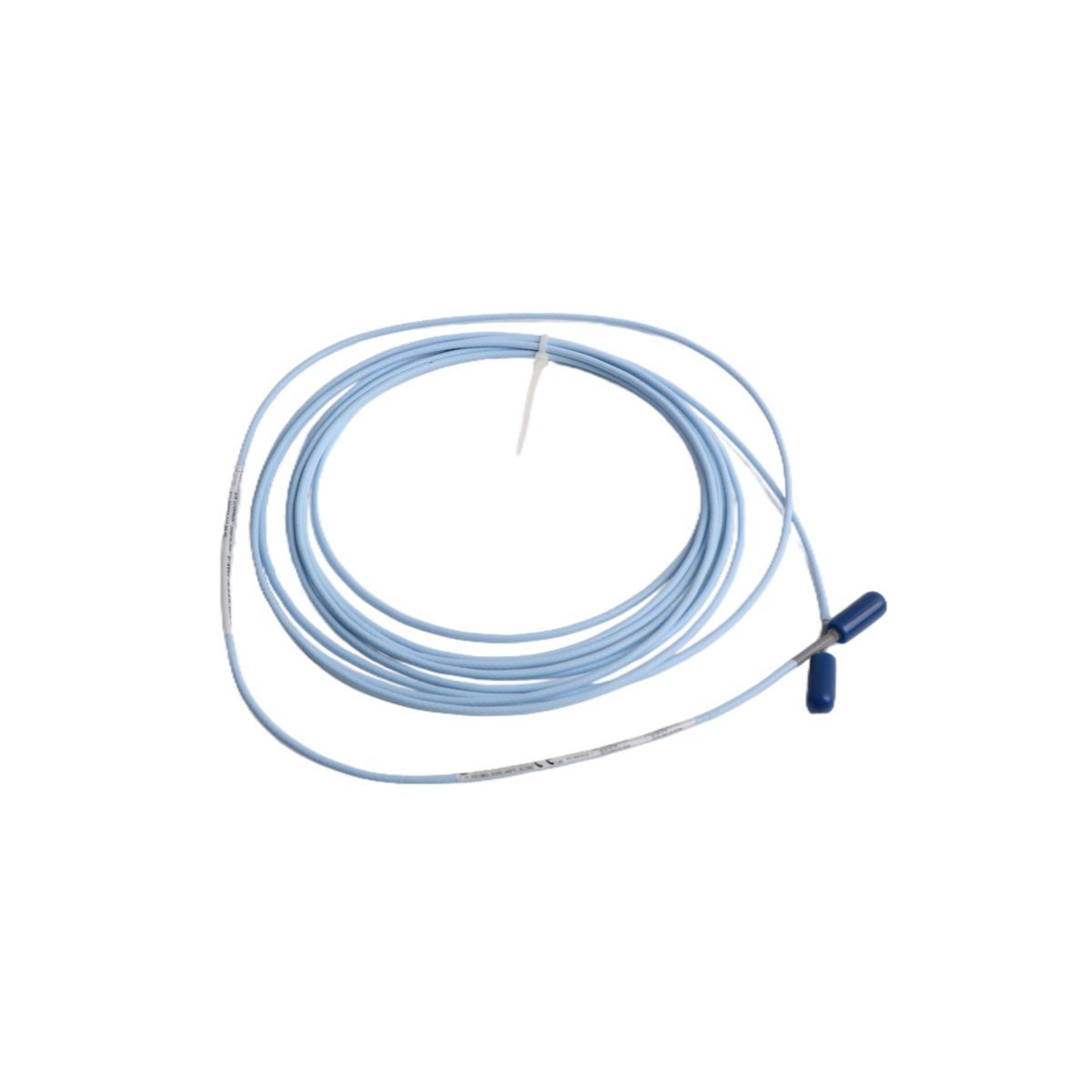

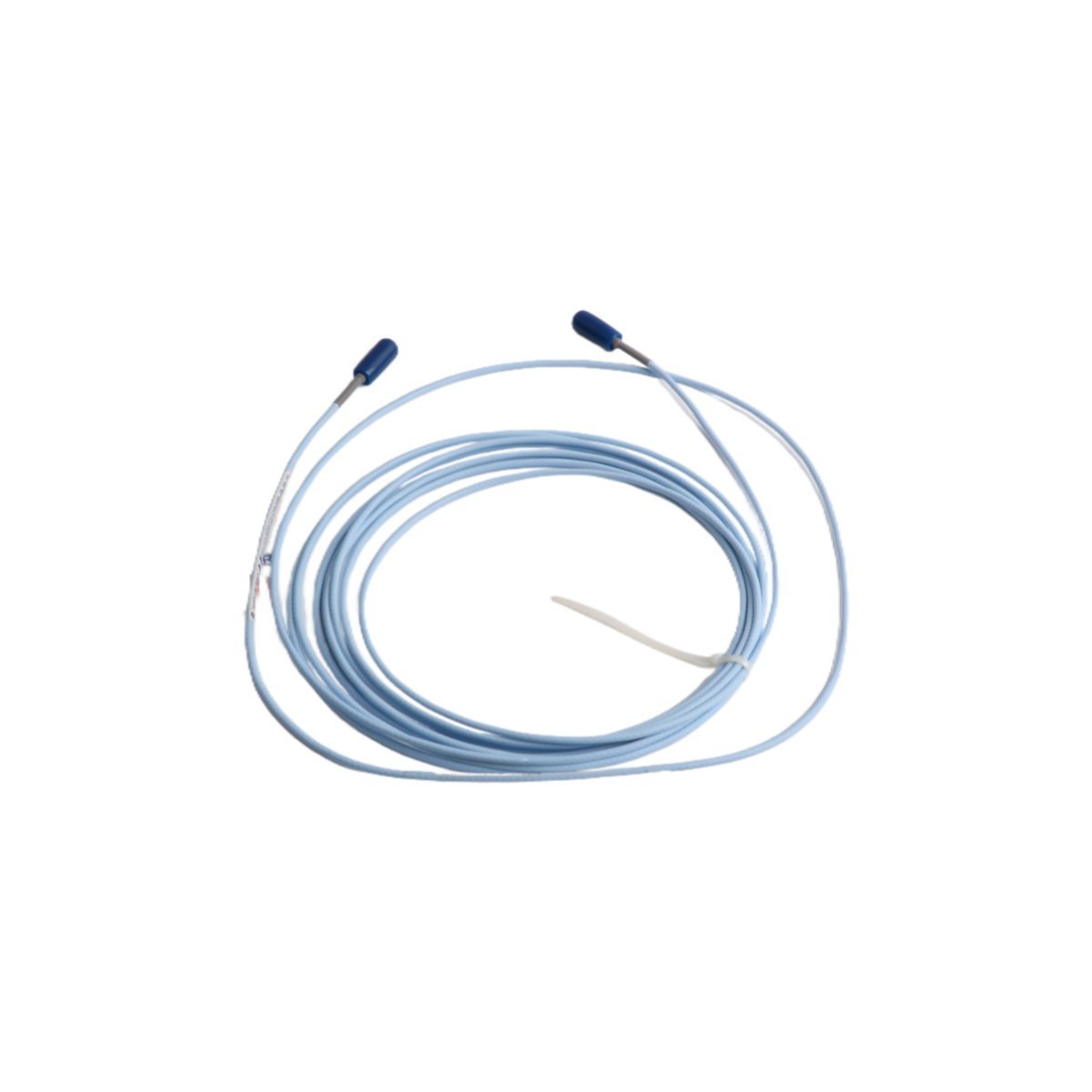

Bently Nevada 330930-045-00-05 3300 NSv Extension Cable

The Bently Nevada 330930-045-00-05, also cataloged as the 330930 Extension Cable, operates as a dedicated hardware component for high-frequency RF signal transmission within Turbine Supervisory Instrumentation (TSI) networks. The cable assembly maintains signal continuity between a 3300 NSv proximity probe and a corresponding Proximitor sensor without degrading the calibrated impedance. This hardware link passes raw physical displacement data across the channel to enable precise monitoring of critical mechanical parameters.

Hardware Specifications

Machinery Monitoring & TSI Characteristics

The physical construction matches strict eddy-current probe scaling specifications to preserve the native sensitivity metrics of the 3300 NSv transducer system. During system commissioning, field engineers perform gap voltage validation to verify the integrated baseline loop outputs -10 VDC at the linear center point. Because industrial environments present significant electromagnetic noise, the internal shielding configuration provides aggressive cross-talk suppression between tightly packed runs. The low-attenuation core delivers pristine dynamic signal profiles directly to the monitoring rack, allowing the processing units to evaluate high-speed rotor dynamics without harmonic distortion.

Frequently Asked Questions

Q: How does the lack of stainless steel armor modify the installation handling parameters?

A: The absence of armor reduces the total assembly weight and increases overall flexibility. However, field crews must route the unarmored cable inside dedicated conduit networks to protect the exposed sheath against external mechanical cuts or pinch points.

Q: Can turbine operators use the supplied silicone tape in areas subject to continuous fluid splashes?

A: No. The engineering design explicitly advises against deploying the alternative silicone tape wrapping in environments where turbine oil or chemical solvents may make direct contact with the probe-to-extension cable junction.

Q: What measurement error happens if technicians splice or shorten the 4.5-meter cable?

A: Splicing alters the factory-calibrated electrical length and internal capacitance. This physical alteration disrupts the resonant tank tuning, which compromises the eddy-current scaling and invalidates the vibration readings.

Field Installation Guidelines

• Conduit Protection: Route the unarmored 4.5-meter cable through dedicated steel or flexible liquid-tight conduits to shield the signal path from physical abrasion and environmental hazards.
• Bend Radius Constraints: Maintain a strict minimum bend radius of 25.4 mm (1.0 inch) throughout the cable run. Kinking the coaxial line shifts internal electrical impedance and degrades signal propagation.
• Connector Isolation: Deploy proper connector protectors at the probe junction when fluid contamination risks exist. Ensure the mechanical connection remains completely dry and free from grease during final assembly.
• Separation from Power Lines: Separate the instrumentation cable from high-voltage AC motor lines or variable frequency drive outputs by at least 300 mm to suppress electrical noise injection.
