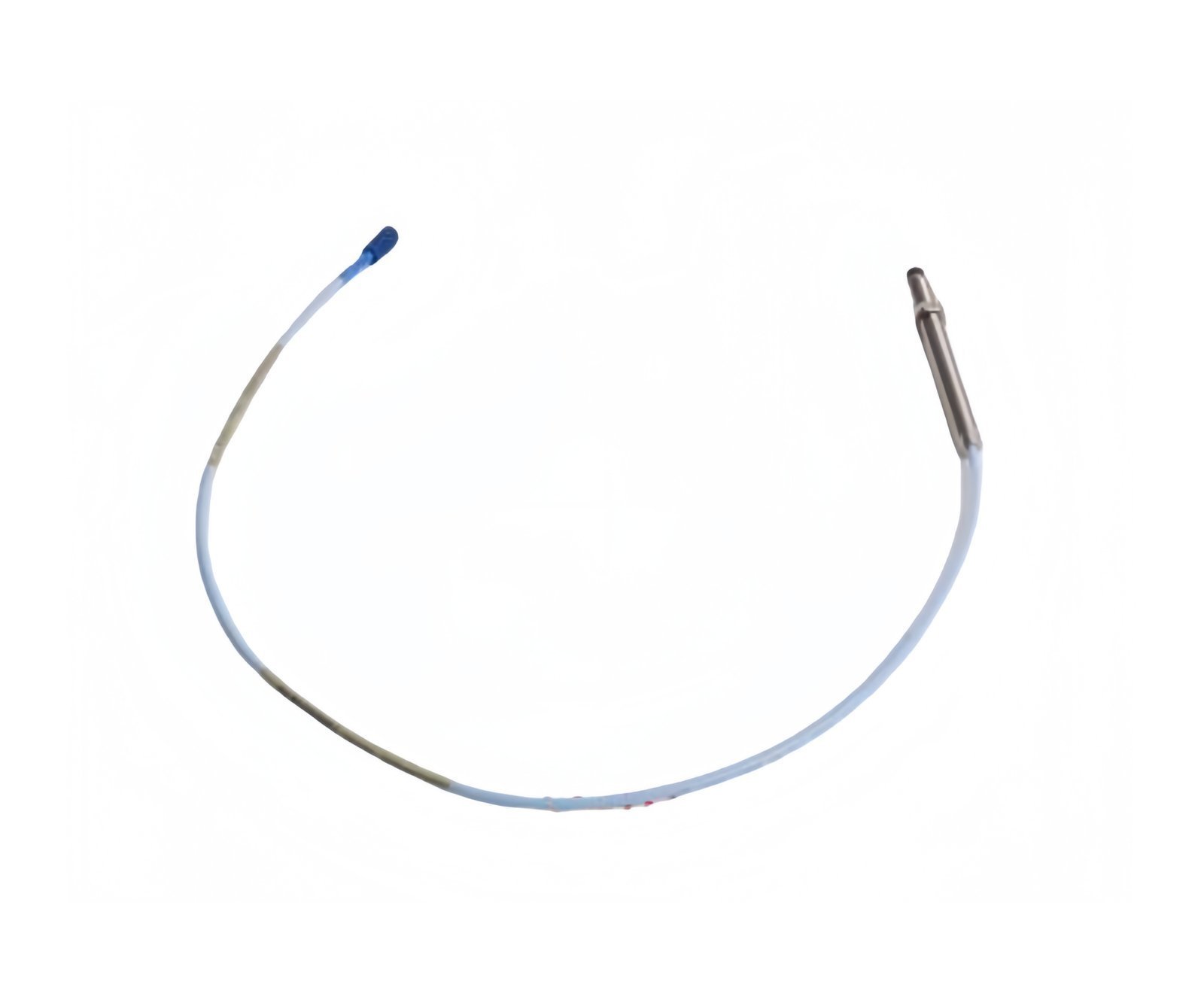

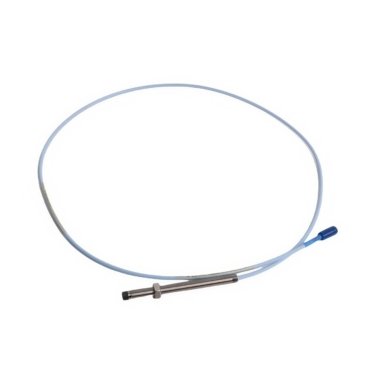

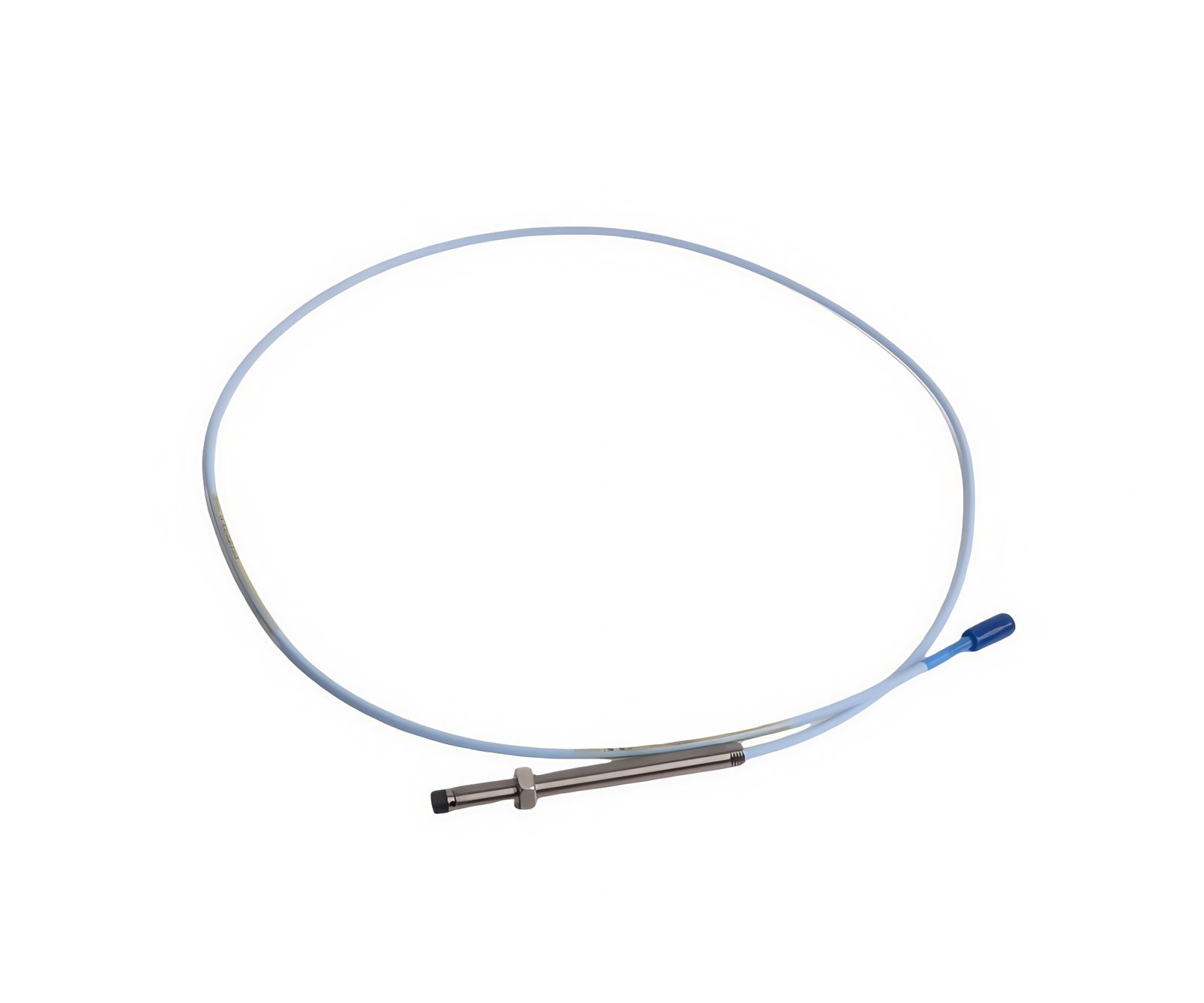

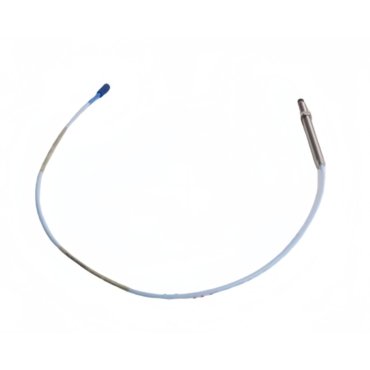

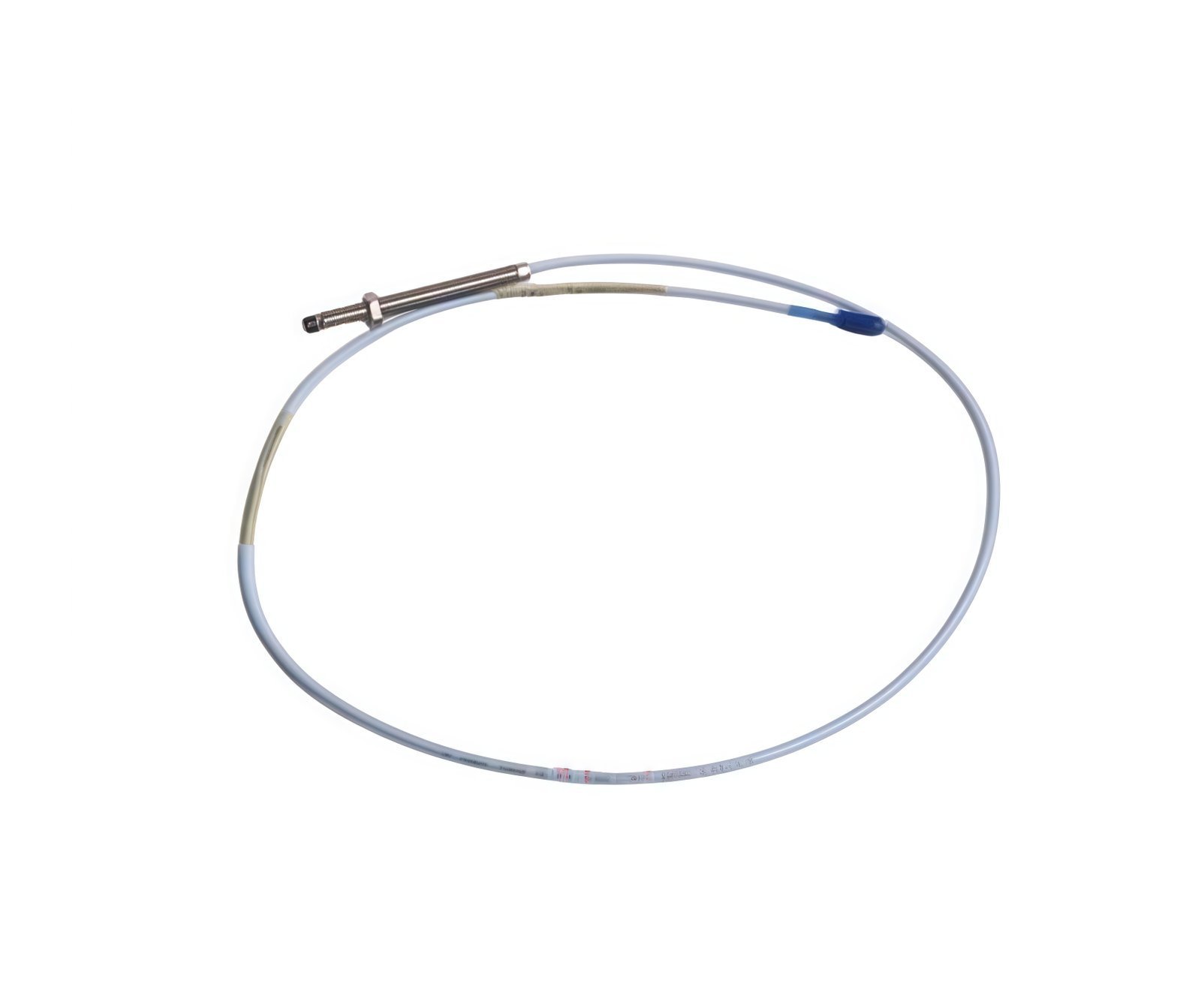

The Bently Nevada 330101-00-47-90-02-00 is a high-performance 8mm proximity probe designed for critical machinery protection. This sensor utilizes eddy current technology to provide a non-contact measurement of shaft vibration and position. It functions as a primary component within a complete transducer system. The system translates the distance between the probe tip and the target into a proportional voltage signal. This allows operators to monitor fluid-film bearing machinery with extreme accuracy. By following the API 670 standard, this probe ensures high linearity and thermal stability.
Robust Engineering for Industrial Longevity
Bently Nevada builds the 3300 XL series to survive the most demanding plant conditions. This probe features patented TipLoc molding, which creates a permanent bond between the probe tip and its body. Furthermore, the CableLoc strain relief design provides a massive 330N of pull strength. This prevents cable separation during installation or high-vibration events. The probe also utilizes gold-plated ClickLoc connectors. These specialized connectors provide a secure, vibration-resistant link without requiring special tools. Such enhancements significantly reduce the risk of signal loss in critical monitoring zones.
Technical Configuration and Standards
The 330101-00-47-90-02-00 model includes specific mounting and cable options for versatile field deployment. It integrates seamlessly with 3300 XL Proximitor sensors and extension cables.
- Thread Type: 3/8-24 UNF thread
- Unthreaded Length: 0.0 inches
- Overall Case Length: 4.7 inches
- Total Length: 9.0 meters (approximately 29.5 feet)
- Connector Option: Miniature coaxial ClickLoc connector with protector
- Agency Approvals: CSA, ATEX, and IECEx certifications for hazardous areas
- Interchangeability: Supports components within the 3300 XL system without recalibration
