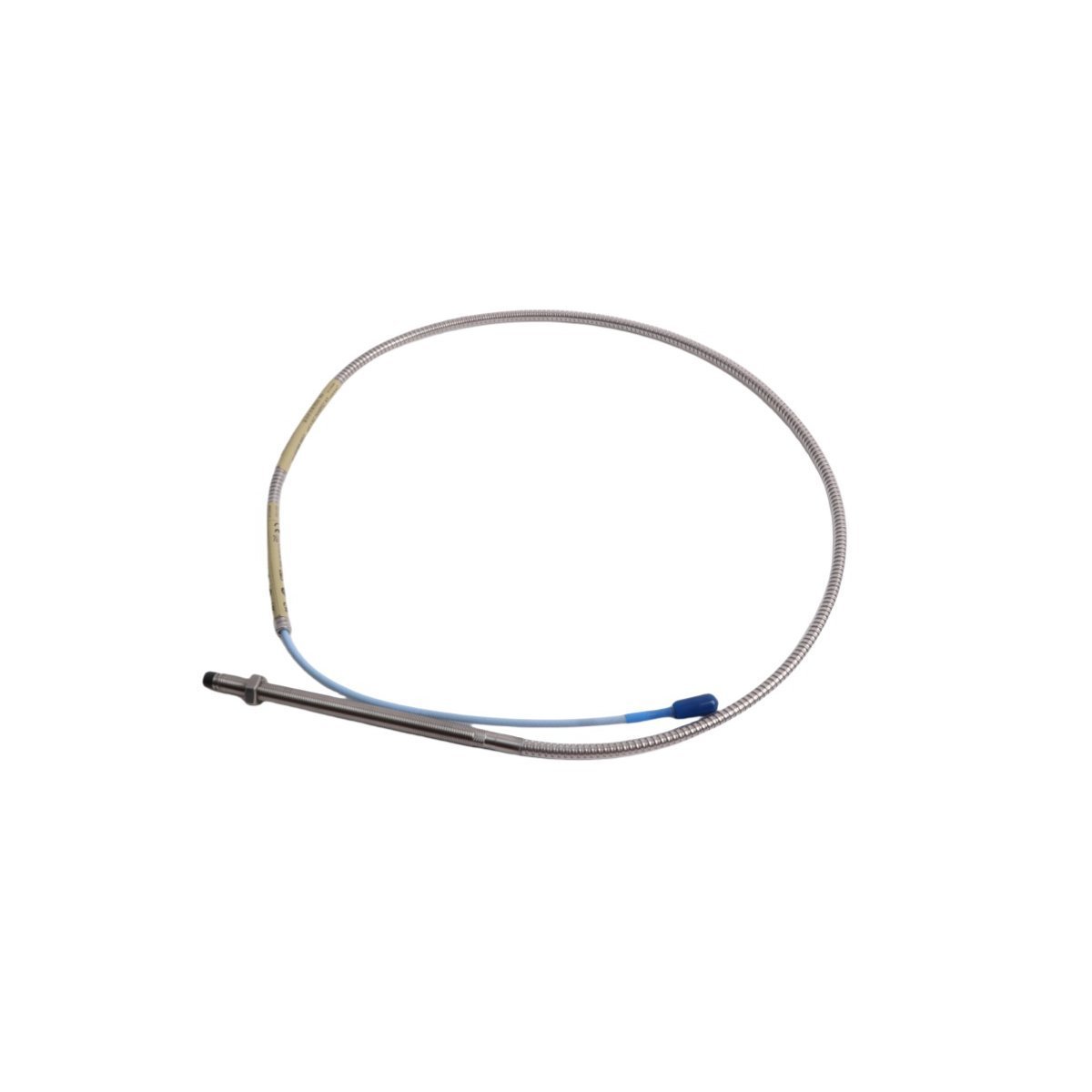

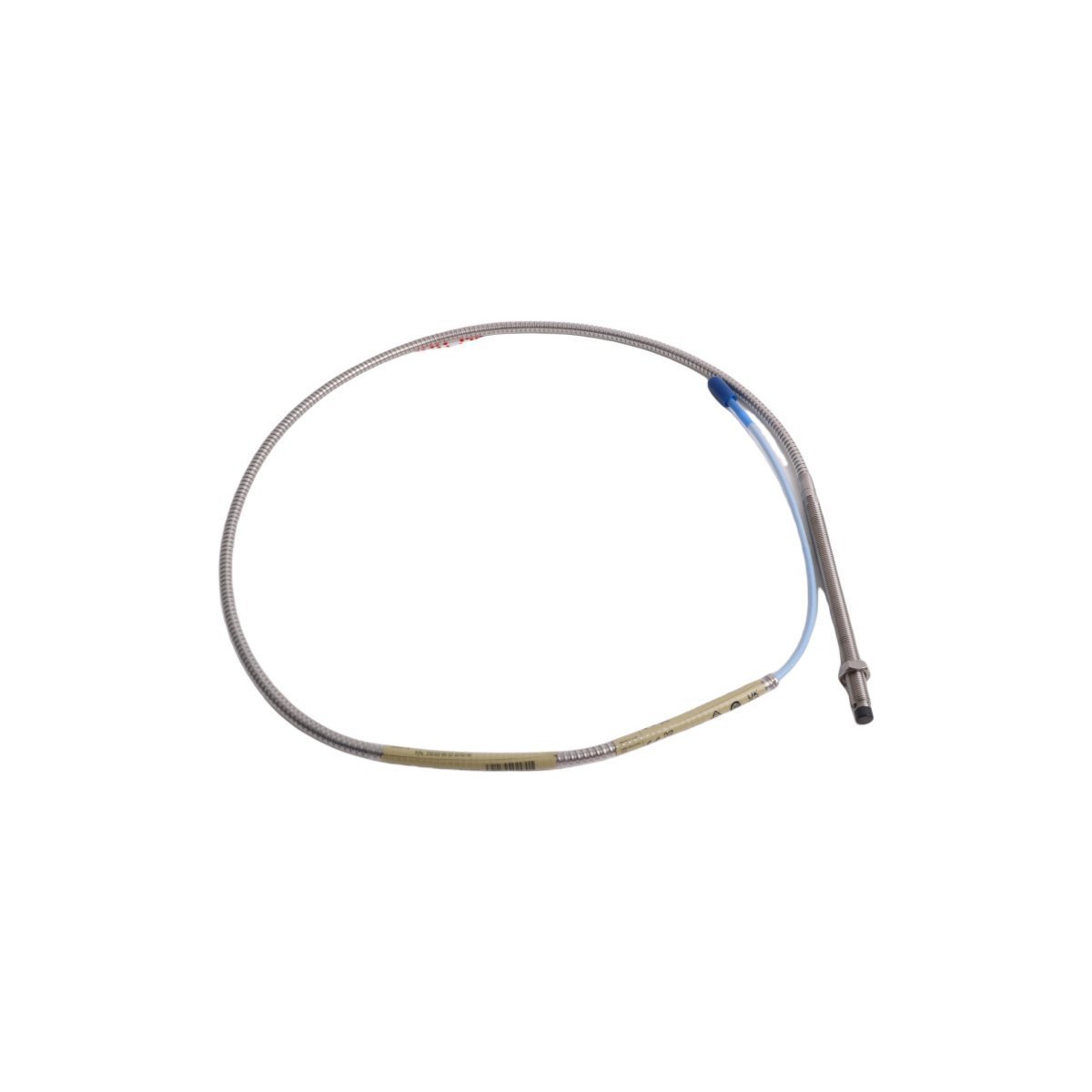

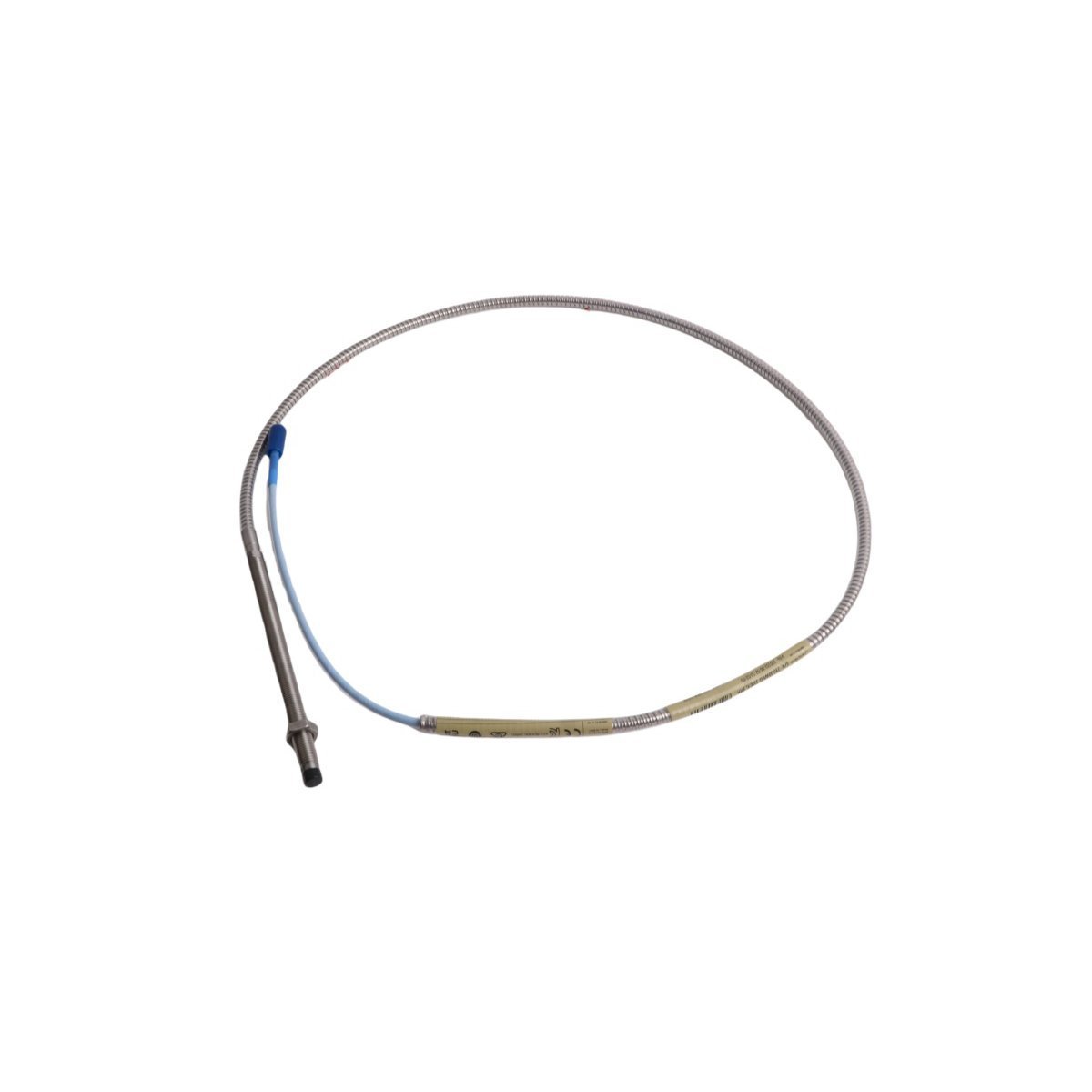

Bently Nevada 330102-00-52-10-02-00 3300 XL Armored Proximity Probe 8mm Sensor

Bently Nevada 330102-00-52-10-02-00 3300 XL 8 mm Proximity Probes

The Bently Nevada 330102-00-52-10-02-00, also cataloged as the 330102 Proximity Probe, operates as a dedicated hardware component for extreme-reach vibration monitoring within TSI platforms. The unit utilizes a 3/8-24 UNF threaded connection with an extended 5.2 inch case length to execute proximity measurements on fluid-film bearing machinery. Because the assembly integrates a 52 foot armored cable, it routes high-frequency eddy-current signals across long distances directly to the system’s proximity transducer electronics.

Hardware Specifications

Mechanical Monitoring & TSI Product Attributes

This hardware variant relies on precise eddy-current probe scaling to translate physical shaft gaps into corresponding analog voltages. Field technicians verify optimal probe positioning by performing a gap voltage validation check, targeting a steady -10 VDC baseline across the linear tracking zone. The internal element geometry yields advanced side-view tracking properties, which permit the sensor to execute accurate monitoring on narrow shafts and targets under 51 mm diameter while suppressing spatial wall interference. Consequently, the system maintains high-integrity signals over the full length of the 52 foot armored line and provides cross-talk suppression to isolate the transmission path from adjacent sensory channels.

Frequently Asked Questions

Q: How does the technician adjust the installation gap to align with the probe’s linear window?

A: The engineer tracks the DC voltage output at the proximitor terminal block while slowly turning the probe into the mounting port, stopping exactly when the signal reaches the required -10 VDC target.

Q: How does the armored housing affect the physical routing of the 52 foot extension cable?

A: The external stainless steel armor prevents mechanical crushing and shields the internal conductor against industrial electromagnetic interference without degrading the flexibility needed for long-distance conduit runs.

Field Installation Guidelines

• Thread Mounting Mechanics: Insert the 3/8-24 UNF threaded casing into the pre-tapped bracket by hand to avoid cross-threading. Tighten the locknuts using an engineering wrench to secure the 5.2 inch case against operating machinery vibrations.
• Armored Cable Bend Management: Direct the 52 foot armored run along dedicated cable trays. Maintain a minimum bend radius of 30 mm to safeguard the coaxial insulation layers from structural stress and core impedance variations.
• Terminal Isolation Practices: Ensure the ClickLoc connector links cleanly with the downstream extension line. Wrap the miniature coaxial junction in specialized insulation sleeves to prevent grounding out against the metal conduit walls.
• Shield Grounding Infrastructure: Attach the outer cable shield braid to the instrument enclosure ground rail at the monitor rack side. Do not connect the shield at the probe side, because a two-point ground configuration creates circulating ground loops that inject noise into the TSI reading.
