330101-00-08-20-02-CN Bently Nevada 3300 XL Series Proximity Transducer

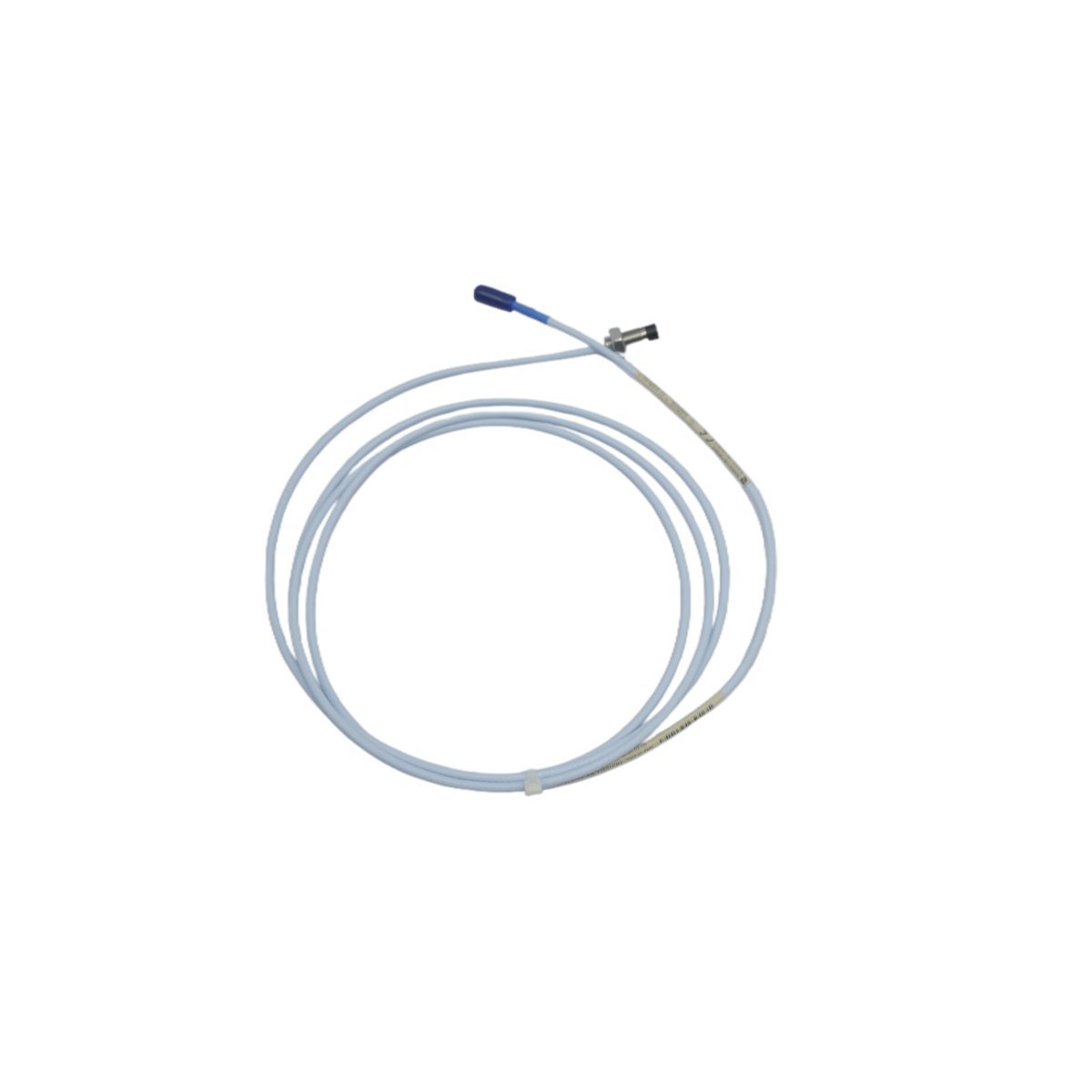

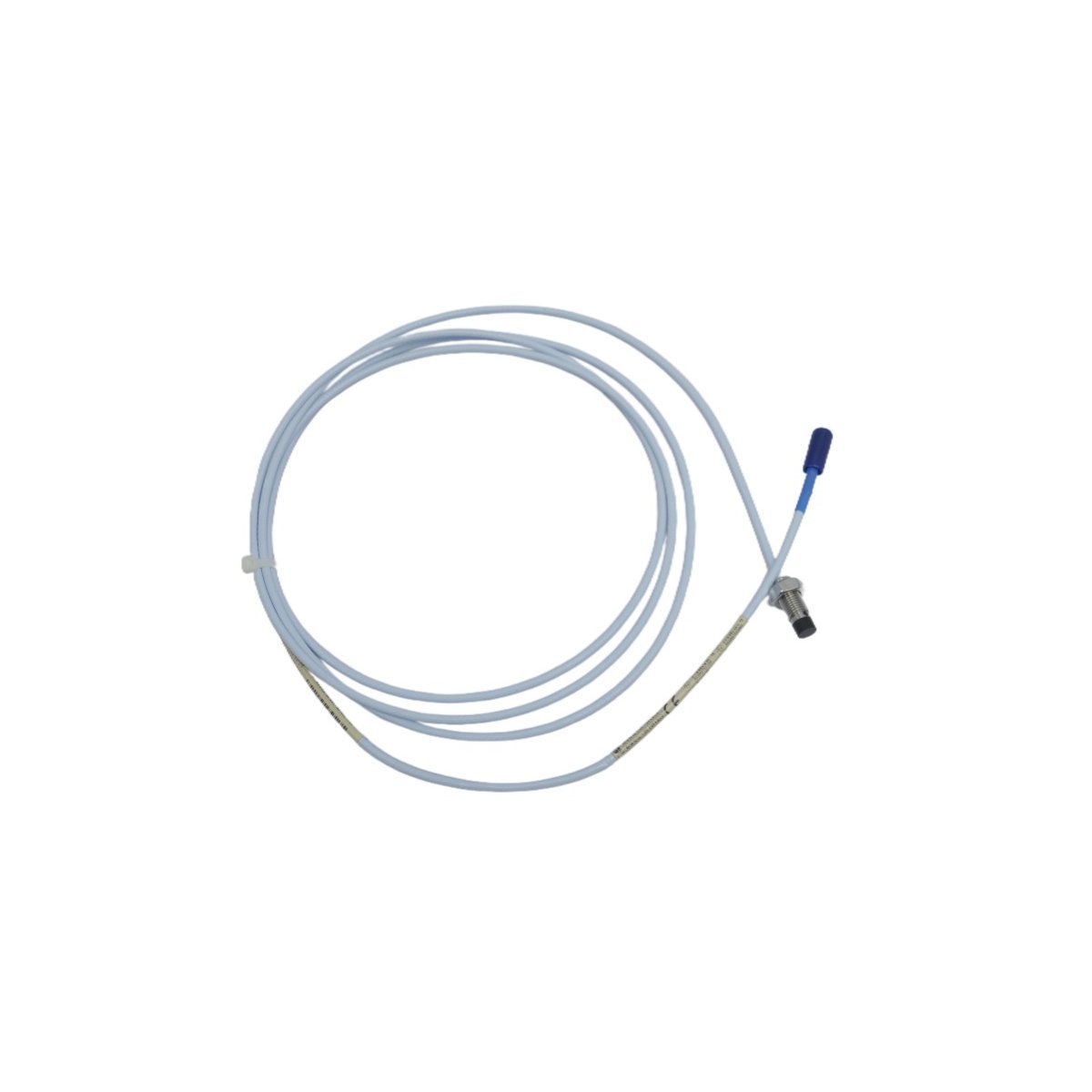

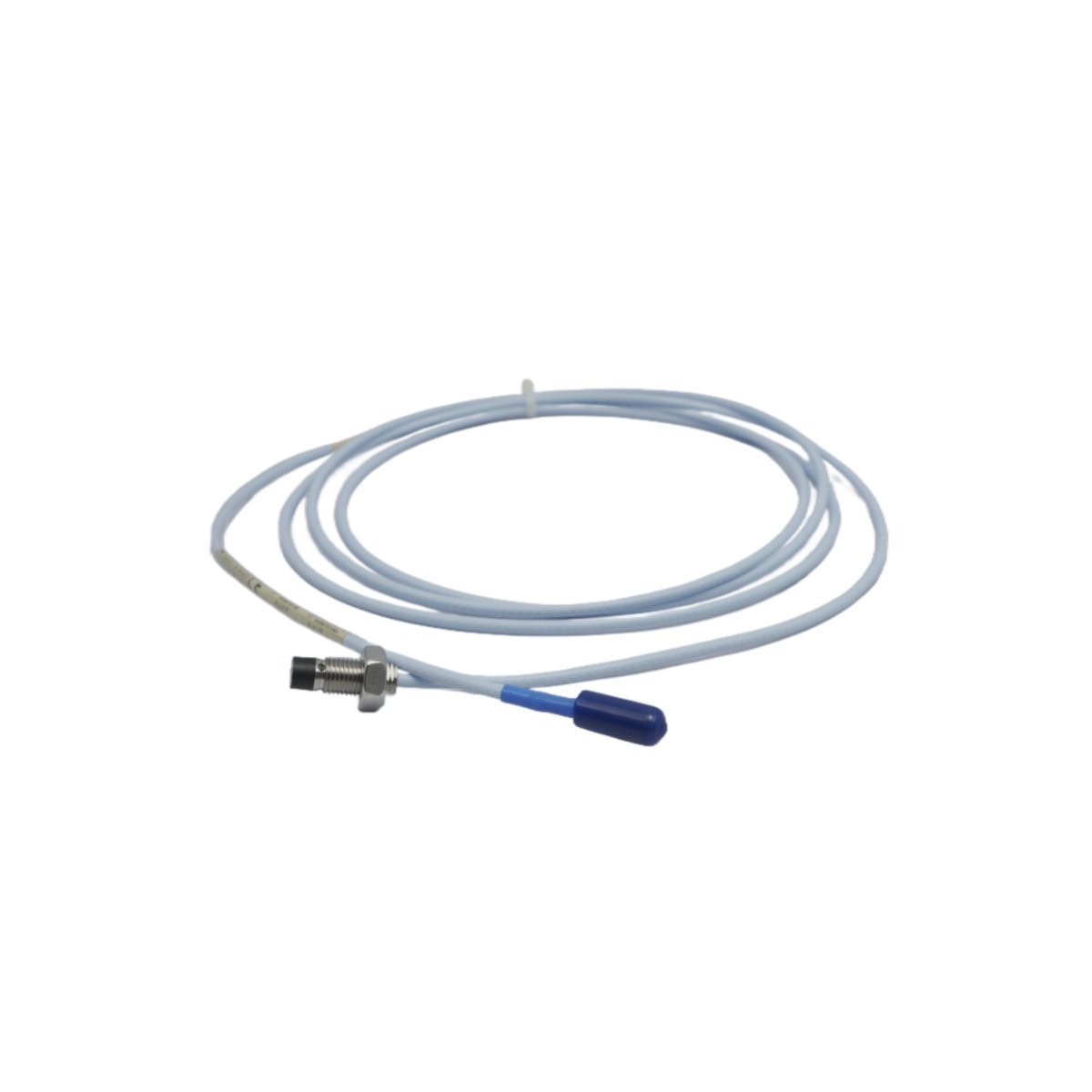

Bently Nevada 330101-00-08-20-02-CN 8 mm Proximity Probe Overview

The 330101-00-08-20-02-CN Bently Nevada 3300 XL series probe provides precise, non-contact measurement of shaft vibration and position. This high-performance sensor enables effective asset protection and predictive maintenance for critical rotating equipment. By utilizing advanced eddy-current technology, the device ensures accurate signal feedback in demanding industrial environments.

Technical Specifications for 3300 XL Sensors

The 330101-00-08-20-02-CN model incorporates a standardized design suitable for various monitoring applications. Please review the following technical data to ensure compatibility with your existing instrumentation.

Functional Operation and System Integration

This proximity sensor operates by generating a high-frequency magnetic field. When this field interacts with a conductive target surface, eddy currents are induced, creating a voltage signal directly proportional to the gap distance. This mechanism is essential for detecting minute changes in shaft position or vibration levels within industrial turbines, compressors, and pumps.

Because this transducer is a core component of the Bently Nevada 3300 XL system, it maintains seamless integration with standard extension cables and monitoring monitors. The use of ClickLoc connectors significantly improves field reliability by preventing accidental disconnections. Furthermore, the modular nature of this hardware allows maintenance teams to replace components efficiently without the need for extensive system recalibration.

For detailed installation procedures or troubleshooting, please refer to the Bently Nevada 3300 XL Manual to ensure your vibration monitoring system adheres to OEM standards. You can also explore our full range of proximity probes to find additional components for your specific mechanical configuration. Proper sensor maintenance remains vital for avoiding unplanned downtime and extending the operational lifecycle of your rotating machinery.
