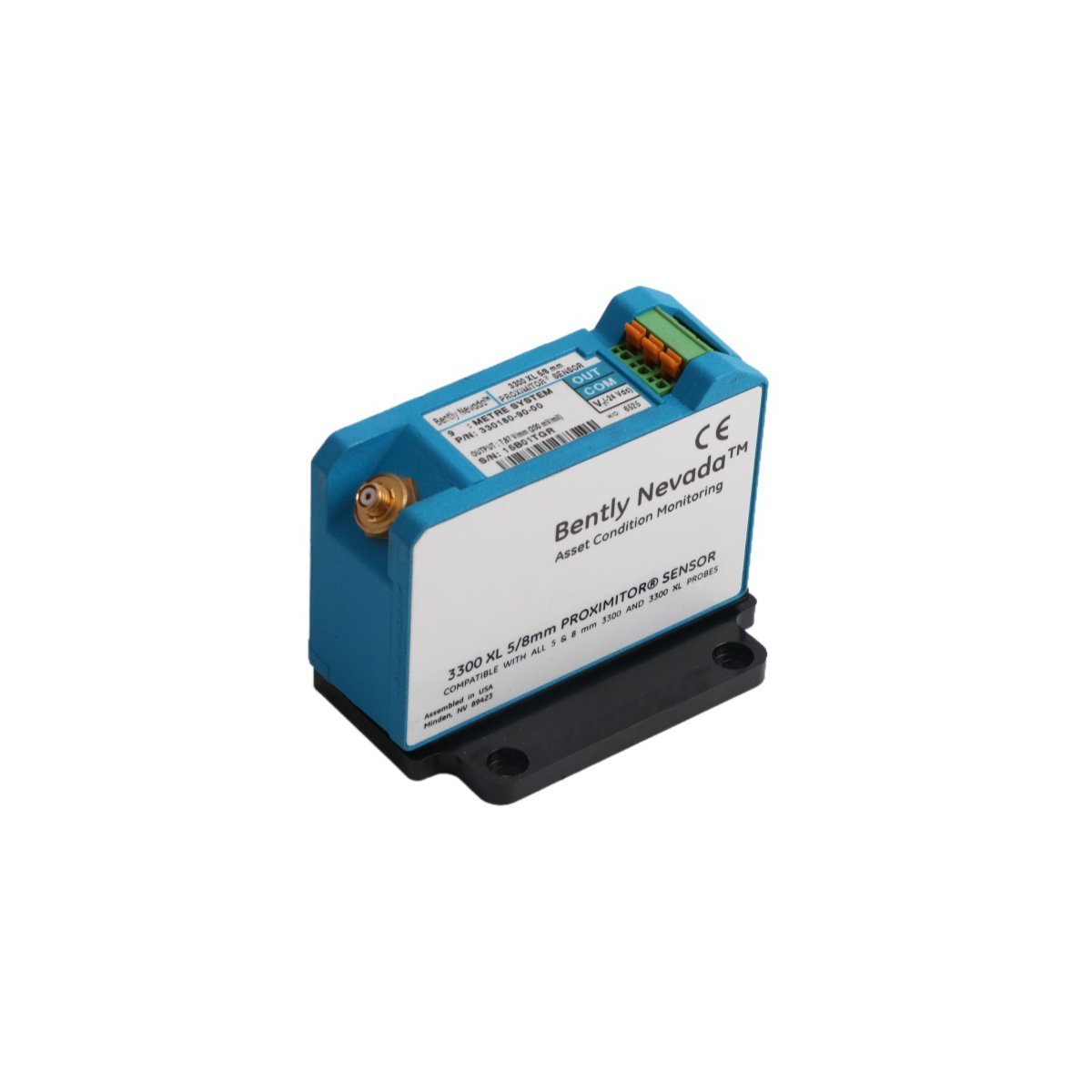

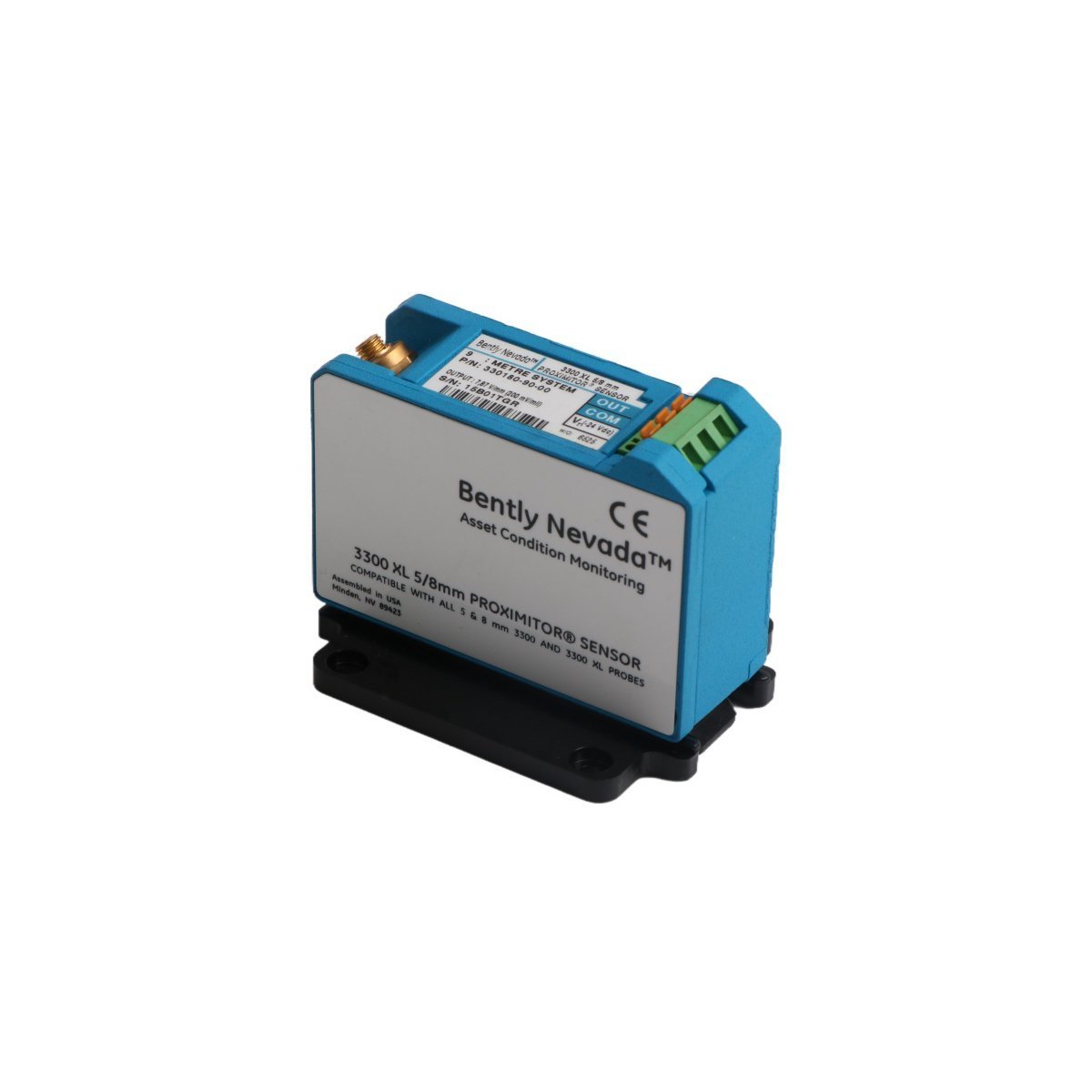

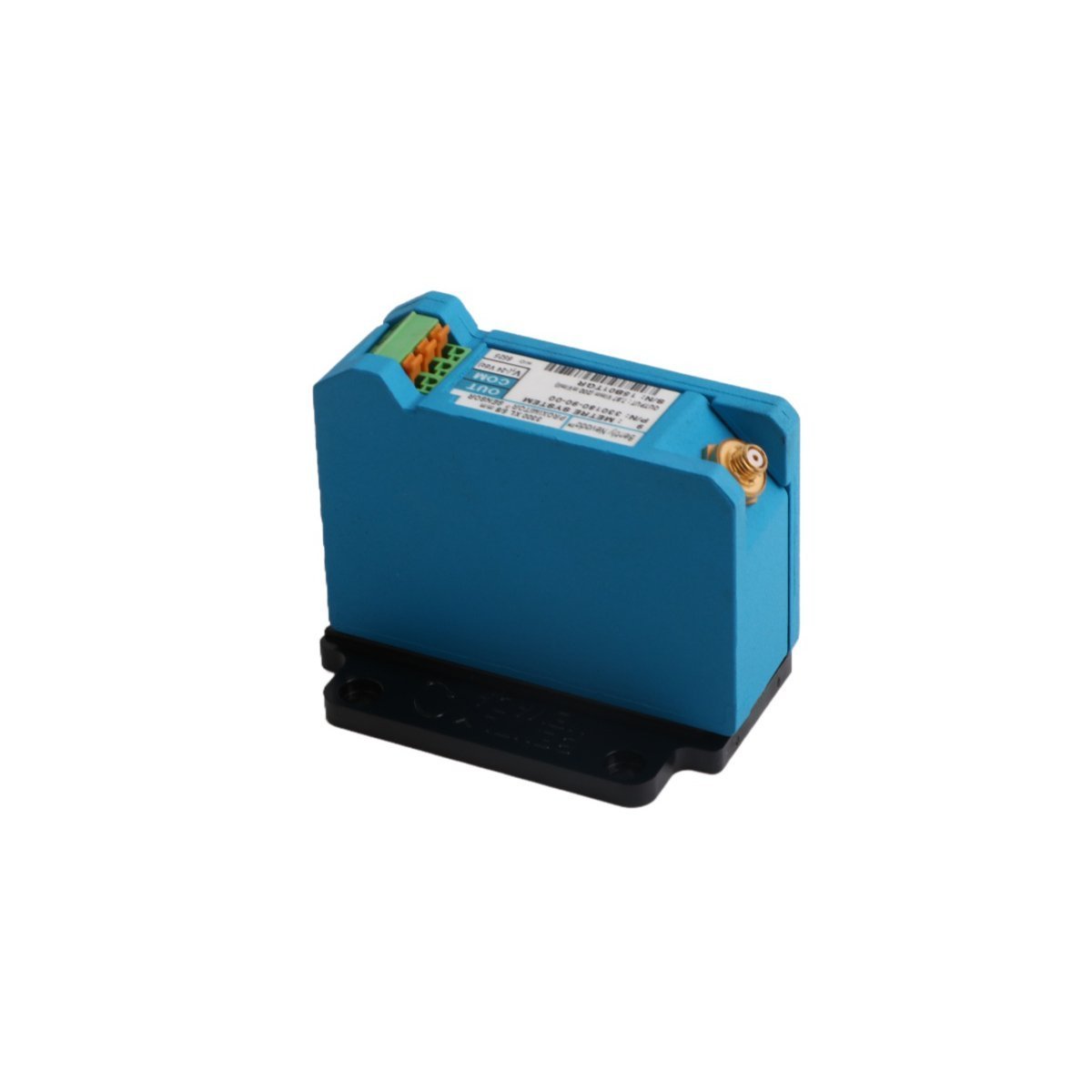

330180-90-00 Bently Nevada 8mm Proximity Transducer Sensor

Technical Product Description

The Bently Nevada 330180-90-00 represents a core element of the 3300 XL 8 mm proximity transducer system, delivering industry-leading signal conditioning for machinery protection. This sensor converts the high-frequency signal from the probe into a proportional voltage output, allowing for real-time monitoring of shaft vibration and position. By adhering strictly to API 670 standards, this unit ensures exceptional linear range, accuracy, and thermal stability in demanding industrial environments.

One of the most significant engineering advantages of the 330180-90-00 is its modular design, which facilitates total interchangeability across probes and extension cables. This feature eliminates the traditional requirement for manual bench calibration or component matching. Maintenance teams can replace individual system parts without compromising measurement integrity, which drastically simplifies field service and reduces spare parts inventory.

Furthermore, the 3300 XL series maintains full backward compatibility with older non-XL 3300 series 5 mm and 8 mm components. This interoperability allows facilities to upgrade their monitoring capabilities incrementally. The 330180-90-00 supports system lengths up to 9.0 meters and features a robust design that prevents radio frequency interference (RFI) from distorting critical data, ensuring the high measurement resolution necessary for predictive maintenance.

Key Technical Characteristics

• Brand: Bently Nevada
• Model Number: 330180-90-00
• Sensor Type: Eddy Current Proximitor Signal Conditioner
• System Length: 9.0 meters (approx. 29.5 feet)
• Mounting Option: Panel Mount
• Compliance: Fully compliant with API 670 standards
• Compatibility: Integrates with 3300 XL 8mm and 3300 5mm/8mm systems
• Output Signal: Proportional to distance between probe tip and target
• Environmental Protection: Designed for high-stability across varying temperatures
• Interchangeability: No recalibration required when swapping system components

Industrial Applications

• Steam and gas turbine shaft vibration monitoring
• Centrifugal and axial compressor displacement sensing
• High-speed industrial gearbox protection
• Power generation and petrochemical TSI (Turbine Supervisory Instrumentation)
