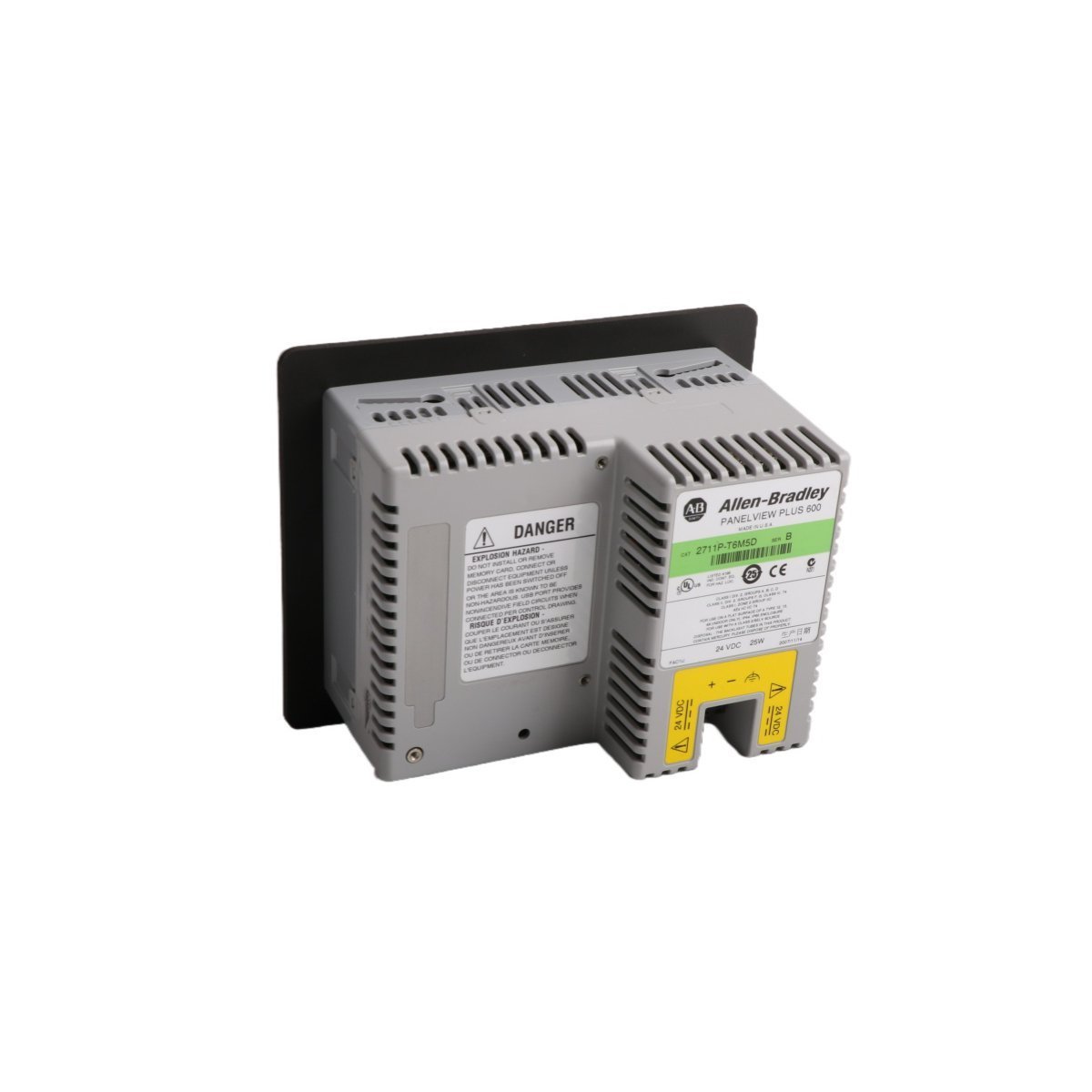

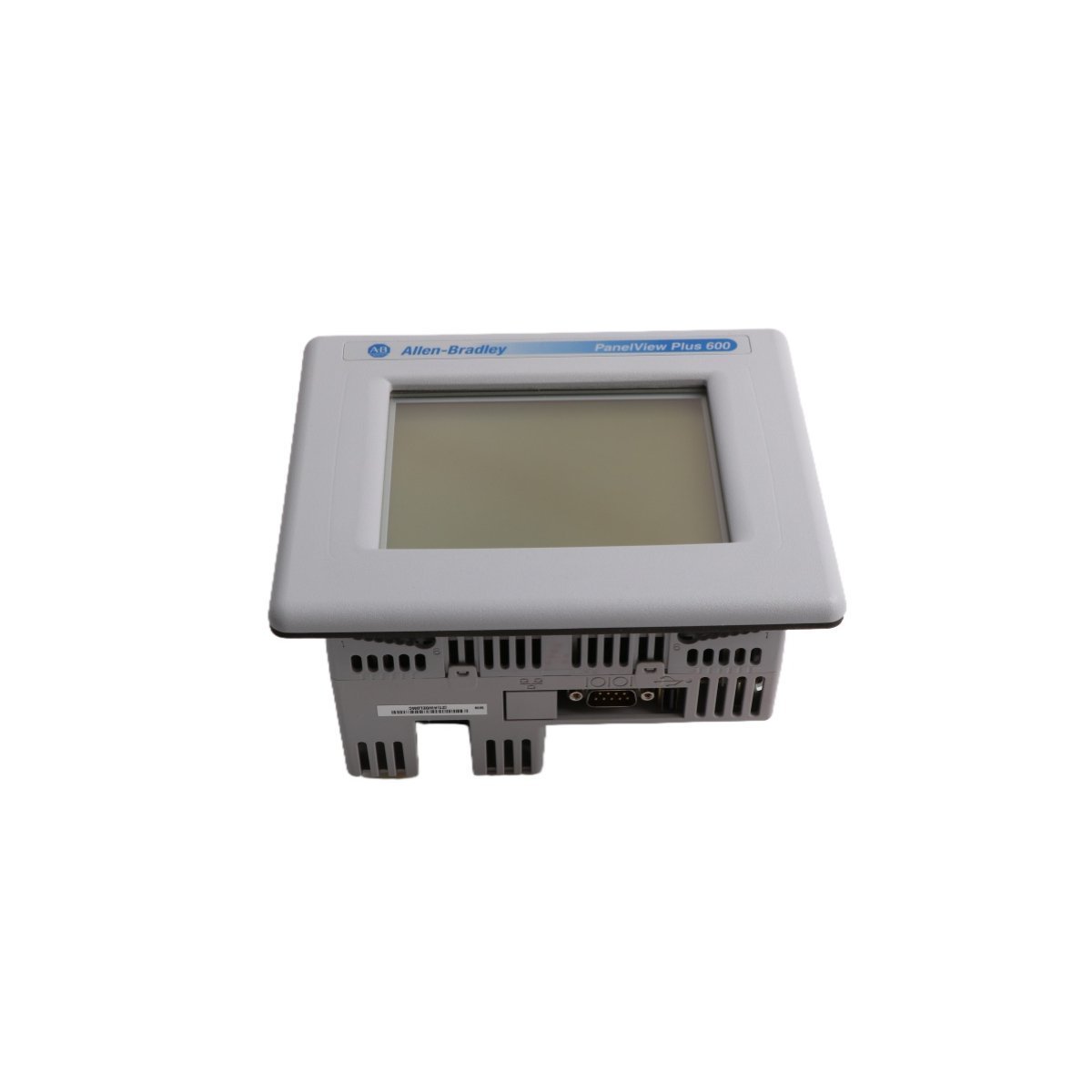

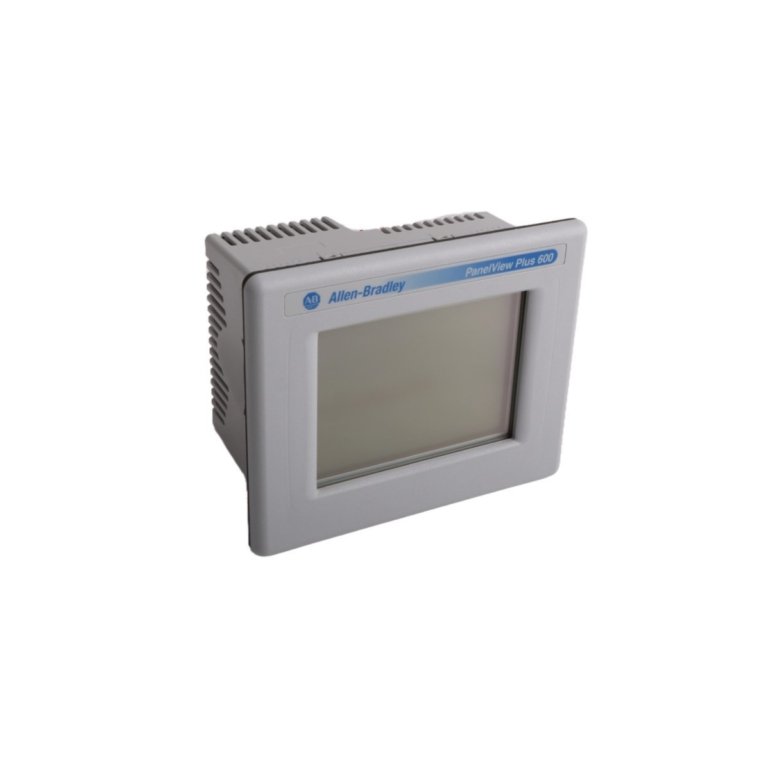

Allen Bradley 2711P-T6M5D8 PanelView Plus 6 Terminals

The Allen Bradley 2711P-T6M5D8 serves as a specialized human-machine interface for industrial automation control. This PanelView Plus 6 600 model features a 5.7-inch monochrome display for clear visualization. It utilizes a 16-level grayscale TFT LCD to show process data efficiently. Operators interact with the system via a highly durable analog resistive touchscreen. Furthermore, the unit runs on 18-30V DC power, fitting standard industrial electrical environments perfectly. This HMI terminal provides a reliable window into machine operations for various manufacturing sectors.

Technical Specifications

Interface and Communication Capabilities

The 2711P-T6M5D8 offers versatile connectivity options for modern factory floors. An integrated RS-232 serial port supports DF1 and DH-485 communication protocols. Consequently, the terminal links easily to various PLC and SLC controllers. It also includes USB host and device ports for peripheral expansion. Maintenance teams can connect keyboards, mice, or flash drives for data management. These interfaces facilitate rapid application transfers and local printing tasks. Such flexibility ensures the terminal adapts to diverse machinery control requirements.

Hardware Performance and Reliability

This graphic terminal utilizes a robust architecture to handle complex HMI applications. The internal memory includes 512 MB of non-volatile storage for project files. Moreover, an SD card slot allows for additional memory expansion. This feature supports easy data logging and system backups on the fly. The touchscreen is rated for one million actuations to ensure longevity. Its compact design allows for installation in shallow control panels. Therefore, the unit excels in space-constrained OEM equipment designs.

Optimized Visualization for Industrial Safety

The grayscale display provides high contrast for easy reading in various lighting. This monochrome approach reduces eye fatigue for operators during long shifts. Additionally, the terminal supports FactoryTalk View ME software for advanced screen development. Users can create intuitive diagnostic screens to monitor machine health in real-time. The resistive touch surface also works reliably with gloved hands. This characteristic makes the 2711P-T6M5D8 ideal for heavy industrial environments. It provides a stable and cost-effective solution for essential machine monitoring.
