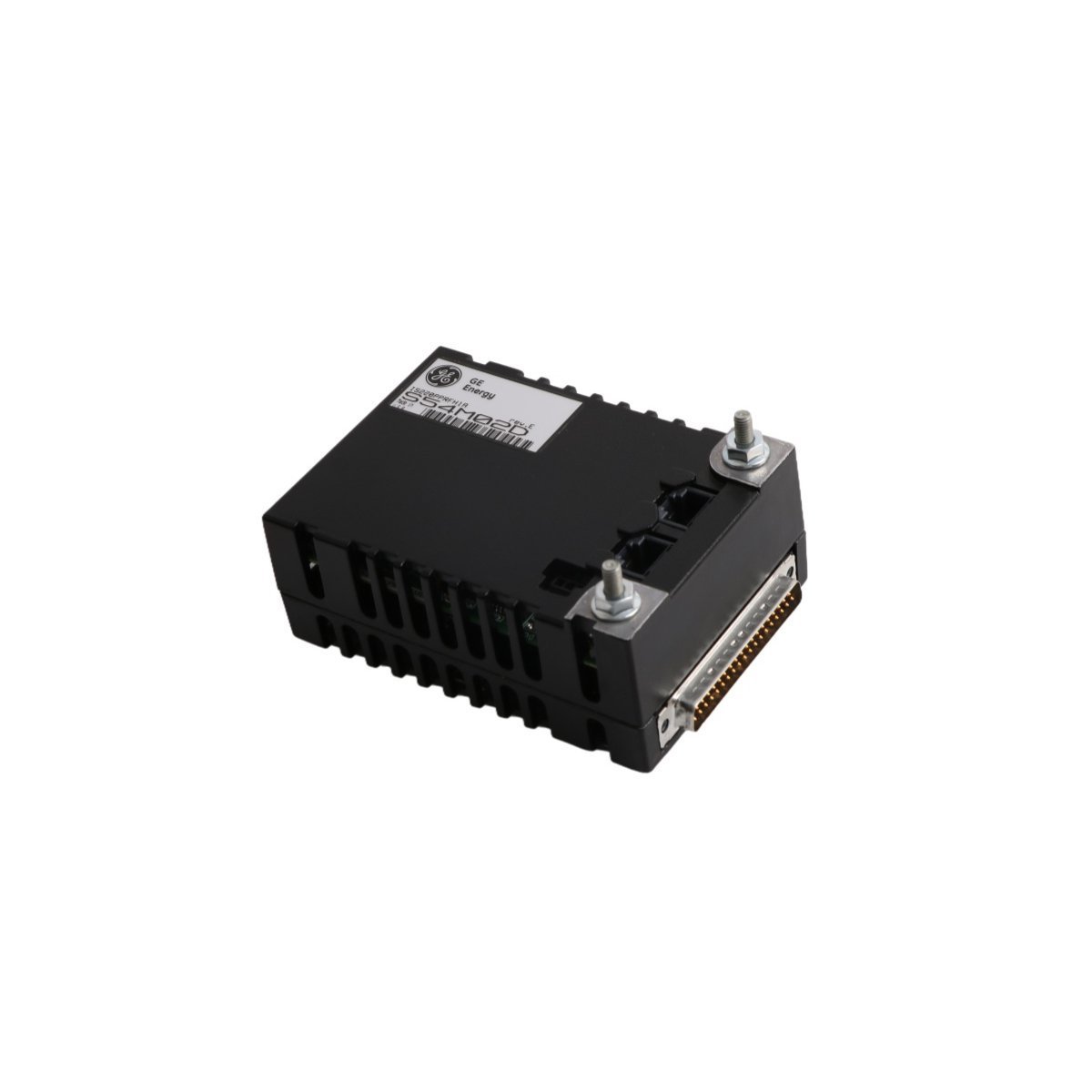

The General Electric IS220PPRFH1A serves as a critical PROFIBUS DPV0 Class 1 master gateway for the Mark VIe control system. This module bridges external PROFIBUS slave devices with internal Mark VIe controllers through high-speed I/O Ethernet. Engineers deploy this pack to integrate diverse field instrumentation into turbine and compressor control architectures efficiently. The unit utilizes a shared processor board combined with a specialized Hilscher COM-C communication module. Operators benefit from its ability to manage complex networks while maintaining deterministic data exchange rates. This gateway ensures seamless interoperability between legacy fieldbus devices and modern distributed control systems.
Technical Specifications and Capabilities

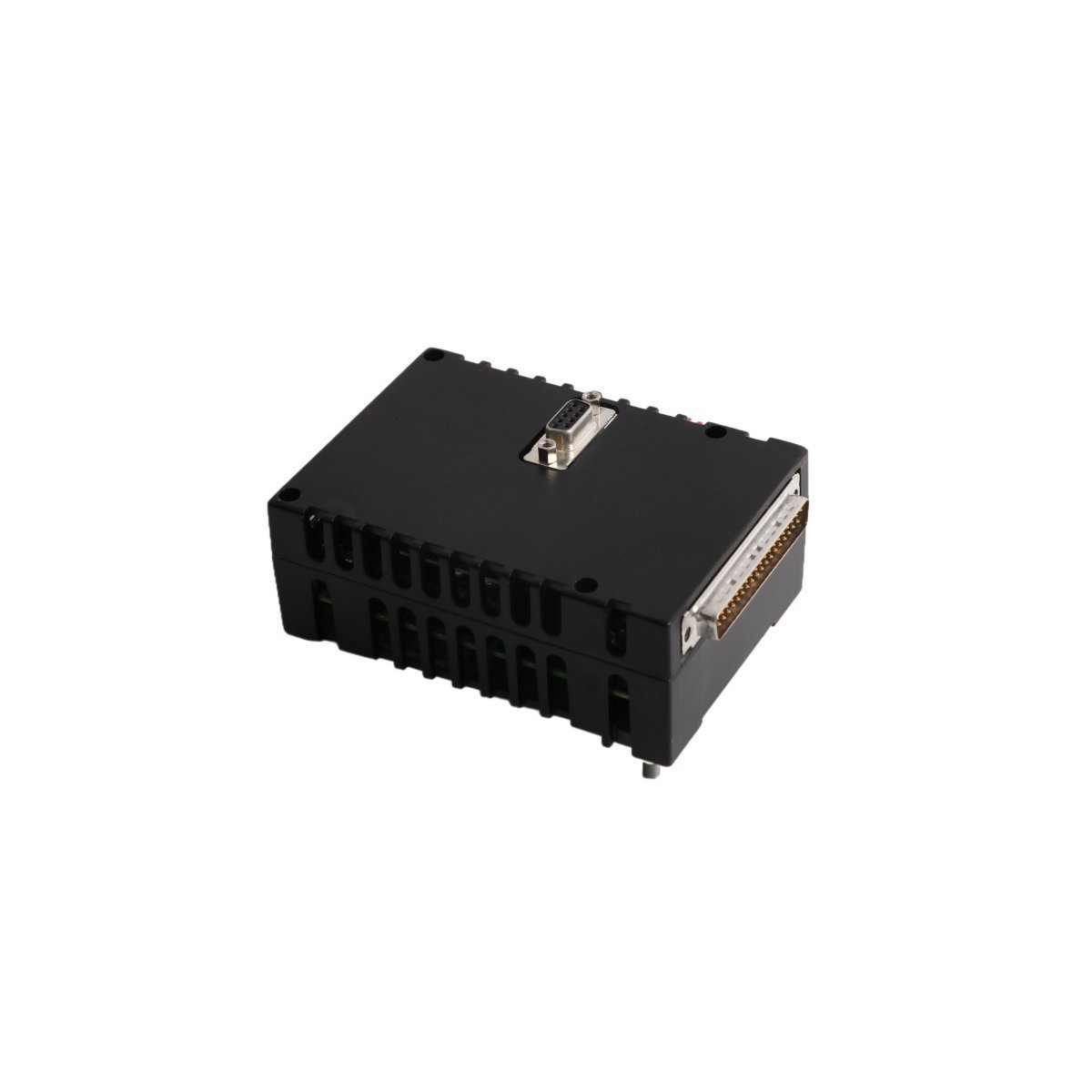

This gateway pack supports transmission speeds ranging from 9.6 KBaud up to 12 MBaud via its RS-485 interface. The device connects to the network through a standard DE-9 D-sub receptacle connector for robust physical linking. Users can configure the system to manage up to 125 slave devices with 244 bytes of input and output data each. The hardware supports multiple redundancy modes including single operation, dual Ethernet, and active-hot backup configurations. Installation requires mounting onto the specific SPIDG1A terminal board which provides essential electronic identification data. A built-in soft-start feature regulates inrush current to protect components during power-up sequences.
| Feature | Specification |
|---|
| Model Number | IS220PPRFH1A |
| Manufacturer | General Electric (GE) |
| Product Series | Mark VIe |
| Module Type | PROFIBUS Master Gateway Pack |
| Protocol Standard | PROFIBUS DPV0 Class 1 |
| Max Transmission Rate | 12 MBaud |
| Max Slave Devices | 125 Units |
| Data Capacity | 244 Bytes Input/Output per Slave |
| Interface Connector | DE-9 D-Sub (RS-485) |
| Required Terminal Board | SPIDG1A |
| Redundancy Options | Single, Dual Ethernet, Hot Backup |
| Configuration Tool | ToolboxST |
| Origin | USA |
Application and Integration Benefits

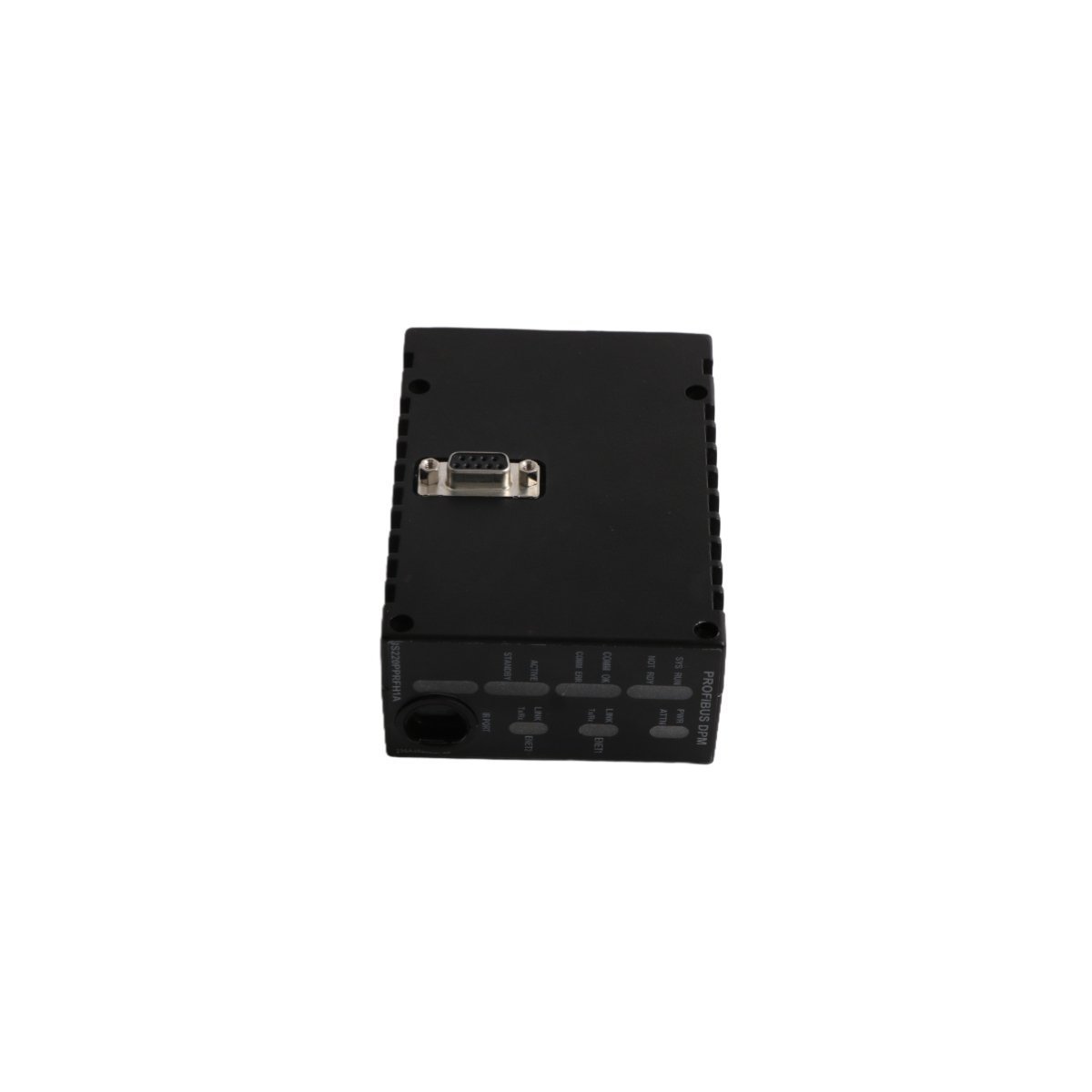

Industrial facilities utilize this gateway to extend control capabilities across large-scale power generation assets. The flexible redundancy options allow maintenance teams to service networks without interrupting critical process operations. Automatic Ethernet negotiation simplifies installation by selecting the optimal port for communication automatically. Visual diagnostic LEDs provide immediate status feedback to accelerate troubleshooting and reduce downtime. The robust mechanical design prevents connector stress during installation to ensure long-term reliability. Companies rely on this proven technology to maintain high availability in demanding Speedtronic turbine environments.
