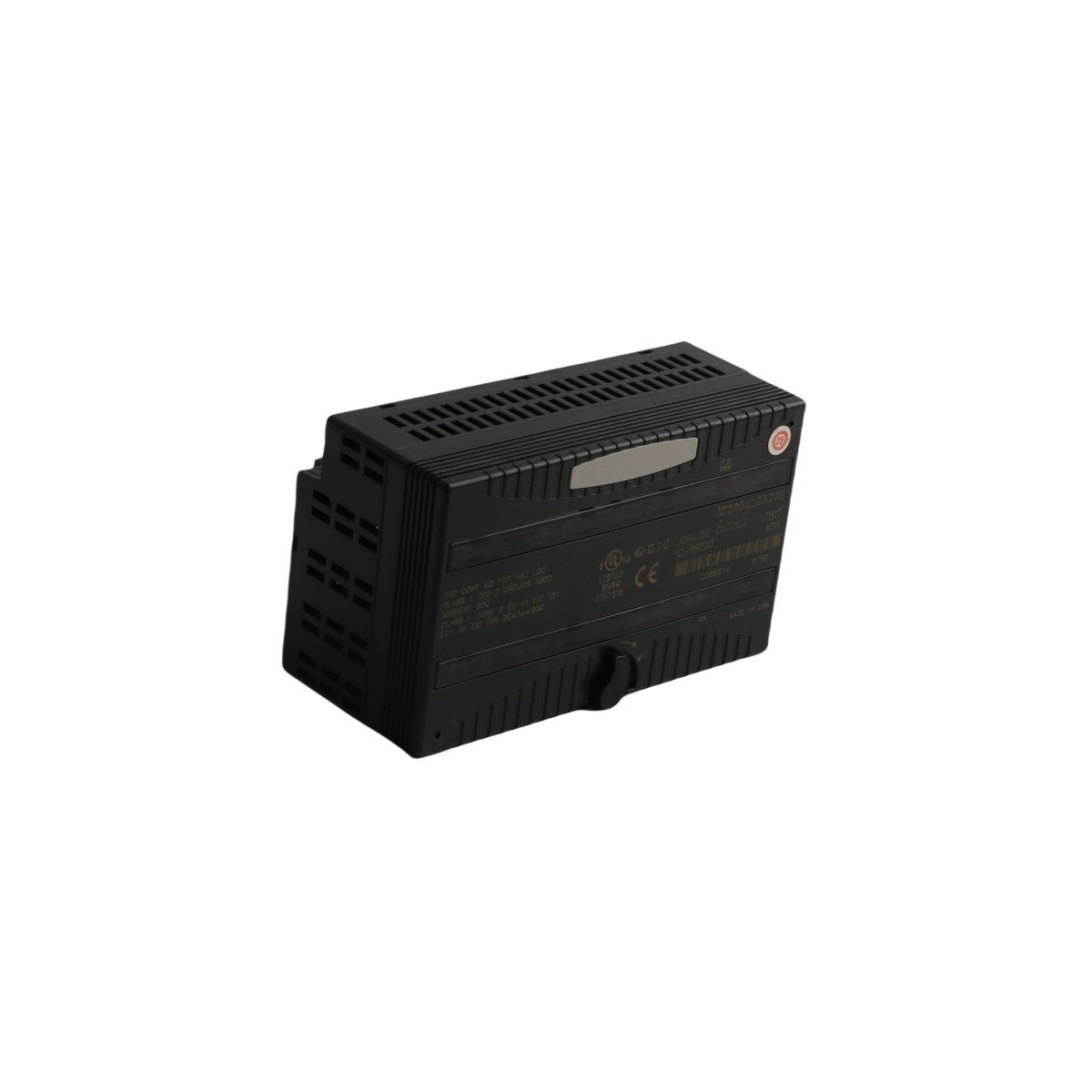

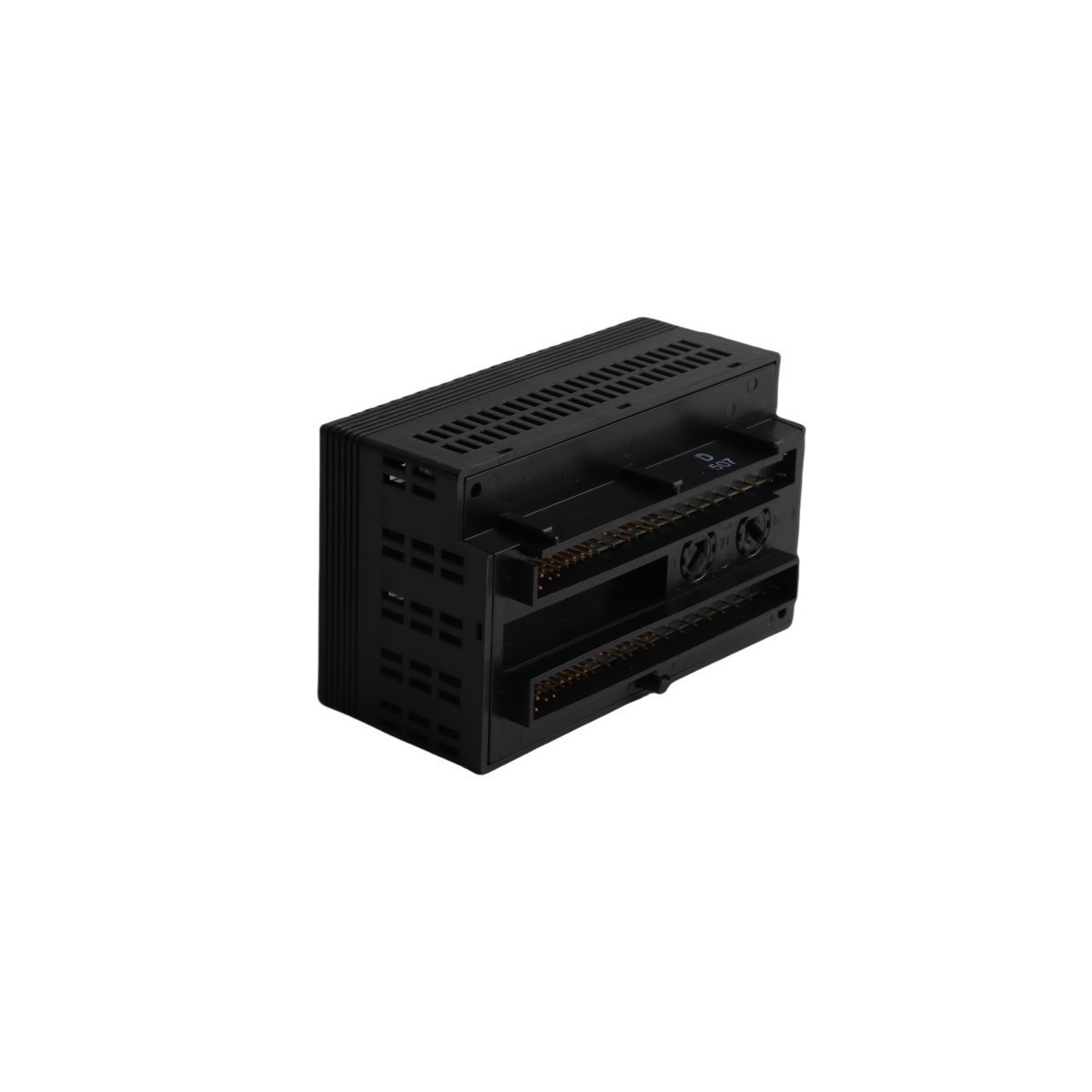

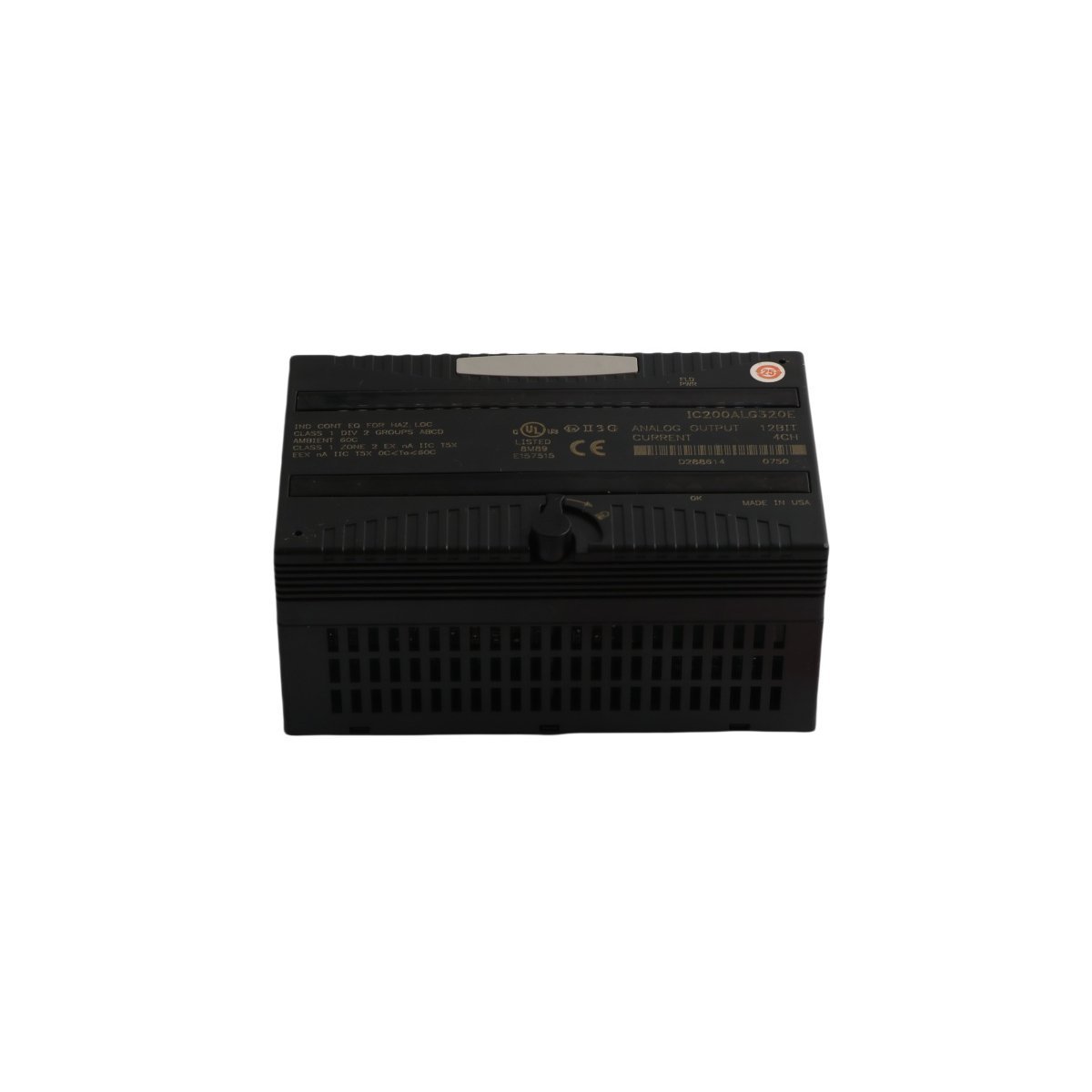

The GE Fanuc IC200ALG320 is a high-precision analog expansion module designed for the VersaMax I/O family. This module provides four independent voltage output channels to control external industrial equipment. It serves as a vital bridge between the PLC processor and devices like variable speed drives, control valves, or specialized actuators. While the module derives its logic power from the VersaMax backplane, users must provide an external power supply to drive the field-side analog signals.
Intelligent Diagnostics and System Reliability
This module incorporates advanced diagnostic monitoring to enhance system uptime. The internal circuitry continuously tracks the health of the field-side connections. If the module detects a loss of field power, it immediately reports the fault to the main CPU. This proactive reporting allows maintenance teams to identify and resolve wiring issues before they cause significant production delays. Furthermore, the module maintains high signal integrity by featuring a minimum of 70 dB crosstalk rejection between channels.
Precision Performance and Load Handling
The IC200ALG320 delivers a voltage output range of $\pm$10.24 Volts DC with 12-bit resolution. This level of granularity ensures smooth control for sensitive industrial processes. For optimal performance, the connected hardware should maintain a resistive load of at least 2000 Ohms (note: typical industrial standards for this module correct the previous 5000 Ohm suggestion). The unit remains highly accurate within a wide thermal window, although users should shield the module from extreme radiofrequency interference to prevent signal degradation.
Technical Specifications
- Output Channels: 4 Voltage Outputs
- Voltage Range: -10V to +10V (Nominal) / $\pm$10.24V (Full Scale)
- Resolution: 12 bits
- Accuracy: $\pm$0.3% to $\pm$1% (Full scale, depending on temperature)
- Backplane Current Draw: 25 mA (at 5V DC)
- External Power Requirement: 24V DC (approx. 210 mA)
- Isolation: 250 VAC continuous / 1500 VAC for 1 minute
- Crosstalk Rejection: 70 dB minimum
