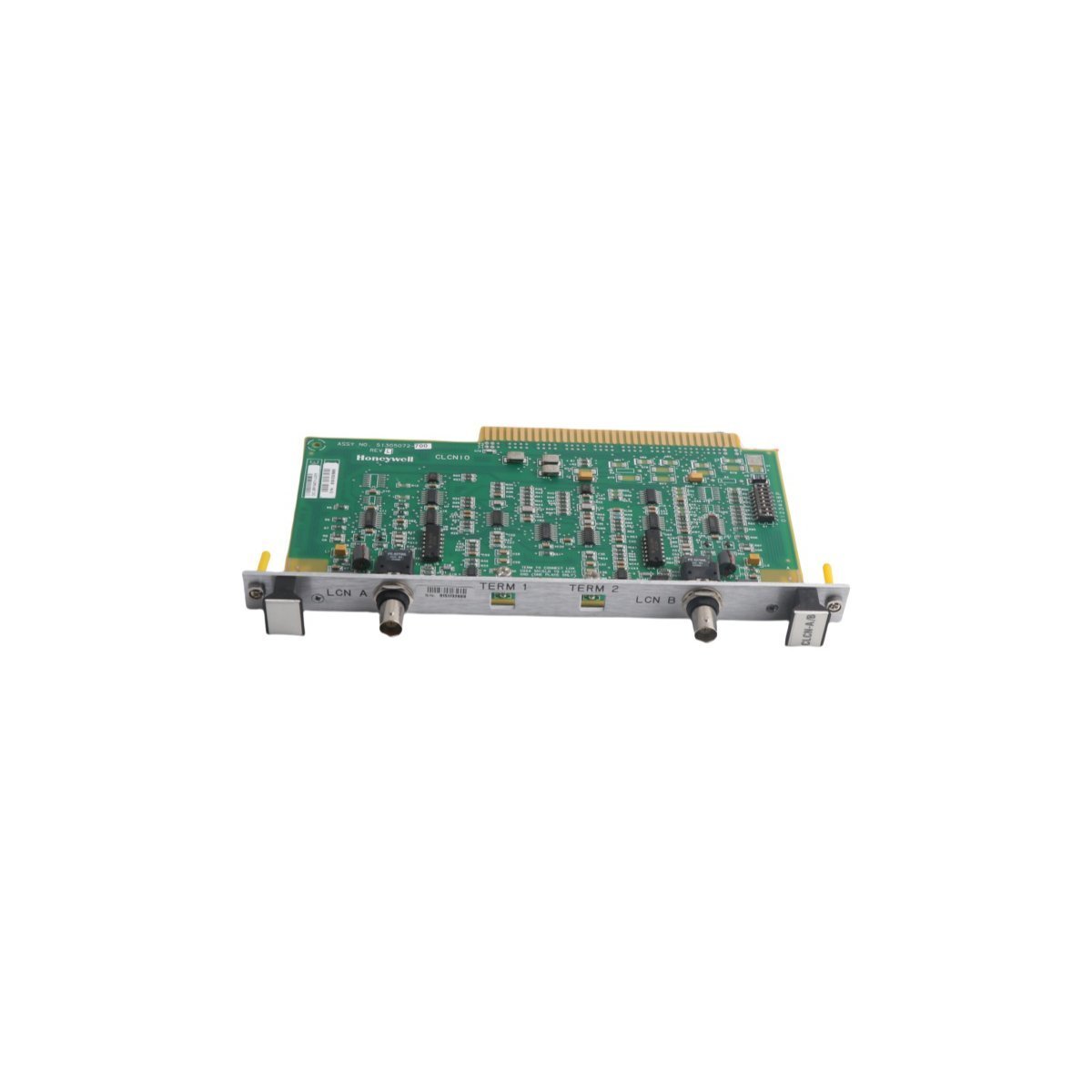

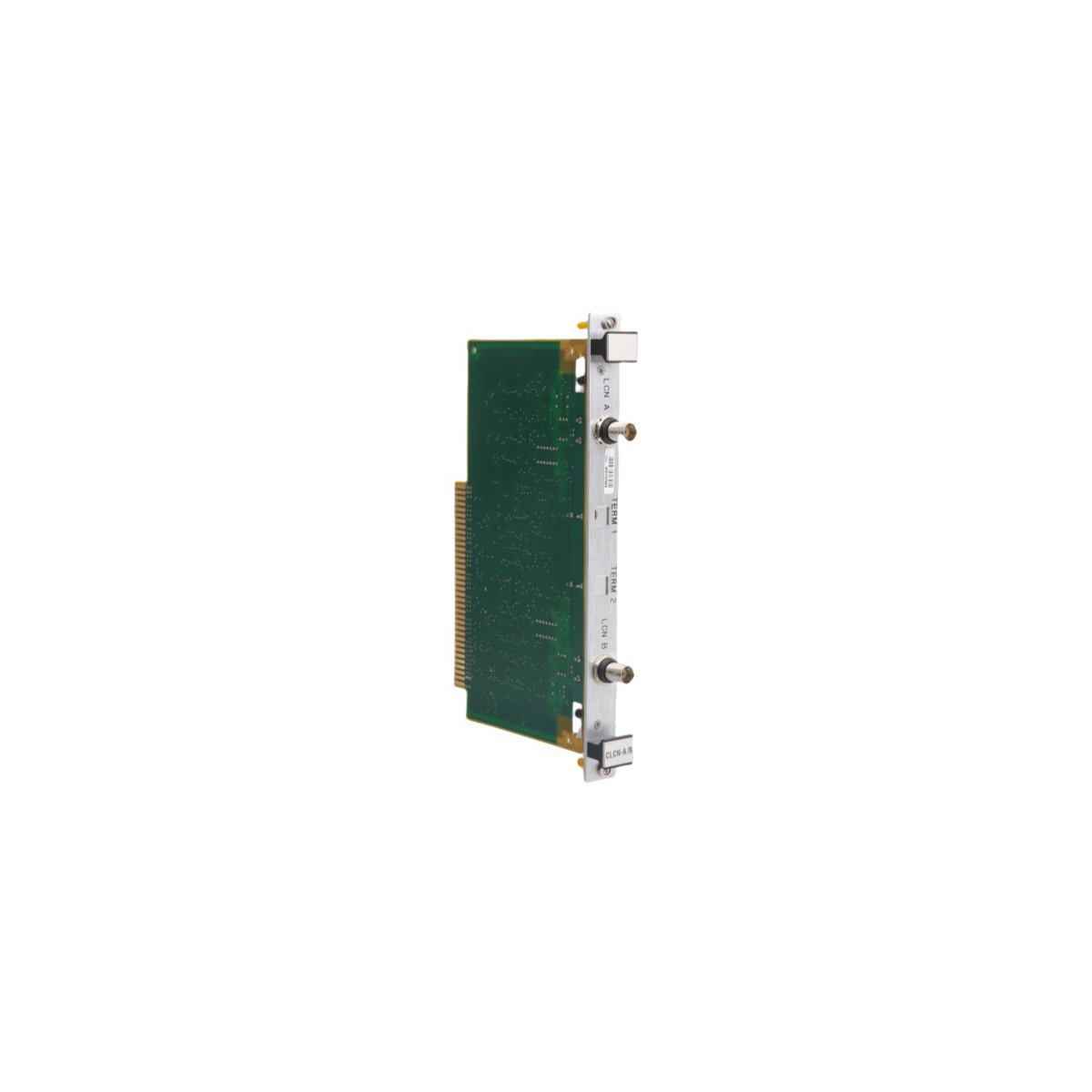

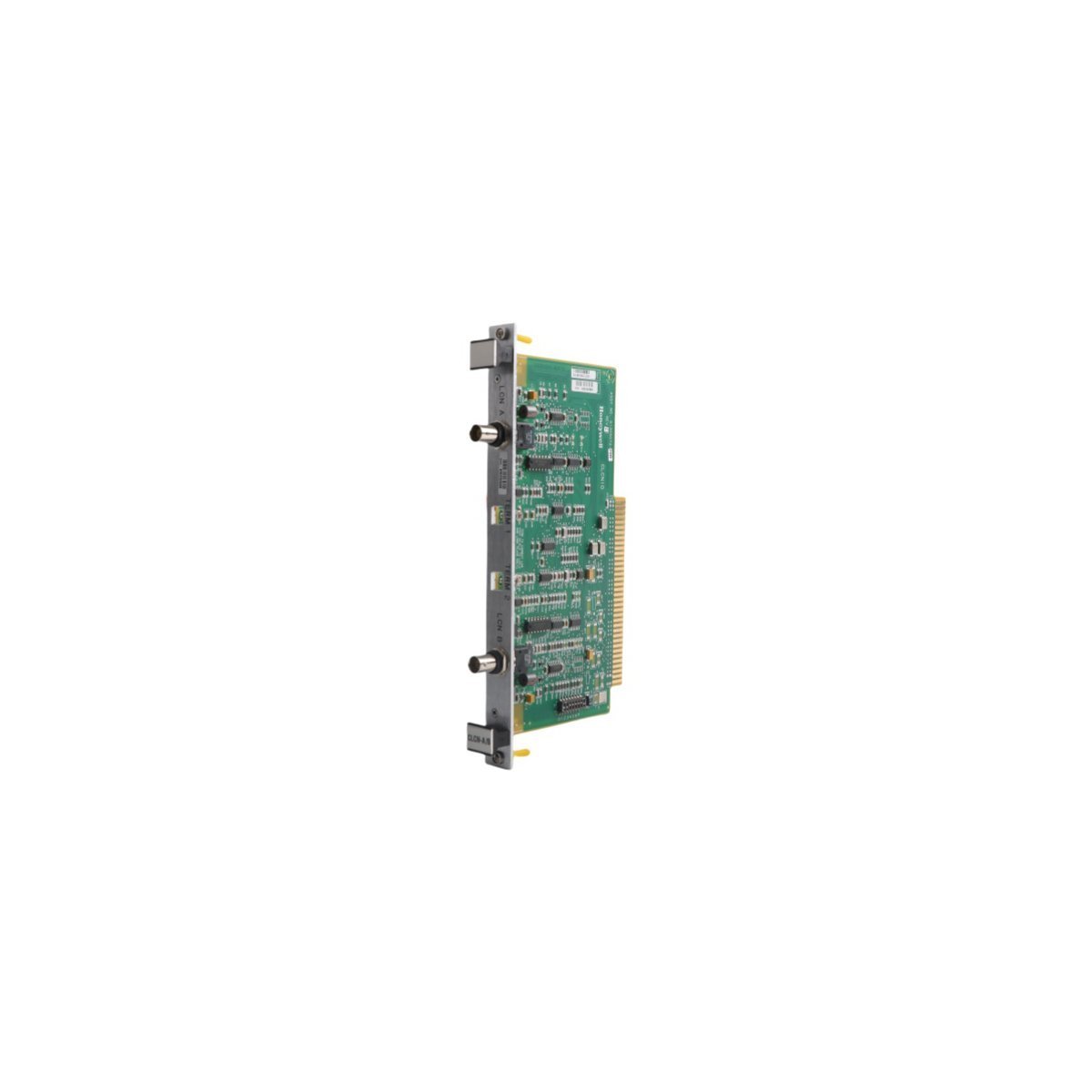

Honeywell 51305072-700 TDC 3000 I/O Board Experion PKS

Honeywell 51305072-700 TDC 3000 Input Output Board

Configured for high-speed signal processing in Experion PKS platforms, the Honeywell 51305072-700 (51305072-700 I/O Board) provides direct electrical execution of data acquisition and control loop management.

Hardware Specifications

Process Control and Channel-to-Channel Isolation

The 51305072-700 module operates as a dedicated interface node, which connects field instrumentation to the system controller. Engineers incorporate channel-to-channel isolation within the board architecture. This physical separation prevents ground loops and common-mode noise from corrupting analog measurements, which preserves signal integrity during high-speed sampling. Furthermore, the board supports the 4-20 mA HART loop protocol. Consequently, operators extract secondary diagnostic data from smart transmitters without interrupting the primary control process.

Frequently Asked Questions

Q: Does the 51305072-700 module support hot-swapping?

A: Users must de-energize the I/O nest before they extract or insert the board. This procedure protects the backplane communication pins from damage due to transient arcing.

Q: How does the module handle sensor drift?

A: The onboard processing circuitry executes continuous self-diagnostics and compensation algorithms. These features minimize measurement deviation over time and report status updates to the master controller.

Field Installation Guidelines

1. Mounting: Slide the board into the designated rack slot. You must ensure the locking levers engage fully to establish a low-impedance bond for the chassis ground.
2. Grounding: Connect the chassis ground to the cabinet earth bus. Proper termination prevents electromagnetic interference from affecting the analog input accuracy.
3. Connectivity: Inspect all terminal block pins for debris before connection. You should seat the cables firmly to maintain consistent electrical continuity.
4. Validation: Monitor the status LEDs on the front panel after power-up. These indicators verify that the module passes internal self-tests and establishes communication with the network.
