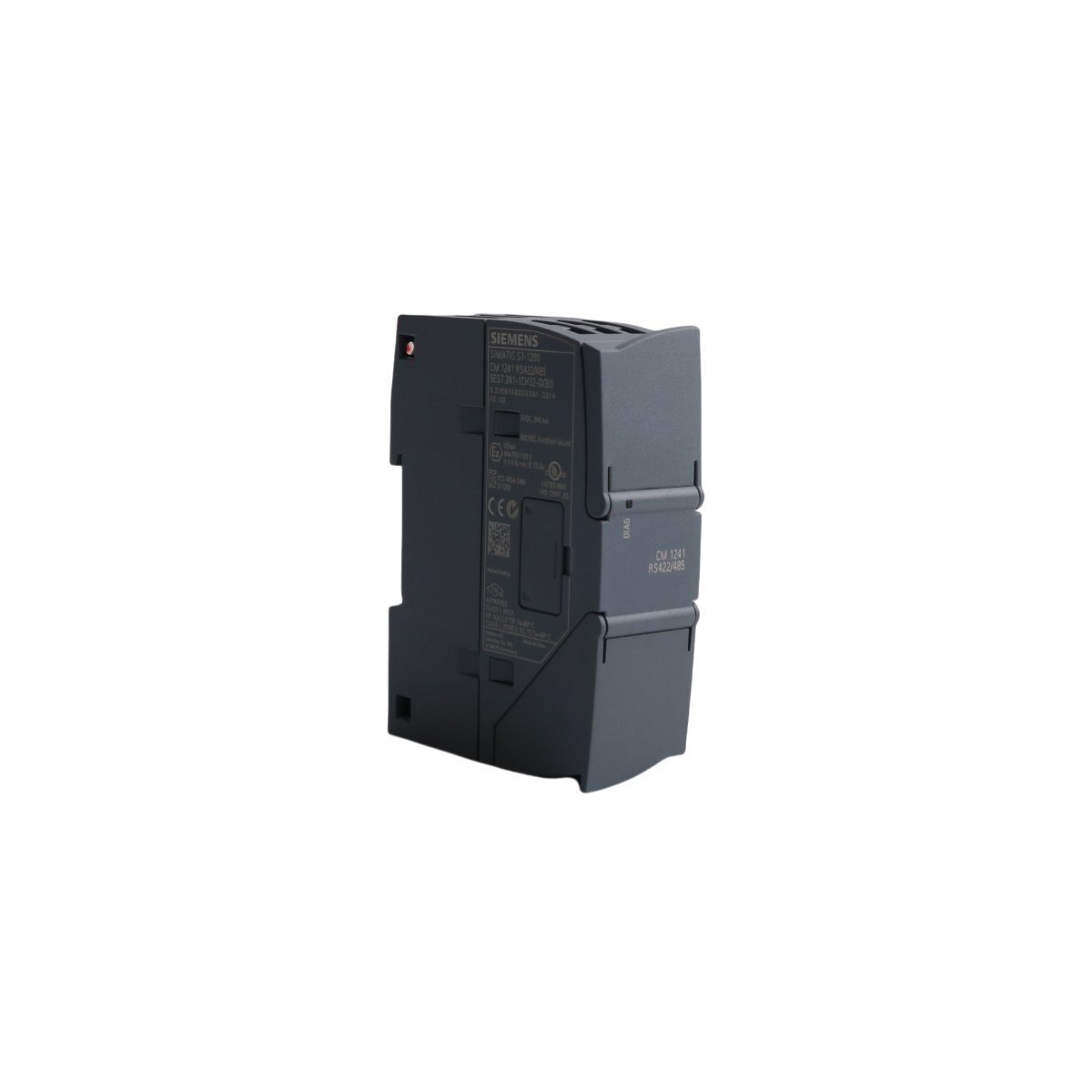

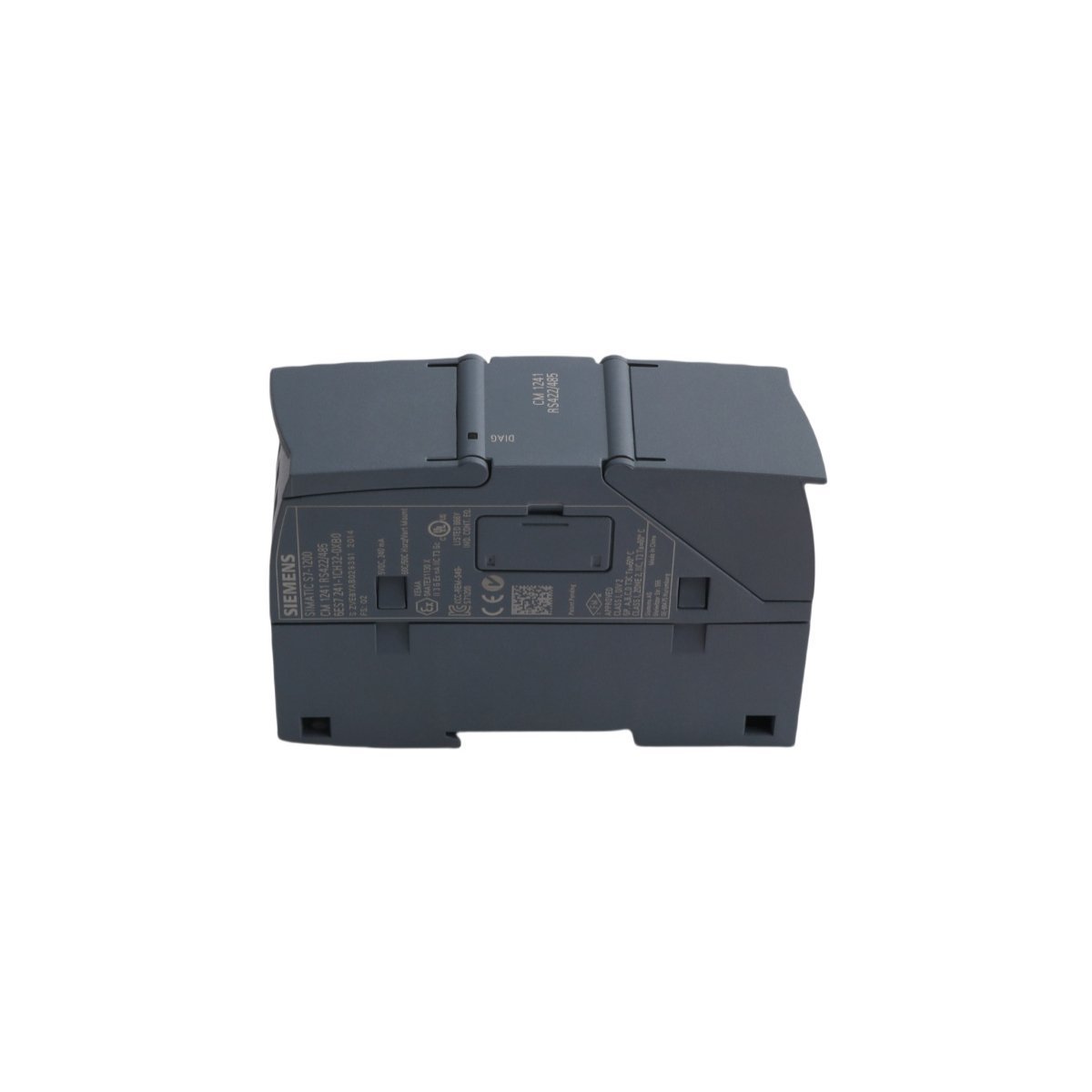

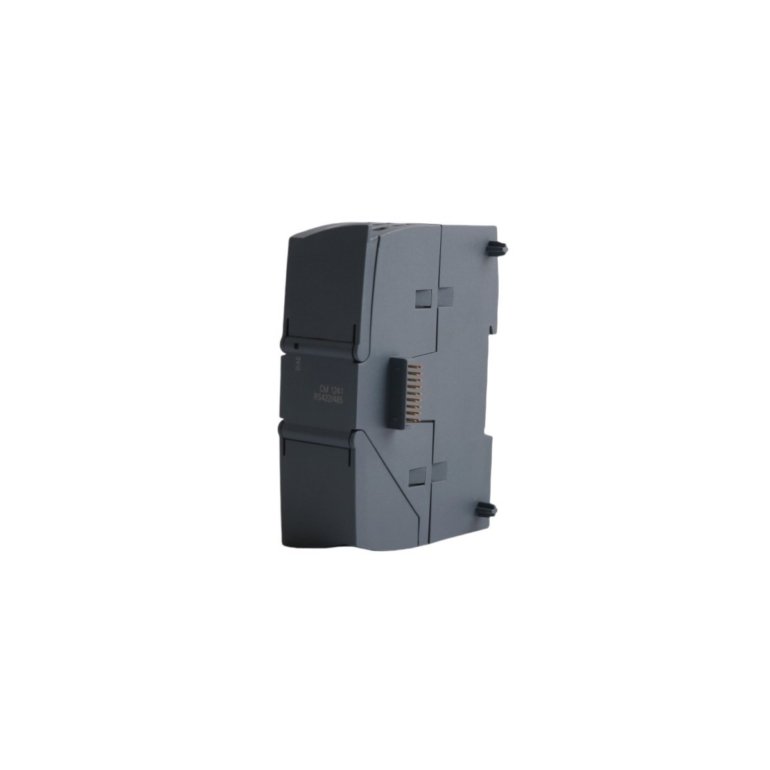

Siemens 6ES7241-1CH32-0XB0 Communication Module

The Siemens 6ES7241-1CH32-0XB0 functions as a high-performance communication module for the SIMATIC S7-1200 PLC series. This unit establishes reliable serial links between the controller and peripheral equipment. Because it supports both RS422 and RS485 standards, it offers great flexibility for industrial networking. The module utilizes a standard 9-pin D-sub female connector for physical interfacing. Consequently, engineers can easily integrate legacy hardware or third-party sensors into a modern automation architecture.

Enhanced Protocol Support and Data Exchange

This communication interface handles various messaging requirements through the Freeport protocol (ASCII). It allows for point-to-point connections with scanners, printers, or other controllers. Furthermore, the module supports Modbus RTU master or slave configurations via integrated instructions. The hardware manages the timing of data transmission to reduce the processing load on the CPU. This efficiency ensures high-speed communication even in complex system layouts.

Technical Specifications

Seamless Integration and Maintenance

Integrating this module requires minimal effort through the TIA Portal engineering framework. Users can configure baud rates and parity settings directly within the software environment. Moreover, the diagnostic LEDs on the front panel provide instant status updates for transmit and receive activities. These visual indicators simplify troubleshooting and reduce downtime during maintenance. By choosing this Siemens module, you ensure a stable and scalable communication backbone for your industrial assets.
