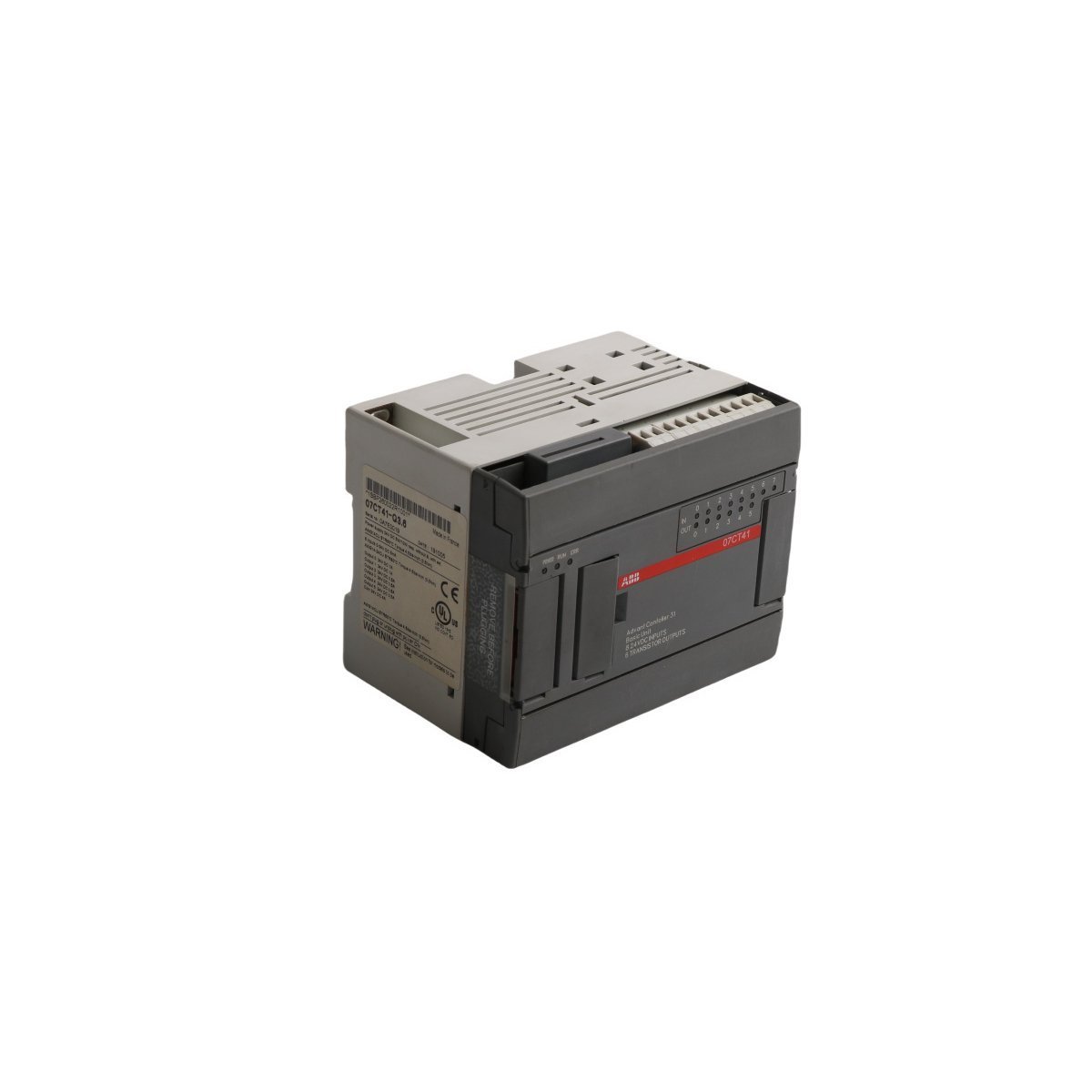

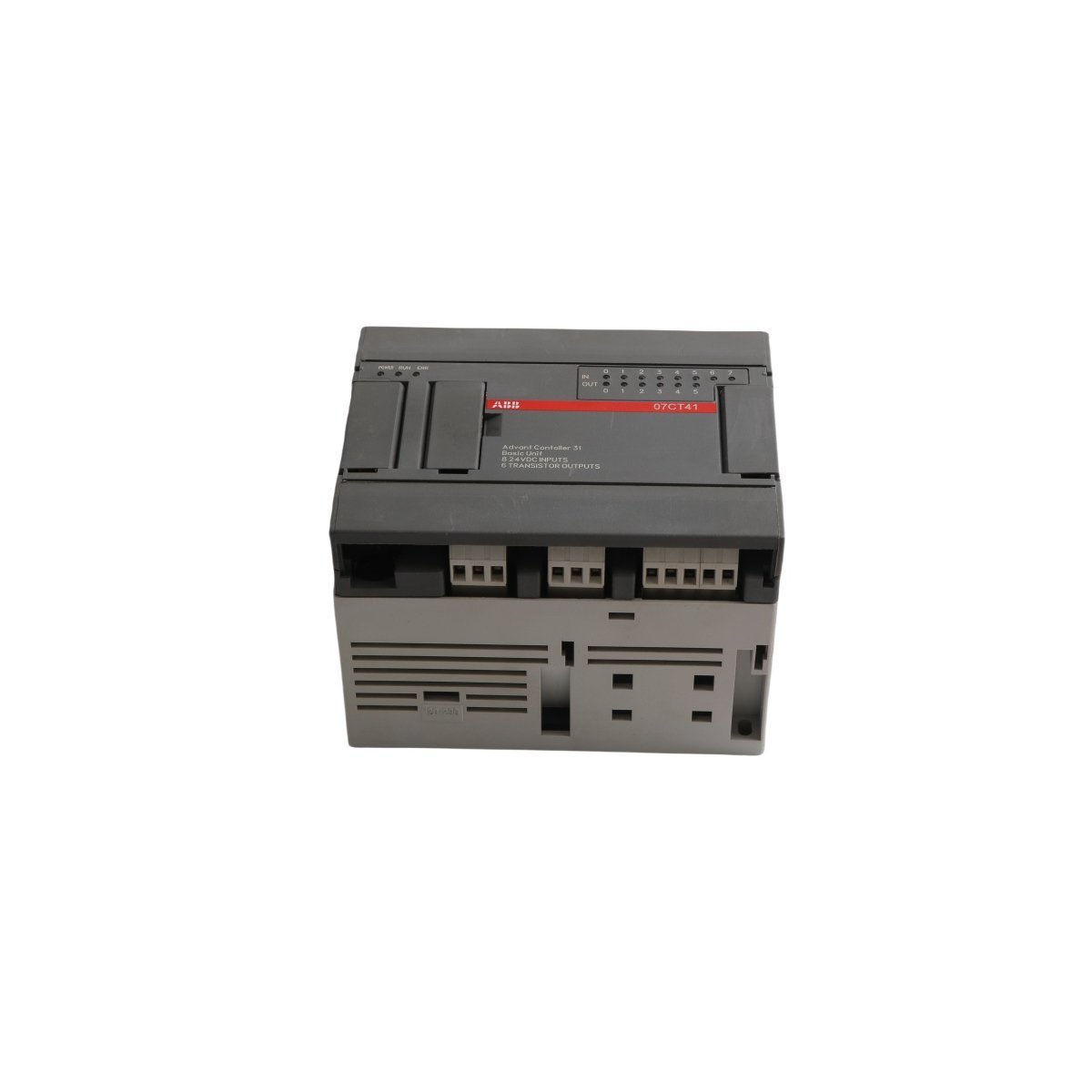

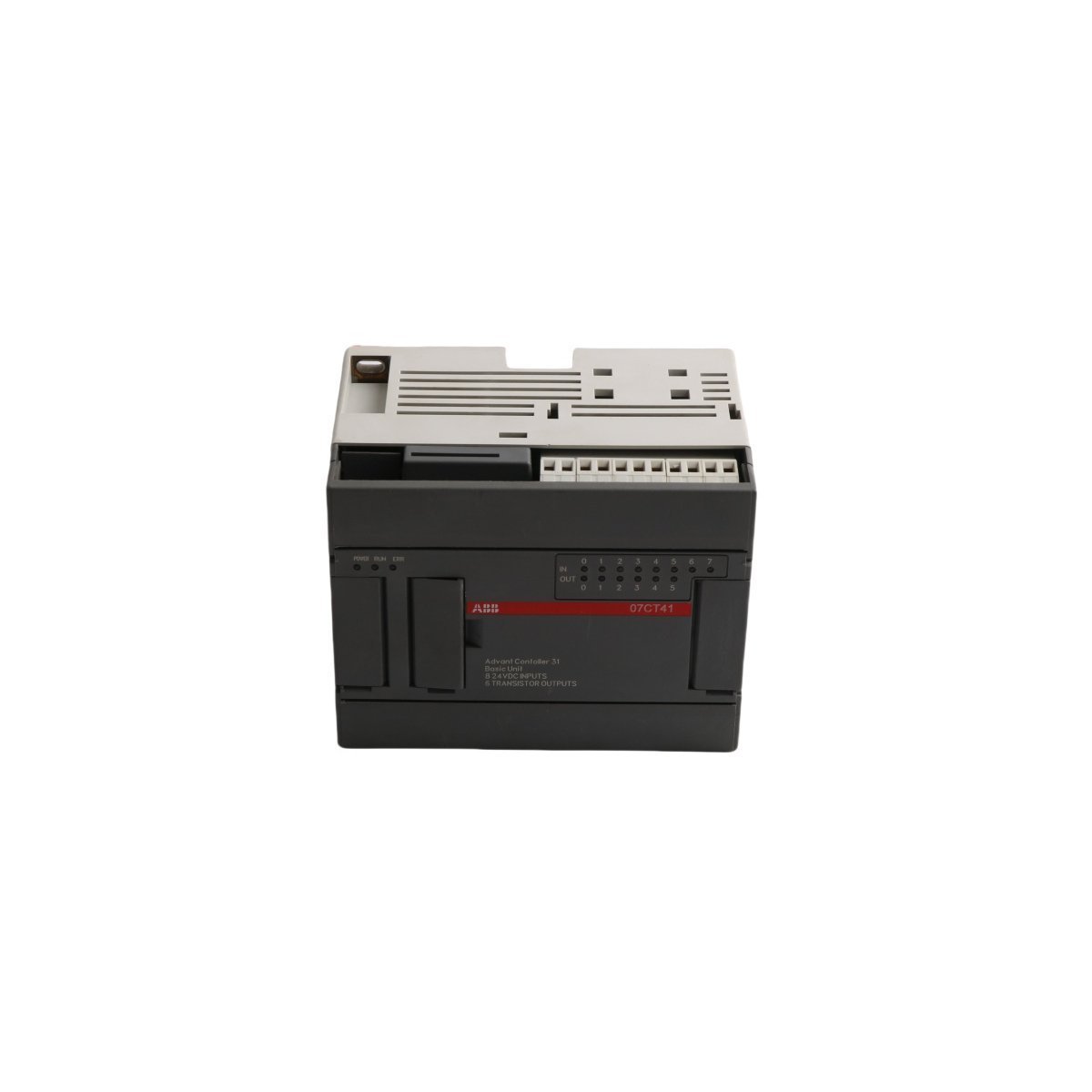

ABB 07CT41 1SBP260022R1001 Central Unit

The ABB 07CT41 1SBP260022R1001 serves as a high-performance central processing unit within the Advant Controller AC31 architecture. This hardware functions as an independent, stand-alone controller for localized automation tasks. However, its scalable design also allows it to operate as a decentralized node in extensive Distributed Control Systems (DCS). The unit manages logic execution with high precision, ensuring consistent cycle times for critical industrial processes. It provides the essential intelligence required to coordinate complex sequences and maintain system stability.

Integrated I/O and Electrical Design

This central unit features a built-in input and output configuration to streamline hardware requirements. It effectively bridges the gap between digital field signals and control software.

• Digital Inputs: 8 isolated channels rated for 24 V DC.
• Digital Outputs: 6 transistor outputs capable of 0.5 A per channel.
• Signal Protection: Galvanic isolation on inputs prevents electrical noise and interference.
• Output Technology: High-reliability transistors ensure fast, spark-free switching for connected loads.
• Power Supply: Operates on standard 24 V DC industrial power.

Technical Performance Characteristics

Reliability in Industrial Applications

The 07CT41 is engineered for durability in demanding environments. Its compact 12 cm width allows for installation in shallow control cabinets, saving valuable factory floor space. Moreover, the unit remains active in the ABB lifecycle, which guarantees availability for long-term maintenance projects. Engineers frequently deploy this unit in material handling, water treatment, and specialized machinery control because of its stable performance. Its robust casing and Swedish manufacturing standards ensure a long service life and minimal operational downtime.
