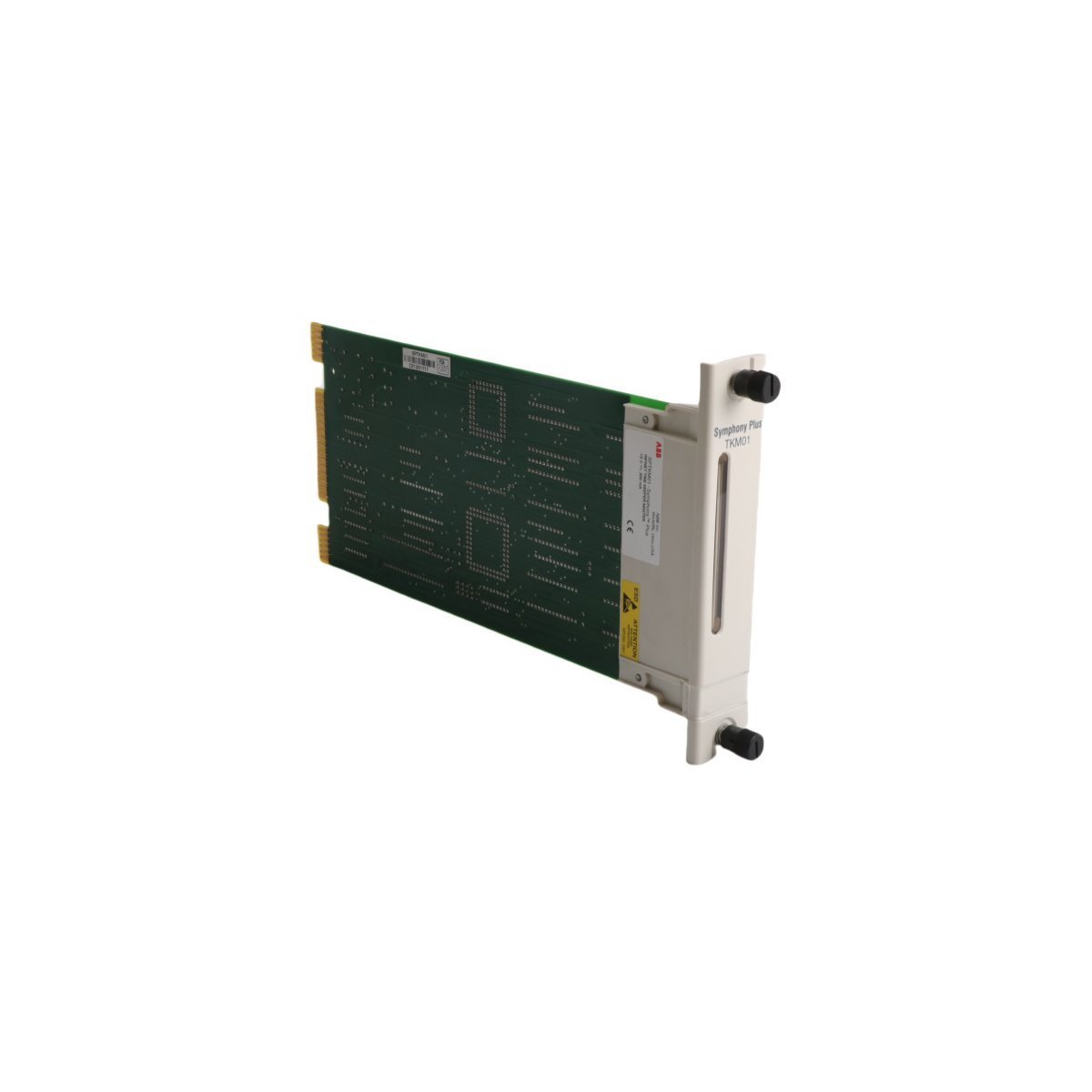

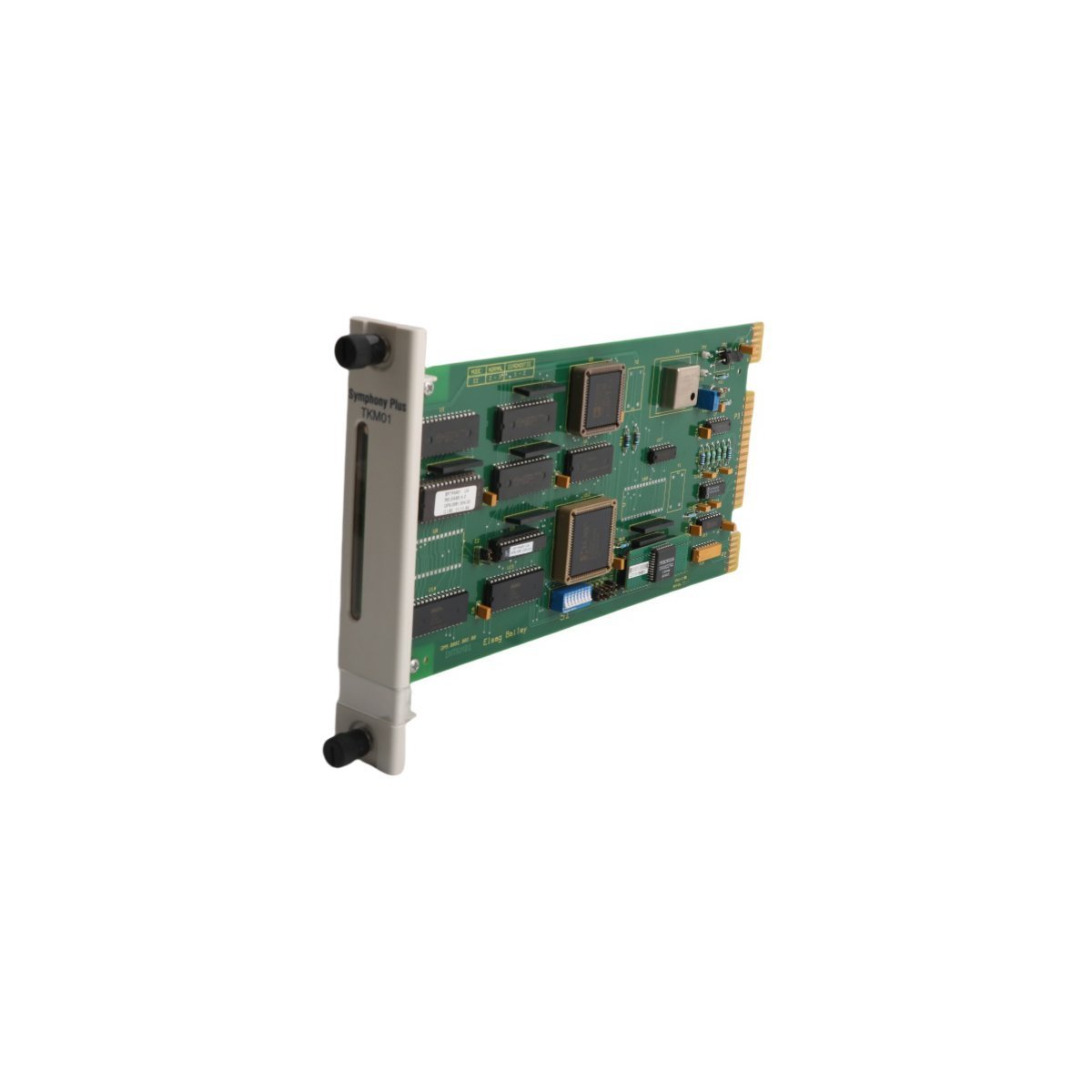

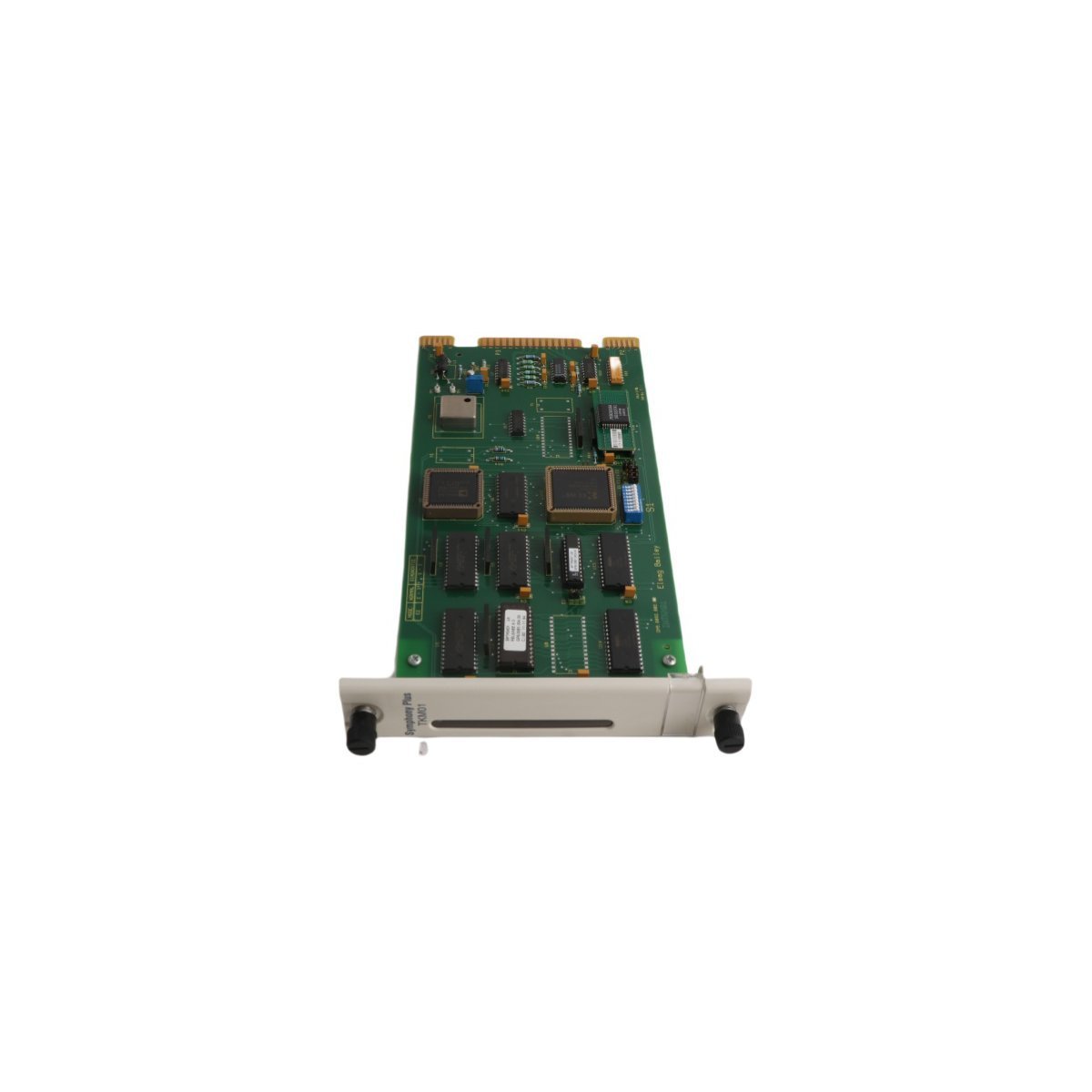

SPTKM01 ABB DCS SOE Synchronization Communication Circuit Board

WordPress Product Short Description

The ABB SPTKM01 is a genuine Sequence of Events (SOE) Time Keeper Master module designed for Symphony Plus distributed control systems. This premium hardware terminal coordinates high-resolution time synchronization across network nodes to enable flawless fault logging and diagnostic tracking.

Product Overview

The ABB SPTKM01 acts as the central time-synchronization anchor for Symphony Plus automation architectures. This module processes precision timestamps across distributed nodes to guarantee precise sequence-of-events recording.

Technical Specifications

• Manufacturer: ABB
• Model Number: SPTKM01
• Module Type: Sequence of Events (SOE) Time Keeper Master
• Product Line: Symphony Plus DCS
• Communication Interface: Ethernet Routing / Modbus RTU
• Harmonized System Code (HS Code): 8537101190
• Operating Temperature Limits: -20°C to +60°C
• Physical Dimensions: 3.5 cm x 31.0 cm x 17.6 cm
• Net Weight: 0.28 kg

Functional Characteristics

Precision Chronological Synchronization

The master module distributes microsecond-accurate clock signals to every connected I/O sub-rack. Because the system timestamps process disruptions in their exact order of occurrence, engineers isolate root fault causes instantly. This rapid determination protects large rotating assets from repetitive electrical stresses.

Non-Volatile Data Storage

Onboard high-capacity flash memory continuously captures long-term historical event sequences. Consequently, the board preserves critical diagnostic logs even during sudden logic power losses. This independent storage layer fulfills strict regulatory compliance rules for power grid monitoring.

Network Routing and Architecture Integration

Dual-purpose communication channels support native control network synchronization alongside standard Modbus RTU links. Therefore, the card seamlessly interfaces with third-party sequence loggers and plant control hubs. This flexible networking scheme simplifies system upgrades within diverse industrial environments.
