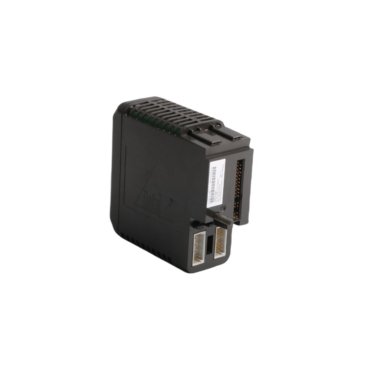

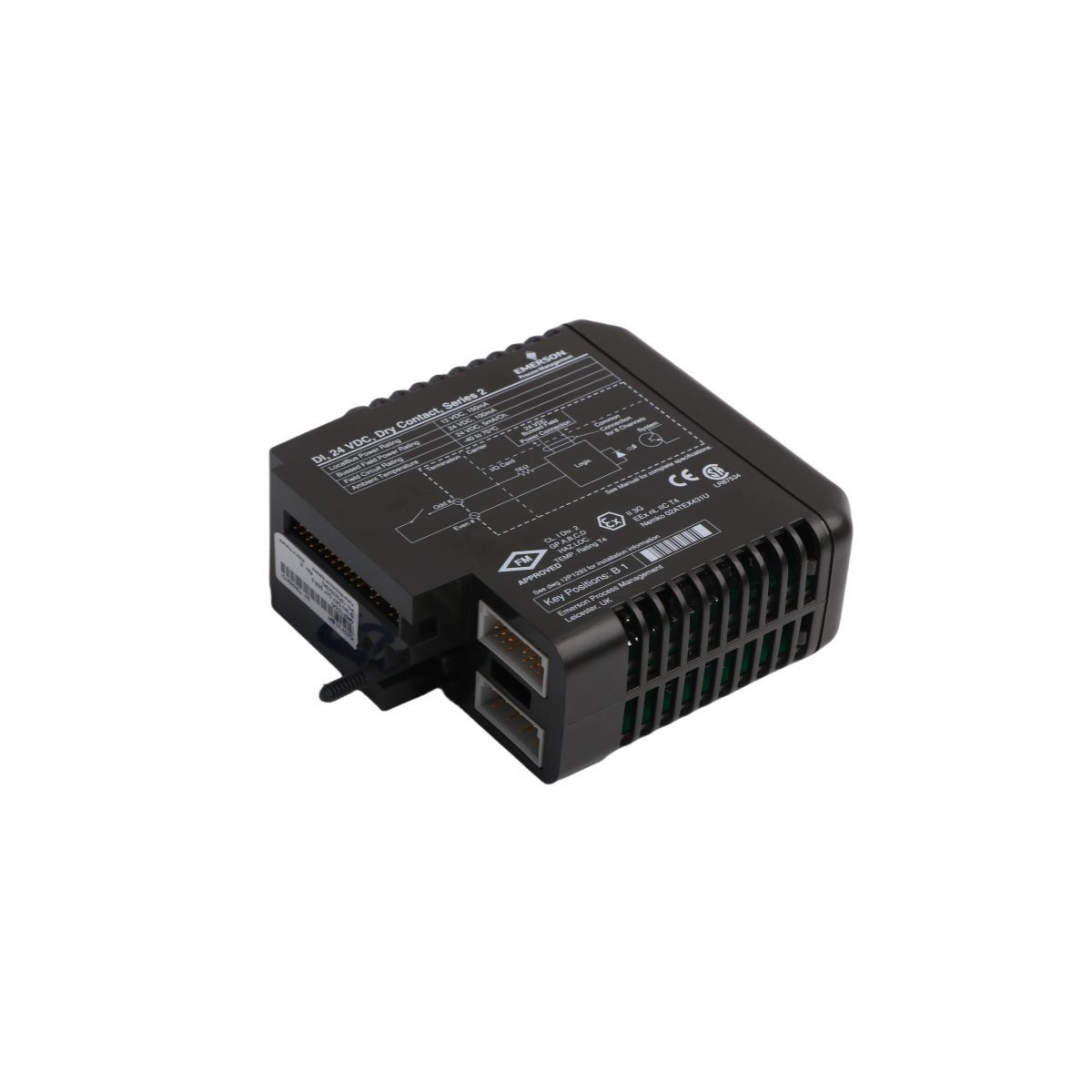

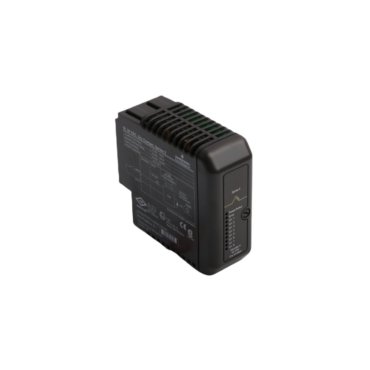

Emerson KJ3201X1-BK1 12P4692X042 SE4001S2T1B1 Digital Input Module

The Emerson KJ3201X1-BK1 serves as a high-integrity digital input interface for the DeltaV SIS platform. This S-series module specifically processes NAMUR sensor signals within safety instrumented systems. It provides eight channels of discrete monitoring for critical industrial processes. The rugged hardware design ensures reliable operation in demanding environments like oil refineries and power plants.

Functional Capability and Performance

The KJ3201X1-BK1 module translates field signals into digital data for the safety controller. It utilizes localbus power efficiently to maintain system communication. This hardware facilitates precise detection of switch states and sensor health. Consequently, the module supports advanced diagnostics for sensing line faults. The 8-channel architecture allows for high-density I/O configurations in standard carriers.

Safety and Installation Protocols

Emerson incorporates a specialized rotary keying system into the S-series design. This mechanism prevents the accidental insertion of incorrect I/O cards into terminal blocks. Furthermore, users must de-energize all field circuits before performing hardware swaps. The module accommodates energy-limited nodes after a proper I/O loop assessment. These features collectively protect both the automation equipment and plant personnel.

Maintenance and Lifecycle

The KJ3201X1-BK1 requires no manual calibration during its operational life. The internal circuitry contains no user-serviceable components to ensure long-term reliability. This maintenance-free design reduces total cost of ownership for industrial facilities. Moreover, the module remains an active part of the Emerson DeltaV safety portfolio. It provides a dependable solution for mission-critical automation and emergency shutdown tasks.

Technical Specifications
