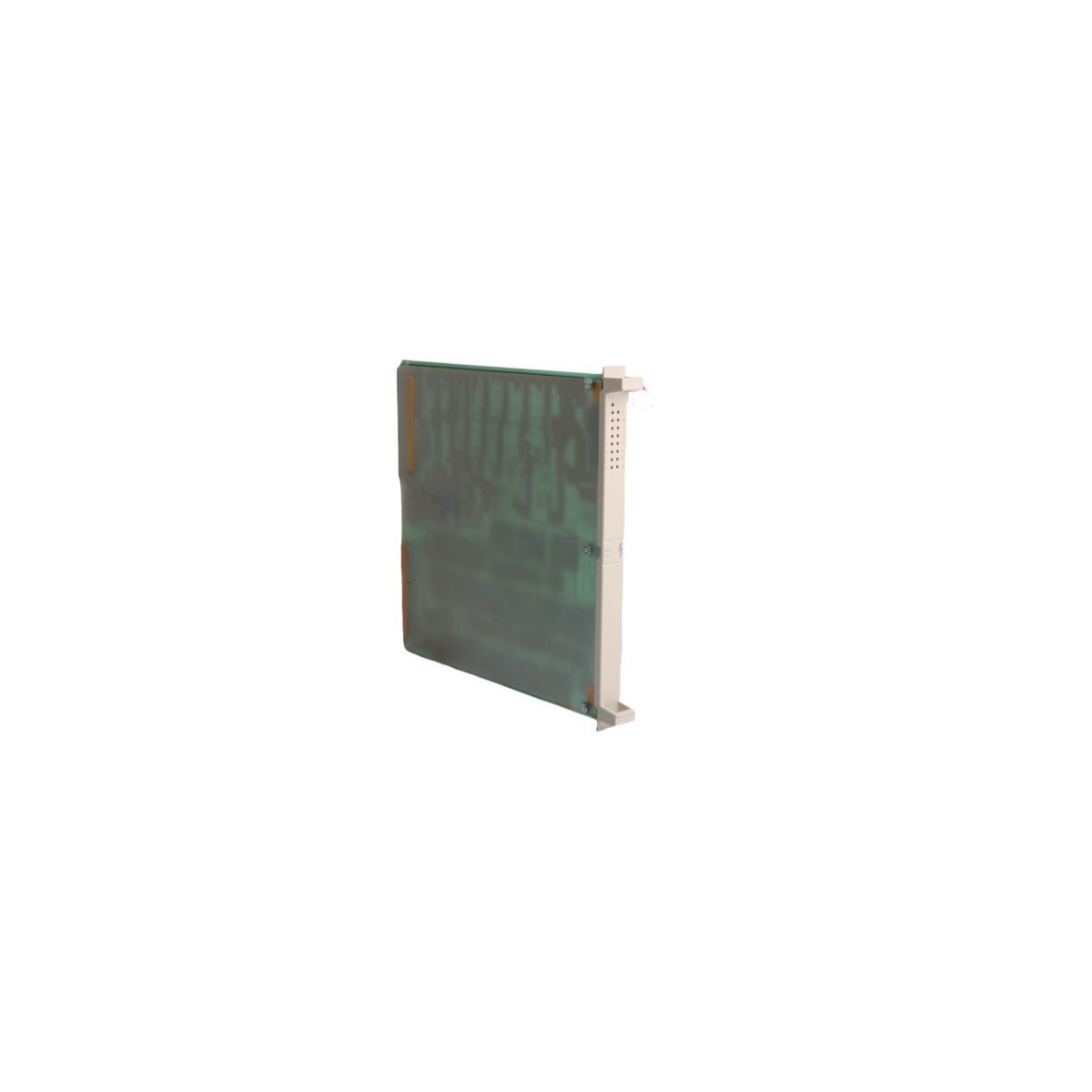

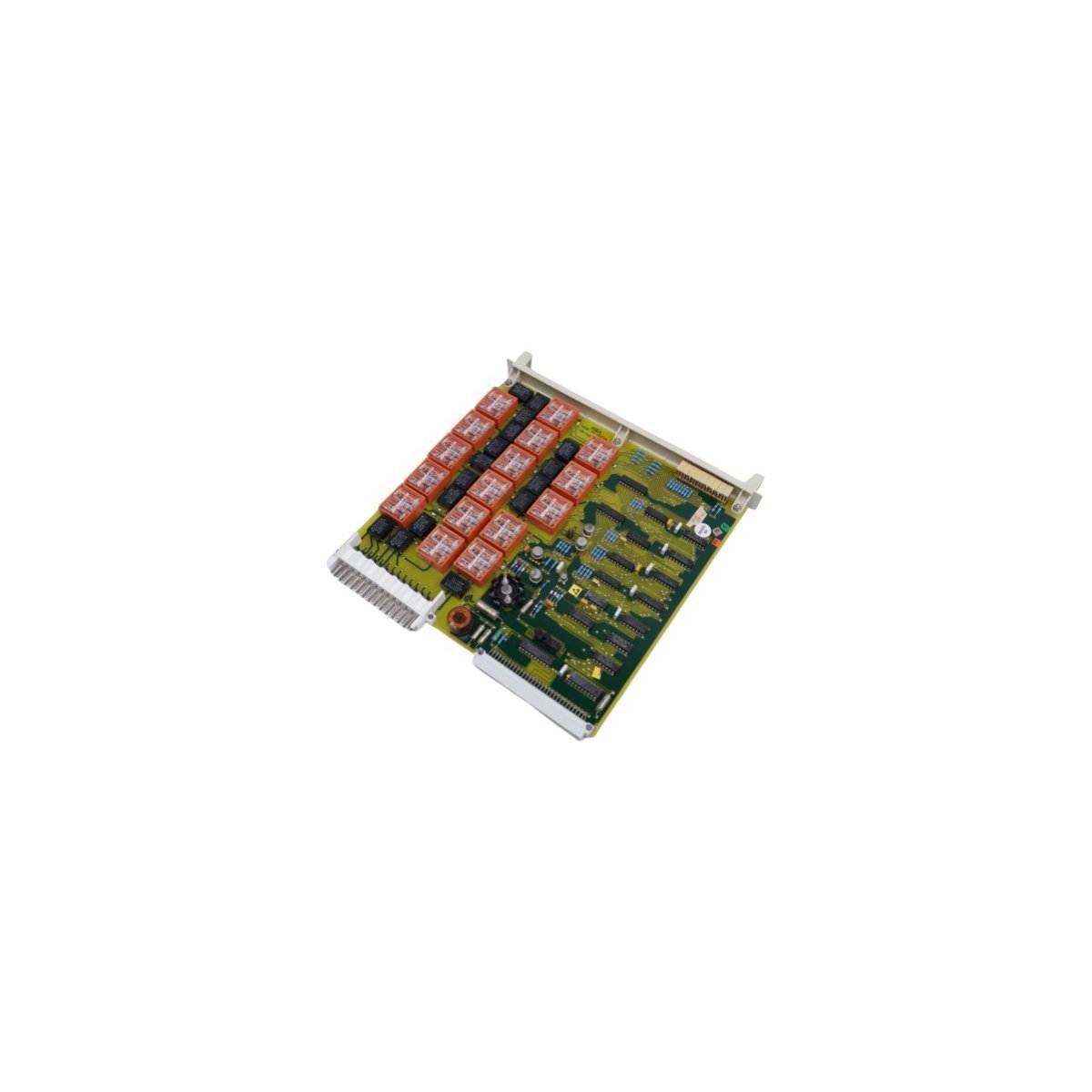

ABB DSDO131 57160001-KX Digital Output Unit Module

The ABB DSDO131, identified by part number 57160001-KX, is a high-reliability digital output unit designed for the S100 I/O system. This module functions as a critical interface within a Distributed Control System (DCS), converting internal processor commands into discrete signals to manage field-side equipment. It provides multiple isolated channels for the switching of external loads, ensuring that control logic is executed with precision while maintaining electrical separation between the system backplane and industrial field devices.

Industrial Applications

• Manufacturing Control: Triggering pneumatic actuators, solenoid valves, and indicator lamps on assembly lines.
• Process Automation: Managing motor starters and interlock sequences in chemical and material handling plants.
• Energy Management: Executing switchgear commands and status signaling in power distribution centers.
• Pulp and Paper: Controlling discrete sprayers and motorized dampers in continuous processing environments.

Essential Specifications
